Cypress Technology

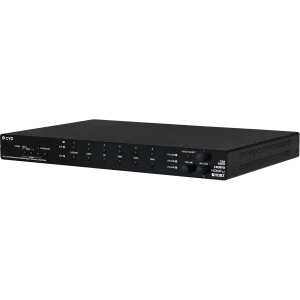

CSC-8000
Supports standard PoH (PSE) from both HDBaseT input and output to the connected HDBaseT (PD) transmitter and receiver (compatible transmitter/receiver only), HDBaseT output transmits video and audio over a single Cat.5e cable of 1080p up to 90m/295ft for input and 70m/230ft for output,Cat.6a cable 100m/328ft at 4K@30, Supports HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control(Bidirection IR/RS-232/USB pass through), Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers, USB Type-C port provides up to 60W of power to connected device, High performance and efficient Class-D amplifier (20W per channel), Microphone input supports optional 48V or 5V phantom power, 6 video inputs (1×USB-C, 1×HDBaseT, 3×HDMI, 1×DisplayPort) and 2 video outputs(HDMI & HDBaseT), 15 audio sources(10 audio inputs and 5 mixers) can be routed independently to any of the 5 audio outputs, Audio mixer function allows the mixing of audio from any 4 LPCM 2.0 audio sources, including the microphone inputs with auto-gain functionality, Adjustable gain control for individual audio sources and volume control for any outputs, Multiple USB hosts may be connected at once (up to 4 total, between the unit and compatible Tx/Rx) with a single selected host active at a time, Supports manual input selection or automatic input selection for video and usb, with hot plug detection and “Last Memory” feature, Seamless switching (no loss of sync to display), Comprehensive EDID and HDCP management, HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically color space converted to fit within the available bandwidth, Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C, DP) and output (HDMI), HDBaseT 2.0 compatible, HDMI 2.0, DisplayPort 1.4 compliant, HDCP 1.x and 2.2 compliant
Cypress Technology: CSC-8000
