CDPW-K3EP Series

1-Gang (US or EU/UK) wall plate design with customizable tri-color LED buttons, Can be powered by an Ethernet switch that supports the IEEE 802.3af PoE standard (Optional), Supports up to two years of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss, Controllable via keypad, RS-232, Telnet and WebGUI, Users can upload custom icons and standard text for macro settings, 32 macros for controlling user equipment, Up to 128 total commands can be stored and used across all macros in the system, Supports customizable daylight savings time configuration, Supports condition checking within macro commands for expanded macro design flexibility, Supports time and date macro scheduling (single and recurring), Built-in light sensor automatically adjusts screen brightness, E-paper display for flexible application, Firmware update via micro USB and WebGUI

Hersteller-Nr.	CDPW-K3EP Series
Hersteller	Cypress Technology

This E-Paper display keypad is a versatile and useful product for both system integrators and smart home users. It can send commands to any Ethernet-controlled device in your system. E-paper display enables users to upload icons and output English and numeric text in preference for different macro settings. With 8 touch macro buttons and additional 24 software macro buttons, users can program and recall up to 32 distinct macros providing for complete control over your audio and video environment. Additionally, it can store up to 128 commands and can be used for projector control in a meeting rooms or for environmental control over audio and video.

Primary control is via a comprehensive WebGUI interface, complemented by Telnet commands. The built-in clock and calendar-based scheduling feature enables triggering macros to control devices at specific times or on a recurring schedule, enhancing automation within your installation.

The touch buttons feature vibrant RGB LED lighting, making them suitable for any environment. With PoE (Power over Ethernet) support, users can place the E-paper display keypad creatively without needing proximity to a live power source. A built-in light sensor automatically adjusts screen brightness based on your surroundings, ensuring optimal visibility and comfort in any lighting condition.

Interfaces

Control Interface

8×Touch Buttons

Control Ports

1×IP Control (RJ-45)

1×RS-232 (4-pin Terminal Block)

Service Port

1×USB 2.0 (Micro USB)

Power

Power Supply

5V/2.6A DC (Optional)

(US/EU standards, CE/FCC/UL certified)

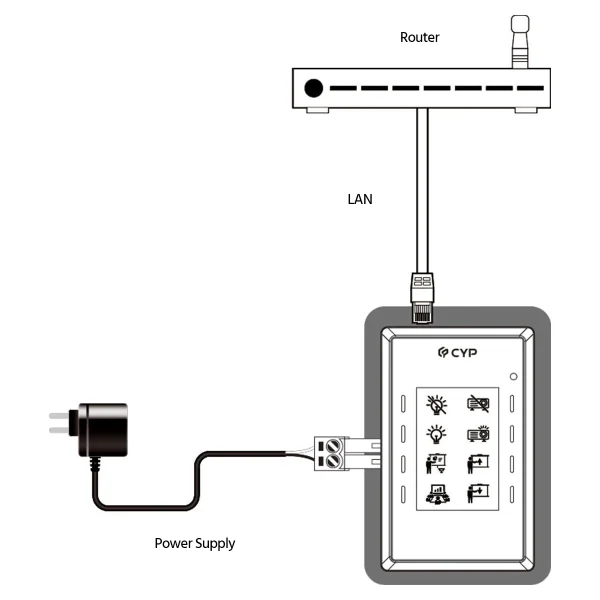

or PoE (802.3af)

Power Consumption

2.5 W (Adapter)

3.5 W (PoE)

Enclosure
Chassis Material	Metal (Alumimum) & Plastic

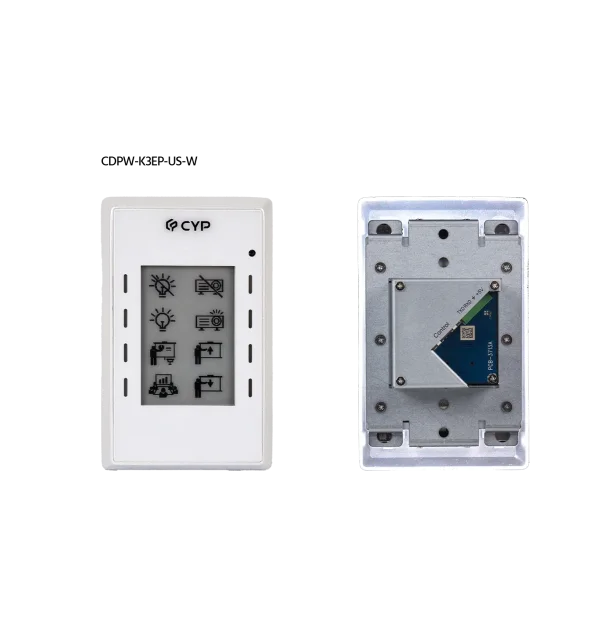

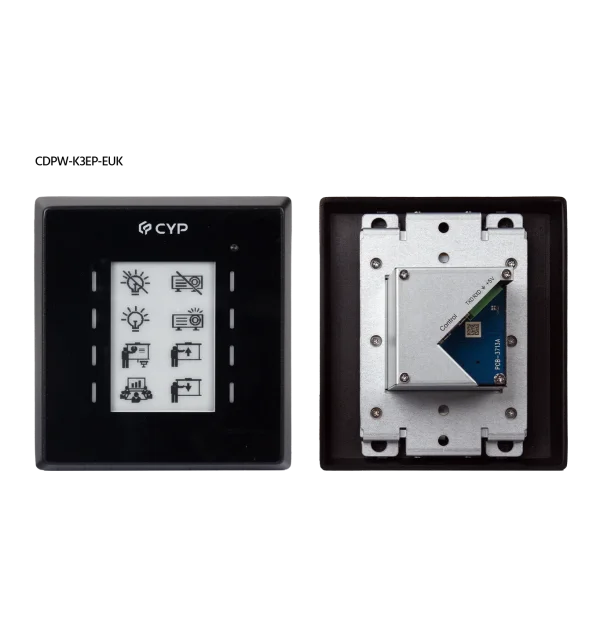

Chassis Color	Black or White
Dimensions (W×H×D)	US 71.66mm×114.66mm×31.9mm [Case Only] 71.66mm×114.66mm×42.9mm [All Inclusive] EUK 97.15mm×107.15mm×31.9mm [Case Only] 97.15mm×107.15mm×42.9mm [All Inclusive]
Weight	145g

Field Firmware Update
USB Flash Drive, WebGUI

ORDERING INFORMATION

Model No.	Product Description
CDPW-K3EP-US	IP Keypad with E-Paper Display and Touch Buttons (US Faceplate, Black)
CDPW-K3EP-US-W	IP Keypad with E-Paper Display and Touch Buttons (US Faceplate, White)
CDPW-K3EP-EUK	IP Keypad with E-Paper Display and Touch Buttons (EU/UK Faceplate, Black)
CDPW-K3EP-EUK-W	IP Keypad with E-Paper Display and Touch Buttons (EU/UK Faceplate, White)
ADP-0274AEGS00CB	5V/2.6A Adapter
