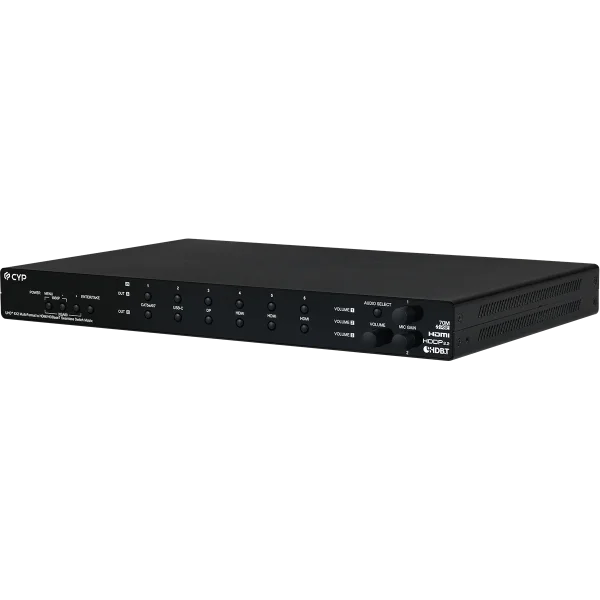

CSC-8000

Supports standard PoH (PSE) from both HDBaseT input and output to the connected HDBaseT (PD) transmitter and receiver (compatible transmitter/receiver only), HDBaseT output transmits video and audio over a single Cat.5e cable of 1080p up to 90m/295ft for input and 70m/230ft for output,Cat.6a cable 100m/328ft at 4K@30, Supports HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control(Bidirection IR/RS-232/USB pass through), Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers, USB Type-C port provides up to 60W of power to connected device, High performance and efficient Class-D amplifier (20W per channel), Microphone input supports optional 48V or 5V phantom power, 6 video inputs (1×USB-C, 1×HDBaseT, 3×HDMI, 1×DisplayPort) and 2 video outputs(HDMI & HDBaseT), 15 audio sources(10 audio inputs and 5 mixers) can be routed independently to any of the 5 audio outputs, Audio mixer function allows the mixing of audio from any 4 LPCM 2.0 audio sources, including the microphone inputs with auto-gain functionality, Adjustable gain control for individual audio sources and volume control for any outputs, Multiple USB hosts may be connected at once (up to 4 total, between the unit and compatible Tx/Rx) with a single selected host active at a time, Supports manual input selection or automatic input selection for video and usb, with hot plug detection and “Last Memory” feature, Seamless switching (no loss of sync to display), Comprehensive EDID and HDCP management, HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically color space converted to fit within the available bandwidth, Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C, DP) and output (HDMI), HDBaseT 2.0 compatible, HDMI 2.0, DisplayPort 1.4 compliant, HDCP 1.x and 2.2 compliant

Hersteller-Nr.	CSC-8000
Hersteller	Cypress Technology

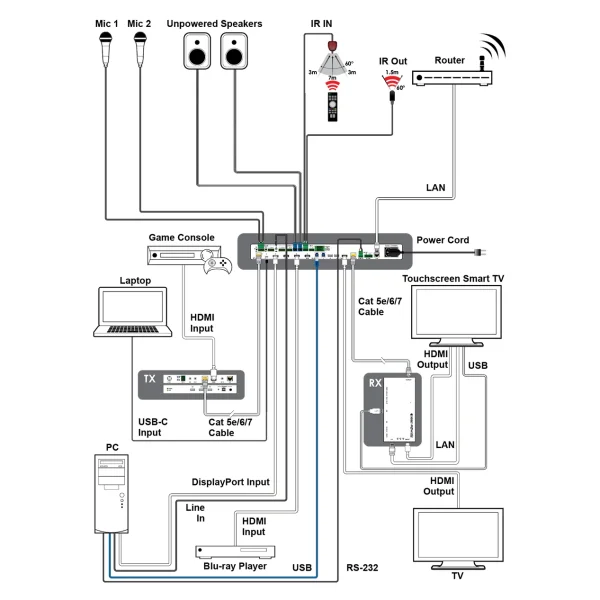

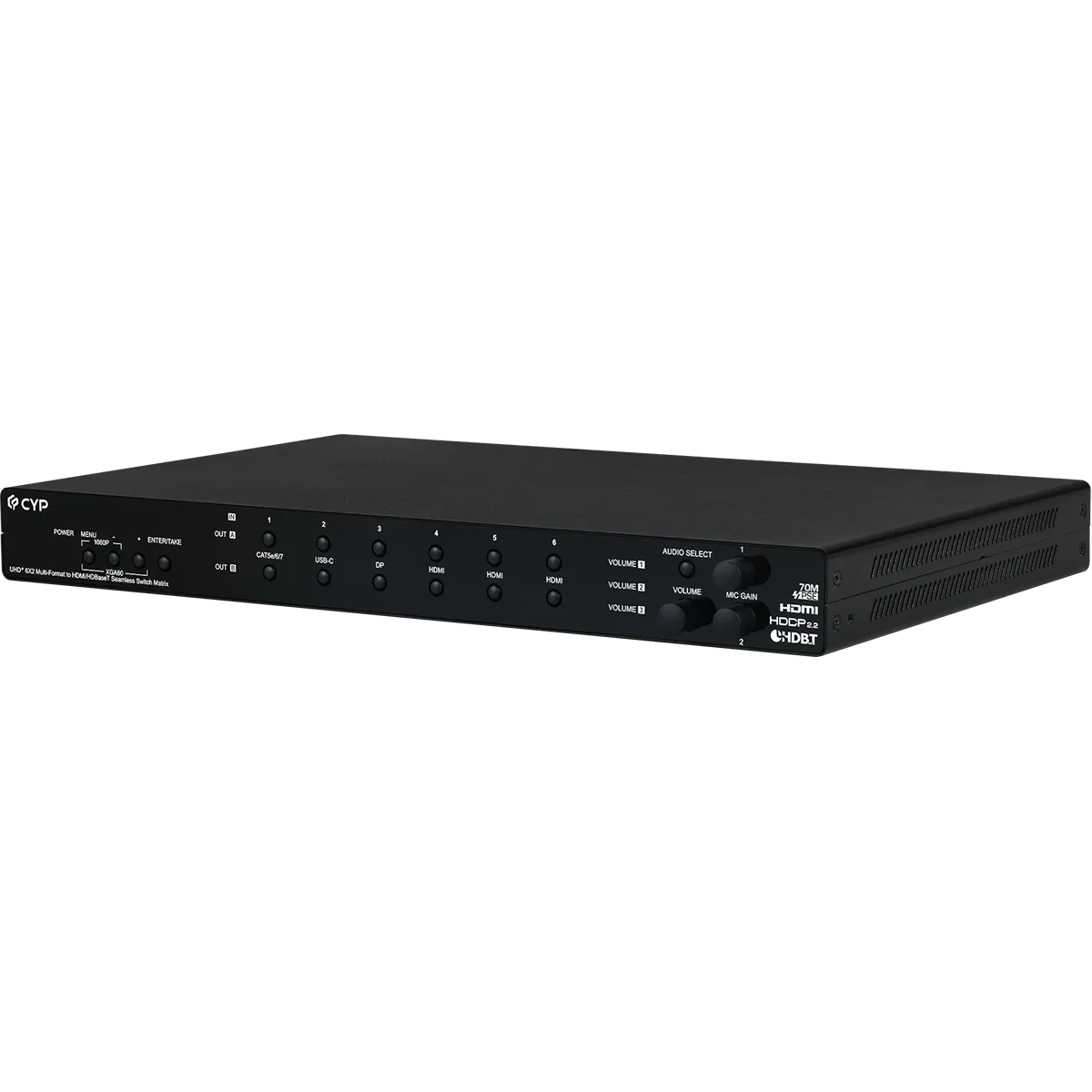

This 6 by 2 Matrix is a multi-format switcher with integrated scaling featuring HDMI, DisplayPort, USB Type-C, and HDBaseT. The selected source (video & audio) can be transmitted over Cat.6A cable up to 100 meters along with bi-directional Ethernet, RS-232, USB, and IR as well as providing 48V PoH power to compatible HDBaseT transmitter and receiver. The HDMI, DisplayPort and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0).

This unit also includes multiple analog stereo audio inputs and two microphone inputs along with an amplified analog stereo output to provide a range of audio routing and mixing flexibility. The built-in audio mixer function allows the user to mix audio from any analog input with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and nonmixed audio greatly simplifies the presentation experience.

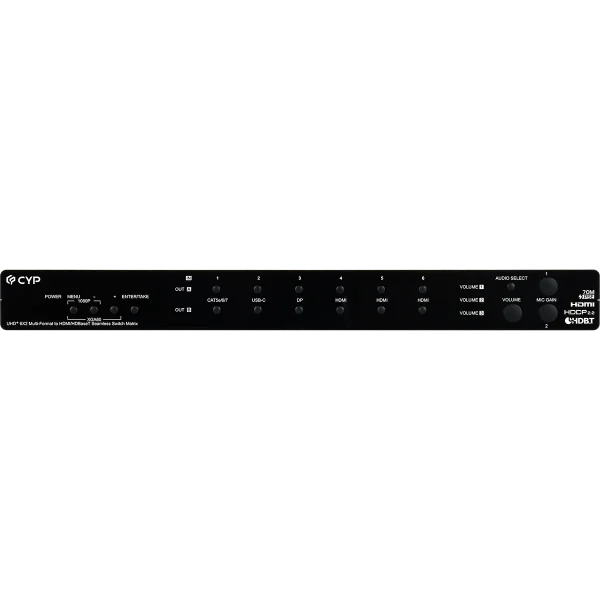

Standard control is available via front panel buttons with an On-Screen Display(OSD), RS-232, Telnet, and WebGUI making it exceptionally versatile.

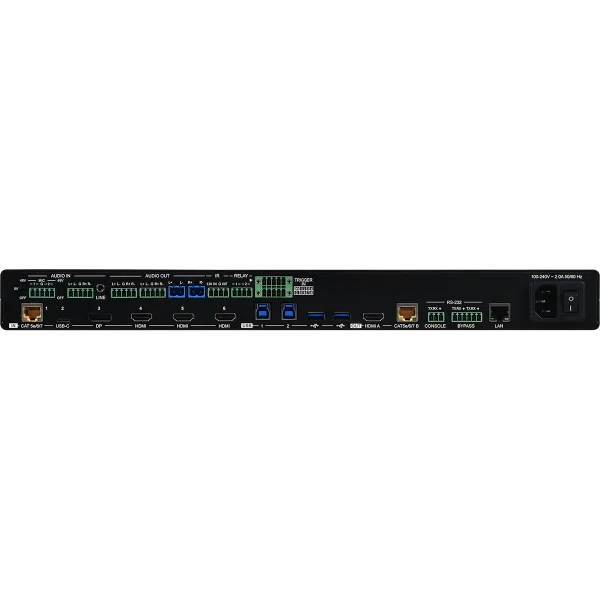

Interfaces
Input Port	3×HDMI (Type-A) 1×DisplayPort 1×USB (Type-C) 1×HDBaseT (RJ-45) 1×Stereo Audio (3.5mm) 1×Stereo Audio (5-pin Terminal Block) 2×Microphone (5-pin Terminal Block)
Output Port	1×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Stereo Audio Class D amplifier (2x2-pin Terminal Block) 2×Stereo Audio (5-pin Terminal Block)
Pass-through Port	1×IR Extender & Blaster (4-pin Terminal Block) 1×RS-232 (6-pin Terminal Block) 2×Power Relay (2-pin Terminal Block) 2×USB (Type-A) 1×USB (Type-B)
Pass-through/ Control Port	1×LAN (RJ-45)
Control Port	1×RS-232 (3-pin Terminal Block) 1×Trigger (10-pin Terminal Block)
Pass-through/ Service Port	1×USB (Type-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
	USB-C	4096×2160p@60 YUV 4:4:4
	DP	4096×2160p@60 YUV 4:4:4
	HDBaseT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60 YUV 4:4:4
	HDBaseT	4096×2160p@60 YUV 4:2:0

Audio
Digital Formats	LPCM (2 Channels, 48kHz)
Mic Input	50mVrms
Analog Input (5-pin Terminal Block)	4Vrms
Analog Input (3.5mm)	2Vrms
Analog Output (5-pin Terminal Block)	4Vrms
	THD+N	< −60dB@0dBFS 1kHz (A-wt)
	SNR	> 70dB@0dBFS
	Frequency Response	< ±3dB@20Hz~20kHz
	Crosstalk	< −60dB@10kHz
Analog Output (Amplified Output)	20W+20W
	THD+N	< −60dB@0dBFS 1kHz (A-wt)
	SNR	> 70dB@0dBFS
	Frequency Response	< ±3dB@20Hz~20kHz
	Crosstalk	< −60dB@10kHz

Power
Power Supply	100~240V AC
Power Consumption	156W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	438mm×269mm×44mm [Case Only] 482mm×292mm×49mm [All Inclusive]
Weight	4035g

Field Firmware Update
PC, WebGUI

RDERING INFORMATION

Model No.	Product Description
CH-2606TX	4K60 HDMI to HDBaseT Transmitter with USB
CH-1602RX	HDMI over HDBaseT Receiver with Optical Audio Return (OAR)
