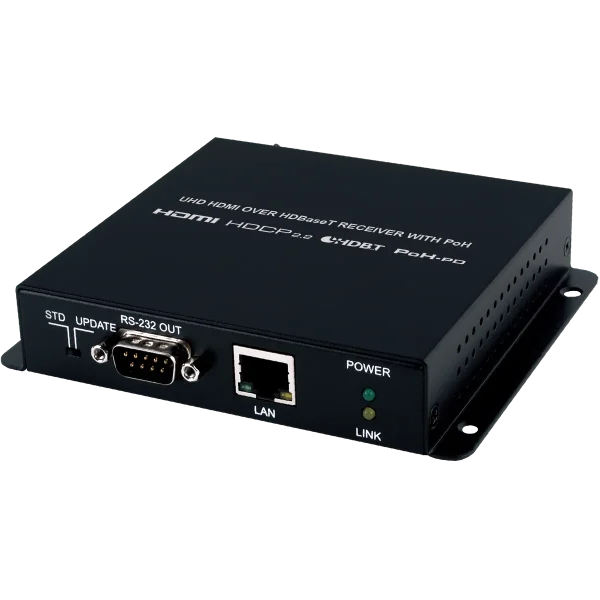

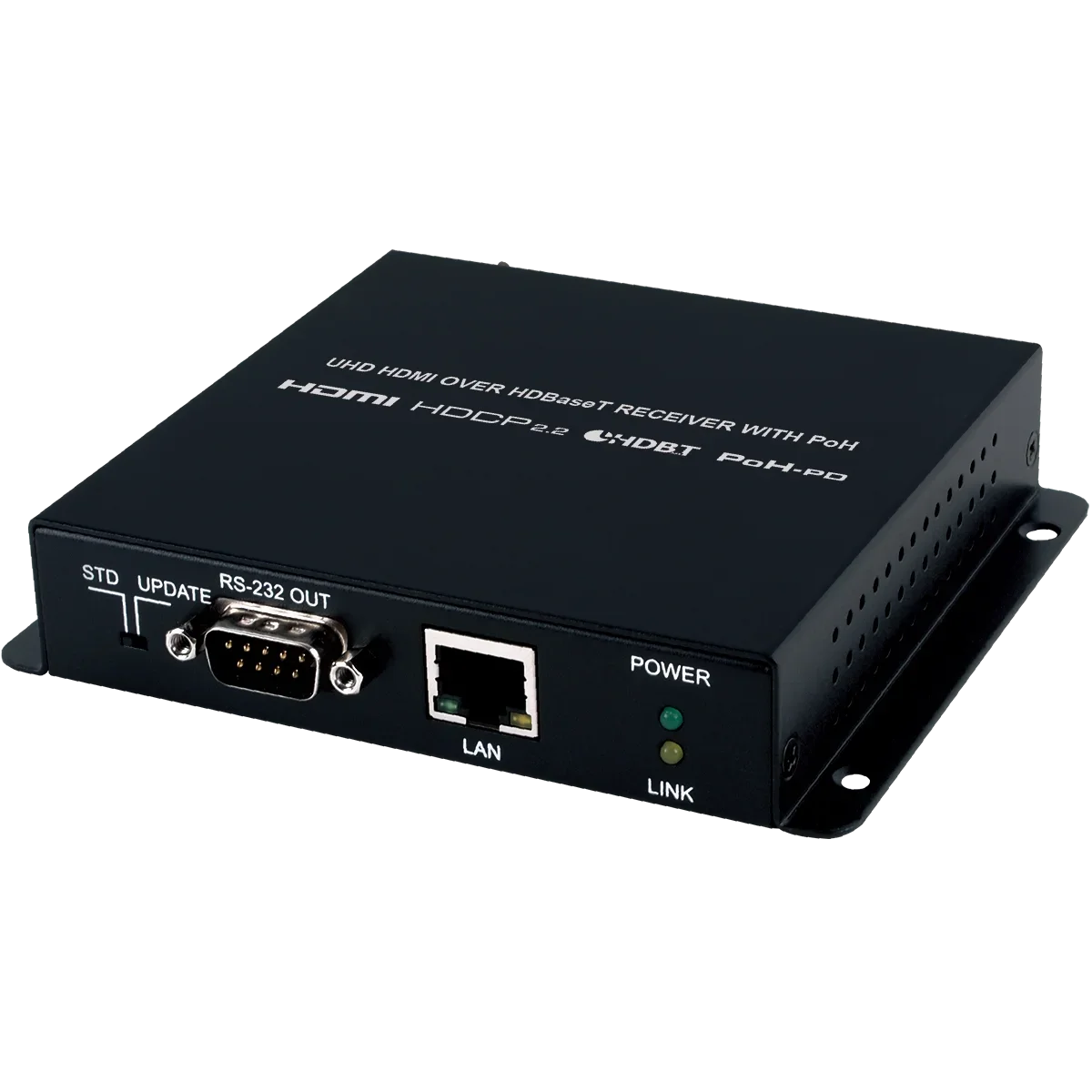

CH-1527RX

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, RS-232 with baud rate up to 115200/sec, Supports wide range of IR frequency from 30~50kHz, HDMI with 3D, 4K2K support, HDMI & DVI Compliant, Supports CEC bypass, Simultaneous reception of uncompressed data over a single 100m/328ft CAT5e/6/7 cable, 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232), Supports resolution up to 4K2K@50/60 & YUV 4:2:0 and 21:9, Supports standard 48V from Transmitter (PSE) to Receiver (PD), Installation Friendly, Supports HDMI Output cable distance up to 5m at 4K2K@50/60 & YUV 4:2:0, Note: Displaying HDMI 3D and 4K2K contents, equivalent source signal and HDMI cable are required in order to secure the quality.

Hersteller-Nr.	CH-1527RX
Hersteller	Cypress Technology

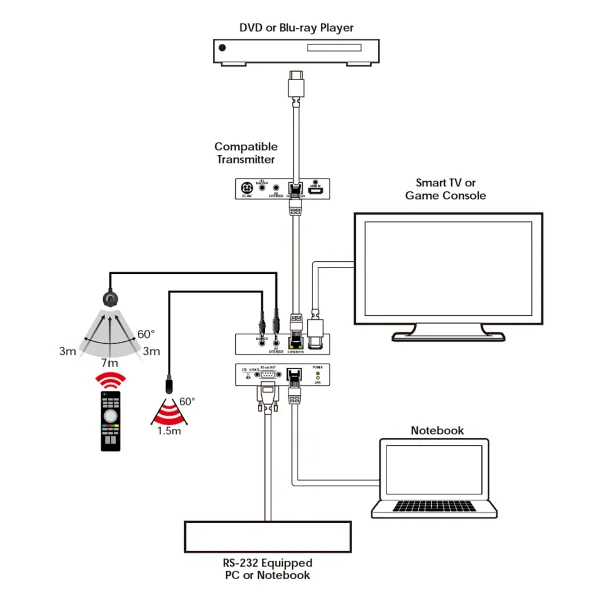

The HDMI over single CAT5e/6/7 Receiver can receive uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.

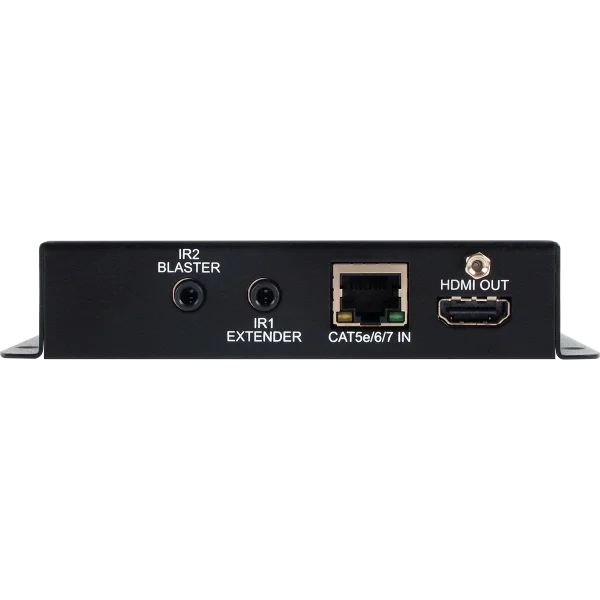

Interfaces
Input Port	1 x CAT5e/6/7 (RJ-45)
Output Port	1 x HDMI (Type-A)

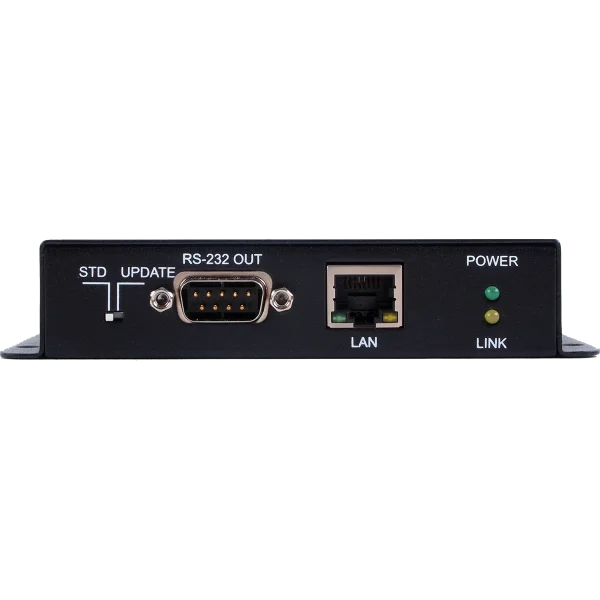

Control I/O	1 x LAN (RJ-45)
Pass-through Port	1 x IR Extender (3.5mm) 1 x IR Blaster (3.5mm) 1 x RS-232 (3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.X
Input Signal Types	4K@60 8bit YUV 4:4:4
Output Signal Type	4K@60 8bit YUV 4:2:0

Audio
HDMI	LPCM 8 channe Bitstream High-Defi nition Bitstream

Resolutions
Maximum Input	HDBaseT	4096x2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU Standards, CE/FCC/ UL certifi ed)
Power Consumption	13.5w (Include Transmitter)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	108mm (W) x 108mm (D) x 25mm (H) 108mm (W) x 116mm (D) x 29mm (H)
Weight	366g

Field Firmware Update
Interface	PC Update, WebGUI

Ordering Information
Model No.	Product Description
CH-1527RX	UHD HDMI over HDBaseT Receiver with PoH
CH-1527TX	UHD HDMI over HDBaseT Transmitter with PoH

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
