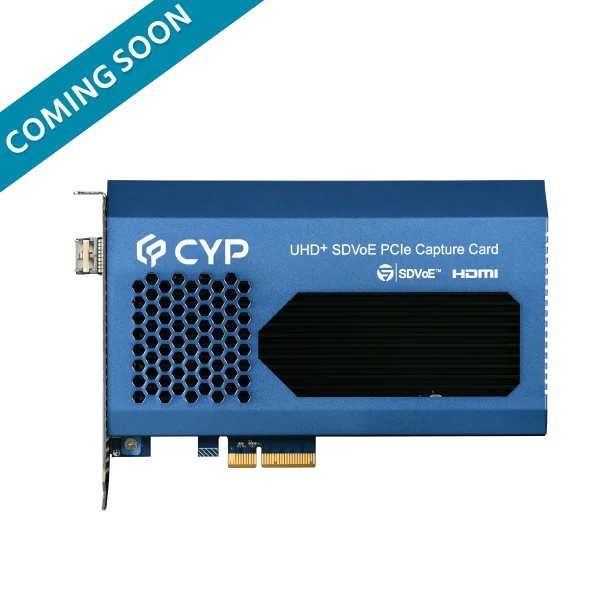

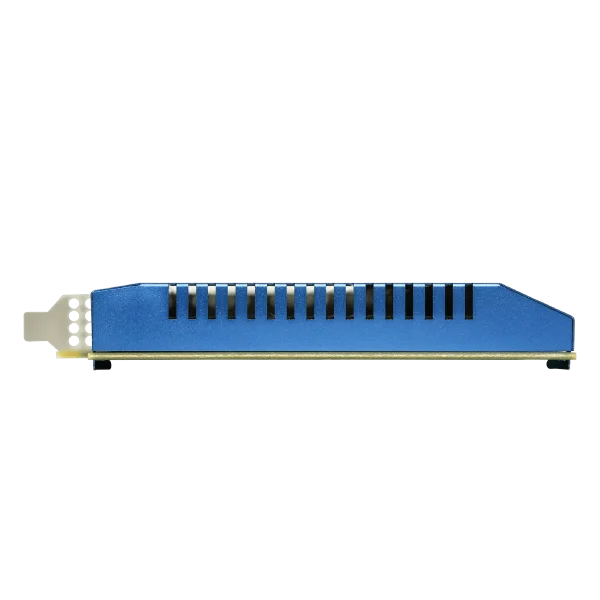

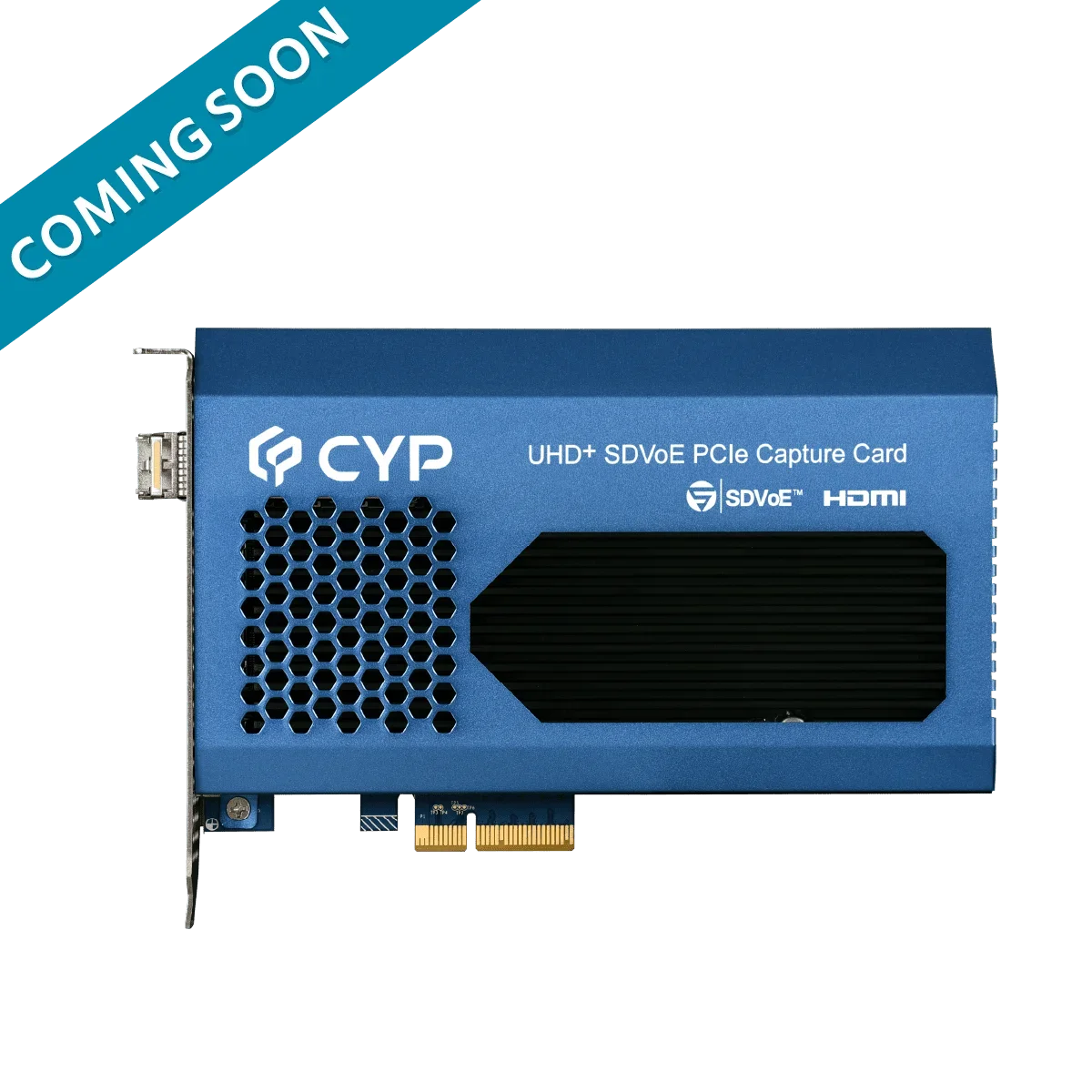

AVIP-P3100R-F

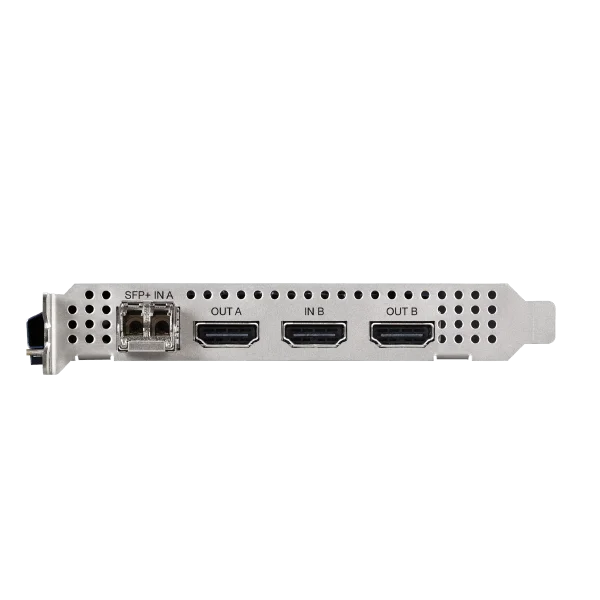

1 HDMI and 1 SFP+ input port, 2 HDMI bypass outputs for each input, Inputs and outputs supports 18Gbps 4K@60 with HDR, Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI(IEEE 802.3) compatible SFP+ fiber modules, 4K@60 Extension up to 120km (maximum distance depends on the SFP+ module and type of fiber used), Supports installation into PCs with an available PCIe Gen3 (x4), or better card slot, Video Capturing supports up to 4K@60Hz (4:4:4, 8-bit), 4K sources that exceed the maximum capture bandwidth are automatically converted to 4K@60Hz (4:2:0, 8-bit) prior to capture while being passed to the outputs unmodified, Supports capture using the following PC color formats: YUY2, UYVY, RGB565, RGB888, NV12, and YV12, Simultaneous Dual-Source Capture, Supports the Free OBS (Open Broadcaster Software) and CYP capturing software which is available for Windows 10 (or later), Supports capture of stereo audio from both inputs (LPCM 2.0)Note: Bitstream audio sources will be automatically muted during capture, SFP+ receiver supports the use of an external control center (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information), SFP+ receiver supports IP routable with minimum latency (requires optional IP Master Controller or control software), SFP+ receiver supports independent breakaway A/V matrix switching with minimum latency and multi-view compositing (requires optional IP Master Controller/control software), HDCP 2.2 and HDCP 1.x compliantNote: Video capture of sources using HDCP encryption is not supported,
