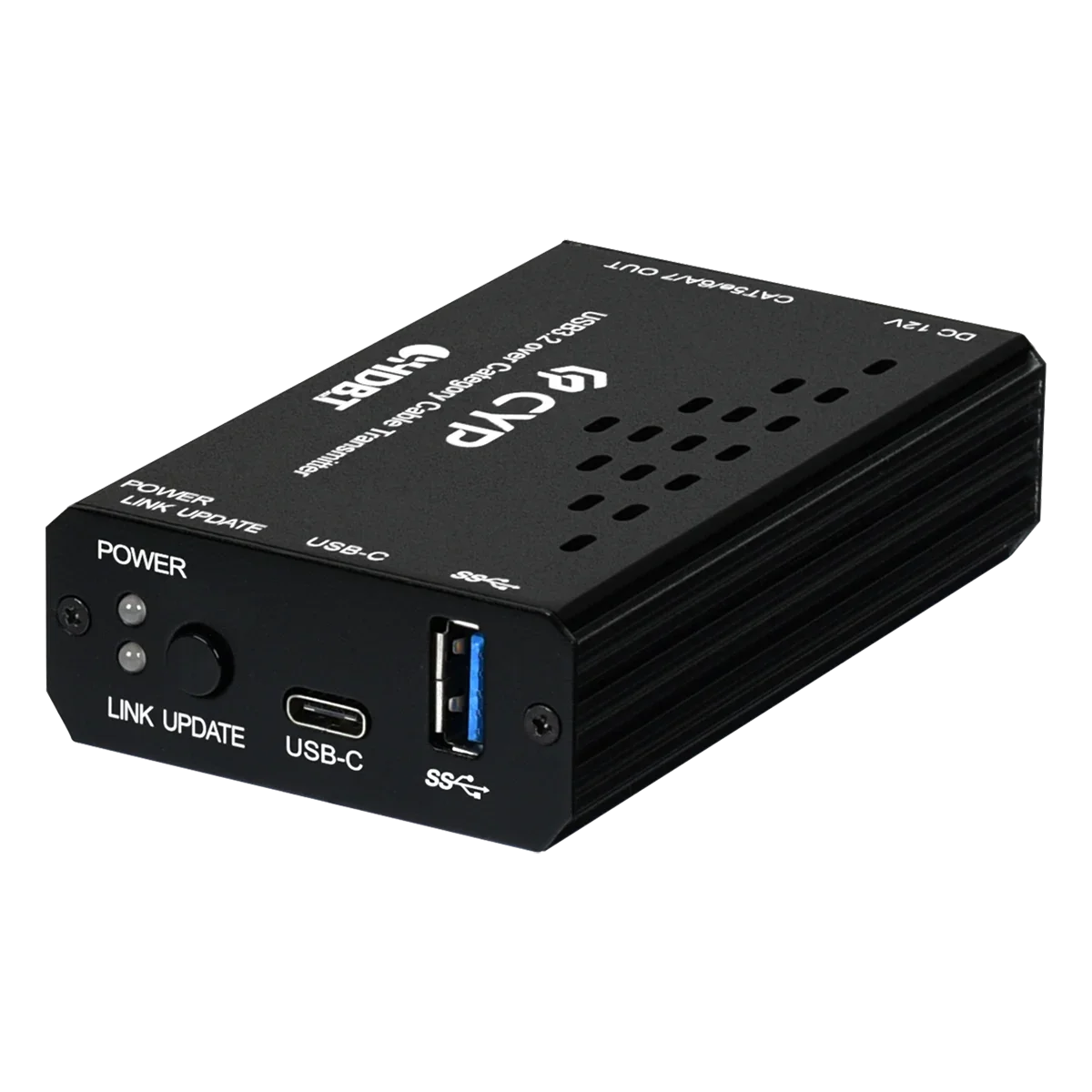

CH-730TX

Support USB 3.2 Gen1 with 1 USB-C host port and 1 USB-A device port, Support Point-to-Point transmission, Transmission up to 100 meters (328 feet), The transmitter can be powered by a connected host such as a computer or laptop, The host can control multiple USB devices on transmitter side and receiver side, Firmware update with hotkey from the transmitter, enabling remote firmware updates to the receiver., Backward compatible with USB 2.0

Hersteller-Nr.	CH-730TX
Hersteller	Cypress Technology

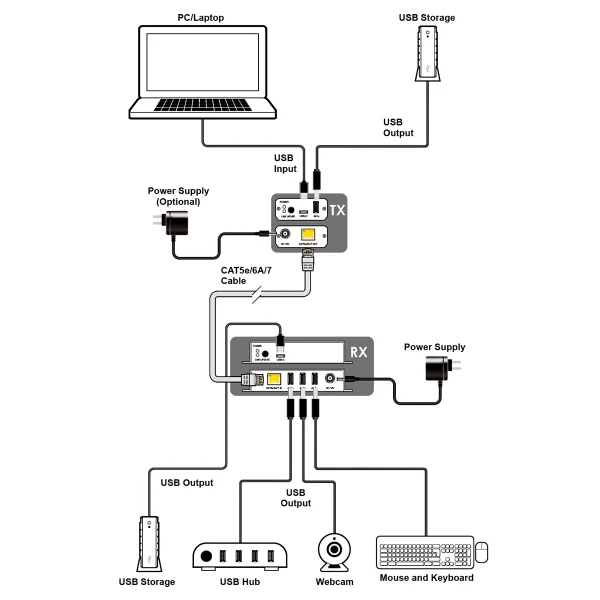

This USB 3.2 Gen1 extender set is designed to extend signal from one USB host to multiple USB devices for up to 100 meters (328 feet) when paired with receiver from the homologous series. This transmitter enables the extension from the USB-C host to a local USB device and USB devices on the receiver.

The transmitter can be powered by a connected host device such as a computer or laptop, without the need for an external power adaptor. Type-A port can provide up to 5V/900mA (4.5W) power when unit is active. The unit also has a hotkey for convenient firmware update.

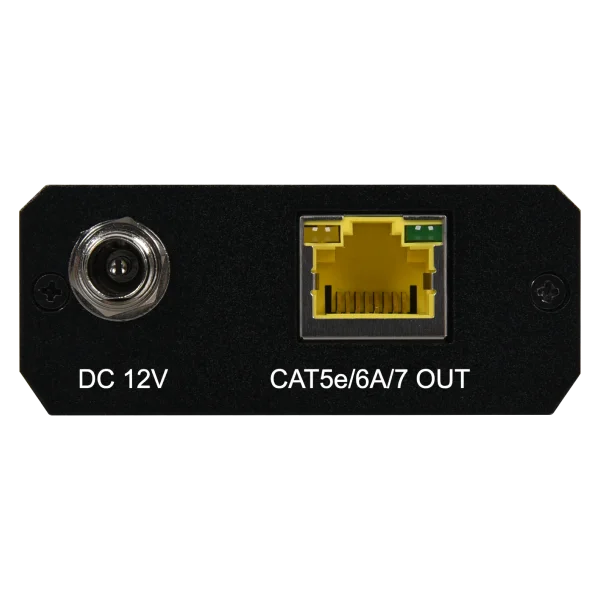

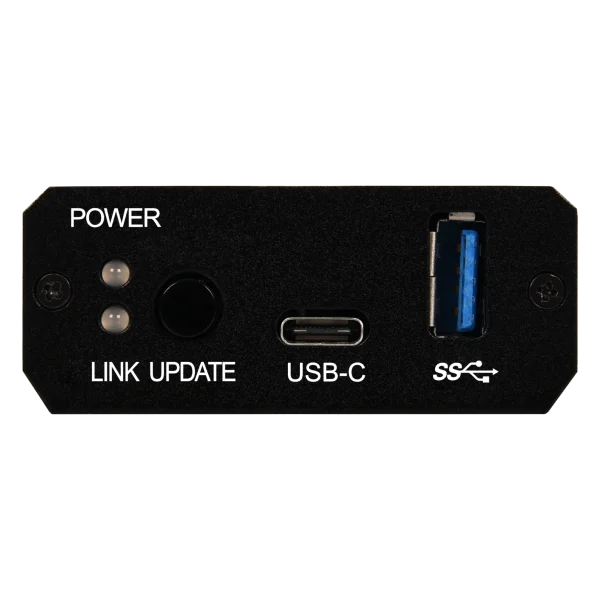

Interfaces
Input Port	1×USB-C
Output Port	1×Cat5e/6A/7 (RJ45)
	1xUSB-A

USB
USB Performance	3.2 Gen1, SuperSpeed 5Gbps

Power
Power Supply	Powered by USB-C or 12V/1.25A Power Adaptor(Not Include)
Power Consumption	8.34W (full load)

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Black
Dimensions (W×H×D)	95mm×24.75mm×60mm [Case Only] 103.5mm×24.75mm×60mm [All Inclusive]
Weight	155g

Field Firmware Update
PC update

ORDERING INFORMATION

Model No.	Product Description
CH-730TX	USB3.2 over Category Cable Transmitter
CH-730RX	USB3.2 over Category Cable Receiver
ADP-0224AEG210C	4-in1 12V 1.25A (LV6)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
