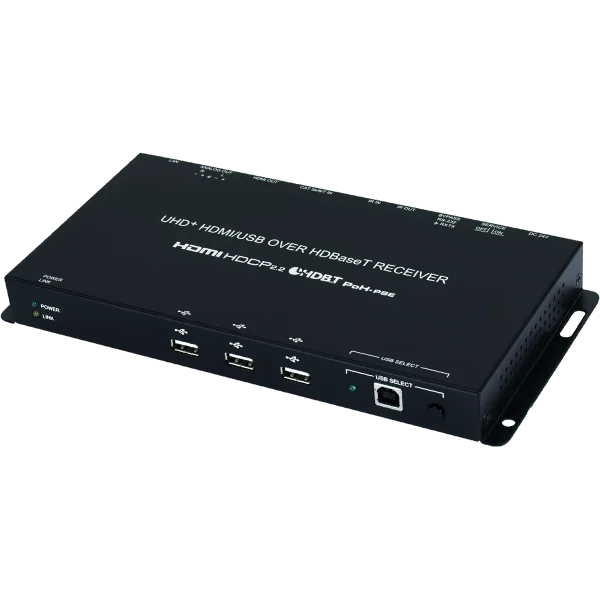

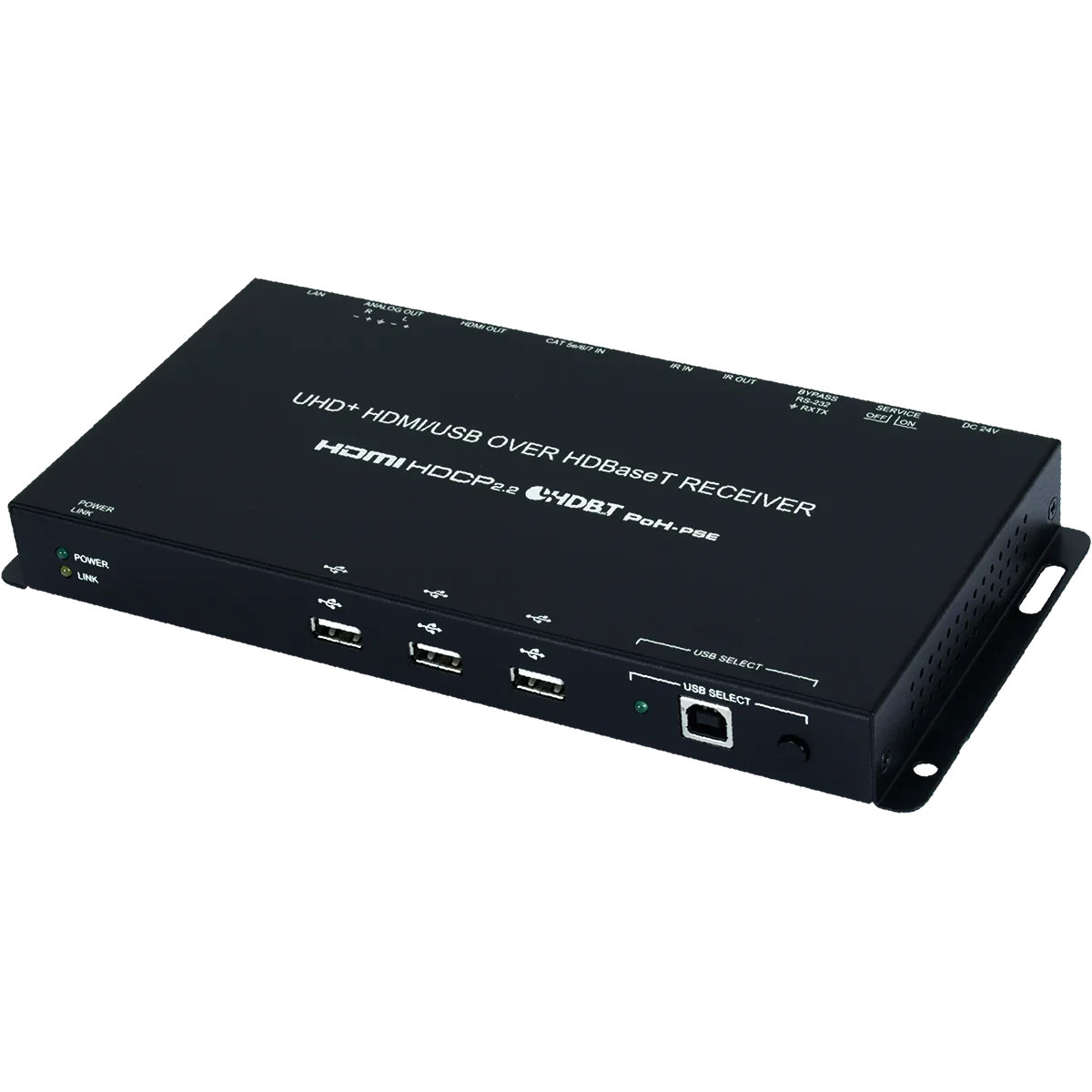

CH-2606RX

3 USB 2.0 Type A ports and 1 USB 2.0 Type B port, HDBaseT input receives video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7, HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE), and control (bi-directional IR/RS-232/USB 2.0), Supports CEC bypass, Reception of independent analog stereo audio extension, Flexible USB host selection using the front panel button, Supports local power, or power via PoH from Receiver (PSE) to Transmitter (PD) (compatible Receivers only)

Hersteller-Nr.	CH-2606RX
Hersteller	Cypress Technology

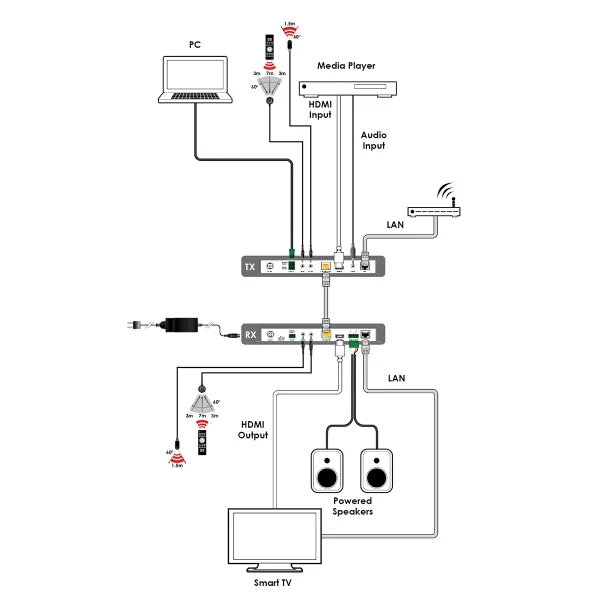

CH-2606RX adopts HDBaseT 2.0 technology for extending uncompressed 4k and HD video, audio, Ethernet, control and power along a single Cate 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Transmitter, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), This unit is controllable via front panel button.

Interfaces
Input Port	1 HDBT(RJ45)
Output Port	1 HDMI (Type-A) 1 Terminal Block

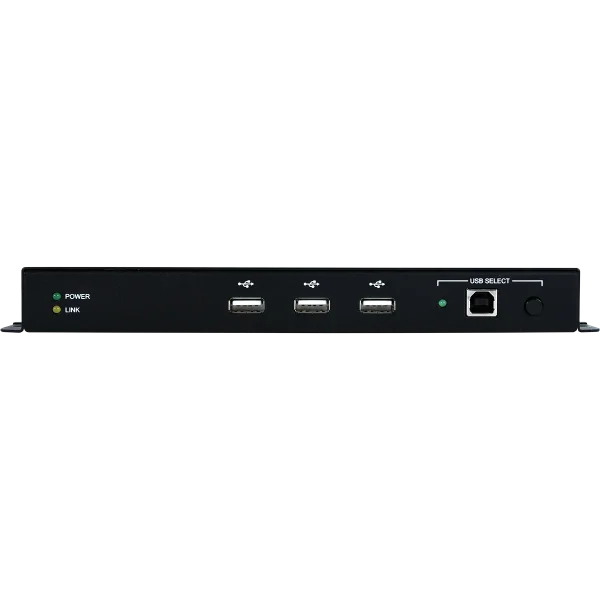

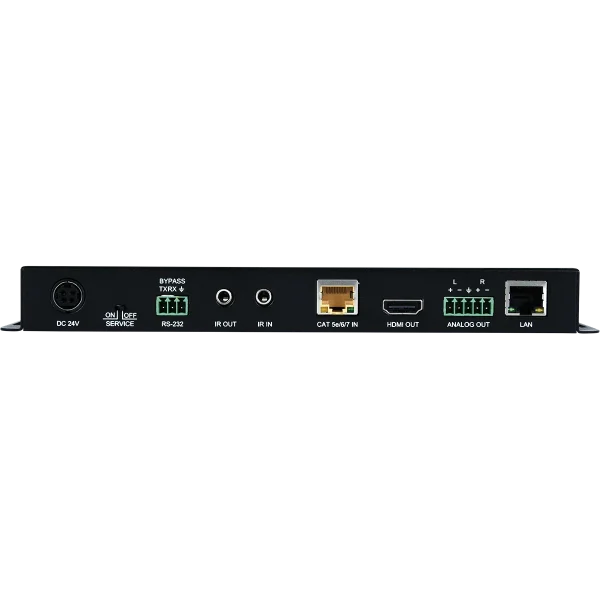

Control I/O	3 USB Type-A 1 USB Type-B 1 IR Extender [3.5mm] 1 IR Blaster [3.5mm] 1 RS232 (3-pin Terminal Block) 1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:4:0

Resolutions
Maximum Input	HDBaseT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
Input Signal Types	HDMI, Stereo
Output Signal Types	Stereo
HDMI OUT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream bypass

Power
Power Supply	24V/2.7A
Power Consumption	40.44W (Full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×110mm [All Inclusive]
Weight	647g

Field Firmware Update
Interfaces	USB Flash Drive, WebGUI

Ordering Information
Model No.	Product Description
CH-2606RX	UHD+ HDBaseT to HDMI Receiver with USB
CH-2606TX	UHD+ HDMI to HDBaseT Transmitter with USB
CH-2603TX	UHD+ HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter
