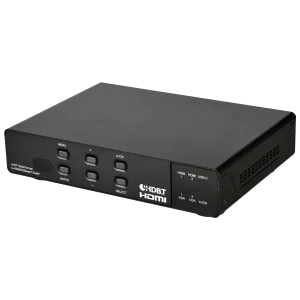

UHD Multi-Format to HDMI/HDBaseT Scaler

HDBaseT can reach distances up to 100m/328ft at 4K@60 4:2:0 when using Cat.6a/7 ,  Supports pass-through of LPCM 2.0 digital audio , Supports audio embedding, de-embedding Microphone input supports 48V phantom power (optional) , Supports HDCP and EDID management

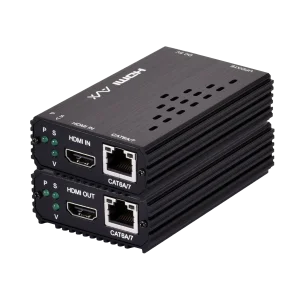

VEX-X1102T-B0C & VEX-X1102R-B0C

Point to point extension of audio, video and control signals, Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2, Transmitter and Receiver design., Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K, Extension up to 100m from Cat6A/7 cable, Supports pass-through of 10/12-bit HDR sources, Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector

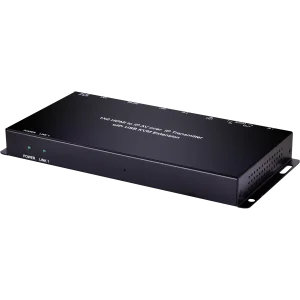

CH-352TX

Supports basic USB keyboard & mouse functions, not compatible with USB 2.0 devices with high power demands, storage or hubs. USB touch screens or other advanced interface devices/HIDs are not supported, Simultaneous transmission of video, audio, data over a single Cat.5e/6/7 cable up to 100m (328ft), Supports USB keyboard, mouse and storage extension , Supports IR and RS-232 bypass, Advanced EDID Supports Internal, External, User mode, Cross-transmit by move your mouse cursor across up to 2 computers and even copy/paste text, images and fi les from one computer to another, Effortless Multi-computer workfl ow

Viewer

AVIP-A4601D-B1C

4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode., IP interface: RJ45, Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows, Supports PoE-PD (IEEE 802.3af)., Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control., Controlled via hotkey, WebGUI, IP Master Controller, and Telnet, Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information), 7 hotkeys dedicated to routing for transmitters and receivers, 4 hotkeys provide single functions, and 3 hotkeys for multiple functions that activates control system, Supports independent breakaway A/V and control matrix routing, Supports extension of many audio formats including 8 channel LPCM and standard BitstreamNote: The Line Out only supports LPCM 2.0 sources., The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver, The Mic In sends audio directly to the analog Line Out on the currently routed transmitterNote: Only available when the transmitter also has its Line In connected., Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks, Dante Ready brings Dante functionality to products already shipping and installed in sites, Channels and features can be added as an installation grows

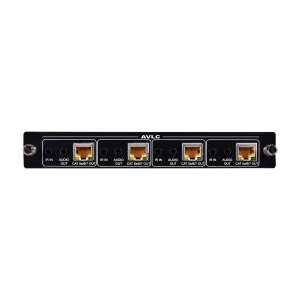

COUT-V4CV

4 HDBT output ports paired with IR output and analog stereo output ports, Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color, Supports 12-bit Deep Color up to 1080p@60Hz, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1 Bitstream, and HD Bitstream, This card’s features are controlled by the modular matrix

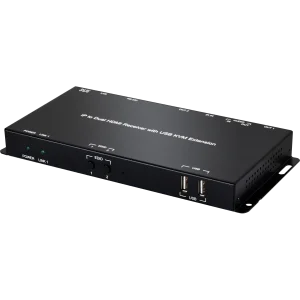

CH-352RX

Supports resolutions up to 1920x1080, DVI supports compatible to 1920x1200., Supports basic USB keyboard & mouse functions, not compatible with USB 2.0 devices with high power demands, storage or hubs. USB touch screens or other advanced interface devices/HIDs are not supported., Simultaneous transmission of video, audio, data over a single Cat.5e/6/7 cable up to 100m (328ft)., Supports USB keyboard, mouse and storage extension., Supports IR and RS-232 bypass., Advanced EDID Supports Internal, External, User mode., Cross-transmit by move your mouse cursor across up to 2 computers and even copy/paste text, images and fi les from one computer to another., Effortless Multi-computer workfl ow.

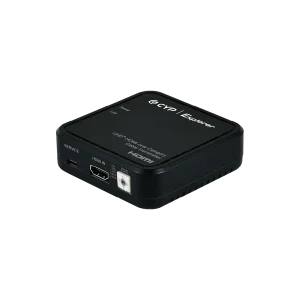

UHD+ HDMI over Category Cable Transmitter (4K@60 444 up to 60M)

Point to point extension for audio and video, Transmitter has HDMI local Loop out, Receiver can switch video and audio sources between local HDMI input and CAT input, CAT6/6A/7 Cable can reach to up to 60M, Supports POC (Power over Cable), transmitter powers compatible receiver, Multi-channel audio compliant for PCM7.1 up to 192KHz, AC-3(Dolby5.1), and DTS 5.1, EDID can switch among 4 modes: Sink EDID, FHD, UHD, and UHD+

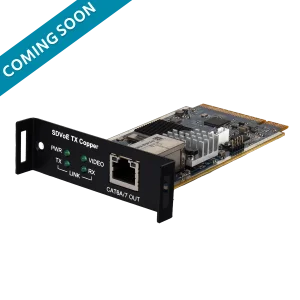

SDM-P301T-C

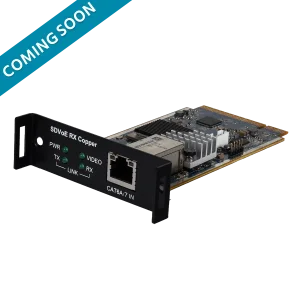

SDM-P301R-C

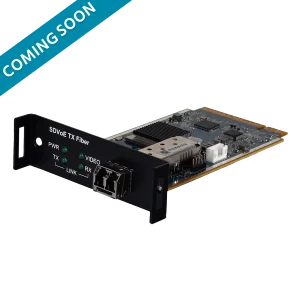

SDM-P301T-F

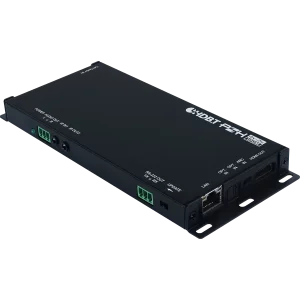

HDMI over HDBaseT Receiver with Optical Audio Return (OAR)

Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to 100m/328ft and Cat.5e cable up to 90m/295ft, HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through), Receiver (PD) is powered by 48V PoH from the transmitter (PSE), HDMI with 3D & 4K@60Hz (YUV 4:2:0) support, Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports optical audio sampling rates up to 48kHz, Supports external analog and digital audio extension including support for ARC (Audio Return Channel), Supports RS-232 baud rates up to 115200bps, Ultra-thin mechanical design

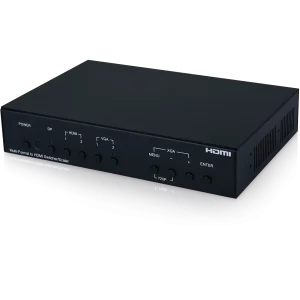

Multi-Format to HDMI Switcher/Scaler

Analog stereo and digital coaxial breakout audio outputs , Supports pass-through of LPCM 2.0 audio and Optical Audio Return (OAR) function to transmit audio from a compatible HDBaseT receiver to this unit,  Audio DSP with gain control for routing audio and controlling background audio levels, HDBaseT feature support: HD Video and Audio, Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through), HDBaseT output provides 48V PoH (PSE) to power to compatible HDBaseT Receivers (PD), EDID management support, Remote control provides discrete input source selection

SDM-P301R-F

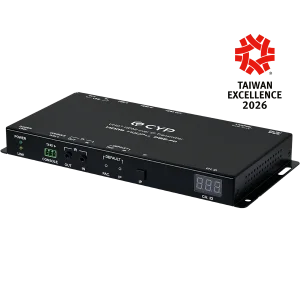

AVIP-A4601E-B1C

4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode., IP interface: RJ45, Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows, Supports PoE-PD (IEEE 802.3af)., Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control., Controlled via WebGUI, IP Master Controller, and Telnet, 1×HDMI input, 1×HDMI loopback output, Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information), Supports independent breakaway A/V and control matrix routing, Supports extension of many audio formats including 8 channel LPCM and standard Bitstream, The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver, Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks, Dante Ready brings Dante functionality to products already shipping and installed in sites, Channels and features can be added as an installation grows

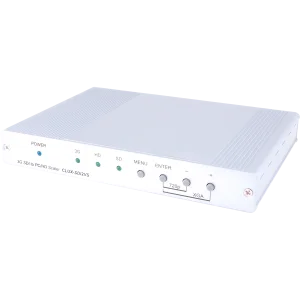

CLUX-SDI2VS

Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection, Supports PC/HD and SDI (bypass) output simultaneously, SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s, Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI), Scale any SDI signal to PC/HD:, 1. PC timings: VGA@60 Hz ~ WUXGA@60 Hz (RB)2. HDTV timings: 480i/576i ~ 1080p@50/60 HzSupports SDI input modes:, 1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)Equalized and re-clocked loop output, Alternative audio output to coaxial and analog 2CH

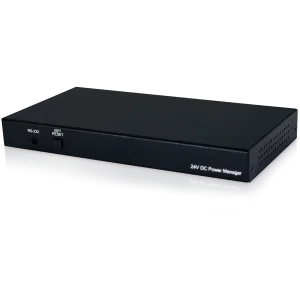

CSR-8PSU-24V

Power management system providing voltage-controlled current (24V) on each output, Battery backed up clock for scheduling power events, Integrated WebGUI for control and power analysis, Unit’s overall maximum power consumption is only 150 watts, Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors, 115 watts of total power provided across all 8 outputs, Dynamic loading function balances the power provided to each DC output

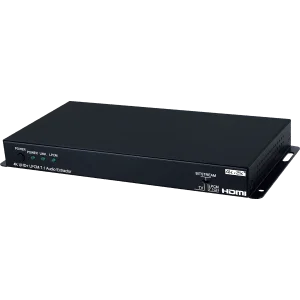

CPLUS-V11PE8

HDMI input and output with 18Gbps (600MHz) 4K UHD support, DVI 1.0 compatible with the use of an HDMI-DVI adaptor, HDCP 1.4 and 2.2 compliant, Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit), Supports 48-bit Deep Color up to 1080p@60Hz, 2 slots for user-created EDIDs, and EDID bypass support, Supports CEC passthrough, Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI, Audio extraction of LPCM 7.1 sources to 8 channel analog output and S/PDIF (S/PDIF output is limited to 2 channel source support), Audio extraction of Bitstream sources to S/PDIF output (analog output will be muted), Supports HDMI and S/PDIF audio sampling rates up to 192kHz, Provides EDID management with EDID bypass and 2 user modifiable EDIDs, PC based EDID management tool support, Supports RS-232 style control via a Virtual COM port over USB

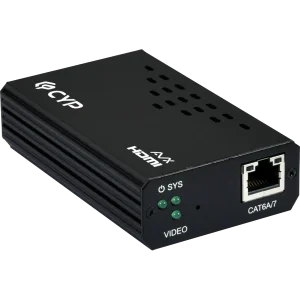

VEX-X1103T-B0C

Point to point extension of audio, video and control signals, Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcastfriendly 4K60 10-bit 4:2:2 , Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K, Extension up to 100m from Cat6A/7 cable, Supports pass-through of 10/12-bit HDR sources

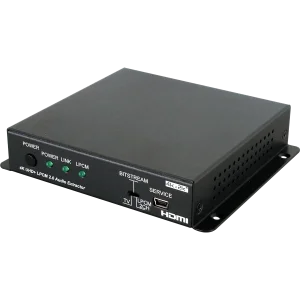

UHD+ HDMI Audio Extractor

HDMI input and output with 18Gbps (600MHz) 4K UHD support, DVI 1.0 compatible with the use of an HDMI-DVI adaptor, HDCP 1.4 and 2.2 compliant, Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit), Supports 48-bit Deep Color up to 1080p@60Hz, Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI, Analog audio extraction supports LPCM 2.0 sources, Optical S/PDIF audio extraction supports LPCM 2.0 & Bitstream formats, Supports HDMI and S/PDIF audio sampling rates up to 192kHz, Provides EDID management with EDID bypass and 2 user modifiable EDIDs, PC based EDID management tool support, Supports RS-232 style control via a Virtual COM port over USB

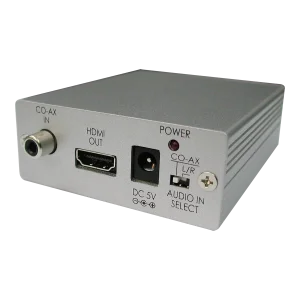

CP-281H

Supports a wide range of resolutions: 480i/480p/576i/576p/720p/1080i/1080p@60Hz., Supports digital audio input through Co-axial cable, or analog audio input through L/R audio cable.

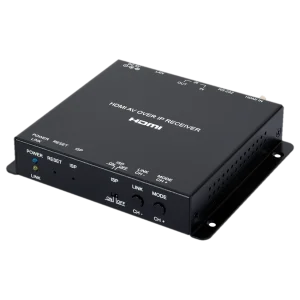

HDMI over IP Receiver

Video, audio and control reception over TCP/IP in Unicast (point- to-point) or Multicast (single-to-many, many-to-many) modes, Multi-monitor video wall support with 180° and 270° rotation options, Video output can be scaled to a selected resolution, or left unscaled, HDMI output supports resolutions up to 1080p@60Hz/WUXGA, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream, Supports IR and RS-232 bypass, Unit has an info OSD (when unlinked) and can be controlled via front panel buttons, WebGUI, Telnet, and the AV over IP Master Controller

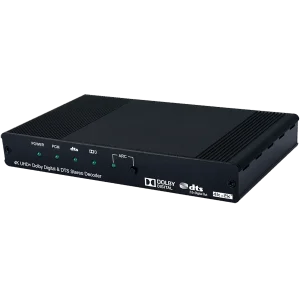

CPLUS-VPE2DD

HDMI input and output with 18Gbps (600MHz) 4K UHD support, DVI 1.0 compatible with the use of an HDMI-DVI adaptor, HDCP 1.4 and 2.2 compliant, Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) , Supports 48-bit Deep Color up to 1080p@60Hz , Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI , Embedded Dolby Digital Decoder technology , Embedded DTS 2.0+Digital Out Decoder technology, Integrated digital interpolation filter and Digital-to-Analog Converter (DAC) , Supports LPCM sampling rates up to 96kHz , Supports Dolby Digital sampling rates up to 48kHz , Supports DTS sampling rates up to 96kHz , Simultaneous audio output via HDMI, analog stereo, Coaxial and Optical, Supports coaxial and optical audio sampling rates up to 96kHz , Supports extracting the HDMI audio signal from an HDTV’s ARC feature , Provides EDID management with EDID bypass and 1 user modifiable EDID, PC based EDID management tool support , Supports RS-232 style control via a Virtual COM port over USB

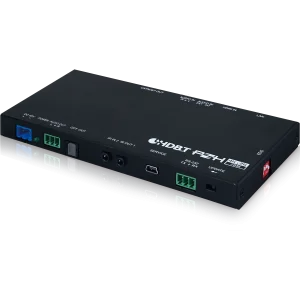

CH-1536TX

Supports CEC bypass, Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m at 1080p and 70m at 4K, Supported HDBaseT feature set: High-Definition Video and Audio,100BaseT Ethernet, 48V PoH and Control (Bi-directional IR/RS-232 pass-through), Supports the output of a 720p color bar pattern when no source is dconnected, PC-based EDID management software allows for the uploading of customized user EDIDs via USB, Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players, Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only), Ultra-slim case design for easy installation (only 16mm thick!)
