VEX-X1102T-B0C & VEX-X1102R-B0C

Point to point extension of audio, video and control signals, Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2, Transmitter and Receiver design., Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K, Extension up to 100m from Cat6A/7 cable, Supports pass-through of 10/12-bit HDR sources, Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector

Hersteller-Nr.	VEX-X1102T-B0C & VEX-X1102R-B0C
Hersteller	Cypress Technology

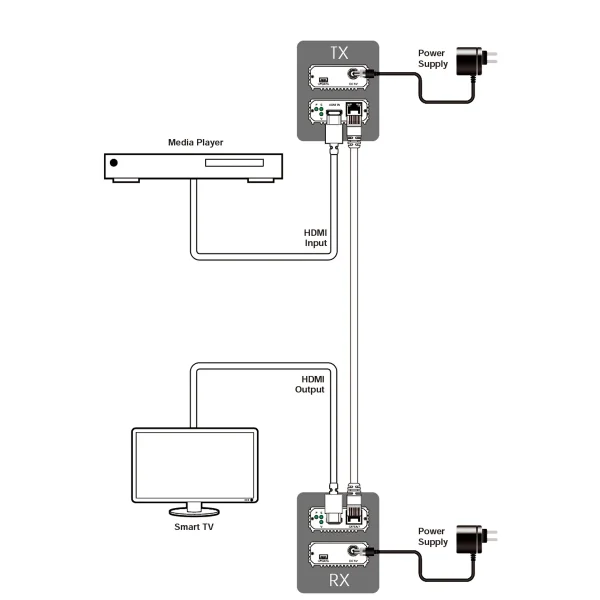

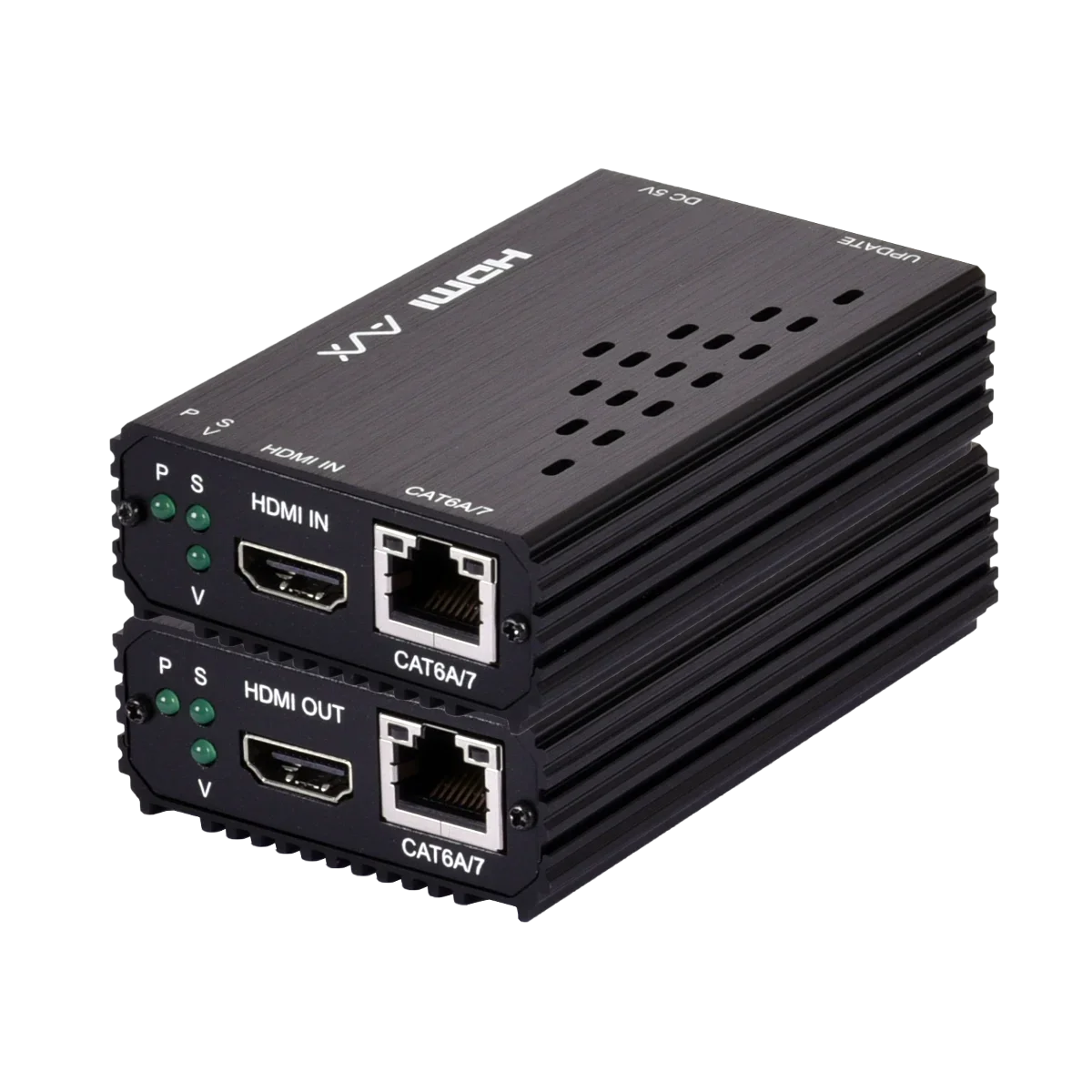

The end to end Extenders are designed for high-quality, AV extension with minimum latency through 10 Gigabit IP transmit over category cable. Small and compact size of Transmitter and Receiver design, enhancing the fl exibility of any installation. With ultra-light compression scheme (lossless for most content) to extending 4K audio/video streams and data under 0.1 milliseconds of matrix switch-like end to end transit. Supports all HDMI 2.0 formats passthrough including multichannel PCM, Dolby True HD and DTS HD master audio.

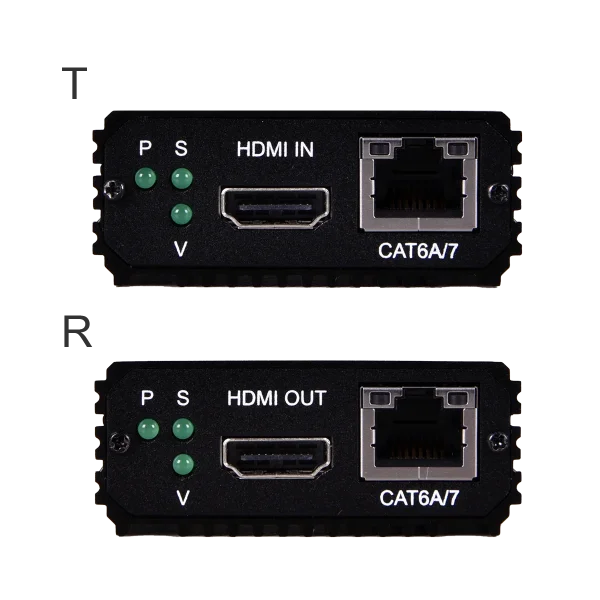

Interfaces
Input Port	TX	1 HDMI (Type A)
	RX	1 10GbE LAN (RJ45)
Output Port	TX	1 10GbE LAN (RJ45)
	RX	1 HDMI (Type A)

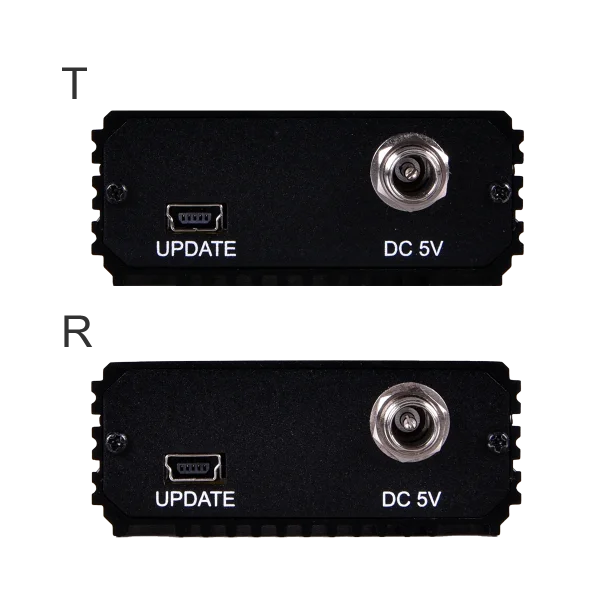

Service Port	TX	1 USB (Mini-B)
	RX	1 USB (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4096x2160p@60 8bit YUV 4:4:4
Output Signal Types	4096x2160p@60 8bit YUV 4:4:4
			Resolutions
Maximum Input	TX	HDMI	4096×2160p@60 YUV 4:4:4
	RX	LAN (Streaming)	4096×2160p@60 YUV 4:4:4
Maximum Output	TX	LAN (Streaming)	4096×2160p@60 YUV 4:4:4
	RX	HDMI	4096×2160p@60 YUV 4:4:4
