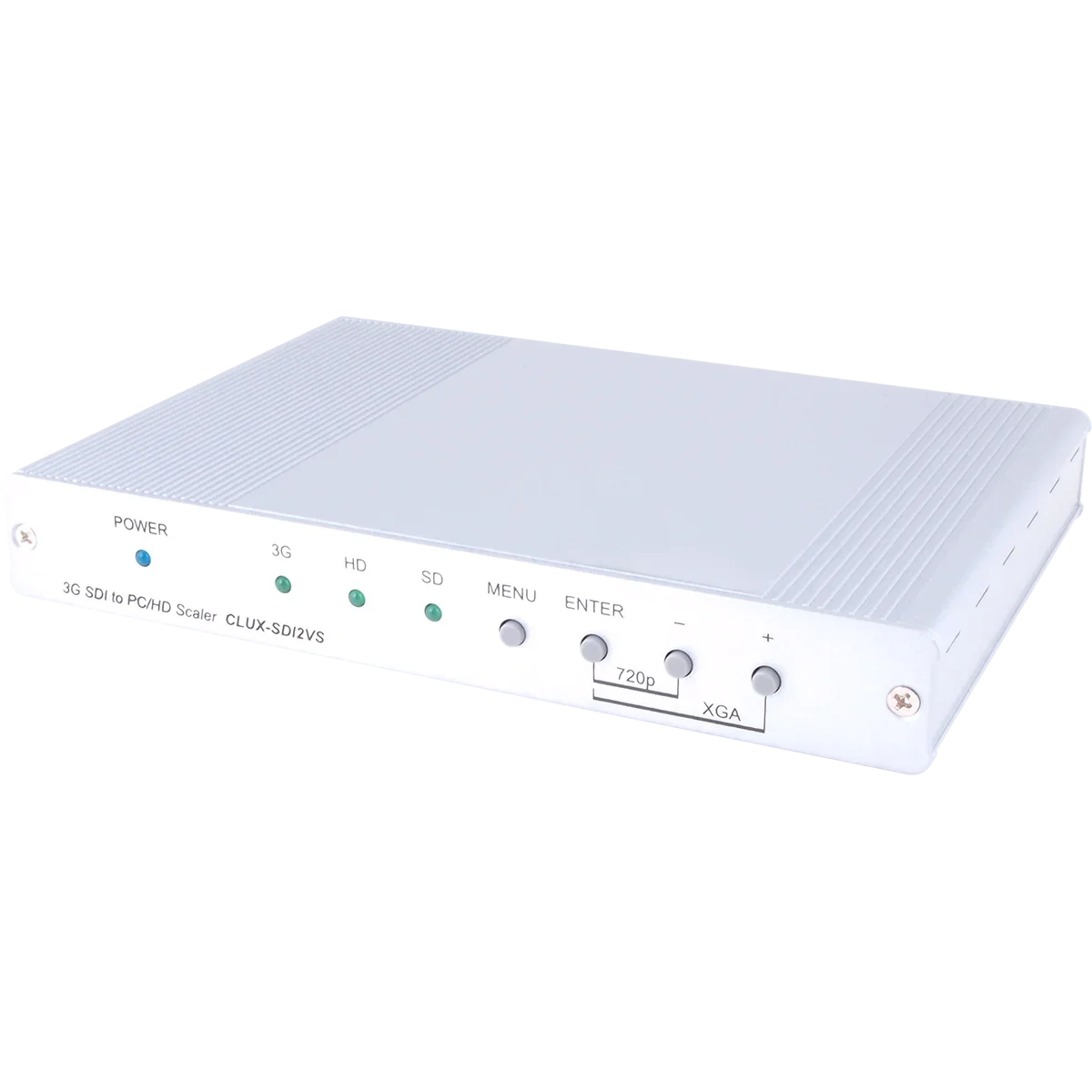

CLUX-SDI2VS

Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection, Supports PC/HD and SDI (bypass) output simultaneously, SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s, Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI), Scale any SDI signal to PC/HD:, 1. PC timings: VGA@60 Hz ~ WUXGA@60 Hz (RB)2. HDTV timings: 480i/576i ~ 1080p@50/60 HzSupports SDI input modes:, 1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)Equalized and re-clocked loop output, Alternative audio output to coaxial and analog 2CH

Hersteller-Nr.	CLUX-SDI2VS
Hersteller	Cypress Technology

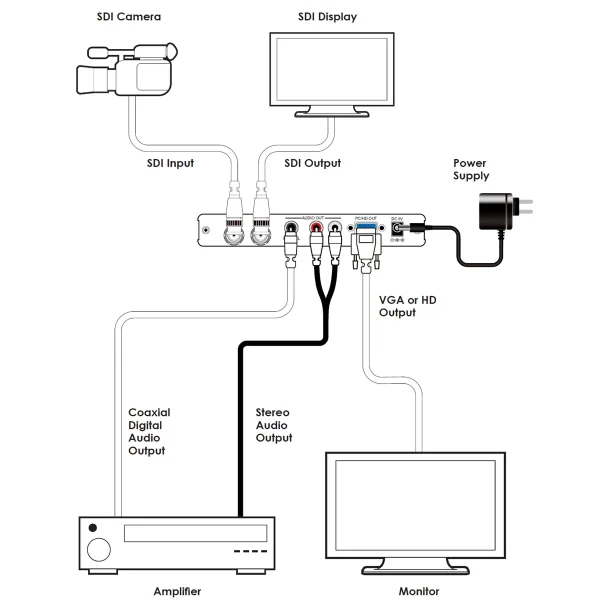

The SDI to VGA Scaler allows SD, HD and 3G-SDI signals to be shown on PC/HD display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and PC/HD displays.

SMPTE Standard	425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates	2.970 Gbps, 2.970/1.001 Gbps,1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps
Input Port	1×BNC (SD/HD/3G-SDI)

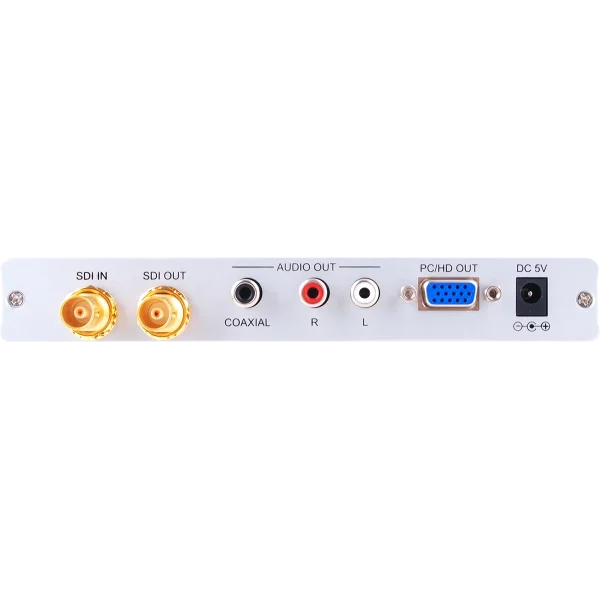

Output Port	1×BNC (SD/HD/3G-SDI bypass), 1×D-Sub 15-pin, 1×Coaxial, 2×RCA Jack
Video Output Support	PC: VGA ~ WUXGA@60RB HD: 480p~1080p
SDI Timging Support	SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
Power Supply	5 V DC/ 2.6 A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
SDI Cable Distance	3G up to 100 m (BELDEN 1694A Cable) HD up to 200 m (BELDEN 1694A Cable) SD up to 300 m (BELDEN 1694A Cable)
Dimensions	180 mm (W)×142 mm (D)×25 mm (H)
Weight	435 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (Non-condensing)
Power Consumption	9.3 W

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
