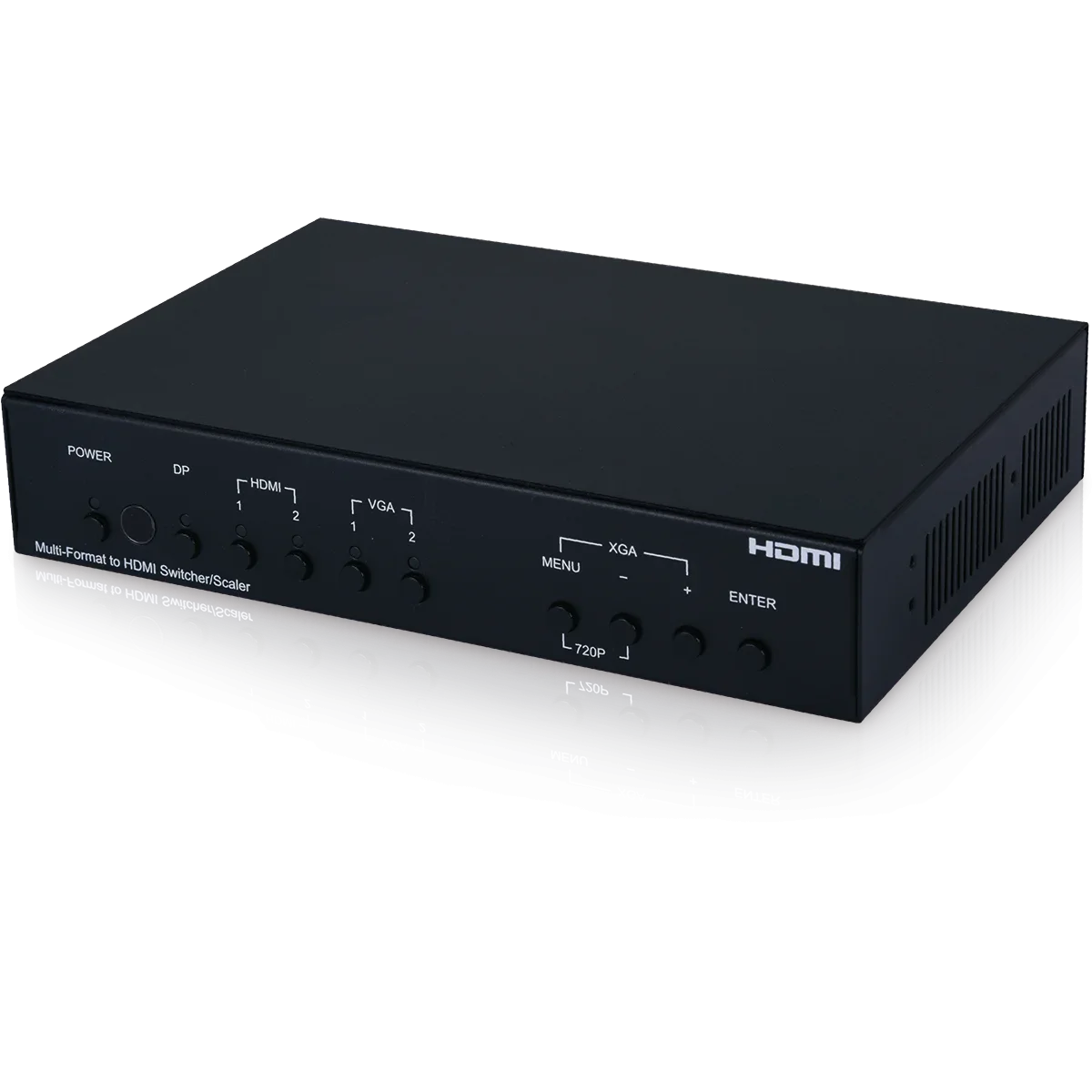

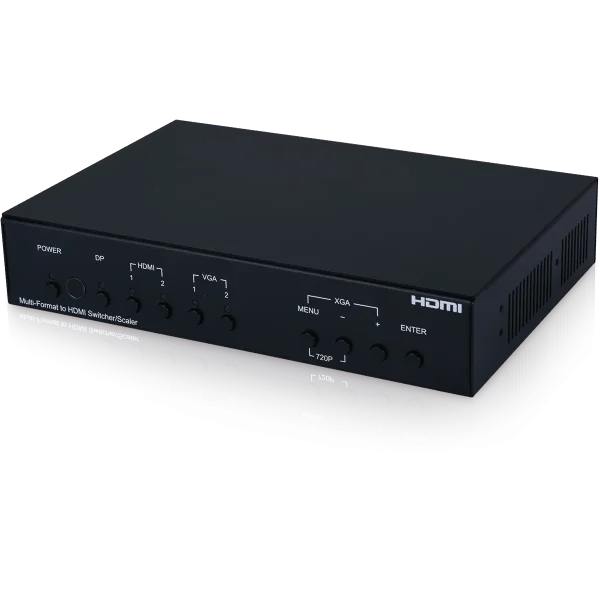

Multi-Format to HDMI Switcher/Scaler

Analog stereo and digital coaxial breakout audio outputs , Supports pass-through of LPCM 2.0 audio and Optical Audio Return (OAR) function to transmit audio from a compatible HDBaseT receiver to this unit, Audio DSP with gain control for routing audio and controlling background audio levels, HDBaseT feature support: HD Video and Audio, Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through), HDBaseT output provides 48V PoH (PSE) to power to compatible HDBaseT Receivers (PD), EDID management support, Remote control provides discrete input source selection

Hersteller-Nr.	VEX-H8K-4201
Hersteller	Cypress Technology

This scaler has DisplayPort, HDMI and PC (VGA) inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. This unit also includes separate analog and digital audio outputs to provide additional playback flexibility. Support for HDMI output resolutions up to 1080p/WUXGA (RB) and Analog to Digital Conversion (ADC) functionality combine to allow for a wide range of AV signals to be displayed on the connected HDMI displays.

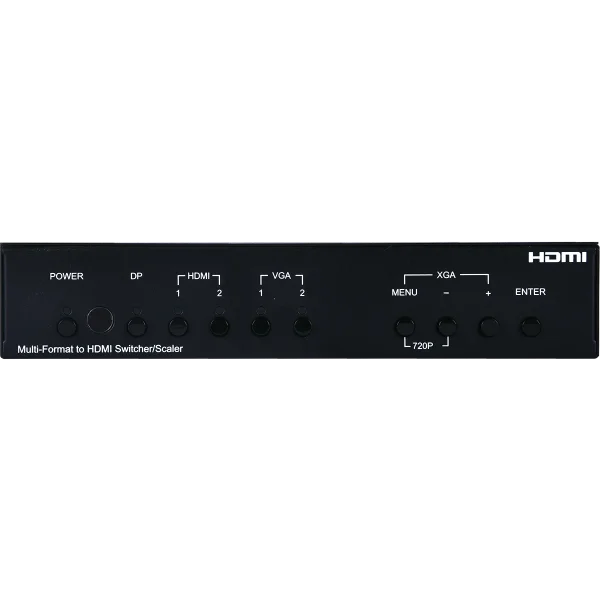

Beyond video switching and scaling, this unit also features useful audio functions. The Optical Audio Return (OAR) feature supports transmitting optical audio from a compatible HDBaseT Receiver to this unit for local playback. An integrated audio DSP with gain control for routing audio and controlling background audio levels adds to the versatility of this product. The HDBaseT output can provide 48V PoH to power to compatible HDBaseT Receivers. The unit can be controlled via front panel buttons with an On-Screen Display (OSD), WebGUI, IR remote, Telnet, and RS-232 making it exceptionally versatile.

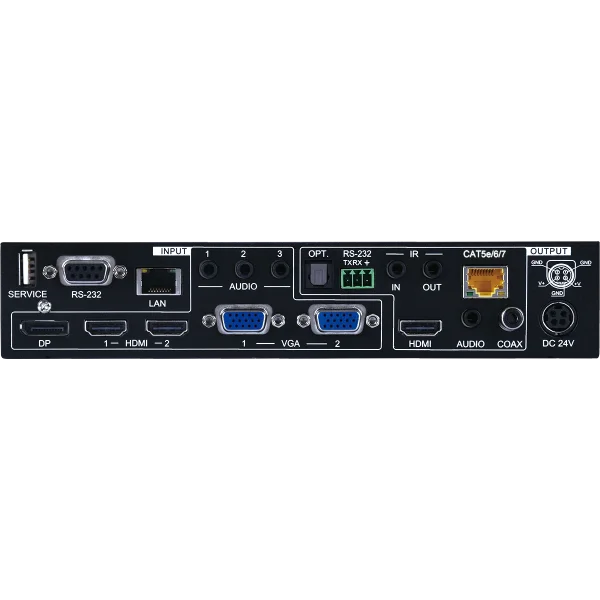

Interfaces
Input Port	1 DisplayPort 2 HDMI 2 VGA (HD-15) 3 Stereo (3.5mm)
Output Port	1 HDMI 1 HDBaseT (Cat.5e/6/7) 1 S/PDIF (TOSLINK) 1 S/PDIF (RCA) 1 Stereo (3.5mm)
Pass-through Port	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (Terminal Block)
Pass-through/Control Port	1 LAN (RJ-45)
Control I/O	1 RS-232 (9-pin D-sub)

Video
HDMI Compliance	HDMI 1.3 (DVI 1.0, DP 1.1)
HDCP Compliance	1.x
Input Signal Type	1920×1080p 60 8-bit
Output Signal Types	1920×1080p 60 8-bit

Resolutions
Maximum Input	DisplayPort	DisplayPort
	HDMI	1920×1080p@60 1920×1200p@60RB
	VGA	1920x1200@60RB
Maximum Output	HDMI	1920×1080p@60 1920×1200p@60RB
	HDBaseT	1920×1080p@60 1920×1200p@60RB

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	215mm×42mm×144mm [Case Only] 215mm×47mm×153mm [All Inclusive]
Weight	1,068g

Power
Power Supply	24V/2.7A DC(US/EU standards, CE/FCC/UL certified)
Power Consumption	18W

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CSC-5501TX	Multi-Format to HDMI Switcher/Scaler
CH-1529RX	HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
