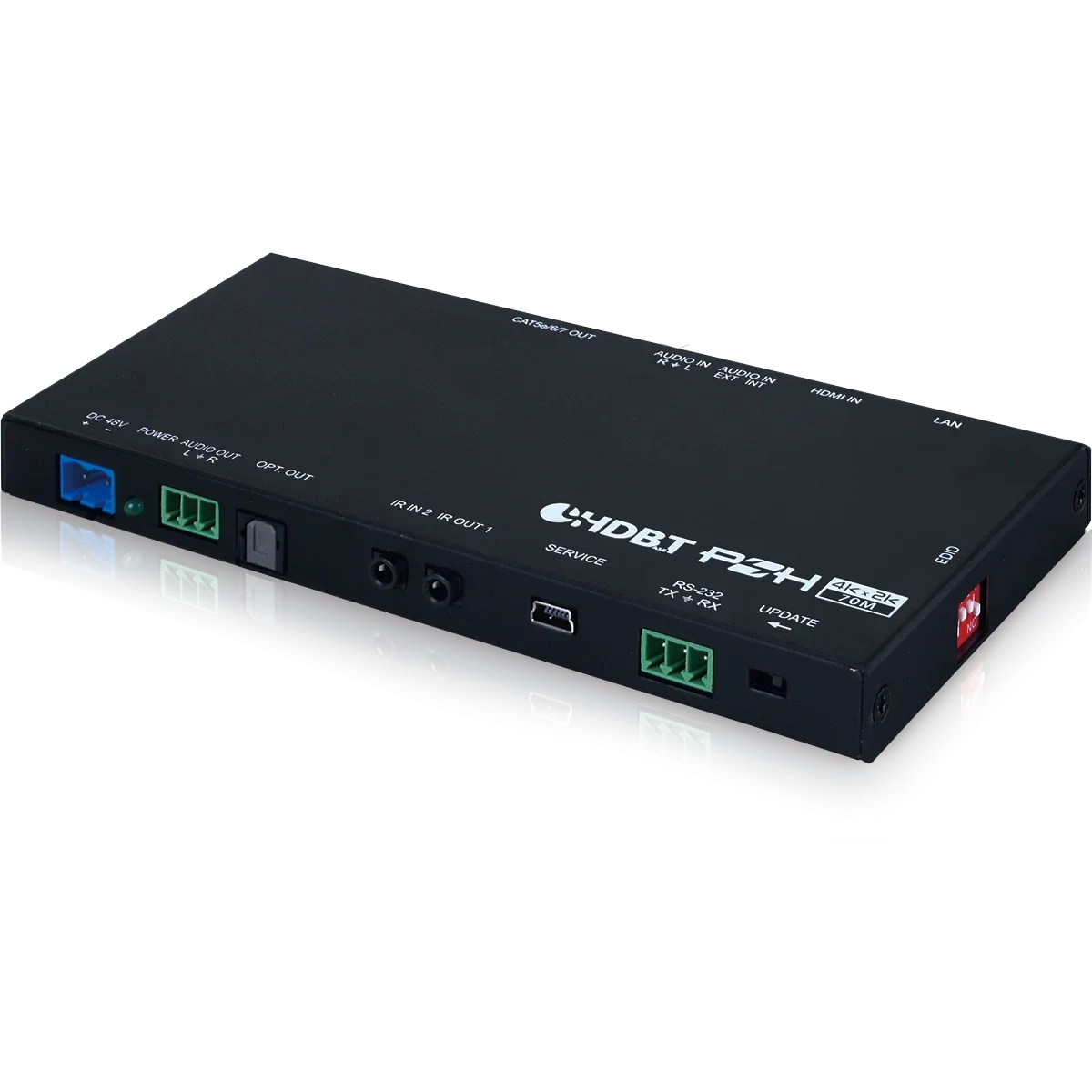

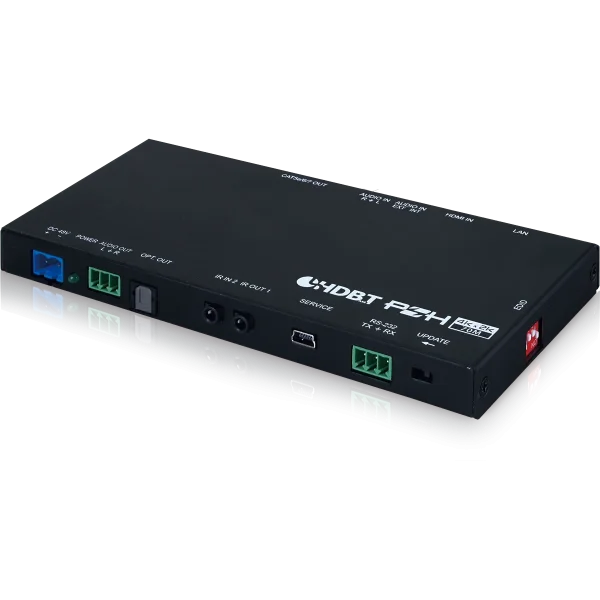

CH-1536TX

Supports CEC bypass, Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m at 1080p and 70m at 4K, Supported HDBaseT feature set: High-Definition Video and Audio,100BaseT Ethernet, 48V PoH and Control (Bi-directional IR/RS-232 pass-through), Supports the output of a 720p color bar pattern when no source is dconnected, PC-based EDID management software allows for the uploading of customized user EDIDs via USB, Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players, Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only), Ultra-slim case design for easy installation (only 16mm thick!)

Hersteller-Nr.	CH-1536TX
Hersteller	Cypress Technology

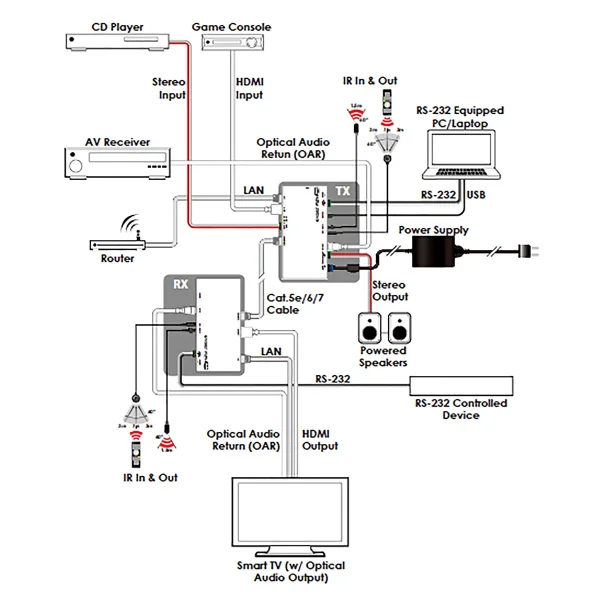

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. Despite HDBaseT’s 10Gbps bandwidth limitation, 4K UHD HDMI video, up to and including 4K@60Hz (4:4:4), is able to be processed and extended by subsampling 4:4:4 color to 4:2:0 and reducing bit depth when necessary. Beyond video, data, and control this unit also includes useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio from a compatible Receiver back to the Transmitter for local playback. An audio insertion feature is also included, allowing for stereo analog audio to be embedded into the HDBaseT output signal. Rounding out the feature set is robust EDID management as well as automatic HDBaseT clock stretching and TMDS re-clocking support. Compatible Receivers (PD) may be powered by 48V PoH provided by this Transmitter (PSE), allowing for greater flexibility within different installation scenarios.

Interfaces

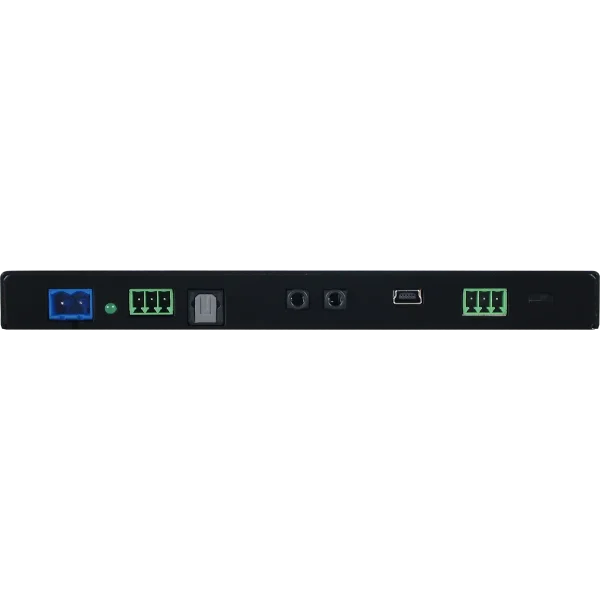

Input Port	1×HDMI (Type-A) 1×Stereo Audio (3-pin Terminal Block)

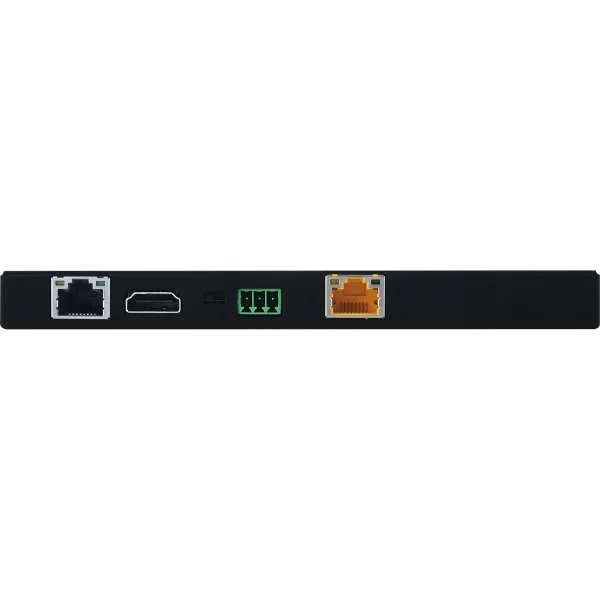

Output Port	1×HDBaseT (RJ-45) 1×S/PDIF (TOSLINK) 1×Stereo Audio (3-pin Terminal Block)
Control I/O	1×IR Blaster [3.5mm] 1×IR Extender [3.5mm] 1×RS-232 [Terminal Block] 1×LAN [RJ-45] 1×USB 2.0 (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
Maximum Output	Cat.5e/6/7	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48V/0.83A DC (US/EU standards, CE/ FCC/UL certified)
Power Consumption	17.8W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	163mm×16mm×78mm [Case Only] 163mm×16mm×79.2mm [All Inclusive]
Weight	184g

Field Firmware Update
Interface	USB Flash Drive

Ordering Information
Model No.	Product Description
CH-1536TX	HDMI over HDBaseT Transmitter with IR/RS-232 & LAN
CH-1529RX	HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion
