CPLUS-VHHI

Supports 48-bit Deep Color up to 1080p@60Hz and 36-bit Deep Color up to 4k@60Hz (YUV 4:2:0), Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats, EDID selectable between internal, external and user’s custom EDID, PC based EDID management tool support via the Micro-USB port., LED display providing an easy view of the current EDID and unit status

Hersteller-Nr.	CPLUS-VHHI
Hersteller	Cypress Technology

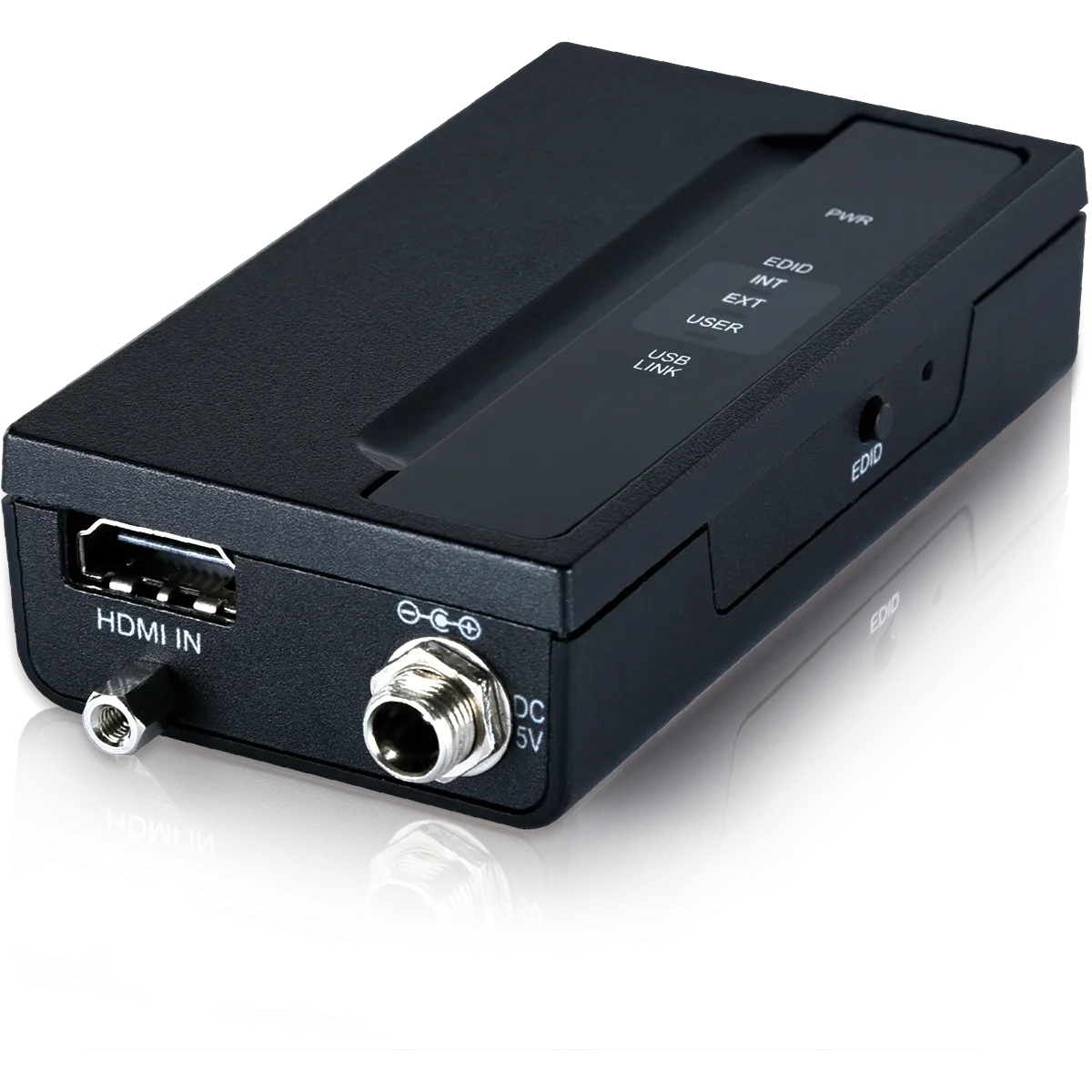

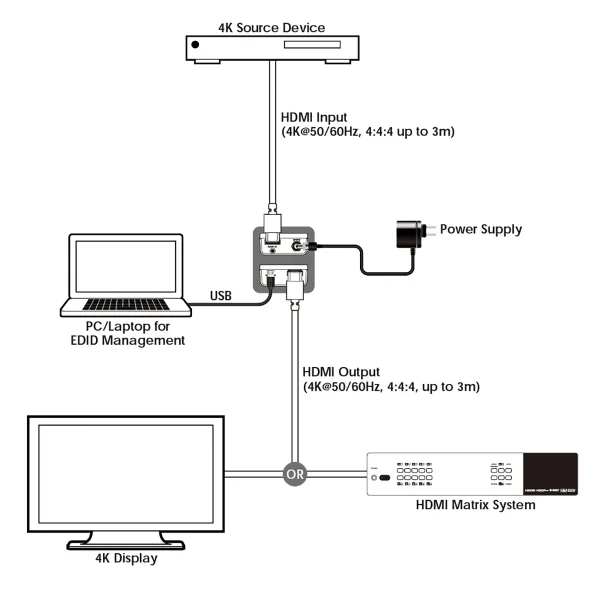

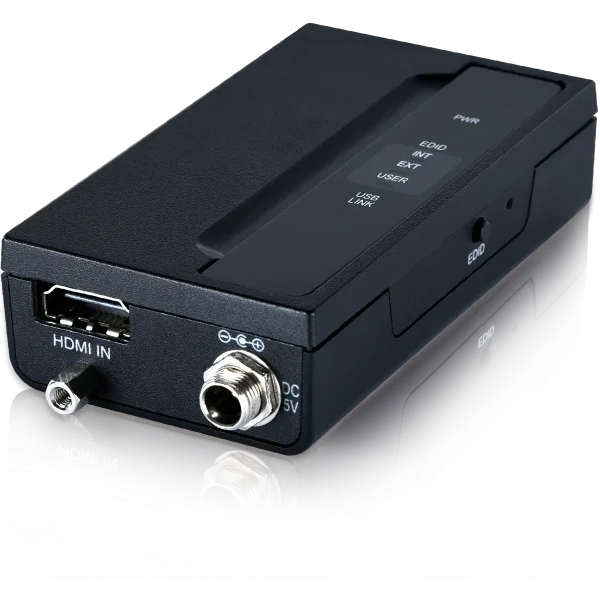

This 4K UHD HDMI to HDMI Enhancer with EDID Management is designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customized EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customized User EDID. The unit’s included hot key and simple LED design allows the user to quickly switch between different confi gurations while viewing EDID status information.

Interfaces

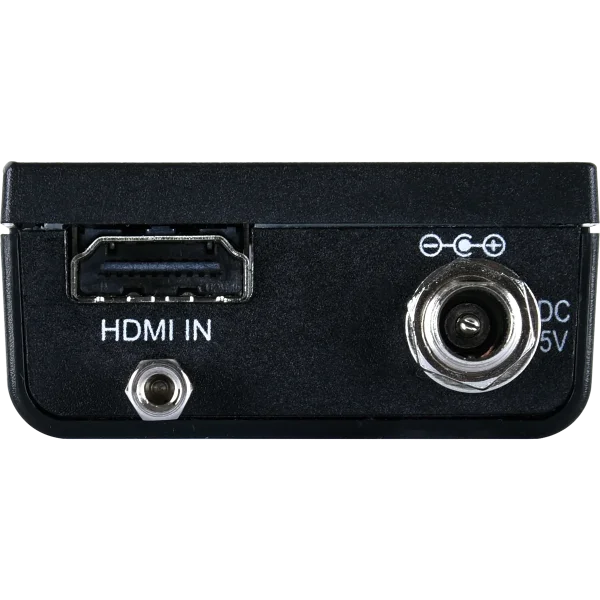

Input Port	1 HDMI (Type A)

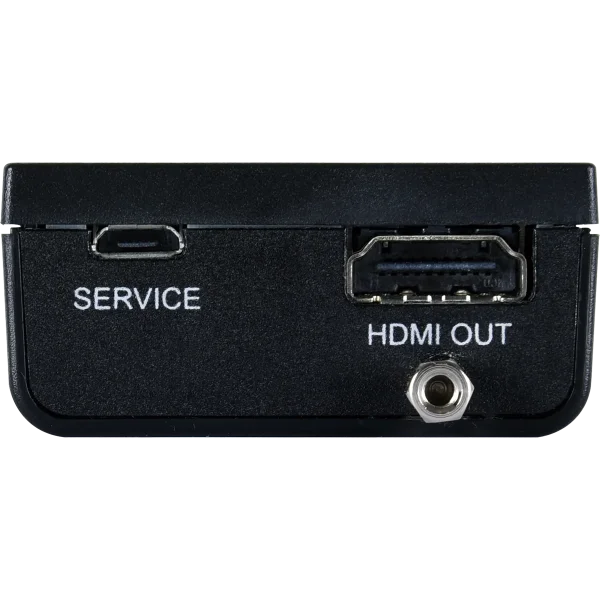

Output Port	1 HDMI (Type A)
Control I/O	1×USB (Micro-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 8bit YUV 4:4:4
Output Signal Type	4096x2160p@60 8bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	5V/2.6A DC
Power Consumption	1.54W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	50mm×22.5mm×85mm [Case Only] 52mm×22.5mm×97mm [All Inclusive]
Weight	60g

Field Firmware Update
Interface	USB to PC

Ordering Information
Model No.	Product Description
CPLUS-VHHI	UHD+ HDMI to HDMI Enhancer with EDID Management

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
