CH-1527RXV

HDMI with HDR, 3D & 4K@60Hz support, Supports Deep Color input and output up to 12-bit, Supports CEC bypass, Simultaneous transmission of video, audio and data over a single Cat.5e/6/7 cable up to 100m (328ft) at 1080p and 70m (246ft) at 4K, Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass-through), Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality, The AVLC function allows manual selection between High Quality (Full bandwidth) mode and Standard mode (Lower bandwidth, useful for longer cable runs with 4K sources), Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only)

Hersteller-Nr.	CH-1527RXV
Hersteller	Cypress Technology

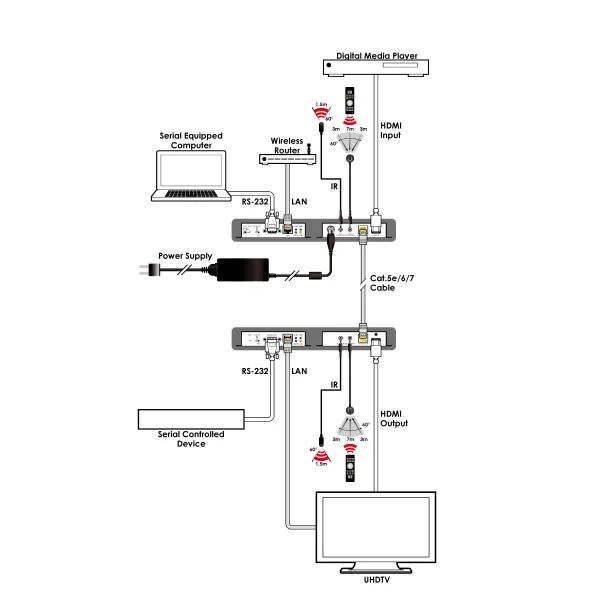

This transmitter and receiver set is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 100 meters. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.

Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed.

Multiple data and control interfaces are also provided, including IR, RS-232 and LAN connections. The Receiver (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Transmitter (PSE), allowing for greater flexibility within different installation scenarios.

Interfaces

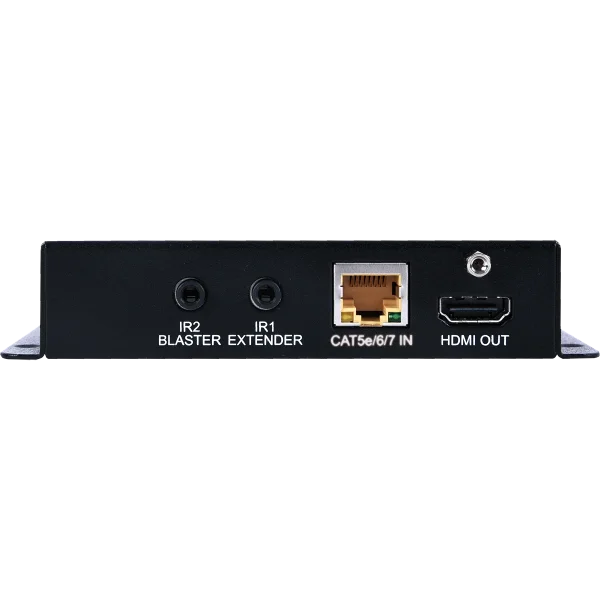

Input Port	1×HDBaseT (RJ-45)
Output Port	1×HDMI (Type-A)

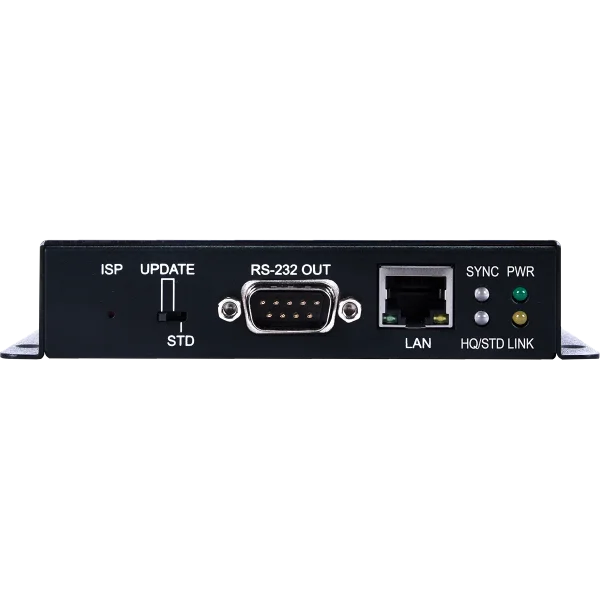

Pass-through Port	1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 (DE-9) 1×LAN [RJ-45]

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR

Resolutions
Maximum Input	Cat.5e/6/7	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	PoH
Power Consumption	10W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×117mm [All Inclusive]
Weight	386g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description

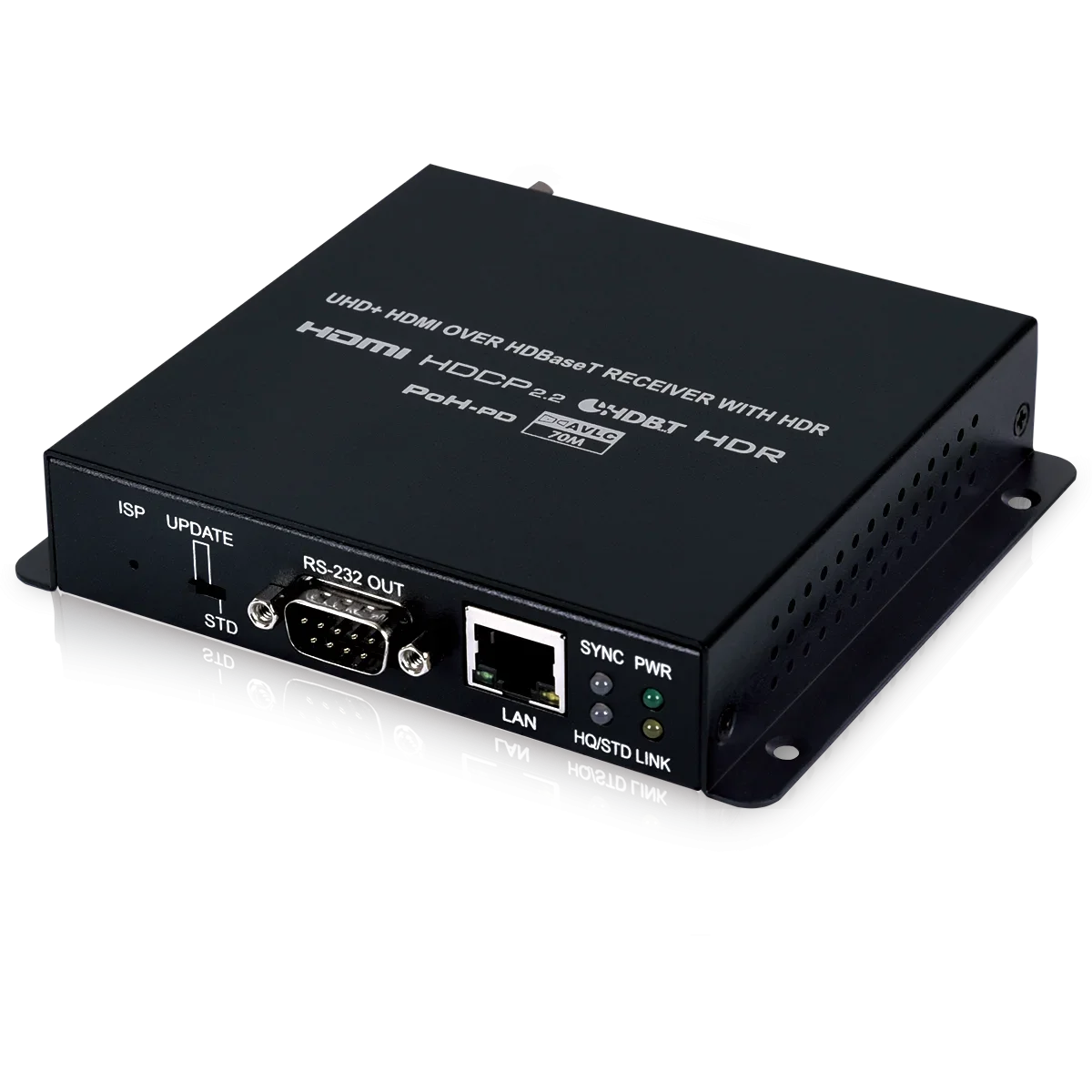

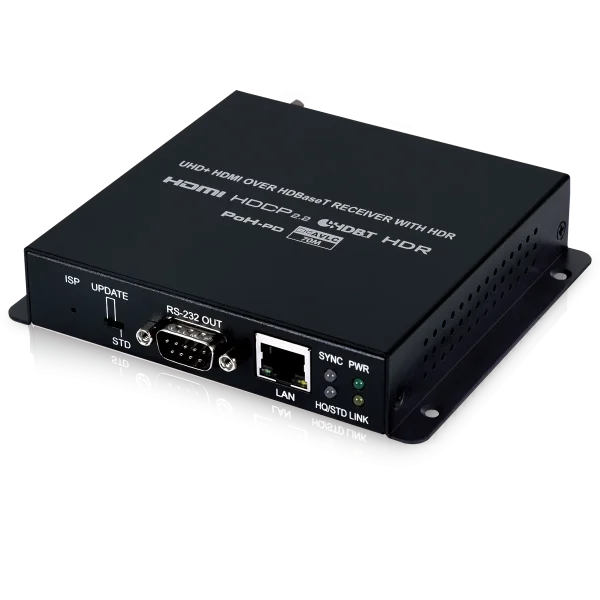

CH-1527RXV	UHD+ HDMI over HDBaseT Receiver with HDR
CH-1527TXV	UHD+ HDMI over HDBaseT Transmitter with HDR

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
