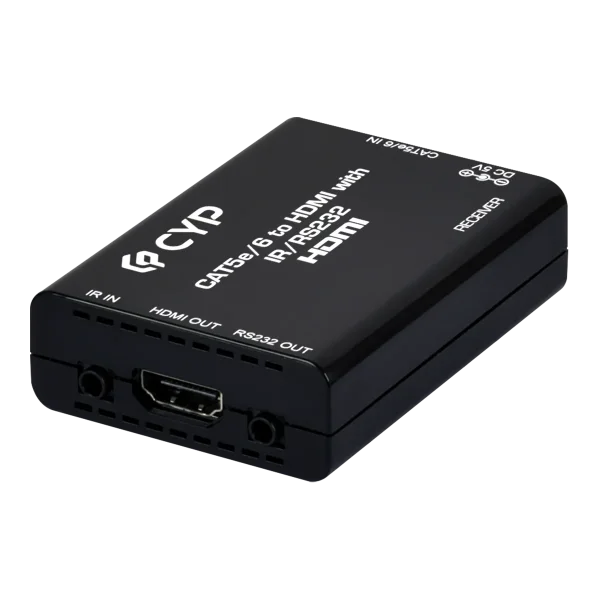

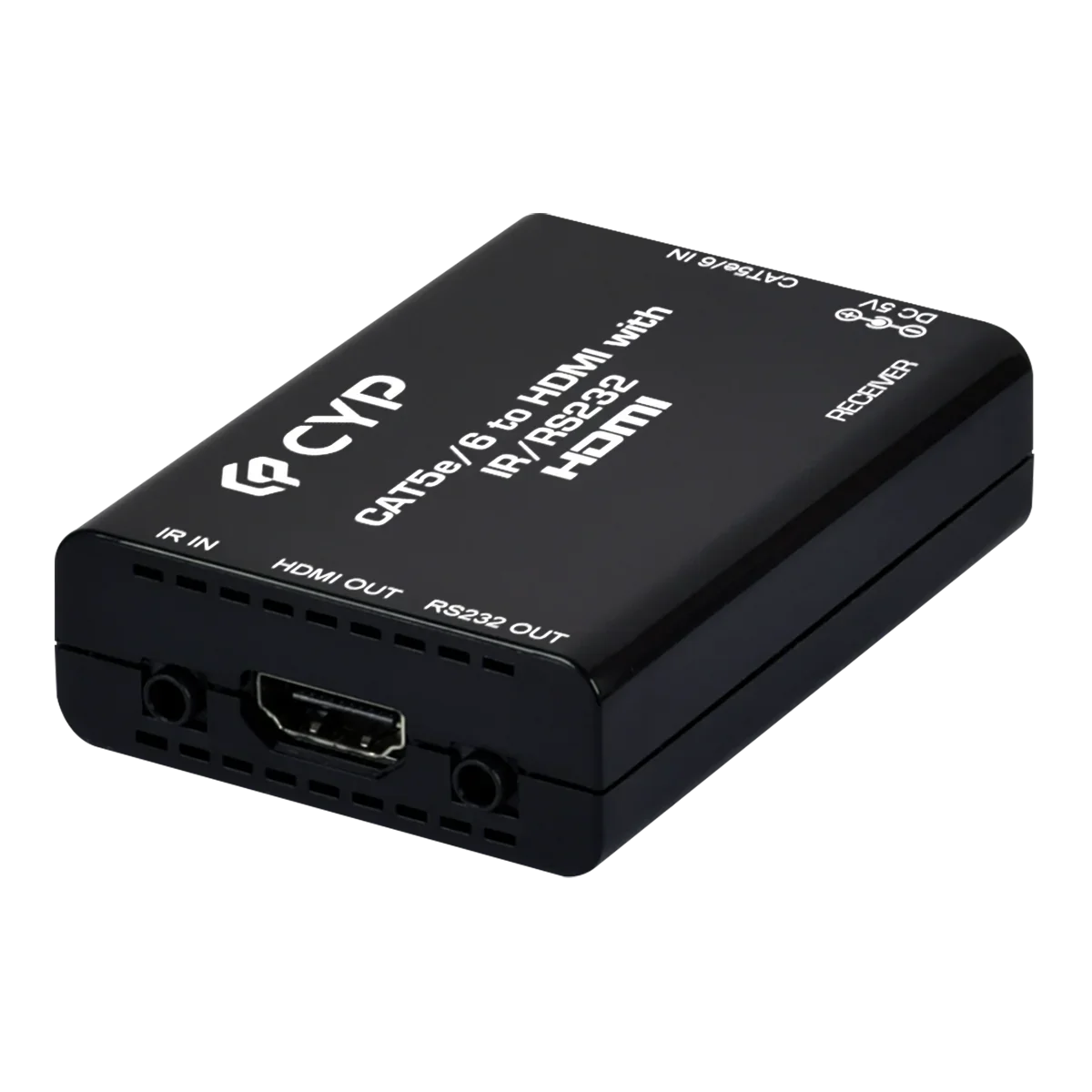

CH-519RXL

Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K, HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through, Supports HDCP repeater and CEC bypass, Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit), Supports Deep Color input and output up to 12-bit, Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream

Hersteller-Nr.	CH-519RXL
Hersteller	Cypress Technology

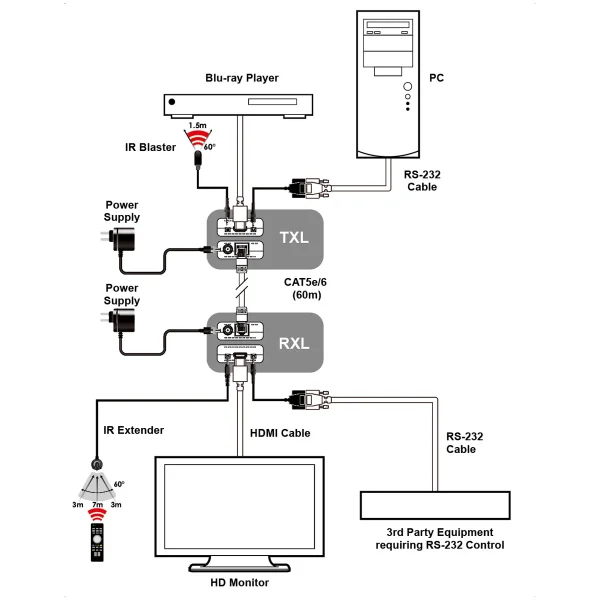

This HDMI over single Cat.5e/6/7 receiver is a great solution for extending uncompressed HD audio and video and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections.

This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The receiver is powered locally and require no manual controls for setup or operation.

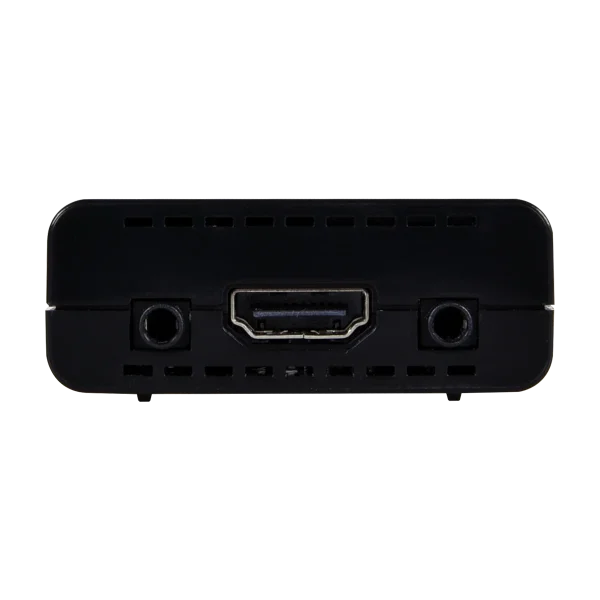

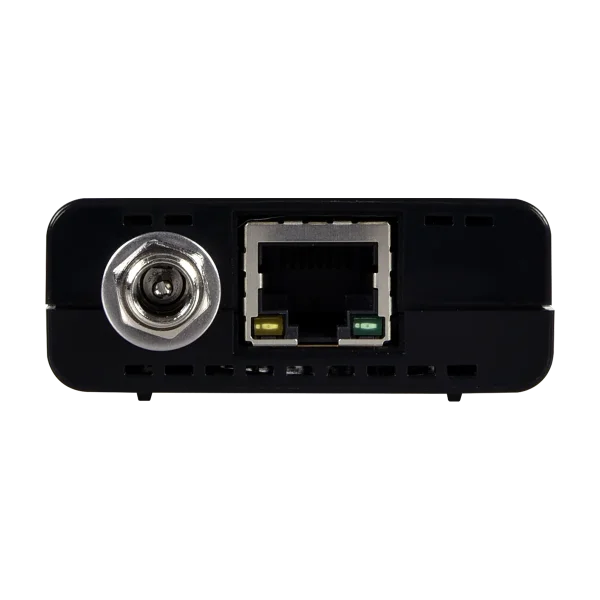

Interfaces

Input Port

1 x HDBaseT (RJ-45)

1 x IR Receiver (3.5mm)

Output Port

1 x HDBaseT (RJ-45)
1 x RS-232 (3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Type	4K@60 YUV 4:2:0
Output Signal Type	4K@30 8bit RGB
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBaseT	4096×2160p@60 YUV 4:2:0

Power
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	5.06W

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	55 mm×22.5mm×75.5mm [Case Only] 55 mm×22.5mm×82.2mm [All Inclusive]
Weight	66g

Field Firmware Update
PCB on board, uses RS232

ORDERING INFORMATION

Model No.	Product Description
CH-519TXL	HDMI to CAT5e/6/7 with IR/RS232
CH-519RXL	CAT5e/6/7 to HDMI with IR/RS232
CBL-DB09E3.5-10	3.5 mm mini-jack to RS-232 male cable
CBL-DB09ME3.5-10	3.5 mm mini-jack to RS-232 female cable
CBL-E3.5IF-20A	IR Blaster
CBL-IR10C3SA200	IR Extender

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
