Component/CGA to PC Converter
Enable users to play video games on PC monitors , Supports output resolution up to 1080p60, 50/60Hz frame rate conversion ensure error-free display (576i only), Supports scaling of CGA(RGB) input which is auto-detected and can be RGBHV or RGsB (Sync-on-Green) , Supports scaling of Component (YCbCr) input which is auto-detected and can be YPbPrHV or YPbPr (Sync-on-Y), Plug and Play design, easy to setup and no driver software required
| Hersteller-Nr. | CSC-201 |
| Hersteller | Cypress Technology |
This converter box can convert the component or CGA signals to different PC
signals: VGA, XGA and WXGA. It enables the user to connect the YCbCr or RGB
signal input source such as video game consoles, legacy PCs and DVD players
to LCD monitors or TV displays with resolutions up to 1080p60. It also provides
further features, such as phase & horizontal/vertical position adjustment and

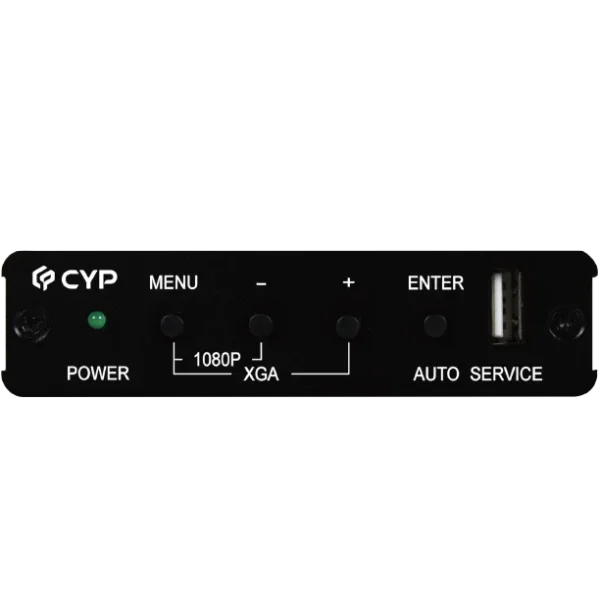

field-invert setting. Users can adjust the video position and resolution via OSD
menu on the display. This converter box was designed in a small size, which is
easy for users to carry around.
SPECIFICATIONS
|

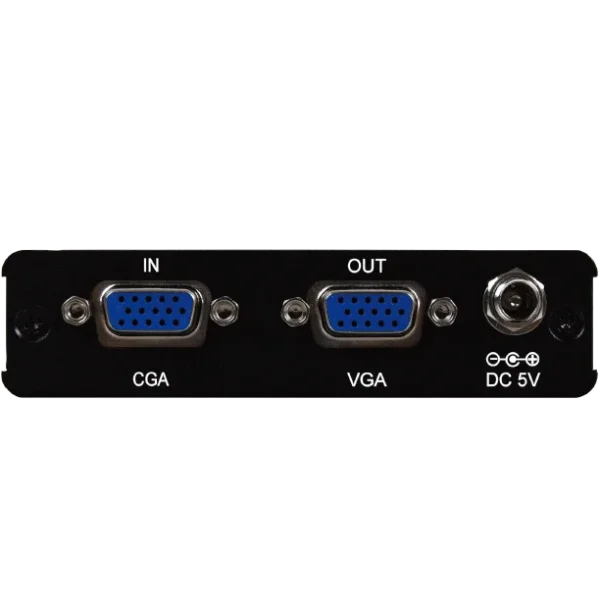

Interfaces |
|
|
Input Port |
1 HD-15 (CGA RGB/YCbCr Component) |
|
Output Port |
1 HD-15 (VGA RGBHV) |
|
Service Port |
1 USB 2.0 (Type A) |
|
Video |
||
|
Input Signal Type |
CGA & YCbCr: 480i/576i |
|
|
Output Signal Type |
WXGA |
|
|
Interface |
Resolutions |
|
|
Maximum Input |
HD-15 |
1920x1080@60Hz |
|
Maximum Output |
HD-15 |
1920x1080@60Hz |
|
Power |
|
|
Power Supply |
5V/1.2A |
|
Power Consumption |
3.15W |
|
Enclosure |
|
|
Chassis Material |
Metal (Aluminum) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
100mm×25mm×112.5mm [Case Only] |
|
Weight |
253g |
|
Field Firmware Update |
|
|
USB Flash Drive |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
CSC-201 |
Component/CGA to PC Converter |
Keine Maßangaben verfügbar.
