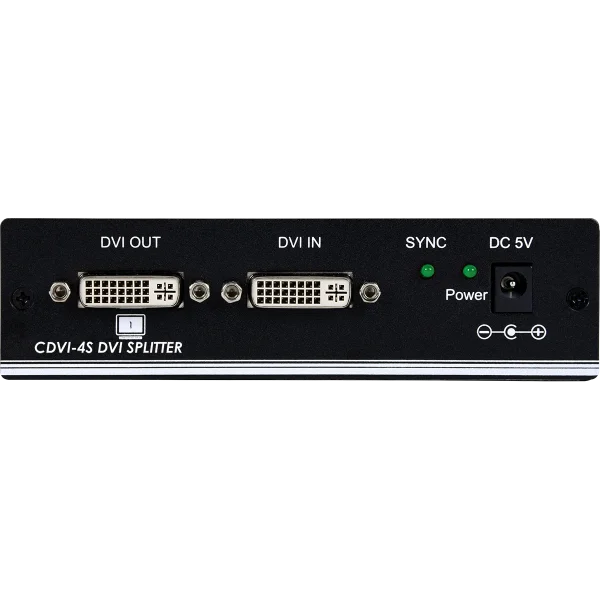

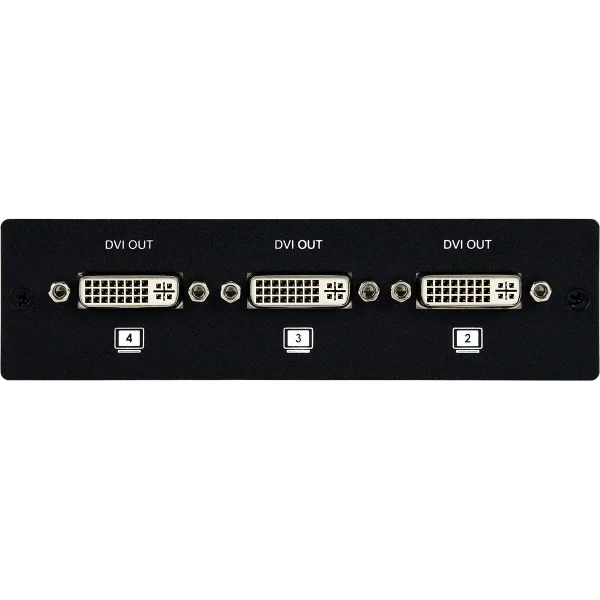

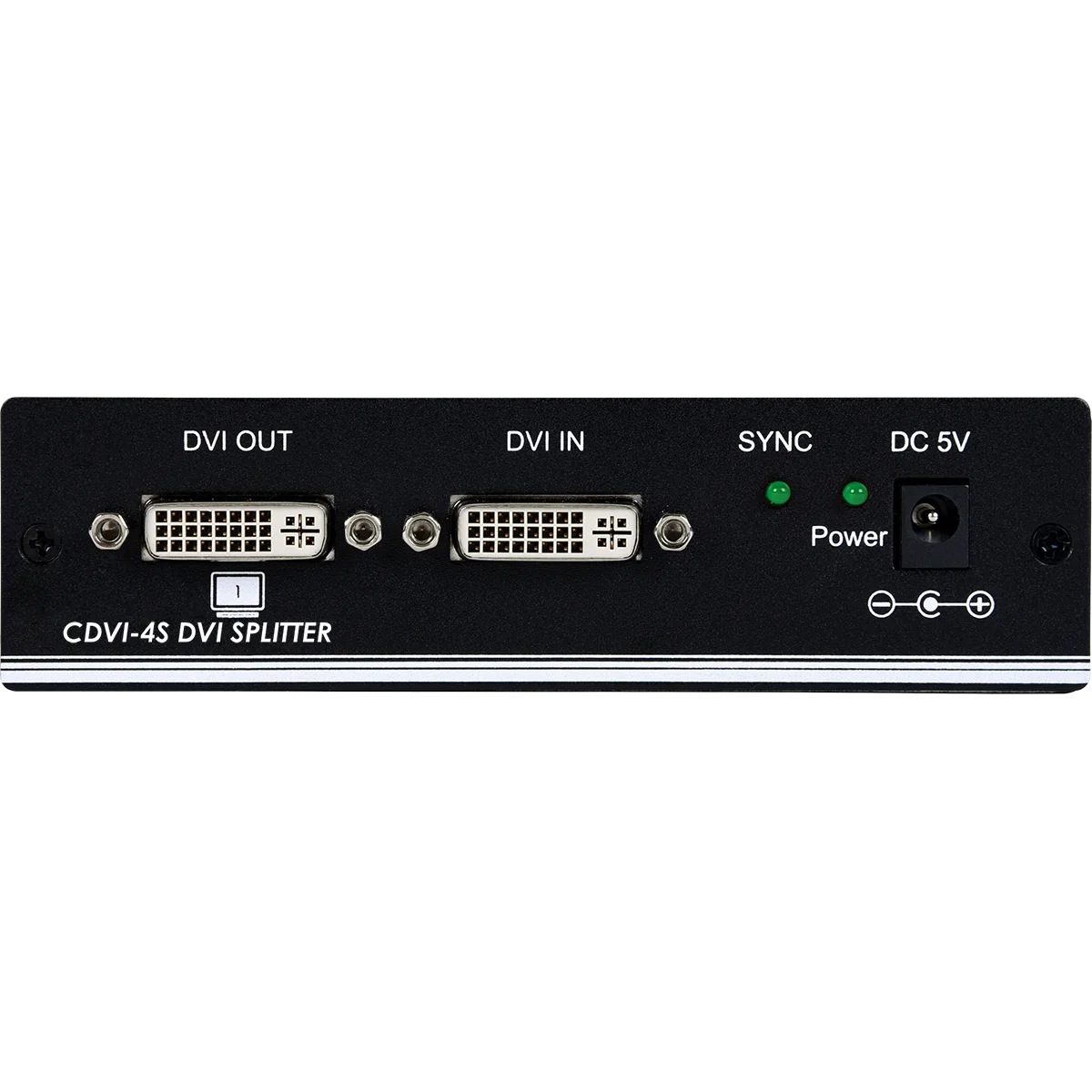

1 by 4 DVI Splitter
Compatible with HDMI signal (with adaptor cable) , Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480p to 1080p , Can be cascaded up to 3 layers , The device will read and record the EDID of output 1 and then send it to the source device
| Hersteller-Nr. | CDVI-4S |
| Hersteller | Cypress Technology |

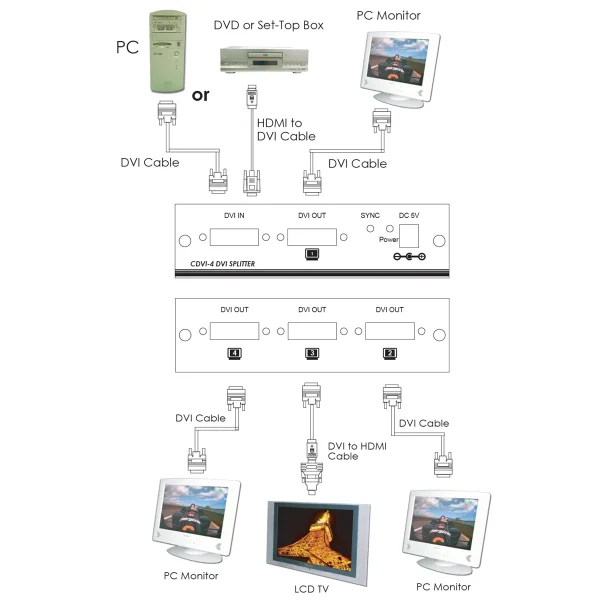

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be split to two, four or eight identical buffered outputs for connecting to up to eight DVI displays simultaneously. These models can be used to transfer HDMI signal by using HDMI to DVI adaptor or cable. Each of the buffered outputs can be run up to 15 meters and can be cascaded.
|
Interfaces |
|
|---|---|
|
Input Port |
1 DVI |
|
Output Port |
4 DVI |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
HDMI 1.3 (DVI 1.0) |
|
|
HDCP Compliance |
HDCP 1.4 |
|
|
Input Signal Type |
1080p60 12-bit |
|
|
Output Signal Type |
1080p60 12-bit |
|
|
Resolutions |
||
|
Maximum Input |
DVI |
1920×1080p@60 1920×1200p@60RB |
|
Maximum Output |
DVI |
1920×1080p@60 1920×1200p@60RB |
|
Power |
|
|---|---|
|
Power Supply |
5V /2.6A DC |
|
Power Consumption |
6W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
102 mm × 38 mm × 141 mm |
|
Weight |
550g |
|
Field Firmware Update |
|---|
|
PCB on board, uses RS232 |
|
ORDERING INFORMATION |
|
|---|---|
|
Model No. |
Product Description |
|
CDVI-4S |
1 by 4 DVI Splitter |
