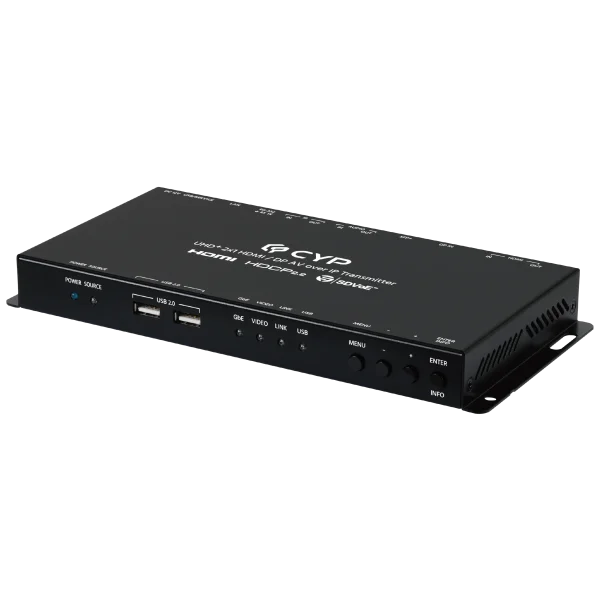

AVIP-P5104T-B1F

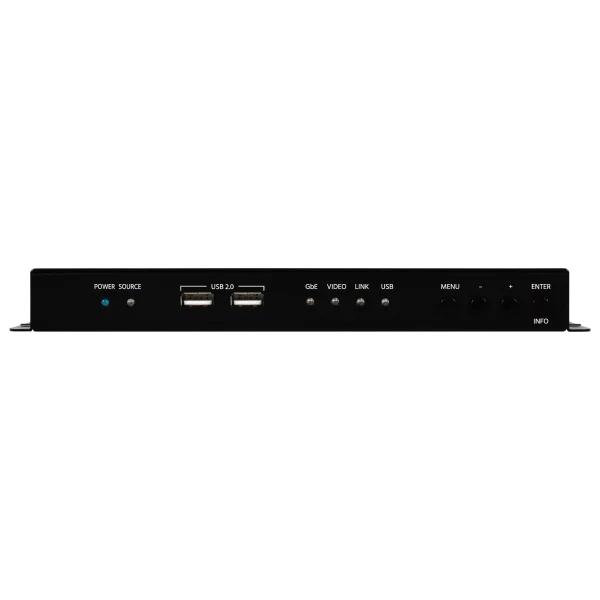

Zero latency transmission for all signal types including 4K@60 RGB/ YUV 4:4:4, HDR10, 3D and broadcast-friendly 4K@60 10-bit 4:2:2, Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only), Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software), Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K with color space conversion and frame rate conversion, Audio down-mixing engine from multi-channel PCM audio to stereo, Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fiber modules, Basic configuration via front panel buttons with an On-Screen Display (OSD)

Hersteller-Nr.	AVIP-P5104T-B1F
Hersteller	Cypress Technology

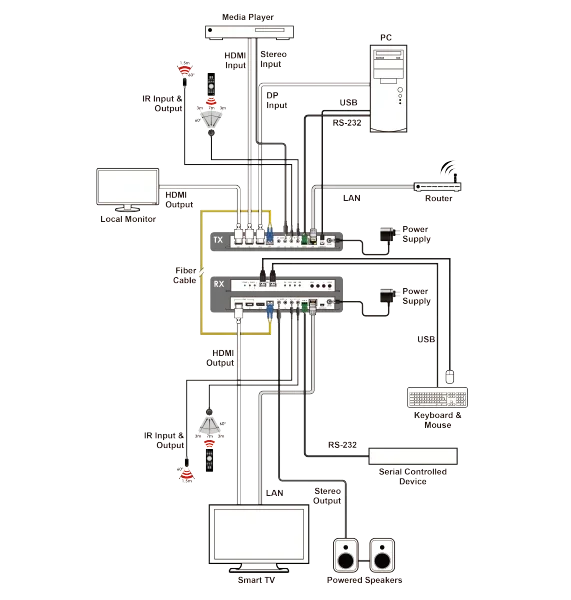

This transmitter is designed for high-quality, IP routable and AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content), it’s a great solution for extending 4K audio/video streams and data. The fiber optical port supports both singlemode and multimode fiber module. The distance of signal extension is up to 120 km in Point-to-Point mode. When combined with the optional IP Master Controller or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to set up a video matrix mode, a multiview mode or a video wall mode. It’s suitable for large scale installations. The very own exclusive development technology of preview function has remedied the lack of this AV over IP solution and fulfilled the needs of long distance transmission.

Interfaces
Input Port	1 HDMI (Type A) 1 DisplayPort(Female) 1 Analog(3.5mm)

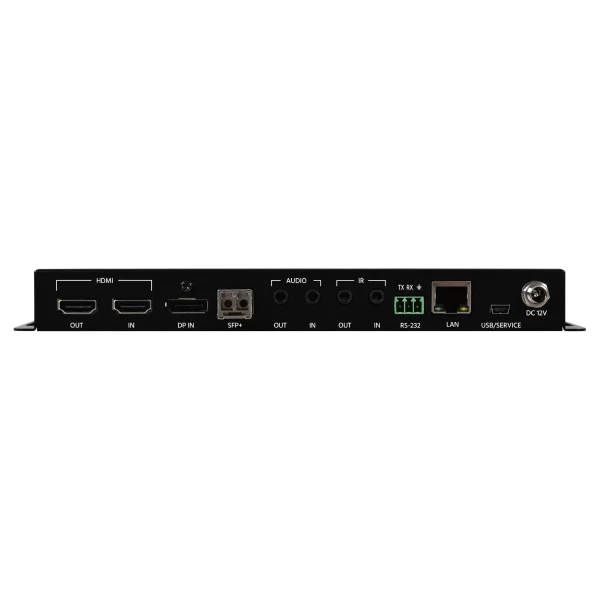

Output Port	1 HDMI (Type A) 1 Analog(3.5mm) 1 10GbE LAN (SFP+)
Control I/O	1 Ethernet (RJ-45) 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin terminal block) 1 USB (Mini-B) 2 USB(Type A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
	DP	4096×2160p@60 YUV 4:4:4
Maximum Output	SFP+	4096×2160p@60 YUV 4:4:4
	HDMI	4096×2160p@60 YUV 4:4:4

Audio
Digital Format	HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	DP	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line Level	Line In	1 Vrms
	Line Out	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	12V/3A DC (Locking)
Power Consumption	11.2W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive]
Weight	594g

Field Firmware Update
PC

ORDERING INFORMATION

Model No.	Product Description
AVIP-P5104T-B1F	UHD+ 2×1 HDMI/DP to HDMI AV over IP Transmitter with Preview
AVIP-P5101TR-B1C	UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/HID USB
AVIP-P5102TR-B1C	UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB
AVIP-P5102TR-B1F	UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB
AVIP-P5101TR-B1F	UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transmitter W/HID USB
AVIP-P5104R-B1C	UHD+ HDMI AV over IP Receiver
CH-V502TR	UHD+ HDMI/USB AV over IP Transceiver
COH-TR7	UHD+ HDMI/DP/USB AV over IP Transceiver

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
