Cypress Technology

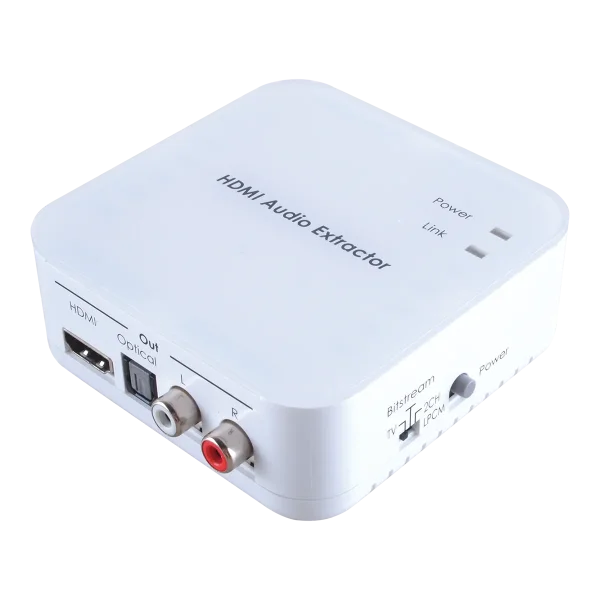

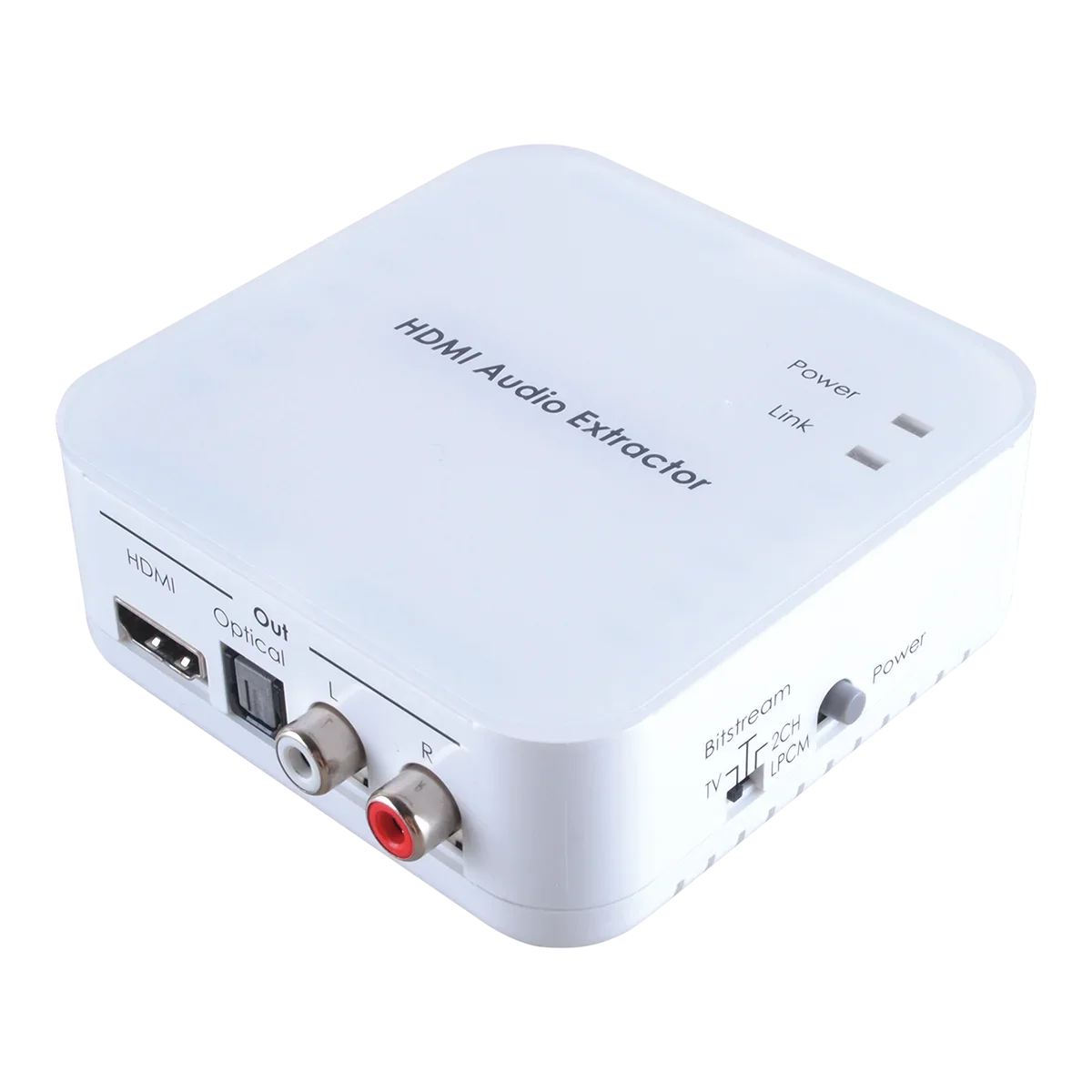

CLUX-11CD

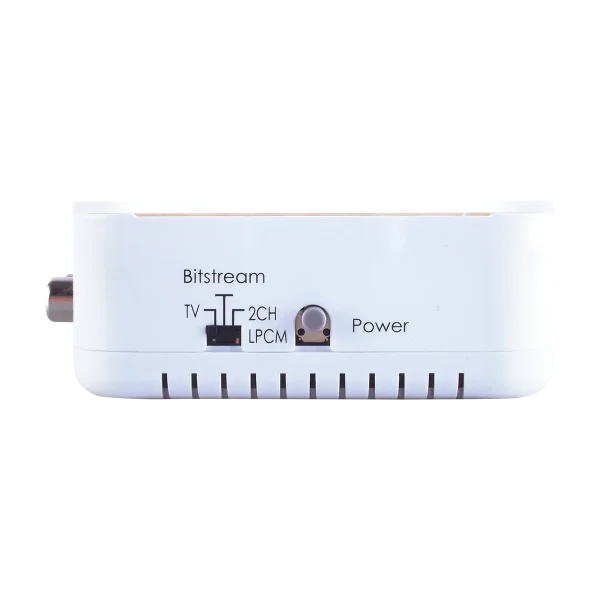

Compliant with HDMI, HDCP 1.2 and DVI 1.0, Supports HDMI audio sampling rates up to 192 kHz, Supports Optical S/PDIF sampling rates up to 48 kHz , Supports TMDS clock frequency rate 225 MHz, Supports high-bit-rate (HBR) audio, No HDMI output connection is required to receive audio at the analog and optical outputs , Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution , Low power consumption, Supports EDID management for audio formats, can switch among builtin EDID (LPCM 2CH/Bitstream) and external EDID (TV) , Supports 3D signal

Hersteller-Nr.	CLUX-11CD
Hersteller	Cypress Technology

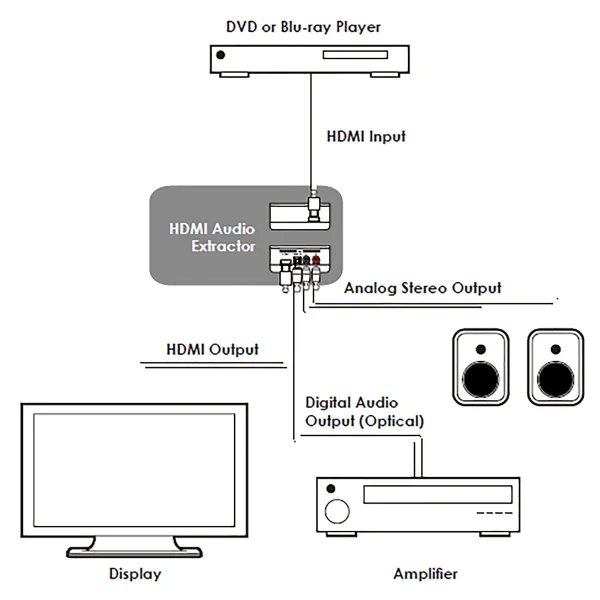

The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don’t always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog Stereo (L/R) audio. This means that you can output your audio signal to external speakers or extend your audio signal pathway.

Interfaces

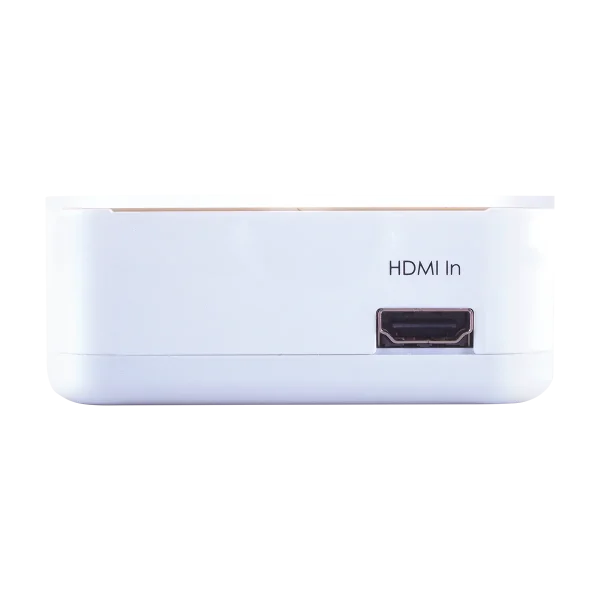

Input Port

1×HDMI

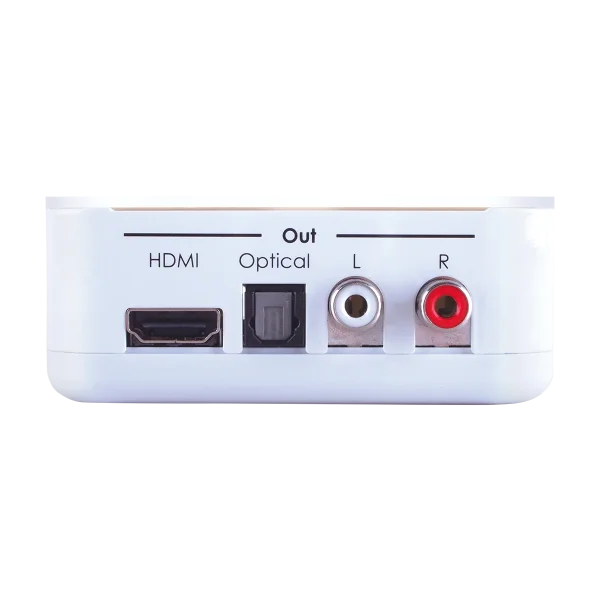

Output Port

1×HDMI

1×Optical

1×L/R

Power

Power Supply

5 V/1 A linear power adaptor

(US/EU Standards, CE/FCC/UL Certified)

5 V/1.2 A switching power adaptor

(with universal plug, CE/FCC/UL certified)

Power Consumption

2.1 W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	90.7 mm × 34 mm × 85.8 mm
Weight	107g

ORDERING INFORMATION
Model No.	Product Description
CLUX-11CD	HDMI Audio Extractor

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
