SPM-205/4

EAN/GTIN	4007754220995
Hersteller-Nr.	SPM-205/4
Hersteller	Monacor

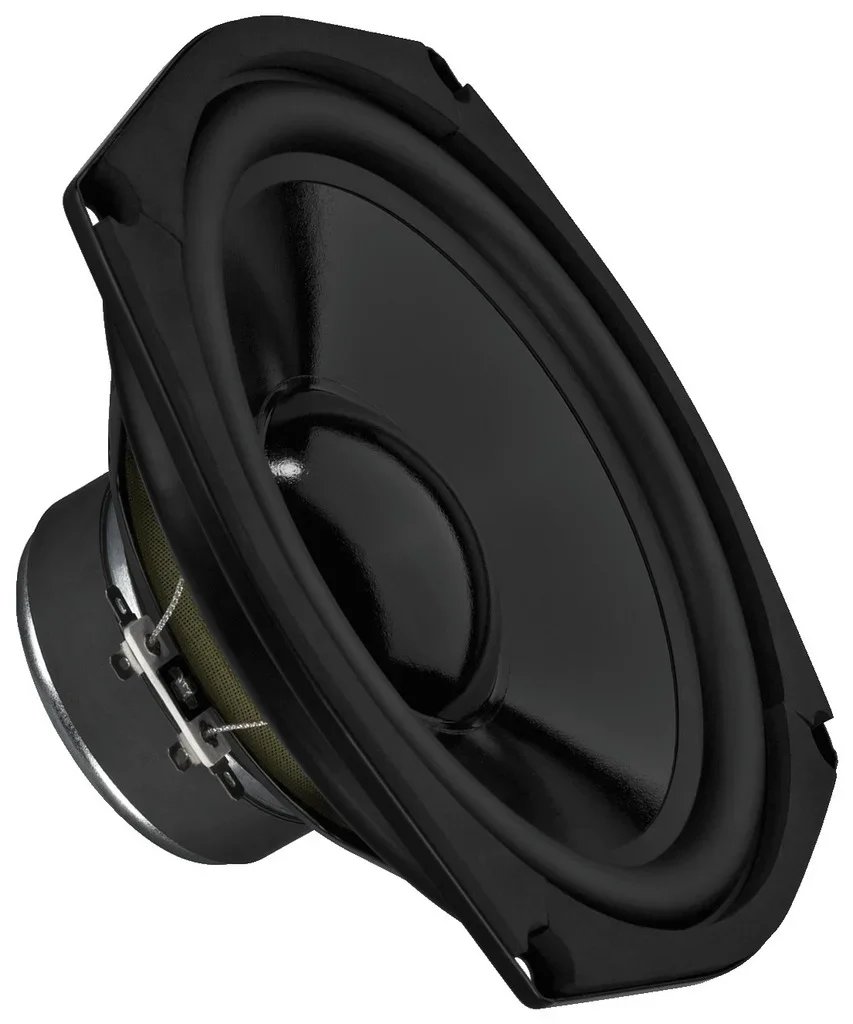

Hi-Fi-Tiefmitteltöner, 70 W, 8 Ω (/8) und 4 Ω (/4)

Ausgezeichnete Ersatzlautsprecher in Originalhersteller-Qualität
Beschichtete resonanzarme Papiermembran
Langzeitstabile Gummisicke
Einsetzbar vorzugsweise in geschlossenen oder Transmissionline-Gehäusen

Technische Daten

Impedanz (Z)	4 Ω
Übertragungstechnik	Kabel
Frequenzbereich	f3-5000 Hz
Resonanzfrequenz (fs)	37 Hz
Nennbelastbarkeit (RMS)	70 W
Musikbelastbarkeit (MAX)	150 W
Kennschalldruck	89 dB/W/m
Nachgiebigkeit (Cms)	0,98 mm/N
Bewegte Masse (Mms)	18 g
Mechanische Güte (Qms)	2,71
Elektrische Güte (Qes)	0,68
Gesamtgüte (Qts)	0,55
Äquivalentvolumen (Vas)	72 l
Gleichstromwiderst. (Re)	3,6 Ω
Kraftfaktor (BxL)	4,75 Tm
Schwingspulenind. (Le)	0,65 mH
Schwingspulendurchm.	Ø 25,5 mm
Schwingspulenträger	Aluminium
Lineare Auslenkung (XMAX)	± 3 mm
Eff. Membranfläche (Sd)	210 cm2
Magnetgewicht	380 g
Magnetdurchmesser	Ø 80 mm

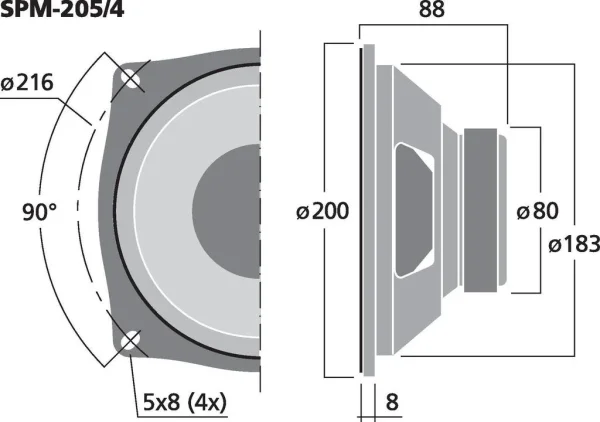

Einbauöffnung	Ø 183 mm
Einbautiefe	80 mm
Lochkreisdurchmesser	Ø 216 mm
Abmessungen	Ø 200 mm x 88 mm
Außendurchmesser	Ø 200 mm
Breite	Ø 200 mm
Höhe	Ø 200 mm
Tiefe	88 mm
Farbe	Schwarz
Zul. Einsatztemperatur	0-40 °C
Gewicht	1,062 kg
Verpackungseinheit	1
Lautsprechertyp	8"

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

28,31 €

inkl. USt: 33,69 €

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

5 Stück verfügbar

Lieferzeit: ca. 3 Tage
