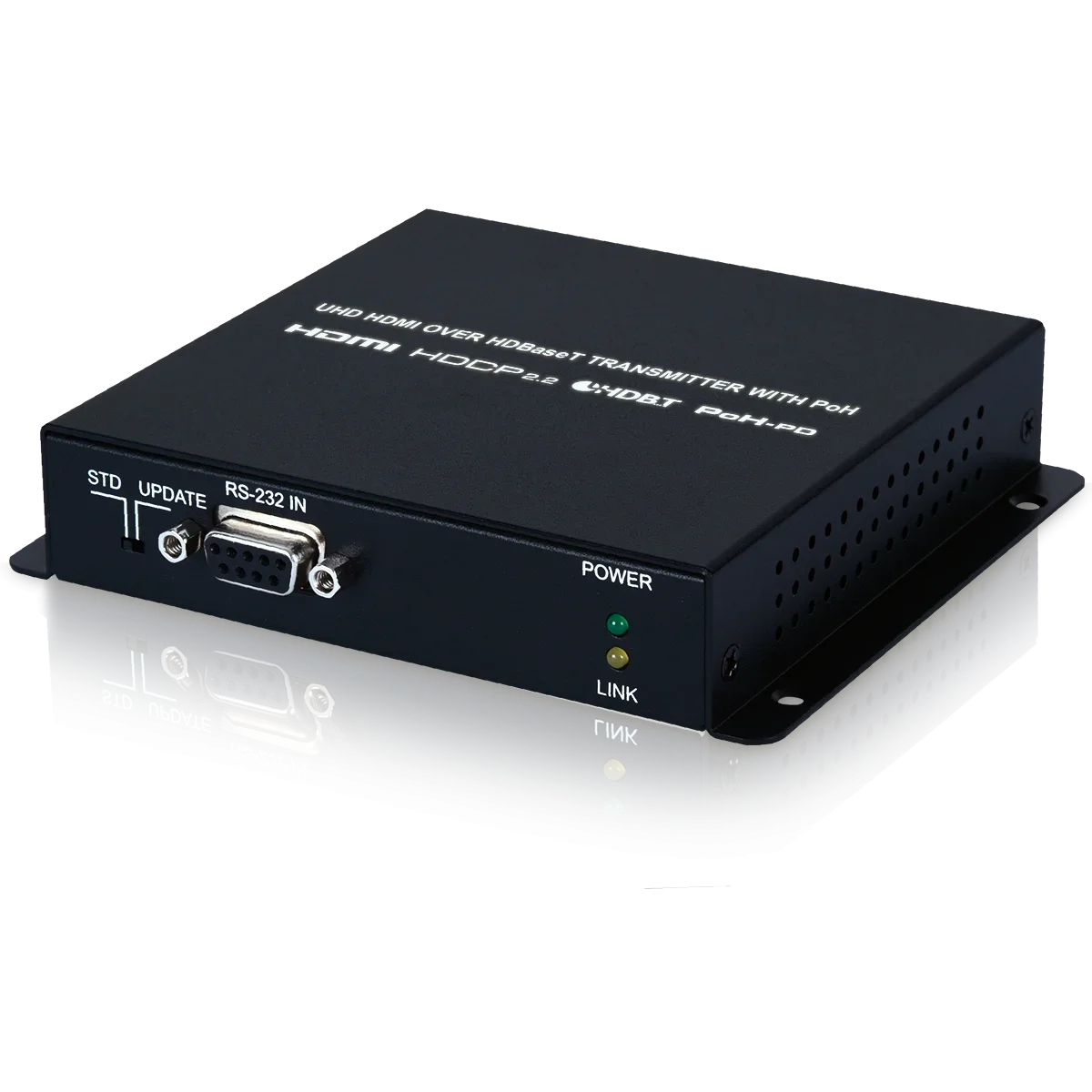

CH-2527TXPL

HDMI with 3D & 4K support, Supports CEC bypass, Simultaneous transmission of uncompressed video, audio and data over a single 70m/230ft Cat.5e/6/7 cable at 1080p60 and 35m/115ft at 4K, HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through), Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)

Hersteller-Nr.	CH-2527TXPL
Hersteller	Cypress Technology

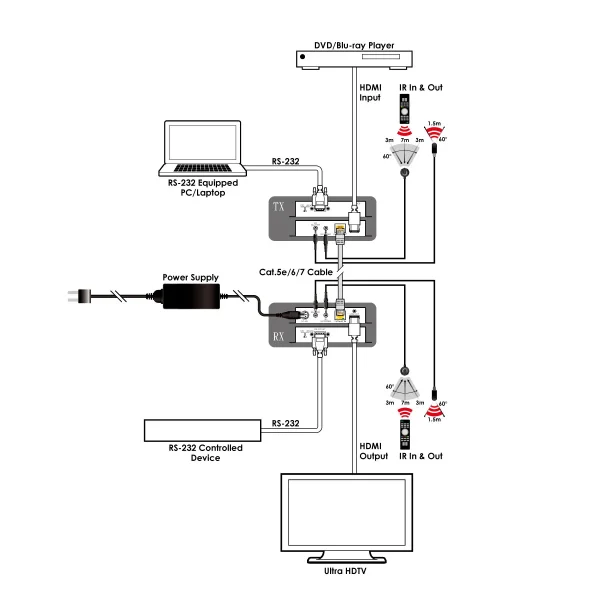

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.

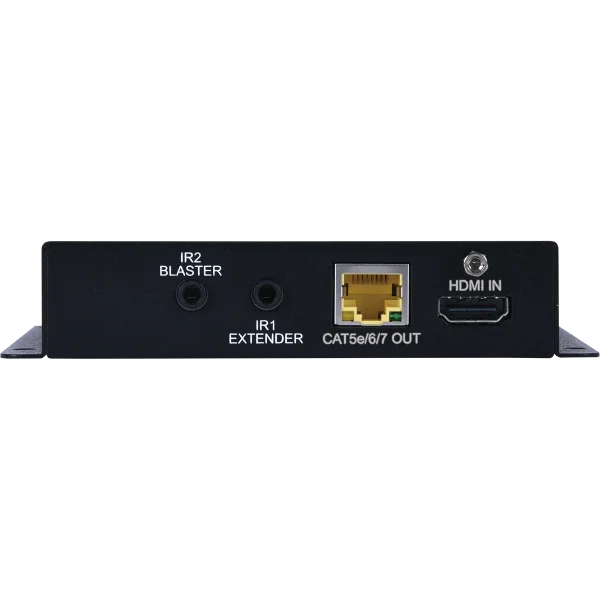

Interfaces
Input Port	1×HDMI (Type-A)
Output Port	1×HDBaseT (RJ-45)
Pass-through Port	1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232(DE-9)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:2:0
Output Signal Type	4K@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBaseT	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48V PoH
Power Consumption	4.71W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm (W×H×D) [Case Only] 128mm×25mm×117m (W×H×D) [All Inclusive]
Weight	370g

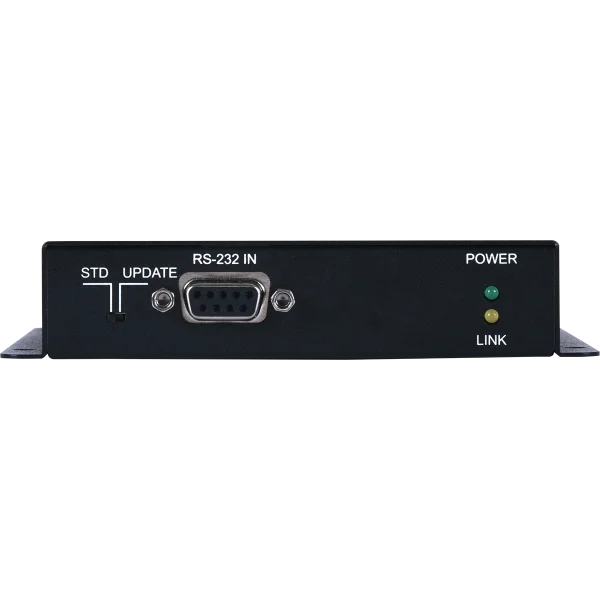

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-2527TXPL	UHD HDMI over HDBaseT Transmitter with PoH
CH-2527RXPL	UHD HDMI over HDBaseT Receiver with PoH

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
