Cypress Technology

VSP-H8K-1401

Compatible with HDMI 2.1 and DVI 1.0, HDCP 2.3 and HDCP 1.x compliant, Supports resolutions up to 8K@60Hz (YUV444), Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI including Dolby5.1/AC-3, DTS5.1, DD+, D-TrueHD, DTS-HD, Dolby Atmos, Supports internal EDIDs and external EDIDs options, control by front panel, Supports CEC Power On/Off

Hersteller-Nr.	VSP-H8K-1401
Hersteller	Cypress Technology

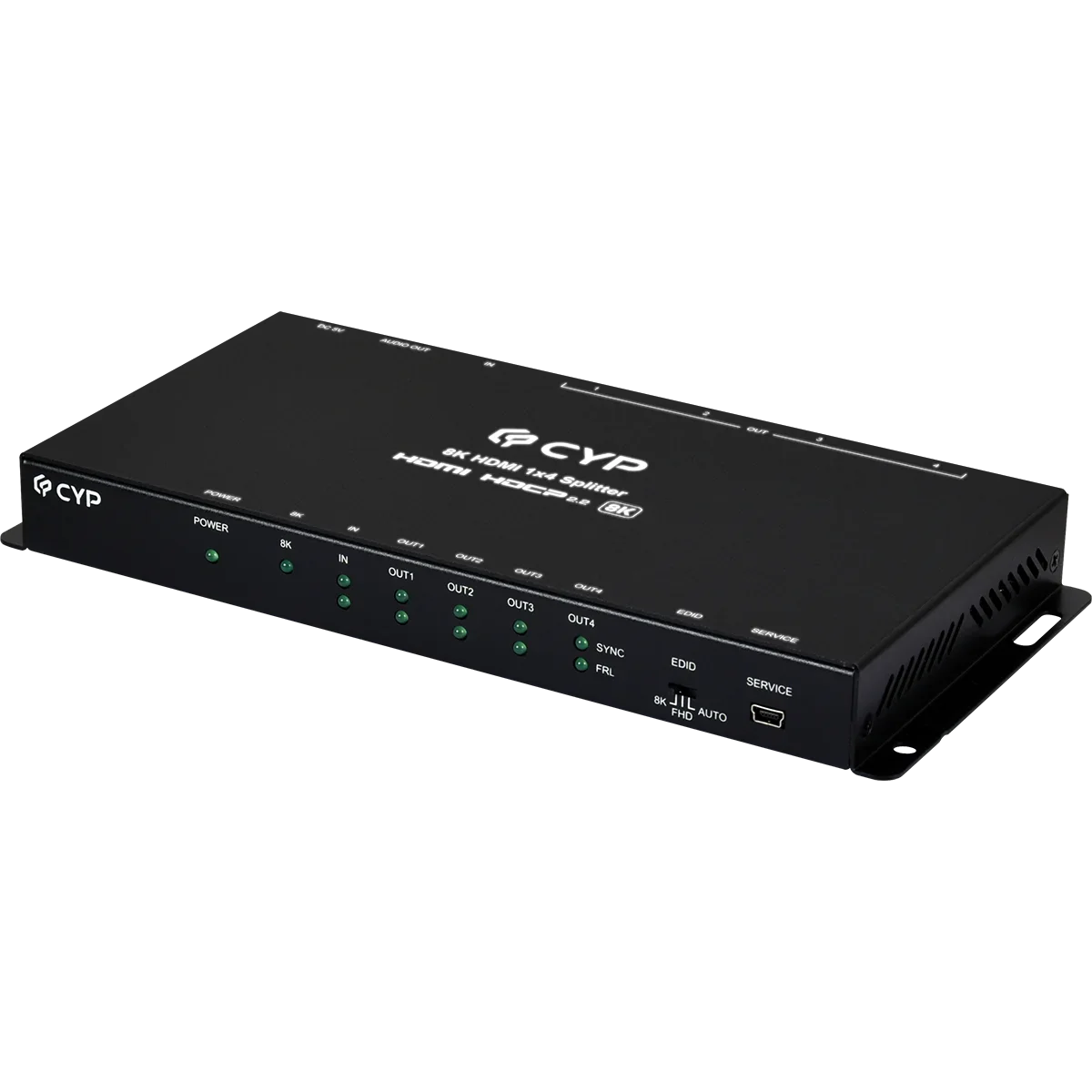

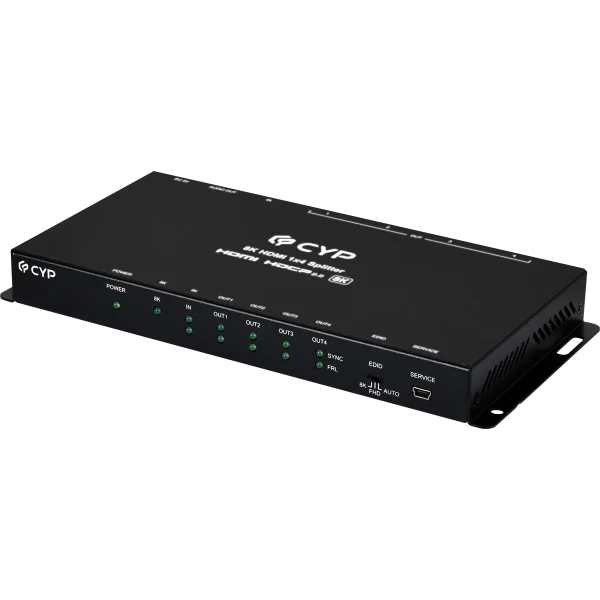

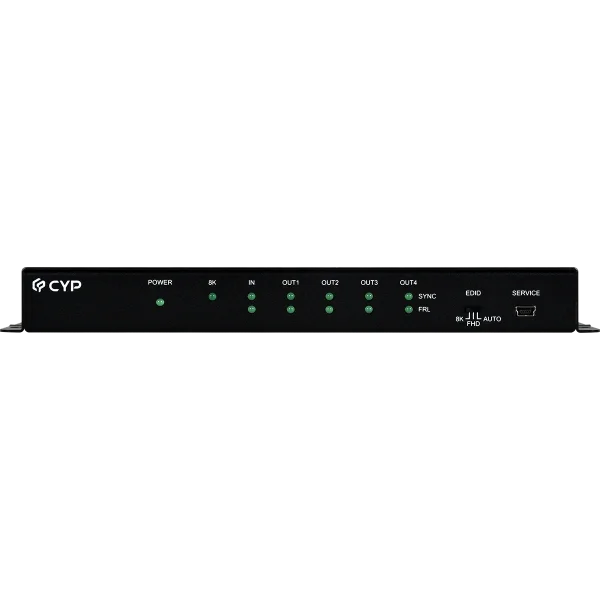

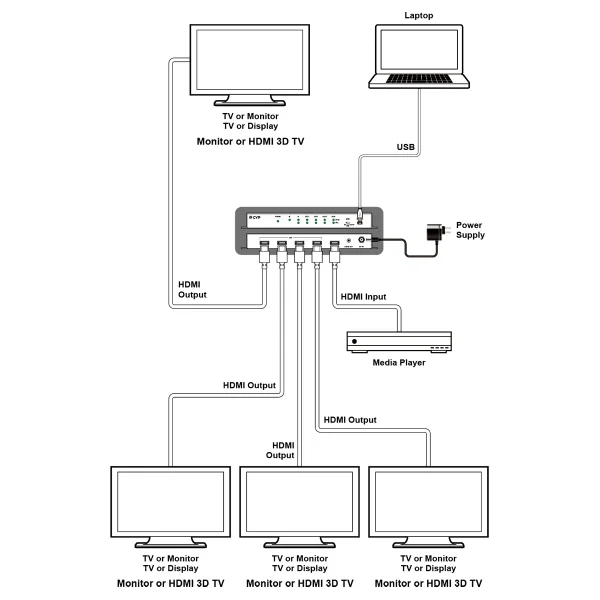

The new generation 8K 1 by 4 HDMI Splitter with HDCP 2.3 is an advanced solution for splitting a single HDMI input to 4 HDMI outputs. It provides high performance audio and video output through HDMI cables up to 8K@60Hz (YUV444) resolution as well as support for 16-bit Deep Color, HDR (High Dynamic Range), 3D content, HD audio and other features defined by HDMI 2.1 specification. It supports high resolution digital audio formats such as LPCM 7.1CH, Bit-Stream Audio, and audio sampling rate up to 192kHz. There are inputs and outputs indications on panel which will illuminate when detected, and system reset function allows the unit trigger TV to device’s HDMI input immediately.

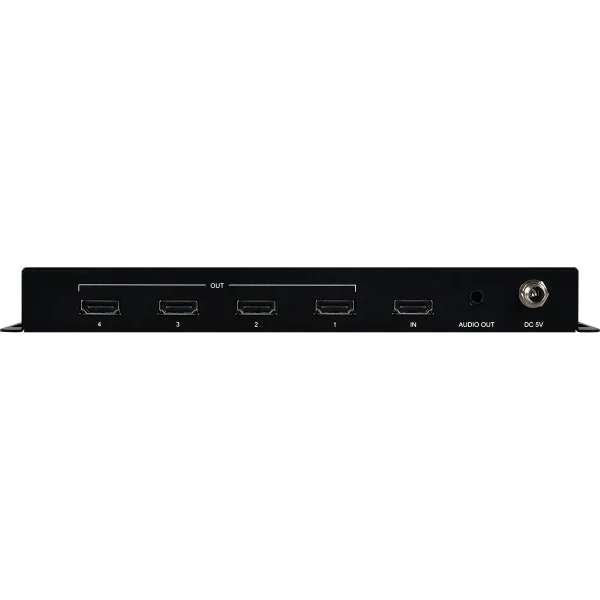

Interfaces
Input Port	1 HDMI (Type A)
Output Port	4 HDMI (Type A) 1 L/R(3.5mm)
Control I/O

Video
HDMI Compliance	HDMI 2.1 (DVI 1.0)
HDCP Compliance	2.3
Input Signal Type	8K@60 YUV 4:4:4
Output Signal Type	8K@60 YUV 4:4:4
		Resolutions
Maximum Input	HDMI	7680×4320p@60 YUV 4:4:4
Maximum Output	HDMI	7680×4320p@60 YUV 4:4:4

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Power
Power Supply	5V/2.6A DC (Locking)
Power Consumption	TBD

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×30mm×118mm [All Inclusive]
Weight	616g

Field Firmware Update
USB

ORDERING INFORMATION

Model No.	Product Description
VSP-H8K-1401	8K 1x4 HDMI Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
