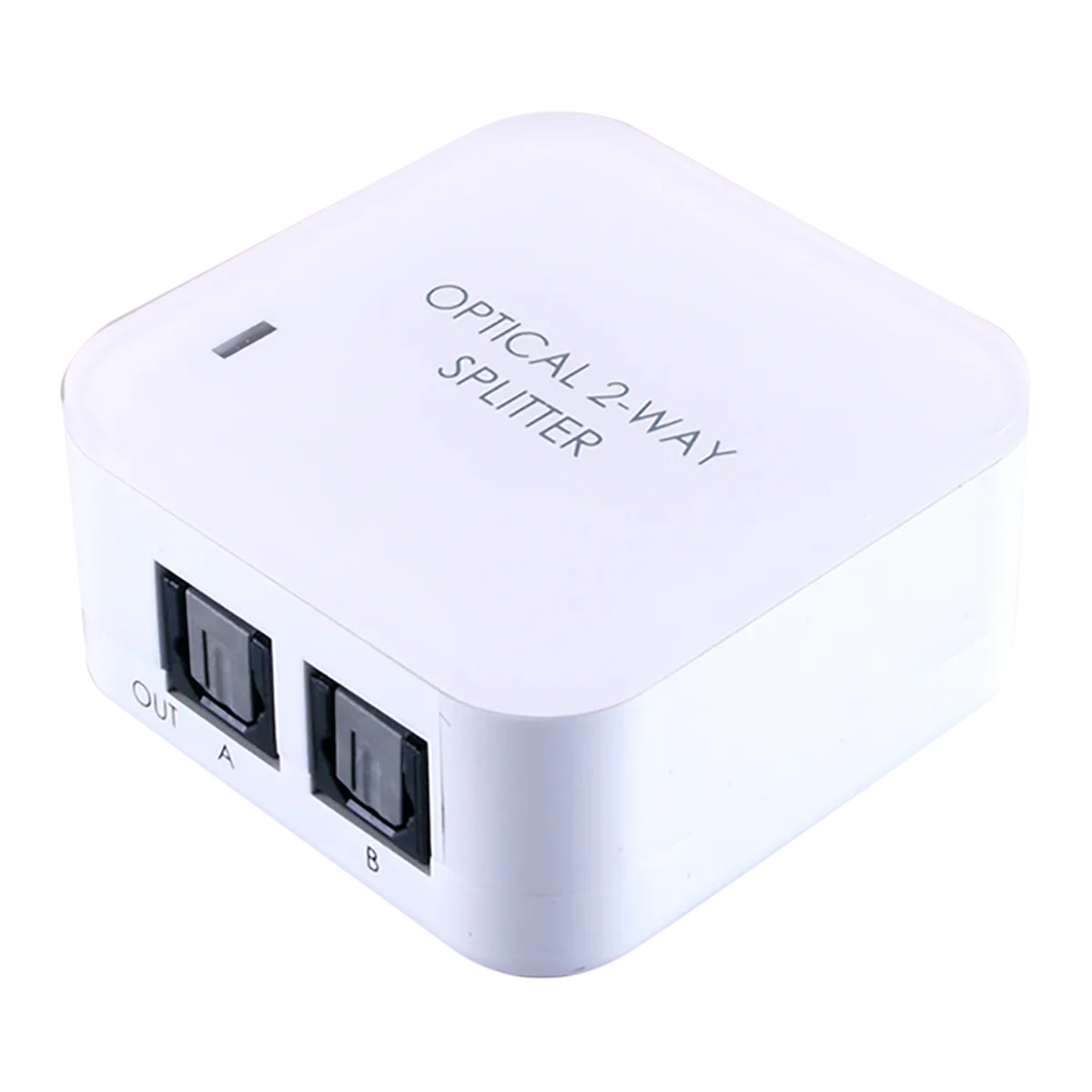

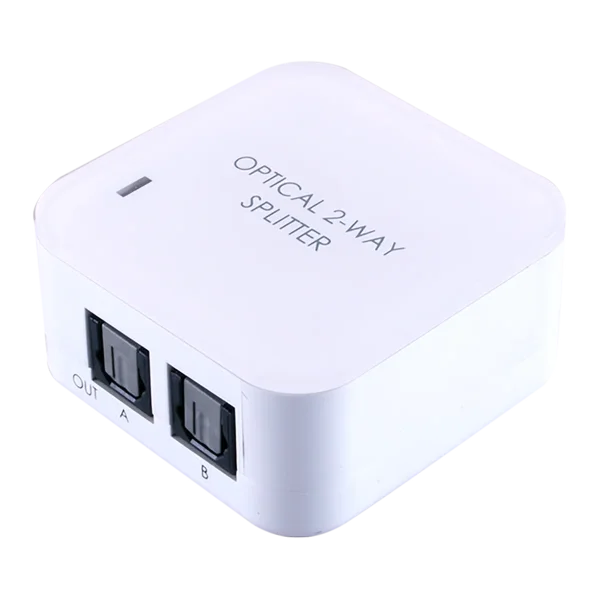

Optical 2-Way Splitter

Klicken zum Vergrößern

Cypress Technology

Optical 2-Way Splitter

Supports the S/PDIF standard of digital audio transmission, Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) audio signal, Supports compressed 2-channel and multi-channel Dolby Digital and DTS audio signals, Provides electromagnetic-noise-free transmission, Easy to install and to operate

Hersteller-Nr.	DT-12
Hersteller	Cypress Technology

The Optical Digital Audio Splitter can split a single optical digital input to two outputs to lengths of up to 5m, using TOSLink optical cables, reliably and without loss of quality. It is designed to be compact, easy to install and use making it ideal for home or professional audio distribution.

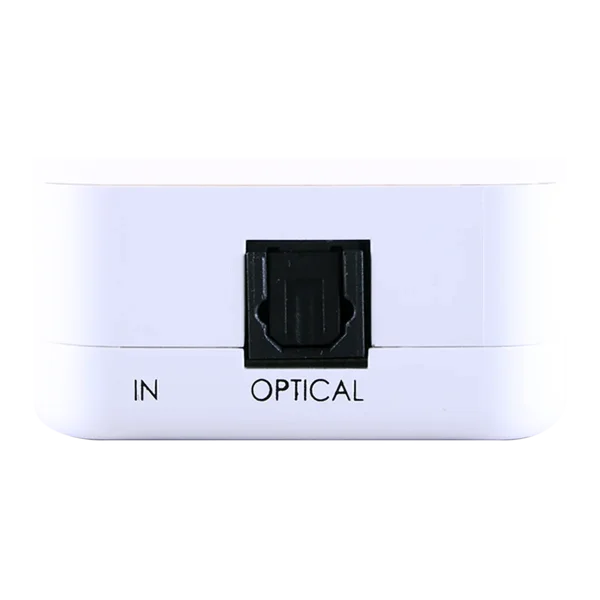

Input Port	1×Optical (TOSLink)

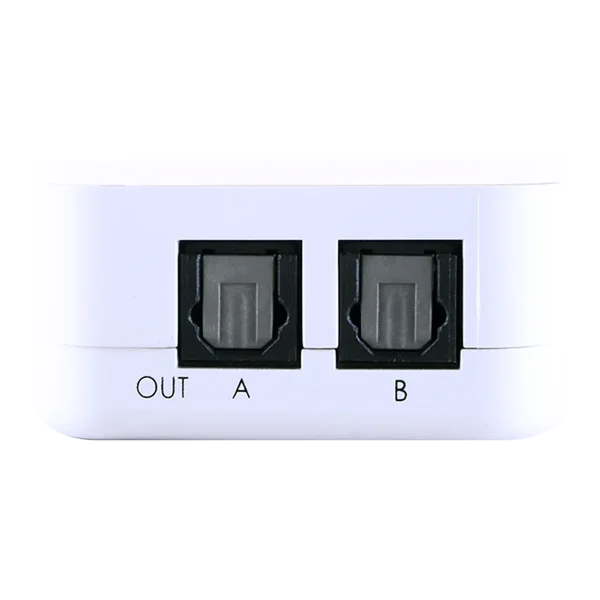

Output Ports	2×Optical (TOSLink)
Power Supply	5 V/0.5 A or 0.36 A DC (US/EU standards, CE/ FCC/UL certified)
Dimensions	46 mm (W)×45.5 mm (D)×23.5 mm (H)
Weight	22 g
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C ~ 40 °C

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
