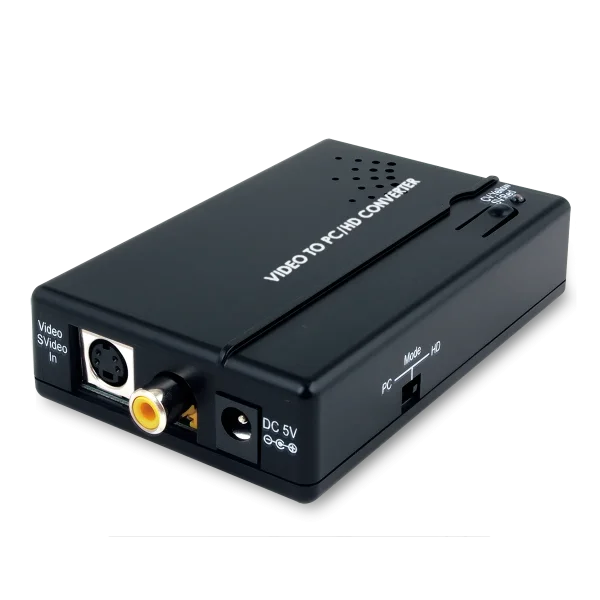

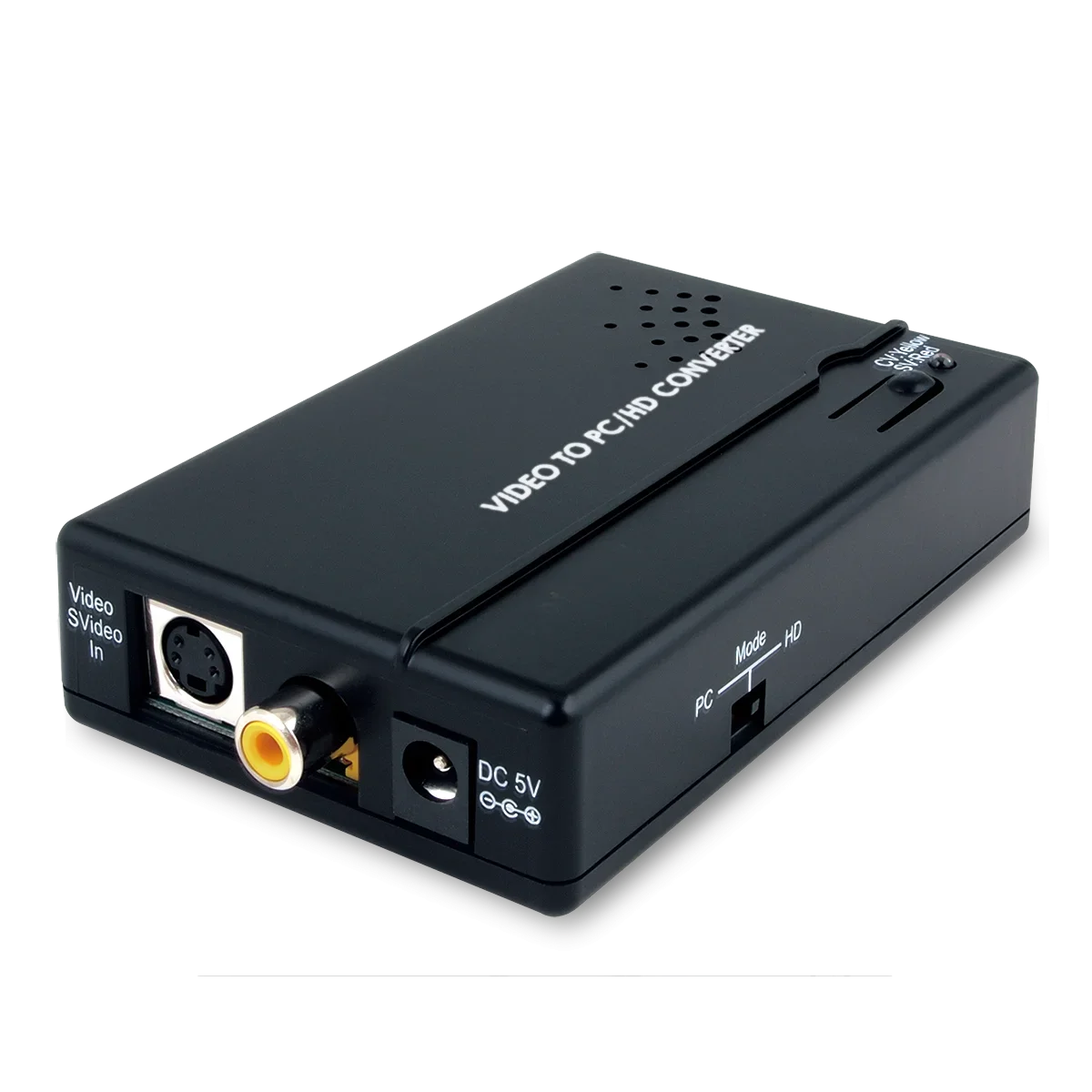

Video to PC/HD Converter
Klicken zum Vergrößern
Cypress Technology

Video to PC/HD Converter

Operates in NTSC 3.58MHz and PAL system , Can scale CV/SV to PC or Component format , Output resolution:-- PC resolutions: XGA, SXGA, UXGA-- Component resolutions: 480p/576p, 720p,1080p, 3D (frame based) motion adaptive YNR/CNR noise reduction , On-Screen Display , Advance 3D motion adaptive de-interlace , Automatic 2:2 & 3:2 film mode detection , 50 to 60 Hz frame rate conversion ensures glitch-free display

Hersteller-Nr.CM-398M
HerstellerCypress Technology
This economical Video to PC converter box that can convert CV/SV (NTSC or PAL system) to supported PC resolution like XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or Game sources on the PC monitor, this device also has an On- Screen Display that allows users to easily select their desired output resolution.
Interfaces

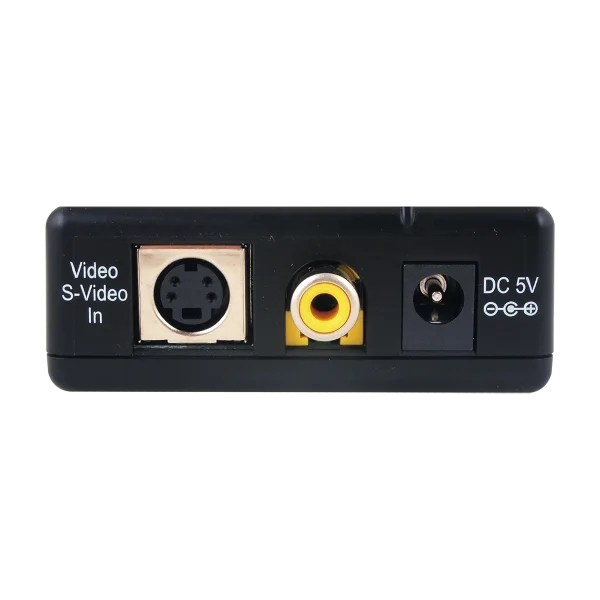

Input Port
  • 1 CV
  • 1 SV

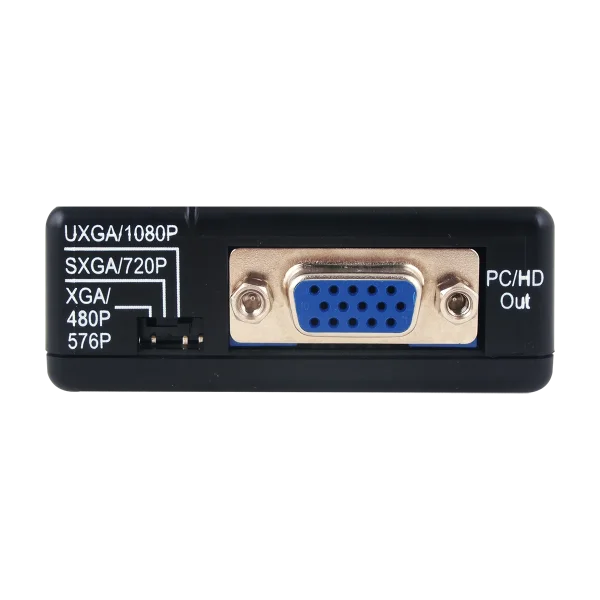

Output Port
  • 1 VGA (Component out needs D-Sub 15 to 3RCA adaptor)
Video
Input Signal Types
  • CV, SV
Output Signal Type
  • VGA
Resolutions
Maximum Input CV, SV
  • 480i@60 / 576i@50
Maximum Output VGA, UXGA
  • 1080P
Power
Power Supply
  • 5VDC/1A
Power Consumption
  • 2.5W(Max)
Enclosure
Chassis Material
  • Plastic
Chassis Color
  • Black
Dimensions (W×H×D)
  • 162.6mm x 33.5mm x 64.5mm
Weight
  • 88g
Ordering Information
Model No. Product Description
CM-398M
  • Video to PC/HD Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
