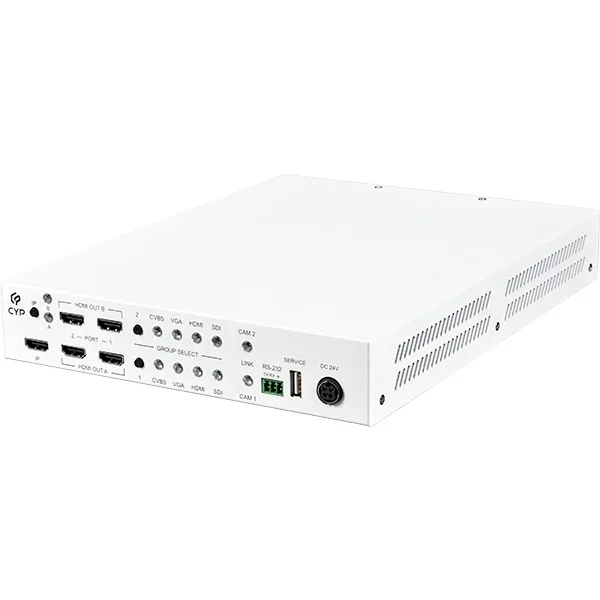

Multi-input Switcher with Multi-Window Display

Klicken zum Vergrößern

Cypress Technology

Multi-input Switcher with Multi-Window Display

Deep color support 8/10/12 bit source on both in and out , Supports conversion of multiple video formats to HDMI outputs., Supports SDI Standards of SMPTE 259M-C, SMPTE 292M, and SMPTE 424M/425M-A , Supports SDI bit rates at 270Mbps, 2.970Gbps & 2.970/1.001Gbps, and 1.485Gbps & 1.485/1.001Gbps., The Multiviewer would be set into following mode: – PIP (Picture In Picture) – SBS (Side by Side) – QUAD (Quad View) – POP (Picture of Picture) , Supports RS-232 transition., FW update via USB flash drive.

Hersteller-Nr.	MED-AS60
Hersteller	Cypress Technology

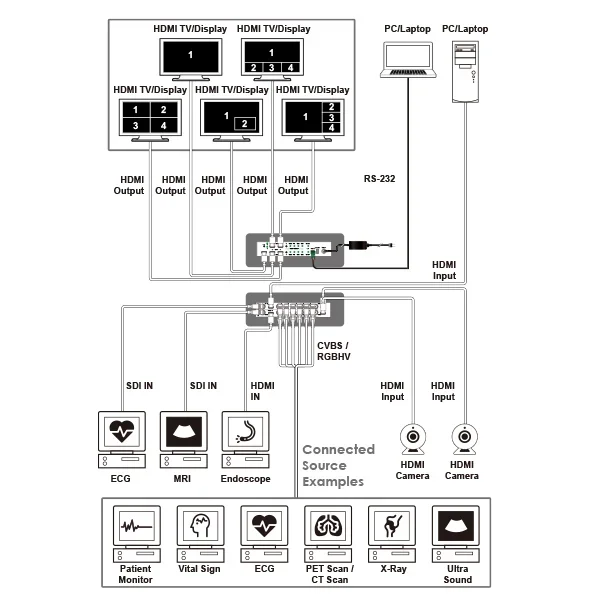

This unit contains 4 HDMI, 2 SDI, 2 VGA, and 2 set of CVBS input, and 5 HDMI outputs to pairing to the medical standard Monitor for giving out the multicontent combination by professional video window processing. With standard medical devices interface, the unit is able to transmit signal up to 1080p@60, deep colour up to 12 bit for both inputs and outputs. By using the control PC tool could easily achieve the layout to fit the scenario, also supports the ability to store a multi-window arrangement as a preset that can be recalled later. With RS-232 and USB port for console communication and firmware updates, to provide efficiency way of medical monitor depiction presentation.

Interfaces

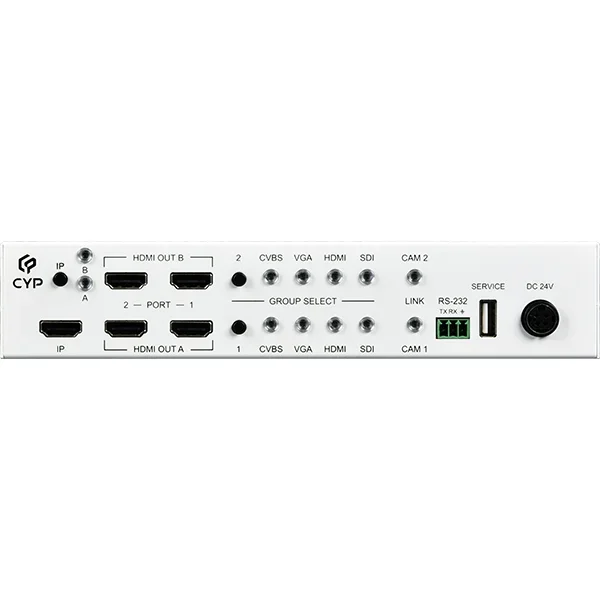

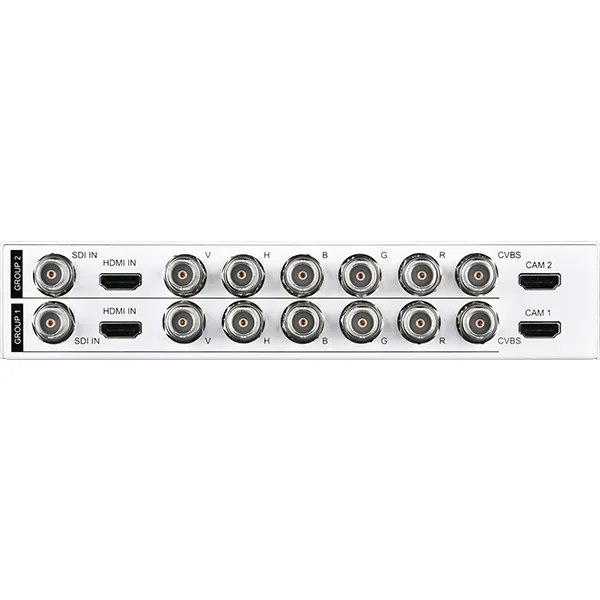

Input Port	4 HDMI 2 SDI(BNC) 2 VGA(BNC) 2 CVBS(BNC)
Output Port	5 HDMI
Control I/O	1 RS-232 (DB-9) 1 USB (Type-A)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	1.x
Input Signal Types	1080p@60 12bit
Output Signal Type	1080p@60 12bit

Resolutions
Maximum Input	HDMI	1080p@60
	SDI	1080p@60
	VGA	1080p@60
	CVBS	1080p@60
Maximum Output	HDMI	1080p@60

Audio
	HDMI	LPCM (2 Channels)

Power
Power Supply	24V/2.7A DC (Locking)
Power Consumption	TBD

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	220mm×43mm×293mm [Case Only] 220mm×43mm×310mm [All Inclusive]
Weight	2150g

Field Firmware Update
Interface	USB Flash Drive

Ordering Information
Model No.	Product Description
MED-AS60	Multi-input Switcher with Multi-Window Display

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
