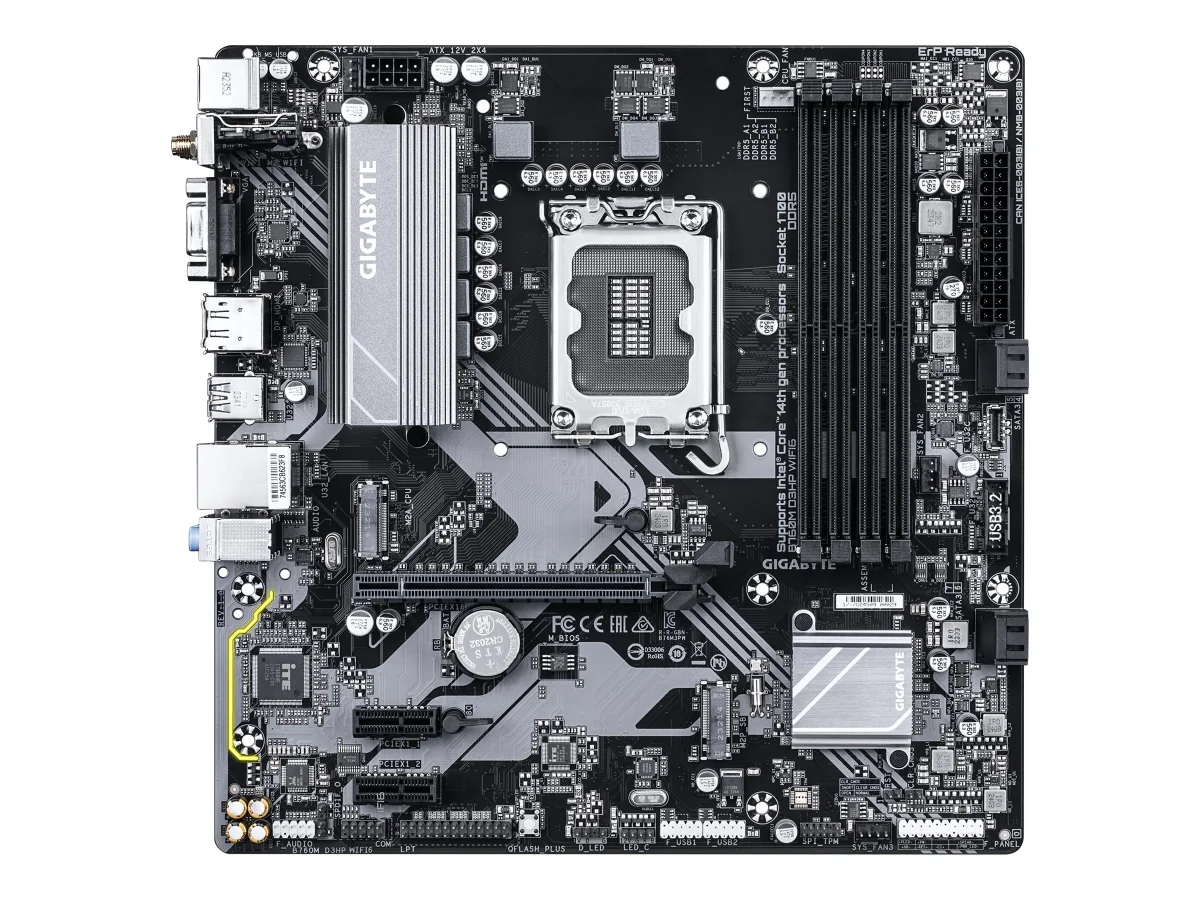

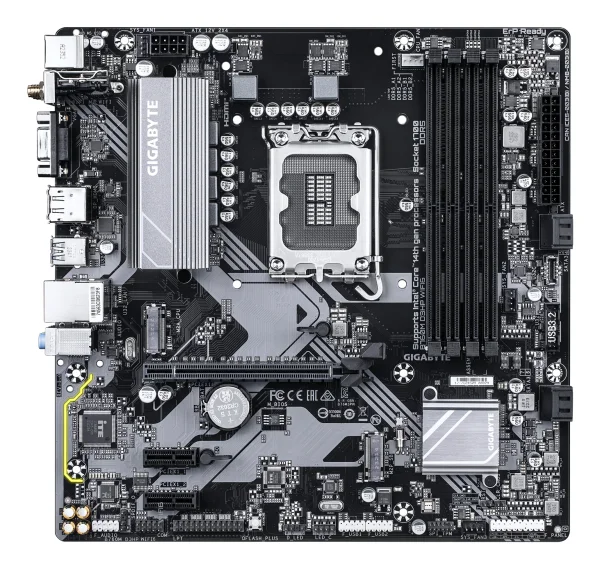

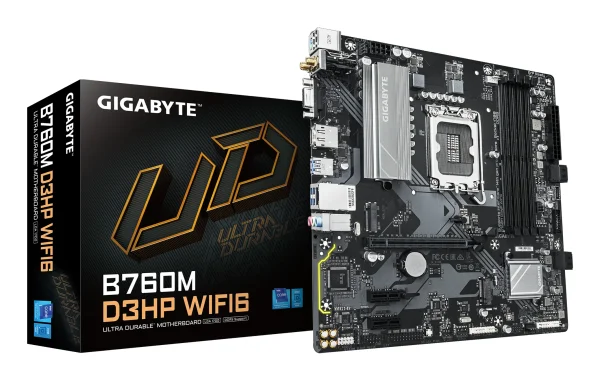

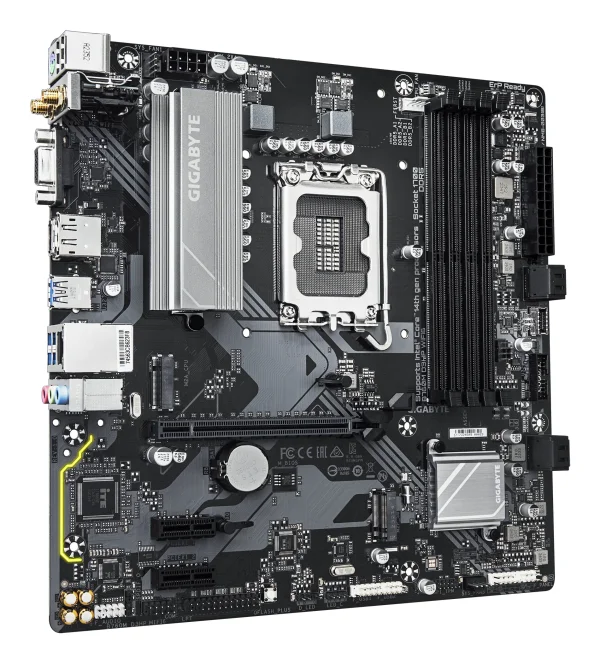

Gigabyte B760M D3HP WIFI6 LGA1700 MB
GIGABYTE B760M D3HP WIFI6 LGA1700 MB
| EAN/GTIN | 4719331867638 |
| Hersteller-Nr. | B760M D3HP WIFI6 |
| Hersteller | GIGABYTE |
| Herkunftsland | China |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Prozessor
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Speicher
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4400,4800,5200,5600 MHz |
| Unterstützte Speichertaktrate (max.) | 5600 MHz |
| RAM-Speicher maximal | 192 GB |
| Unbuffered Speicher | Ja |
| Maximaler interner Speicher pro Steckplatz | 48 GB |
Speicher-Controller
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, PCI Express 4.0, SATA III |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 6 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 4096 x 2304 Pixel |
| HDCP | Ja |
| DirectX-Version | 12.0 |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 4 |
| S/PDIF aus Stecker | Ja |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 3 |
| EPS Stromstecker (8-pin) | Ja |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 1 |
| TPM-Anschluss | Ja |
| Parallel Verbinder | Ja |
| Serielle Port-Headers | 1 |
| 12-V-Stromanschluss | Ja |
| RGB-LED-Stiftleiste | Ja |
| Anzahl der RGB-LED-Stiftleisten | 2 |

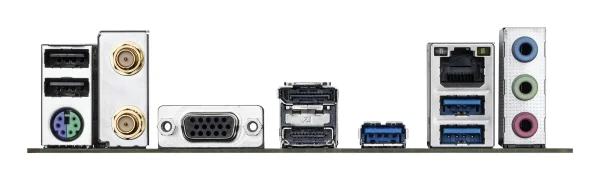

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 3 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl PS/2 Anschlüsse | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.2 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
| WiFi-AP-Antennenbuchse | 2 |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Realtek RTL8111H |
| WLAN | Ja |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Standards | Wi-Fi 6 (802.11ax) |
| WLAN-Controllermodell | Realtek RTL8851BE |
| Bluetooth | Ja |
| Bluetooth-Version | 5.3 |
Merkmale
| Motherboard Chipsatz | Intel B760 Express |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Dark brown |
| PC Gesundheitsüberwachung | Ventilator, Temperatur, Spannung, Water cooling |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
Erweiterungssteckplätze
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 2 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 4.0 |
| 2. M.2 größte Schlüsselgröße | 2280 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 128 Mbit |
| ACPI-Version | 5.0 |
| Clear CMOS-Jumper | Ja |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
Akku/Batterie
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
Gewicht und Abmessungen
| Breite | 244 mm |
| Tiefe | 244 mm |
| Höhe | 35 mm |
Lieferumfang
| Akkus/Batterien enthalten | Ja |
| Antenne enthalten | Ja |
| Schrauben enthalten | Ja |
| Mitgelieferte Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Sonstige Funktionen
| Gewicht | 1,11 kg |
Technische Details
| Garantiezeit | 3 Jahr(e) |
Specs: Icecat.biz
| Länge | 28,00 cm |
| Breite | 27,00 cm |
| Höhe | 7,00 cm |
| Gewicht | 1,00 kg |
