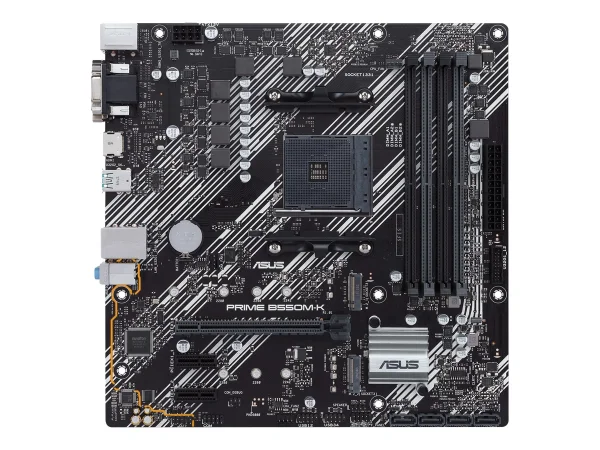

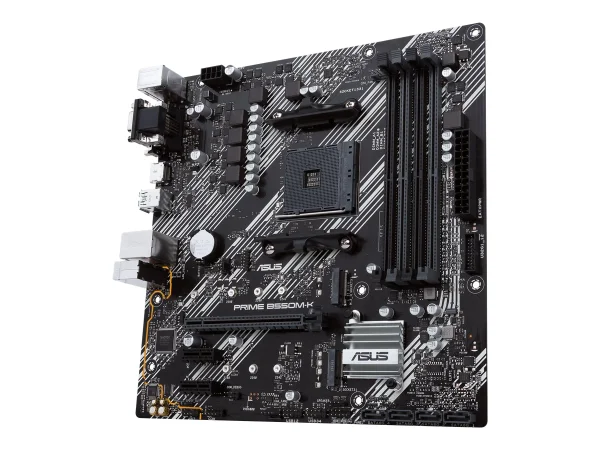

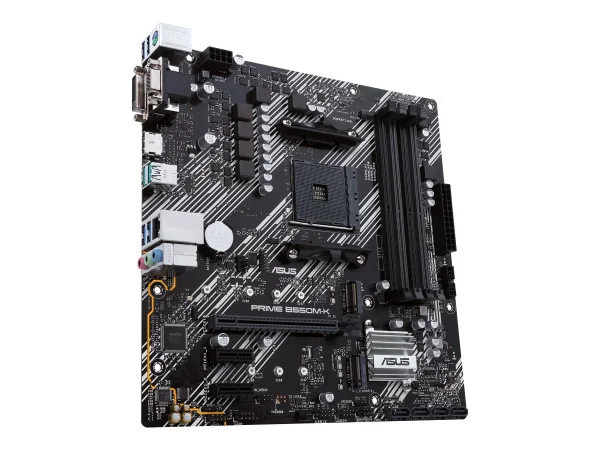

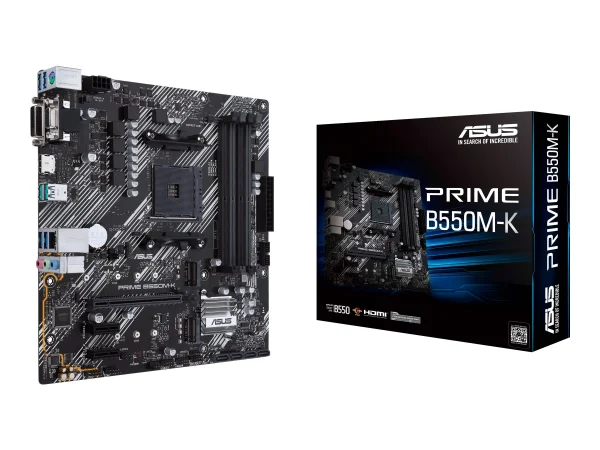

ASUS PRIME B550M-K mATX MB
ASUS PRIME B550M-K mATX MB dual M.2 PCIe 4.0 1Gb Ethernet HDMI/D-Sub/DVI SATA 6Gbps USB3.2 Gen 2 Type-A
| EAN/GTIN | 4718017758284 |
| Hersteller-Nr. | 90MB14V0-M0EAY0 |
| Hersteller | ASUS |
| Herkunftsland | Taiwan |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Prozessor
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM4 |
| Kompatible Prozessoren | AMD Ryzen 3000 Series |
Speicher
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| RAM-Speicher maximal | 128 GB |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| ATX Stromstecker (24-pol.) | Ja |

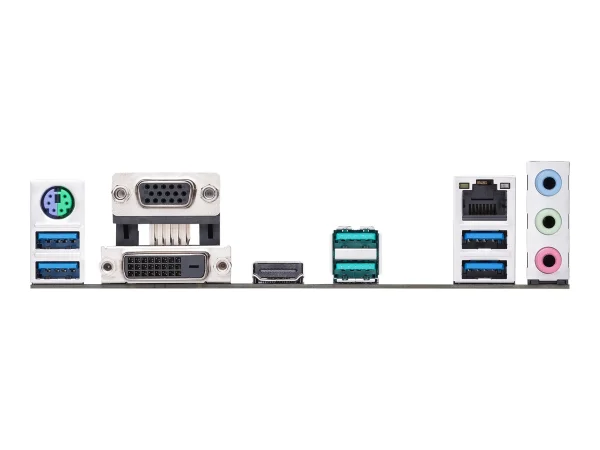

E/A-Anschlüsse auf der Rückseite
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl PS/2 Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 1 |
Netzwerk
| Ethernet/LAN | Ja |
| LAN-Controller | Realtek RTL8111H |
| WLAN | Nein |
Merkmale
| Motherboard Chipsatz | AMD B550 |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | AMD |
| Unterstützt Windows-Betriebssysteme | Windows 10 |
Erweiterungssteckplätze
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 2 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
Gewicht und Abmessungen
| Breite | 244 mm |
| Tiefe | 244 mm |
| Höhe | 51 mm |
Sonstige Funktionen
| Gewicht | 785 g |
Specs: Icecat.biz
| Länge | 27,50 cm |
| Breite | 26,50 cm |
| Höhe | 5,50 cm |
| Gewicht | 0,91 kg |
