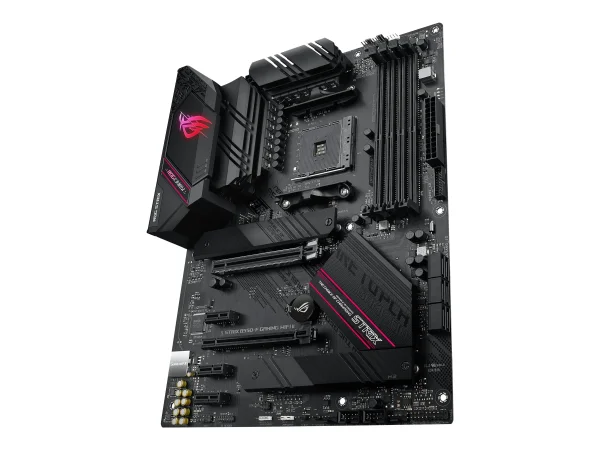

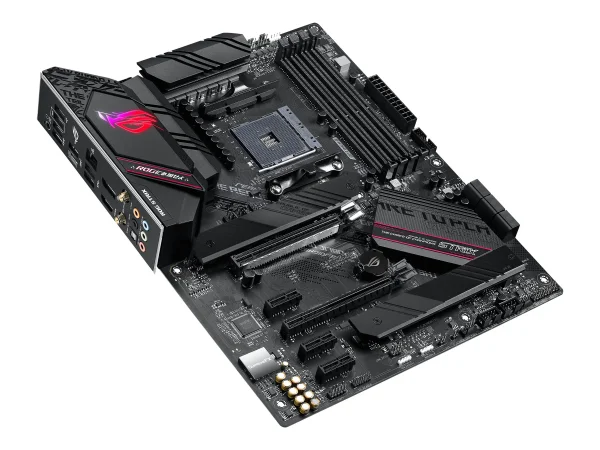

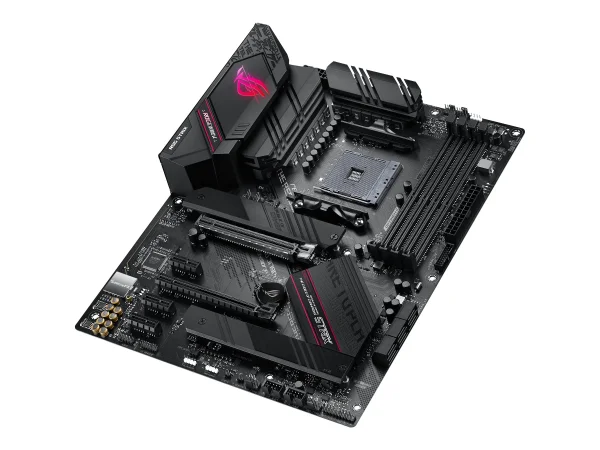

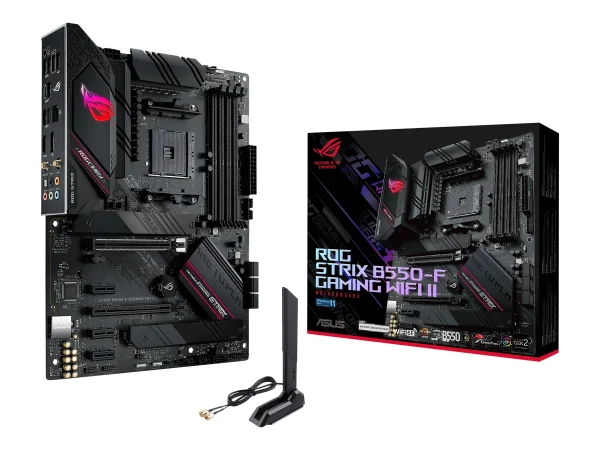

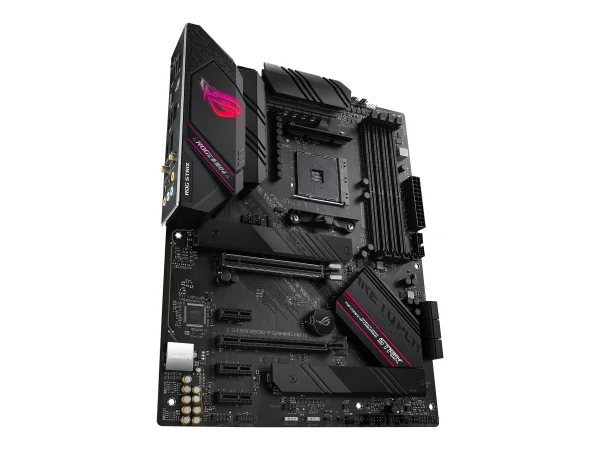

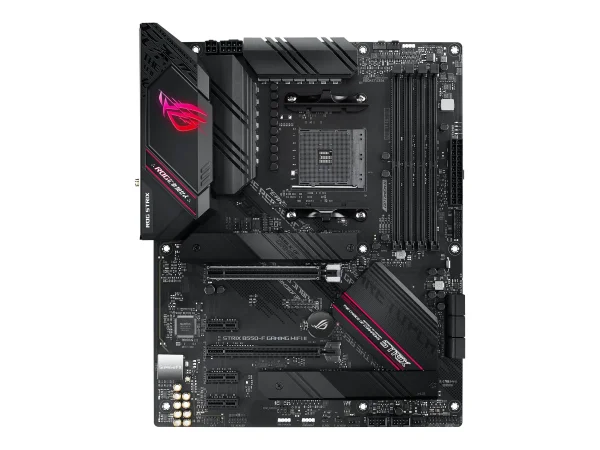

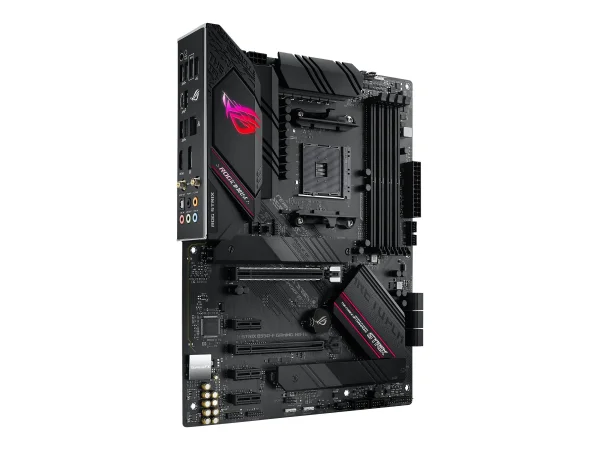

Asus Rog Strix B550-F Gaming WiFi II AM4
ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2
| EAN/GTIN | 4711081453314 |
| Hersteller-Nr. | 90MB19V0-M0EAY0 |
| Hersteller | ASUS |
| Herkunftsland | China |
| Zolltarifnr. | 84733020 |
| Garantie | 24 Monate |
Prozessor
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM4 |
| Kompatible Prozessoren | AMD Ryzen 3000 Series |
| Maximale Anzahl an SMP-Prozessoren | 1 |
| Unterstützte Prozessorsteckplätze | Sockel AM4 |
Speicher
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| ECC-Kompatibilität | ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz |
| RAM-Speicher maximal | 128 GB |
Speicher-Controller
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
| Maximale unterstützte Anzahl der HDD | 6 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 10 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Eingebaute Grafikadapter | Nein |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 6 |
| Zahl der EATX Energie Stecker | 1 |
| CPU Ventilatorstecker | Ja |
| Zahl der Chassisventilatorstecker | 3 |
| Anzahl Molex Anschlüsse 4pin | 1 |
| EPS Stromstecker (8-pin) | Ja |
| Thunderbolt-Stiftleisten | 1 |
| 12-V-Stromanschluss | Ja |
| RGB-LED-Stiftleiste | Ja |

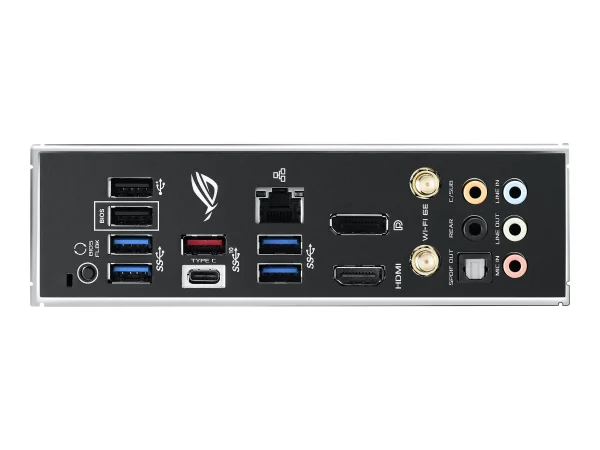

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.2 |
| Kopfhörerausgänge | 1 |
| Mikrofon-Eingang | Ja |
| S/PDIF-Ausgang | Ja |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Intel I225-V |
| Wake-on-LAN bereit | Ja |
| WLAN | Ja |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Ja |
| Bluetooth-Version | 5.2 |
Merkmale
| Motherboard Chipsatz | AMD B550 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | AMD |
| Kühlung | Aktiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
Erweiterungssteckplätze
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 3 |
| PCI-Express x16 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
Gewicht und Abmessungen
| Breite | 305 mm |
| Tiefe | 244 mm |
| Höhe | 68 mm |

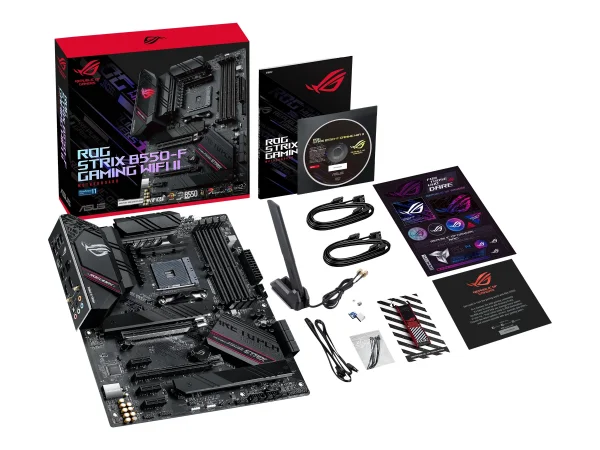

Lieferumfang
| Mitgelieferte Kabel | SATA |
| Treiber enthalten | Ja |
Sonstige Funktionen
| Gewicht | 945 g |
Specs: Icecat.biz
| Länge | 34,50 cm |
| Breite | 27,50 cm |
| Höhe | 7,00 cm |
| Gewicht | 1,80 kg |
