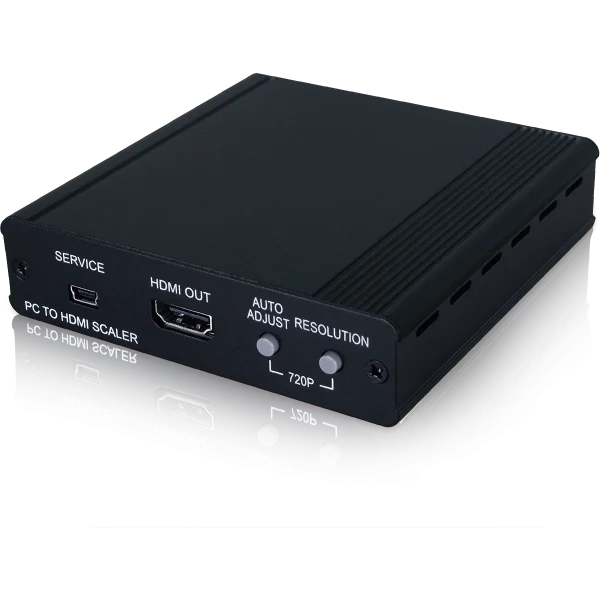

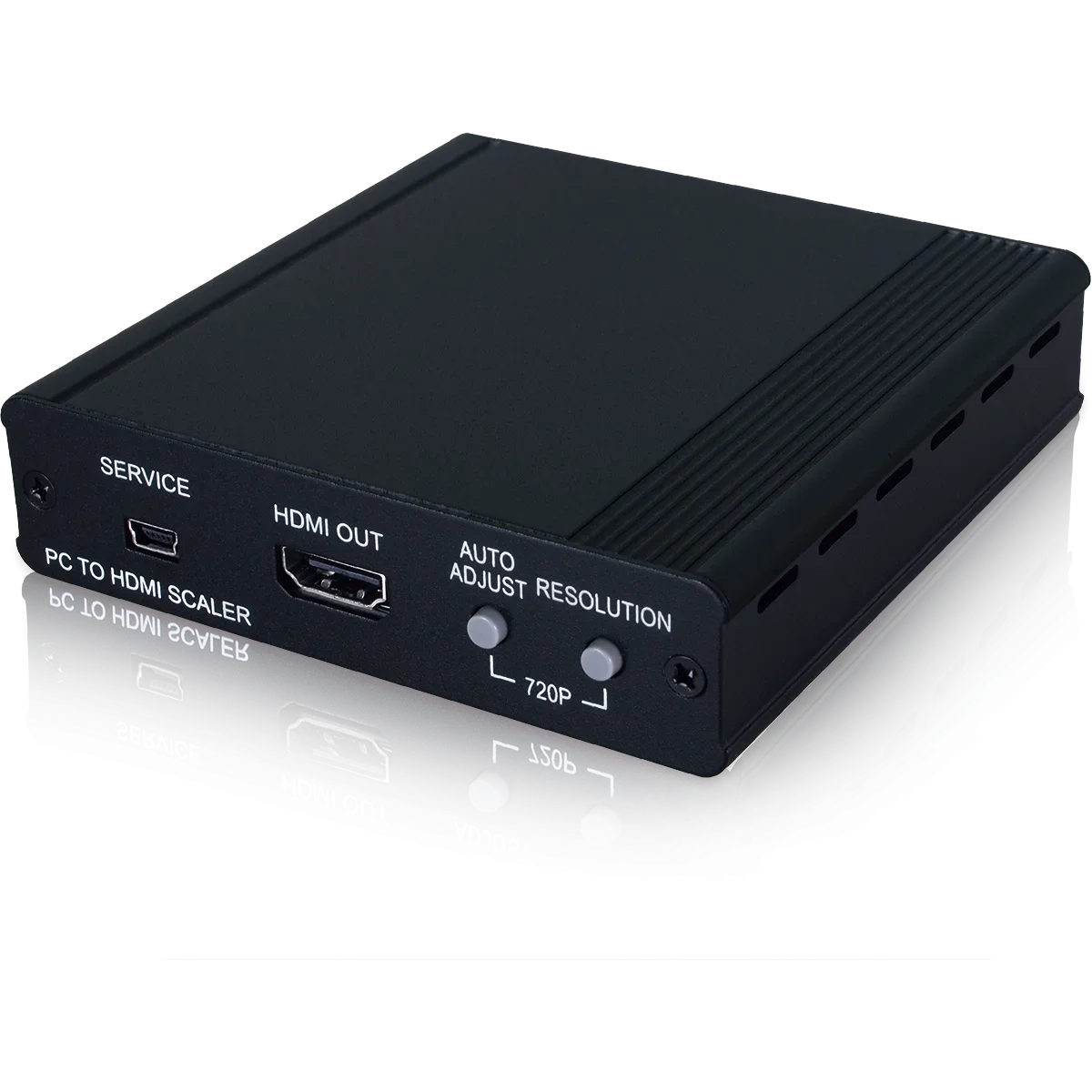

CP-304

Scales any PC resolutions to HD (480i~1080p)/PC (VGA~WUXGA) resolutions, Automatically detect the factory setting of the connected display and output the corresponding resolutions and refresh rate, when the NATIVE output is selected , Support high resolution output PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, Embeds stereo analog input with PC video to HDMI output

Hersteller-Nr.	CP-304
Hersteller	Cypress Technology

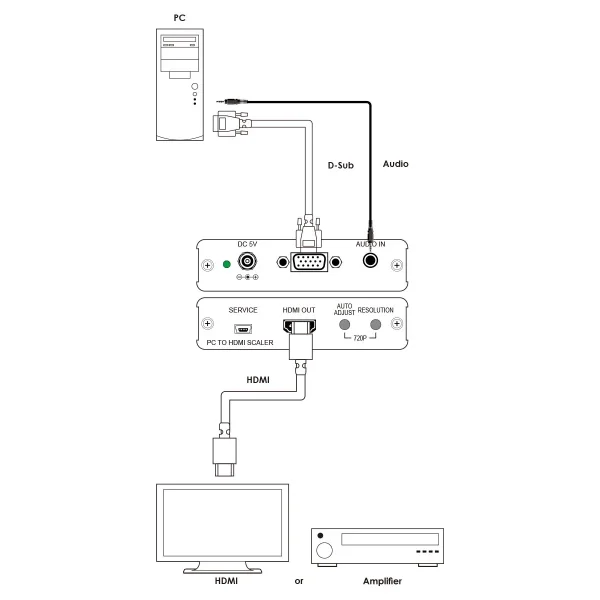

The VGA to HDMI Video Scaler Box is designed to upscale analog video from PC input source to digital HDMI output of wide-range HD/PC resolutions up to 1080p/WUXGA. Besides video scaling, the device can convert analog stereo audio input to digital format and embed it to HDMI output as 2-CH LPCM. This unit has a comprehensive resolution button that allows user to select a variety of output resolutions and adjust for best picture quality.

Interfaces

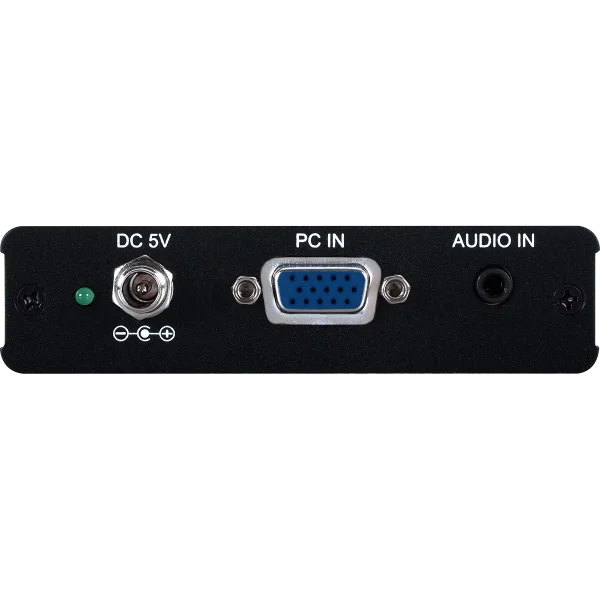

Input Port	1 VGA 1 Analog stereo(3.5mm)

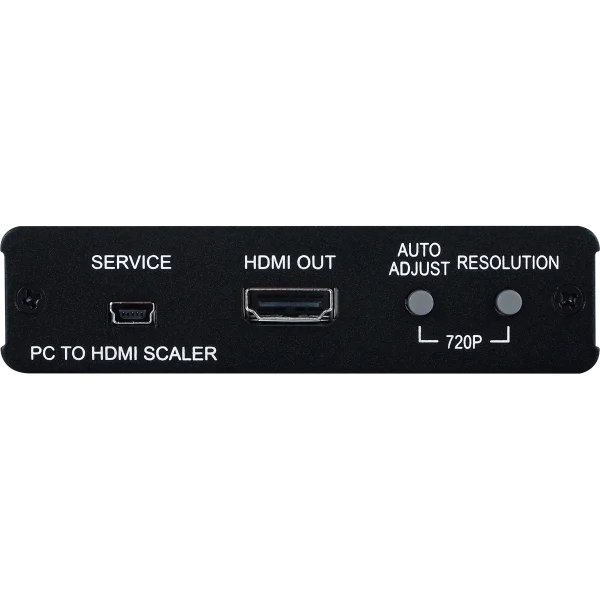

Output Port	1 HDMI

Video
HDMI Compliance	HDMI 1.3 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Types	WUXGA & 1920x1200@60RB
	1080p60 12-bit

Resolutions
Maximum Input	VGA	WUXGA & 1920x1200@60RB
Maximum Output	HDMI	WUXGA & 1080p

Power
Power Supply	5V/2.6A DC
Power Consumption	4.6W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	102mm x 25mm x 102mm [Case Only] 102mm x 25mm x 111mm [All Inclusive]
Weight	244g

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CP-304	VGA to HDMI Video Scaler

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
