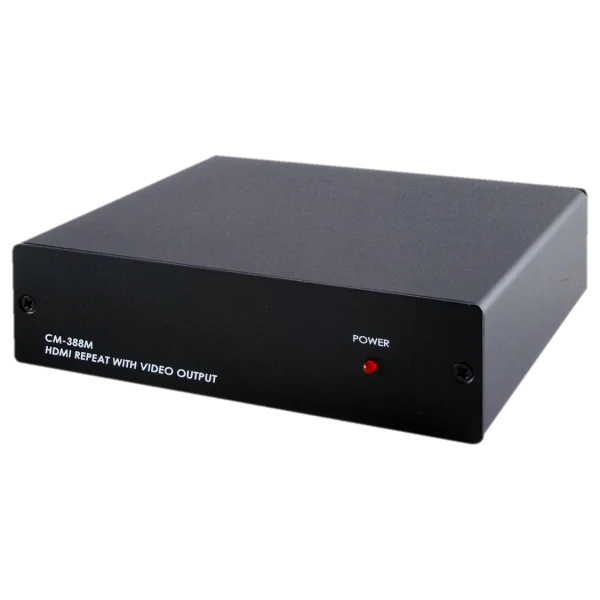

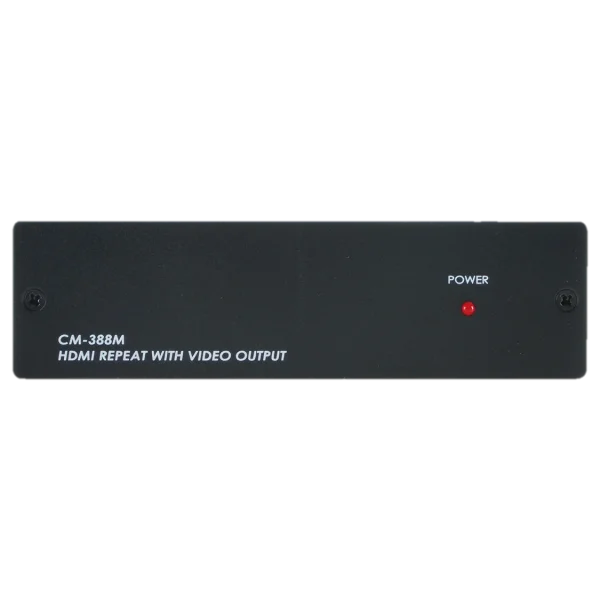

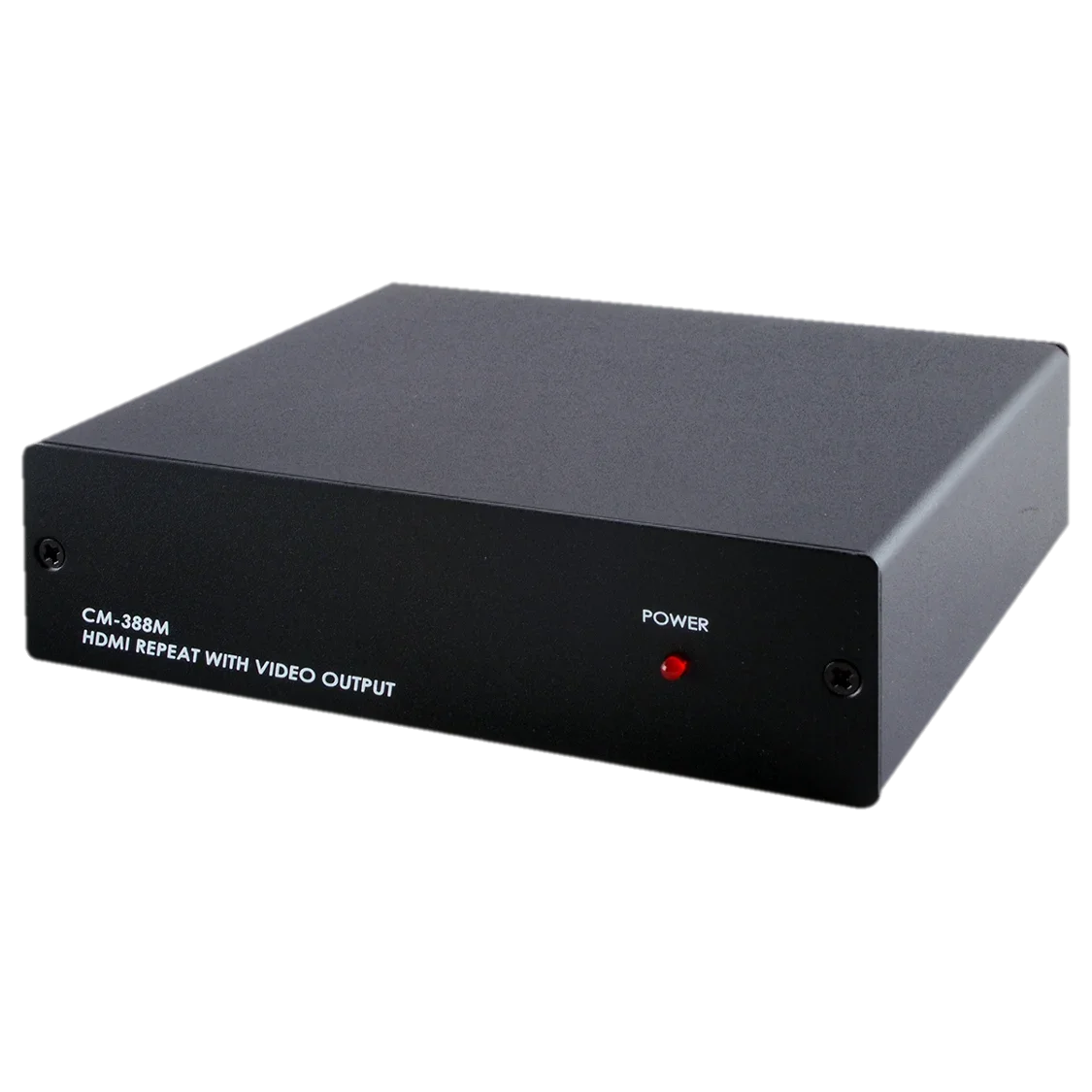

CM-388M

Converts video signal from HDMI source to NTSC or PAL signal (selectable), Converts digital audio from HDMI source to analog stereo audio, Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60 Hz and PC from VGA@60 Hz to WUXGA@60 Hz (RB), Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz

Hersteller-Nr.	CM-388M
Hersteller	Cypress Technology

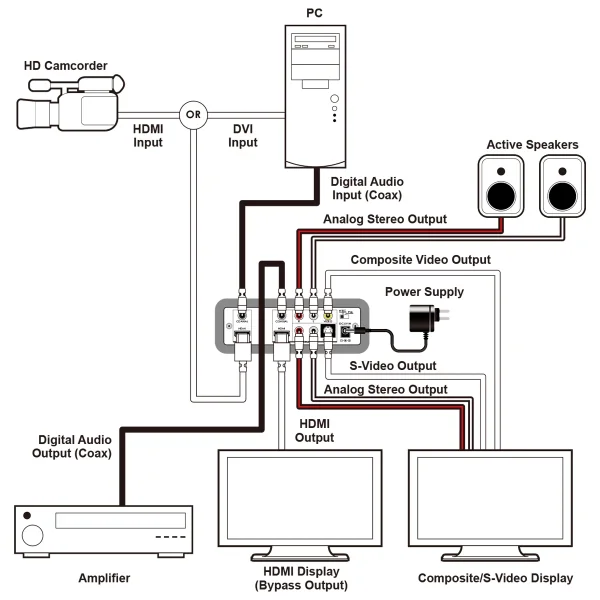

The HDMI Repeater with Video Output is designed to convert the digital signal from HDMI (or DVI + Coaxial) source to an analog NTSC or PAL signal, with L/R stereo audio. As well as S-Video and Composite Video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier. The unit provides a convenient method of converting non-HDCP high definition content to standard 480i or 576i resolutions for DVR or VCR recorders.

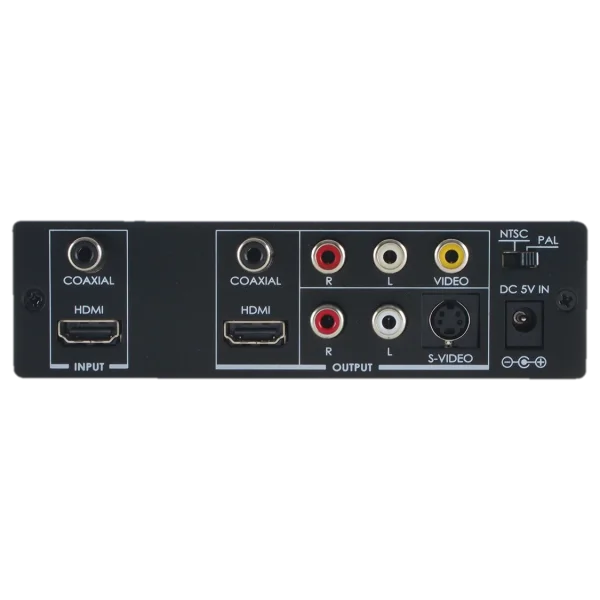

Interfaces

Input Port

1×HDMI

1×Coaxial

Output Port

1×HDMI

1×Coaxial

1×Composite Video

1×S-Video

2×L/R

Video
HDMI Compliance	HDMI 1.2 (DVI 1.0 )
HDCP Compliance	1.4
Input Signal Type	1080p60 12-bit
Output Signal Type	CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM HDMI : 1080p60 12-bit
		Resolutions
Maximum Input	HDMI	1920×1080p@60
Maximum Output	HDMI	1920×1080p@60 1920×1200p@60RB
	CV/SV	480i@60/576i@50

Power
Power Supply	5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	5.5 W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	141 mm × 38 mm × 127 mm
Weight	510g

Field Firmware Update
N/A

ORDERING INFORMATION
Model No.	Product Description
CM-388M	HDMI Repeat with Video Output

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
