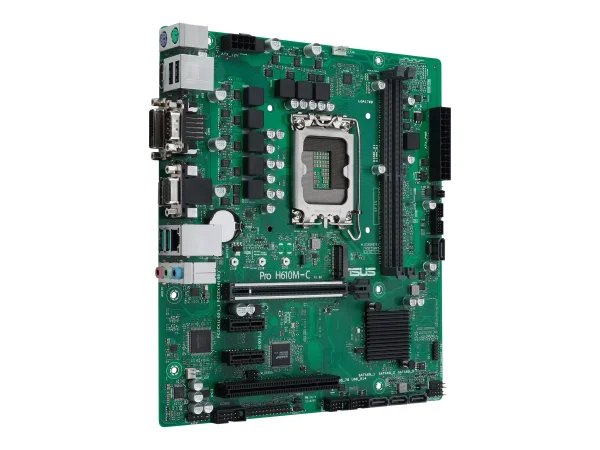

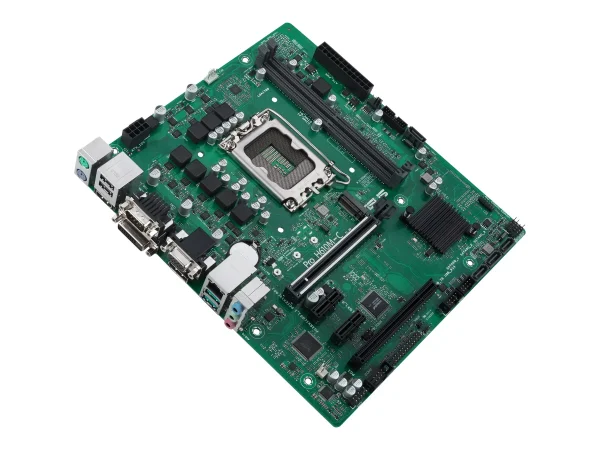

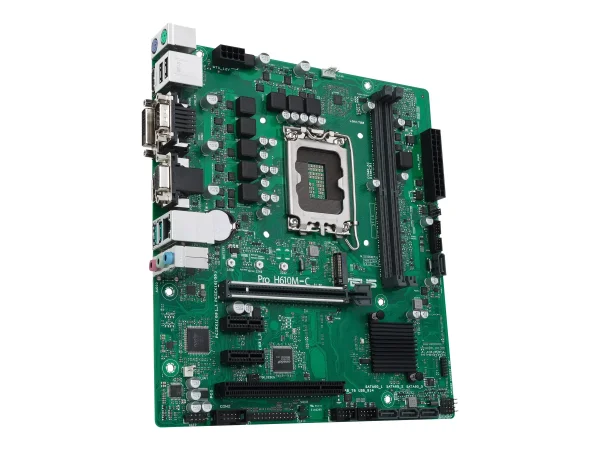

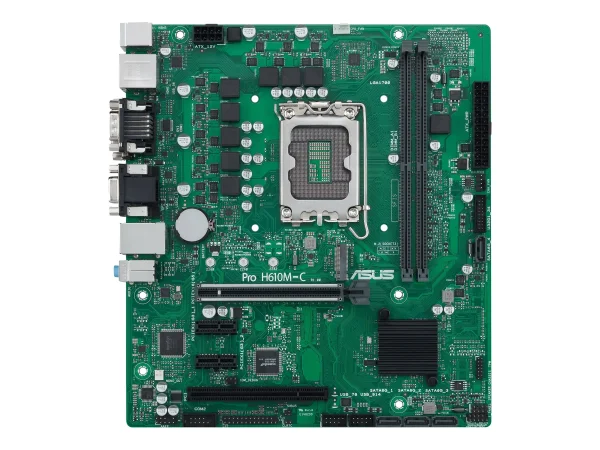

Asus Pro H610M-C-CSM LGA1700 DDR5 MB
ASUS PRO H610M-C-CSM LGA1700 2xDDR5 1xHDMI 1xDVI 1xDP 1xPCIe 5.0 x16 4xSATA 1xM.2 4xUSB 3.2 mATX MB
| EAN/GTIN | 4711081655152 |
| Hersteller-Nr. | 90MB1AT0-M0EAYC |
| Hersteller | ASUS |
| Herkunftsland | Taiwan |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Prozessor
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximale Anzahl an SMP-Prozessoren | 1 |
Speicher
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| Arbeitsspeicher Typ | DIMM |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4800 MHz |
| RAM-Speicher maximal | 64 GB |
| Unbuffered Speicher | Nein |
Speicher-Controller
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Anzahl der Display unterstützt | 3 |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Chassis Intrusion Stecker | Ja |
| Zahl der COM Stecker | 1 |
| TPM-Anschluss | Ja |
| 12-V-Stromanschluss | Ja |

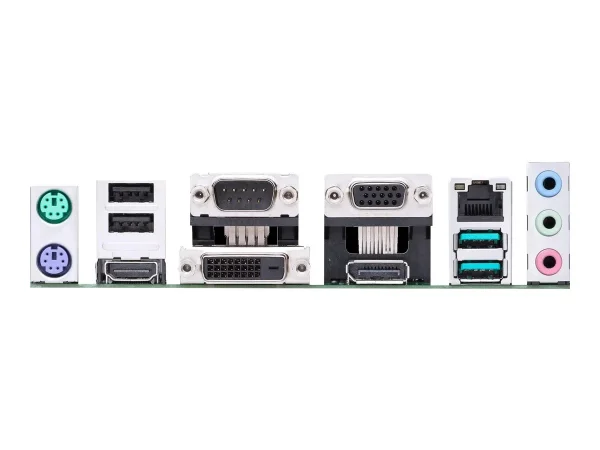

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl PS/2 Anschlüsse | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DVI-D-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4 |
| Anzahl COM-Anschlüsse | 1 |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Wake-on-LAN bereit | Ja |
| WLAN | Nein |
Merkmale
| Motherboard Chipsatz | Intel H610 |
| Audio Kanäle | 7.1 Kanäle |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
Erweiterungssteckplätze
| PCI-Express x1-Slots | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
BIOS
| BIOS-Speichergröße | 128 Mbit |
Gewicht und Abmessungen
| Breite | 244 mm |
| Tiefe | 244 mm |
| Höhe | 58 mm |
Lieferumfang

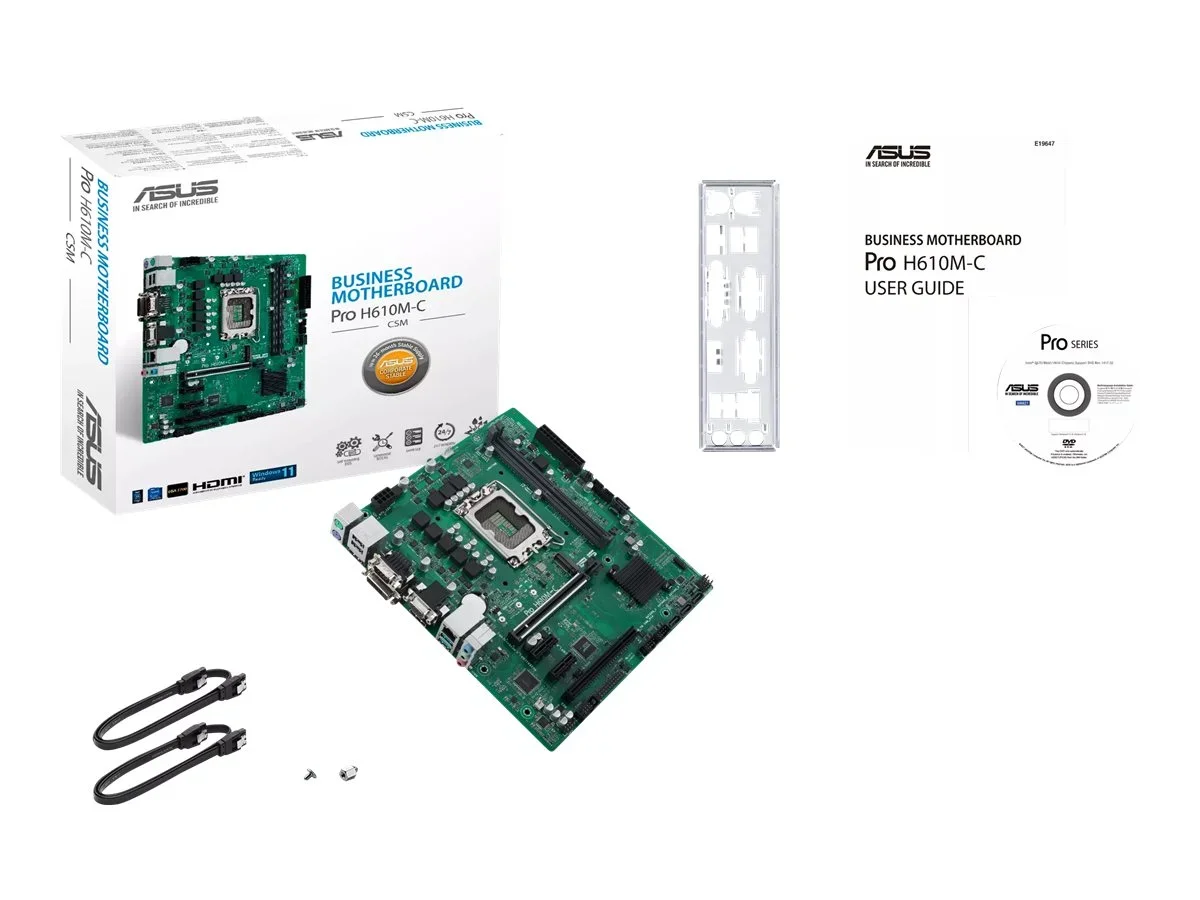

| Mitgelieferte Kabel | SATA |
| Treiber enthalten | Ja |
Sonstige Funktionen
| Gewicht | 382 g |
Specs: Icecat.biz
| Länge | 27,00 cm |
| Breite | 26,50 cm |
| Höhe | 5,50 cm |
| Gewicht | 0,95 kg |
