Wireless Presentation System, Entry Level Model (Lite)
No App required, just press one key to work with projector, High compatibility with iOS、Android、Windows、Mac, Support 1080P input, Support Output resolution up to 3840x2160@30Hz, 5GHz Wi-Fi transmission., Support Touch back, Google Cast and AirPlay
| Hersteller-Nr. | WPS-QPL01 |
| Hersteller | Cypress Technology |

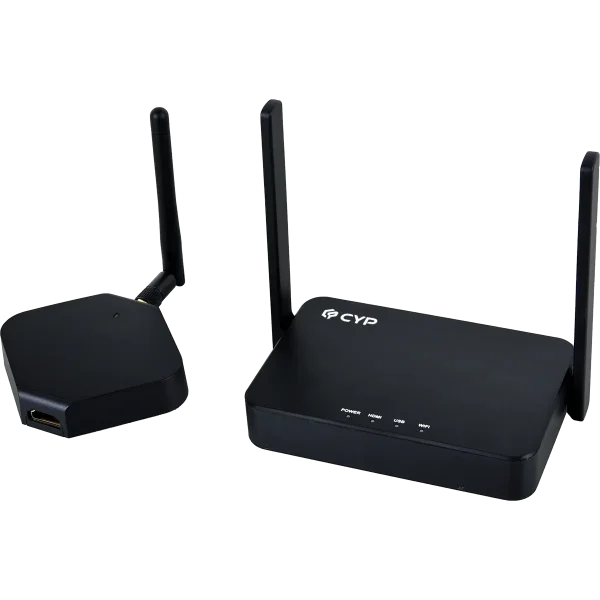

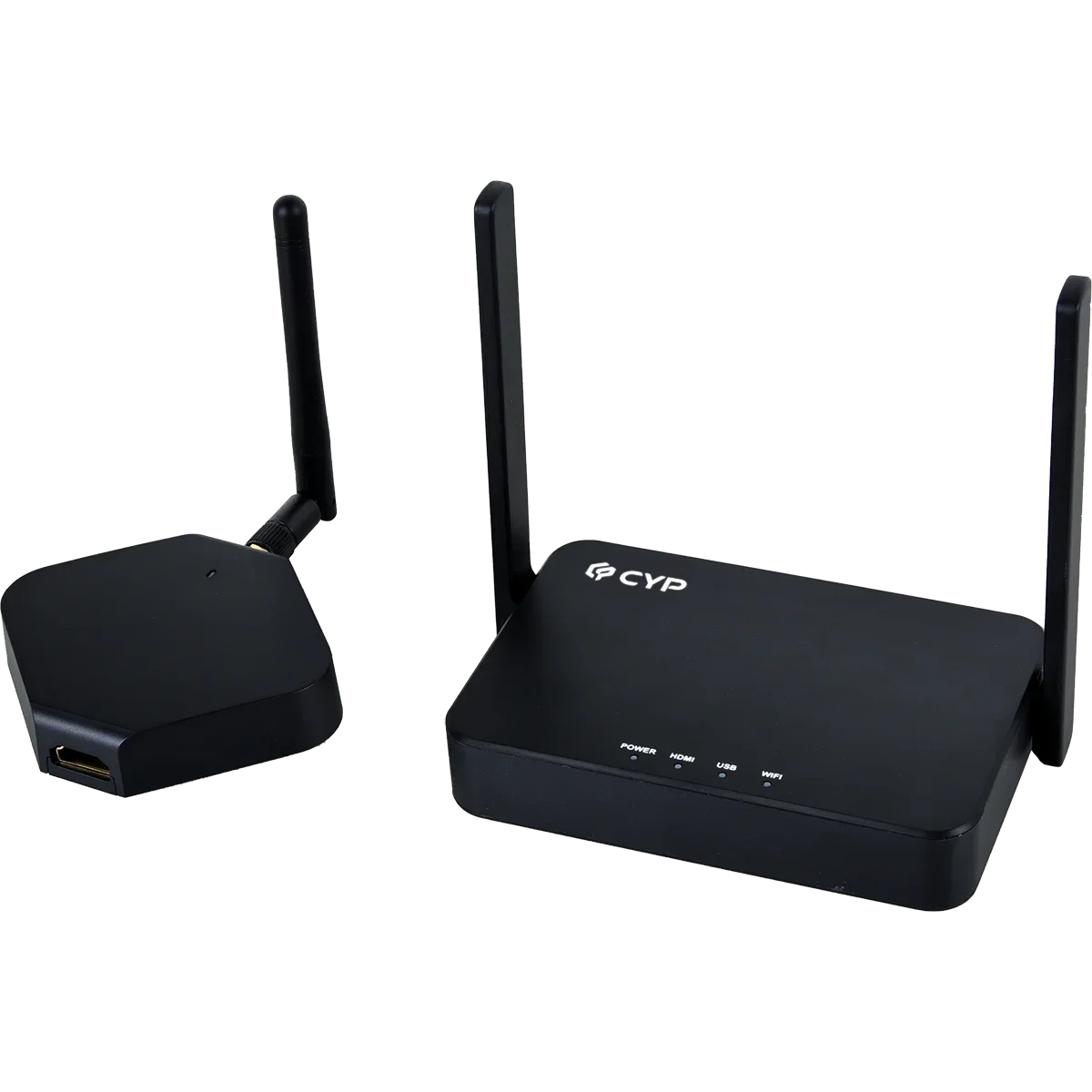

WPS-QPL01 (LT01/LR01) is an entry level modle of CYP WPS (Wireless Presentation System) product family. It is a powerful but low cost WiFi Presentation System product. It contains one transmitter(LT01) and one receiver (LR01). The plug & mirror capability makes it easier to use without learning curve. LT01 comes with high speed 802.11ac WiFi module and external antenna to bring you the great connection and smooth streaming. Through our advanced Receiver LR01, you can even use your mobile phone to cast without efforts, this will be the great entry-level product for WPS application.
|

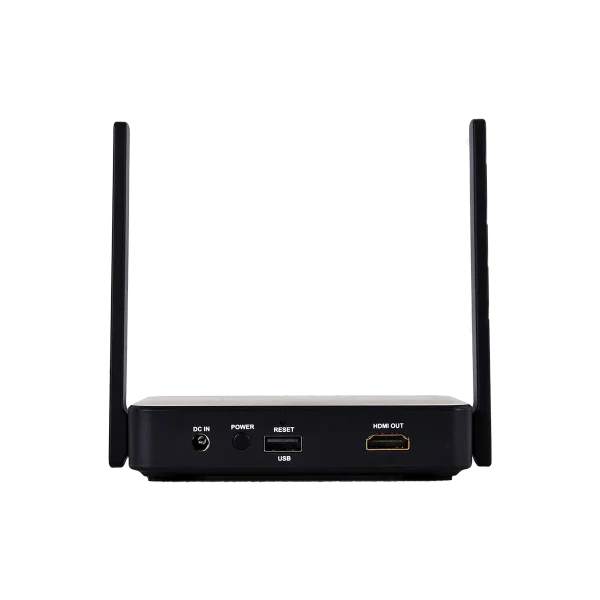

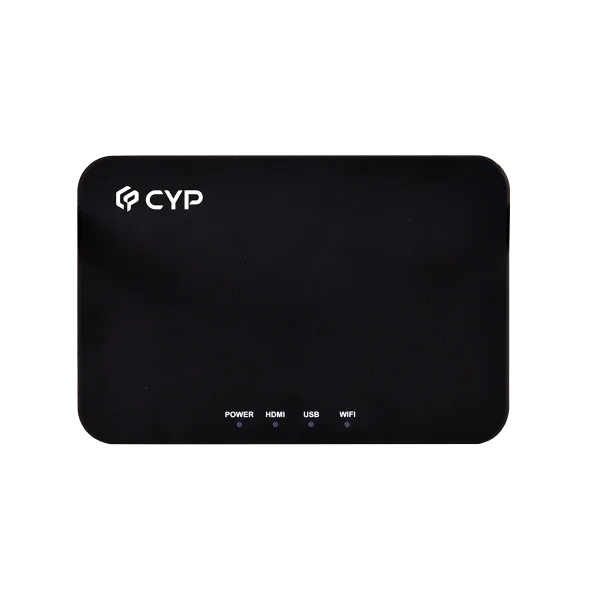

Interfaces Receiver |
|
|
Output Port |
1 HDMI |
|
Control I/O |
1 USB (Type-A) |
| Video | ||
| HDMI Compliance |
HDMI 1.4 |
|
| HDCP Compliance |
YES |
|
| Input Signal Types |
802.11ac 5GHz |
|
| Output Signal Type |
3840x2160p@30Hz |
|
|
|
Resolutions | |
| Maximum Input | HDMI | 3840x2160p@30Hz |
| HDMI |
LPCM (2 Channel) |
| Power | |
|---|---|
| Power Supply |
DC-in 5V 2A |
| Power Consumption |
10W max. |
| Enclosure | |
|---|---|
| Chassis Material |
Plastic |
| Chassis Color |
Black |
| Dimensions (W×H×D) |
135 x 127 x 80.2mm |
| Weight |
106g |
|

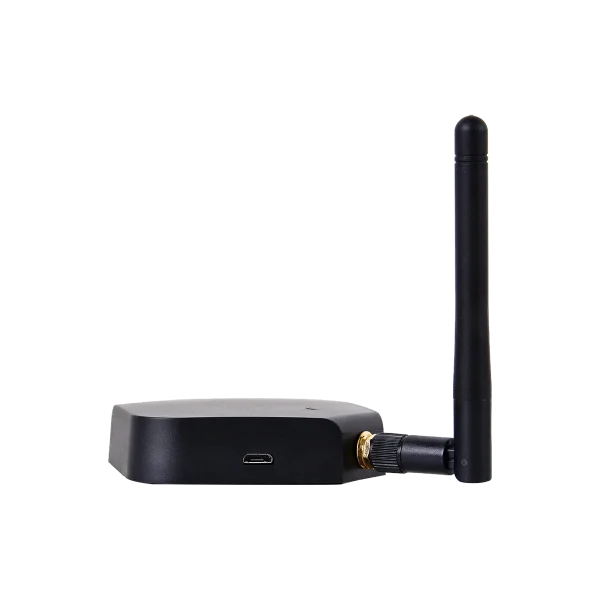

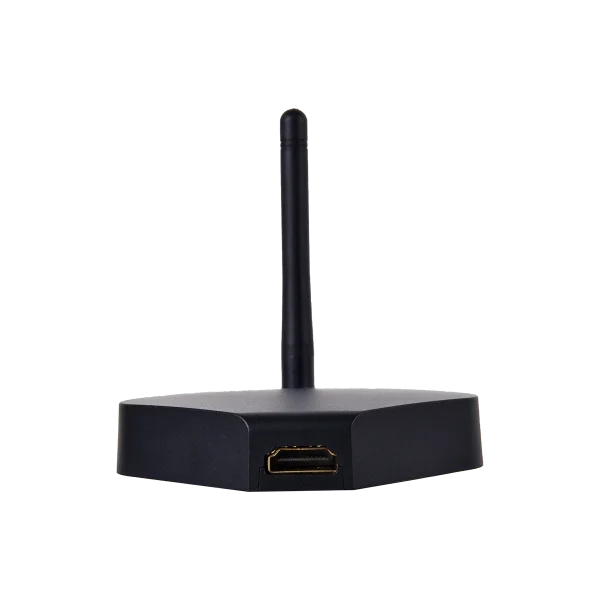

Interfaces Transmitter |
|
| Input Port |
1 HDMI |
| Control I/O |
1 Micro USB (for power, paring) |
| Video | ||
|---|---|---|
| HDMI Compliance |
HDMI 1.4 (DVI 1.0) |
|
| HDCP Compliance |
YES |
|
| Input Signal Types |
1920x1080p@60Hz |
|
|
|
Resolutions | |
| Maximum Input |
HDMI |
1920x1080@60Hz |
| HDMI |
LPCM (2 Channel) |
| Power | |
|---|---|
| Power Supply |
DC-in 5V 1A |
| Power Consumption |
4.5W |
| Enclosure | |
|---|---|
| Chassis Material |
Plastic |
| Chassis Color |
Black |
| Dimensions (W×H×D) |
68 x 92.7 x 68mm with antenna |
| Weight |
54g |
| ORDERING INFORMATION | |
|---|---|
| Model No. |
Product Description |
| WPS-QPL01 |
Hyshare Lite Wireless Presentation System (Package includes 1 Receiver and 1 Transmitter) |
Keine Maßangaben verfügbar.
