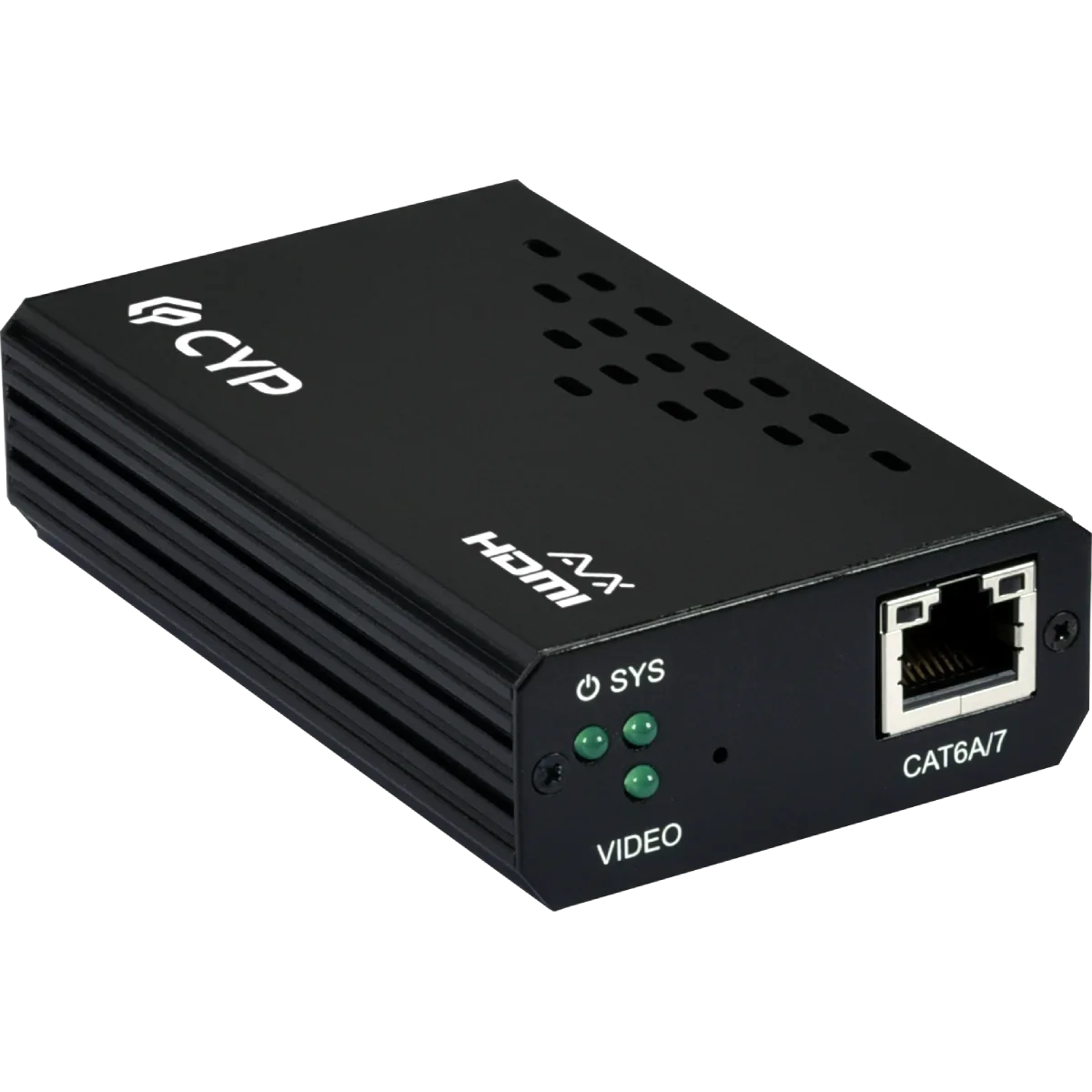

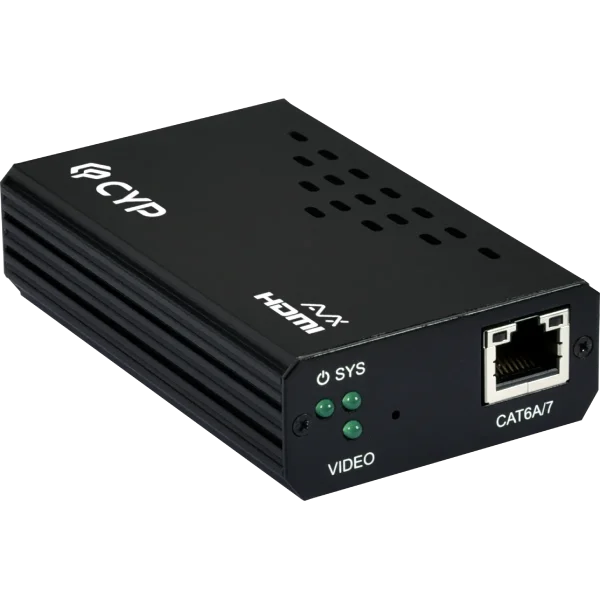

VEX-X1502T-B0C

Point to point extension of audio, video and control signals , Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2 , Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K , Extension up to 100m from Cat6A/7 cable , Supports pass-through of 10/12-bit HDR sources

Hersteller-Nr.	VEX-X1502T-B0C
Hersteller	Cypress Technology

The end to end Extenders are designed for high-quality, AV extension with minimum latency through 10 Gigabit IP transmit over category cable. Small and compact size of Transmitter and Receiver design, enhancing the flexibility of any installation. With ultra-light compression scheme (lossless for most content) to extending 4K audio/video streams and data under 0.1 milliseconds of matrix switch-like end to end transit. Supports up to 3840x2160@60Hz pass-through including multichannel PCM, Dolby True HD and DTS HD master audio.

Interfaces

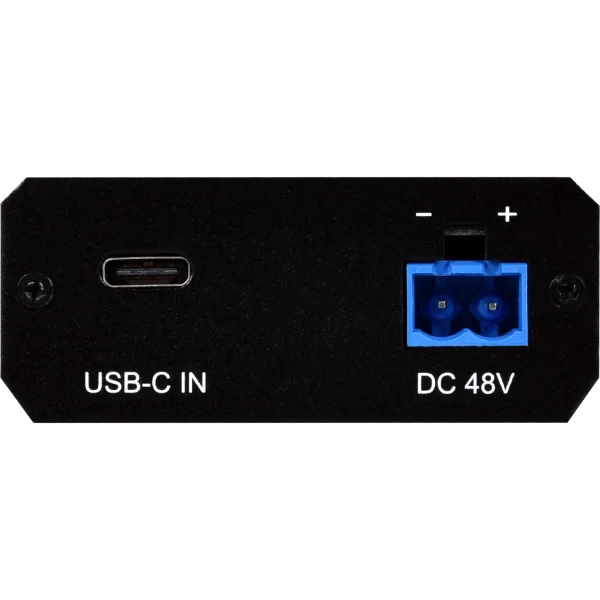

Input Port	1 USB (Type C)
Output Port	1 10GbE LAN (RJ45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
		Resolutions
Maximum Input	USB-C	3840×2160p@60 YUV 4:4:4
Maximum Output	LAN (Streaming)	3840×2160p@60 YUV 4:4:4

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Power
Power Supply	48V/0.83A DC (Locking)
Power Consumption	8W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	57mm×20.6mm×87mm [Case Only] 60mm×20.6mm×87mm [All Inclusive]
Weight	177g

Field Firmware Update
PC

ORDERING INFORMATION
Model No.	Product Description
VEX-X1502T-B0C	UHD+ USB-C AV over IP Extender
VEX-X1501R-B0C	UHD+ HDMI AV over IP Extender

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
