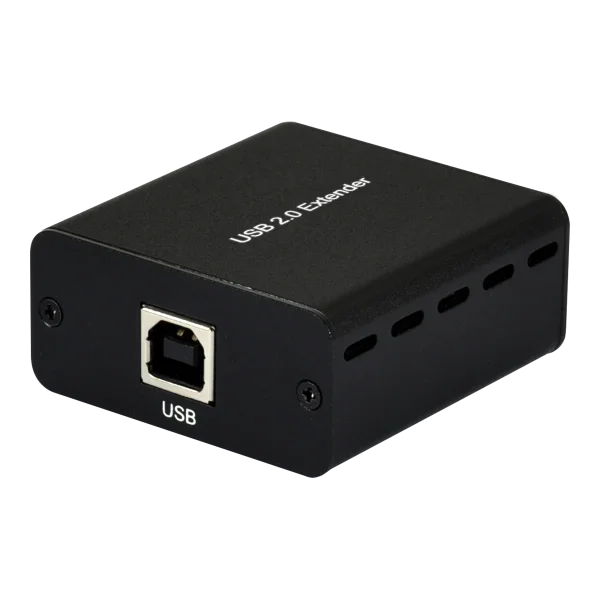

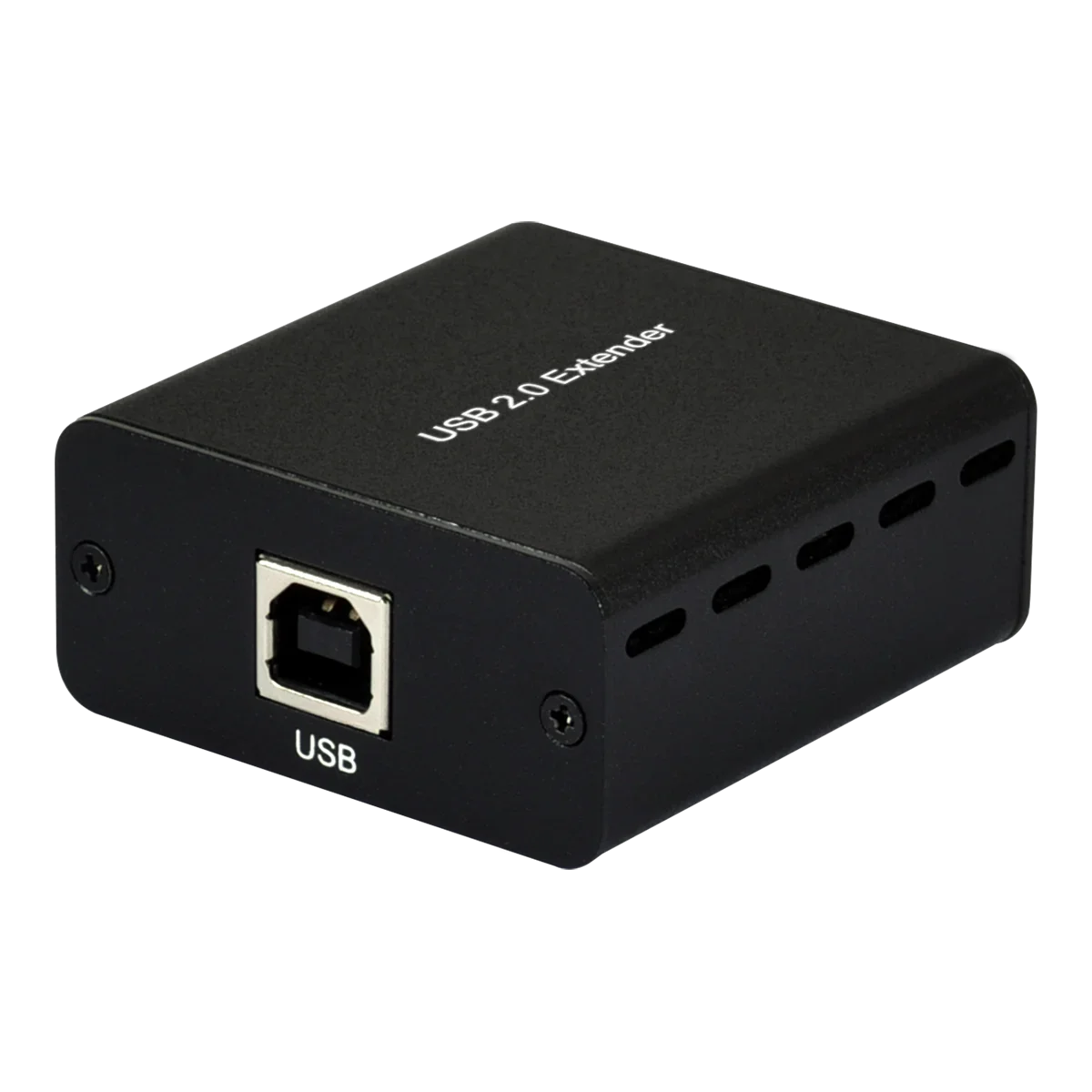

USB 2.0 Extender

Convenient point-to-point USB 2.0 extension with 4 port hub, 1 host port on the transmitter and 4 device ports on the receiver, Supports standard USB 2.0 devices, such as a mouse and keyboard, as well as those requiring isochronous transfers such as webcams and portable storage, Supplies up to 2A of power to the 4 USB ports (500mA per port), Low RF emission and robust noise immunity, Simple plug-and-play operation, no drivers required

Hersteller-Nr.	CH-710TX
Hersteller	Cypress Technology

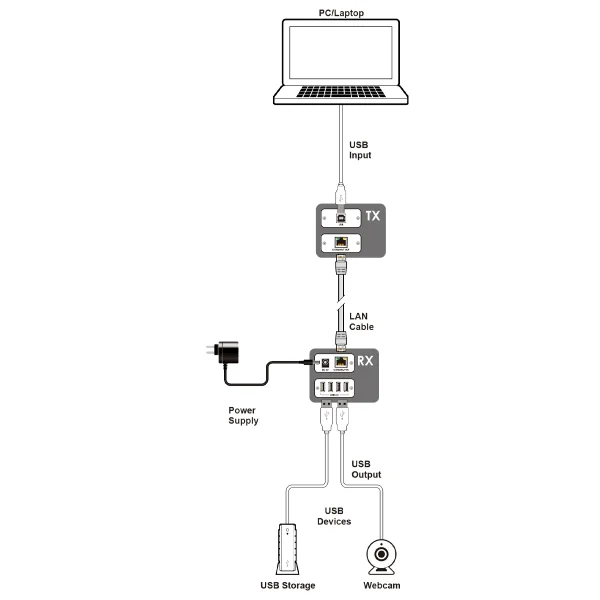

This compact and low cost USB 2.0 Extender set is designed to expand the usability and flexibility of the most prevalent interface standard used nowadays, USB. This extender provides a simple and efficient way to extend the USB 2.0 connection from a typical host, such as a PC or laptop, to up to 4 standard USB devices located as far as 50 meters away. It extends the high quality data stream over single Cat.5e (or better) cable, with full support for the entire range of USB 2.0 compliant products and data formats. The receiver can supply up to 2A of total power (500mA per port) to devices connected to the 4 USB Type-A ports.

USB 2.0 Bandwidth	480Mbps

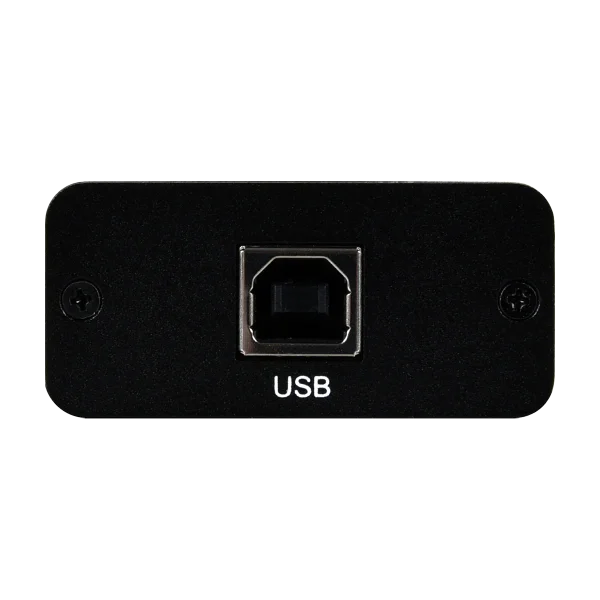

Bi-directional Port	1×USB 2.0 (Type-B)

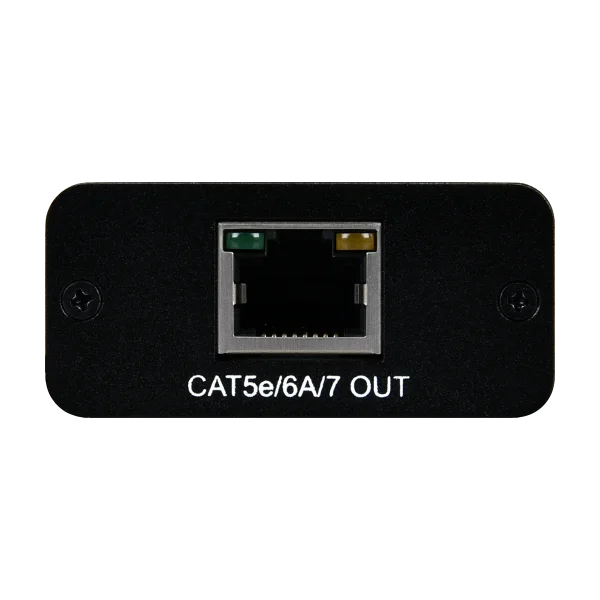

Output Port	1×Cat.5e/6/7 (RJ-45)
Power Supply	Provided via Cat.5e/6/7
ESD Protection (HBM)	±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions (W×H×D)	50mm×25mm×52mm [Case Only]
Weight	60g
Chassis Material	Metal (Steel)
Chassis Color	Black
Operating Temperature	0˚C – 40˚C/32˚F – 104˚F
Storage Temperature	-20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity	20 – 90% RH (Non-condensing)
Power Consumption	10W
