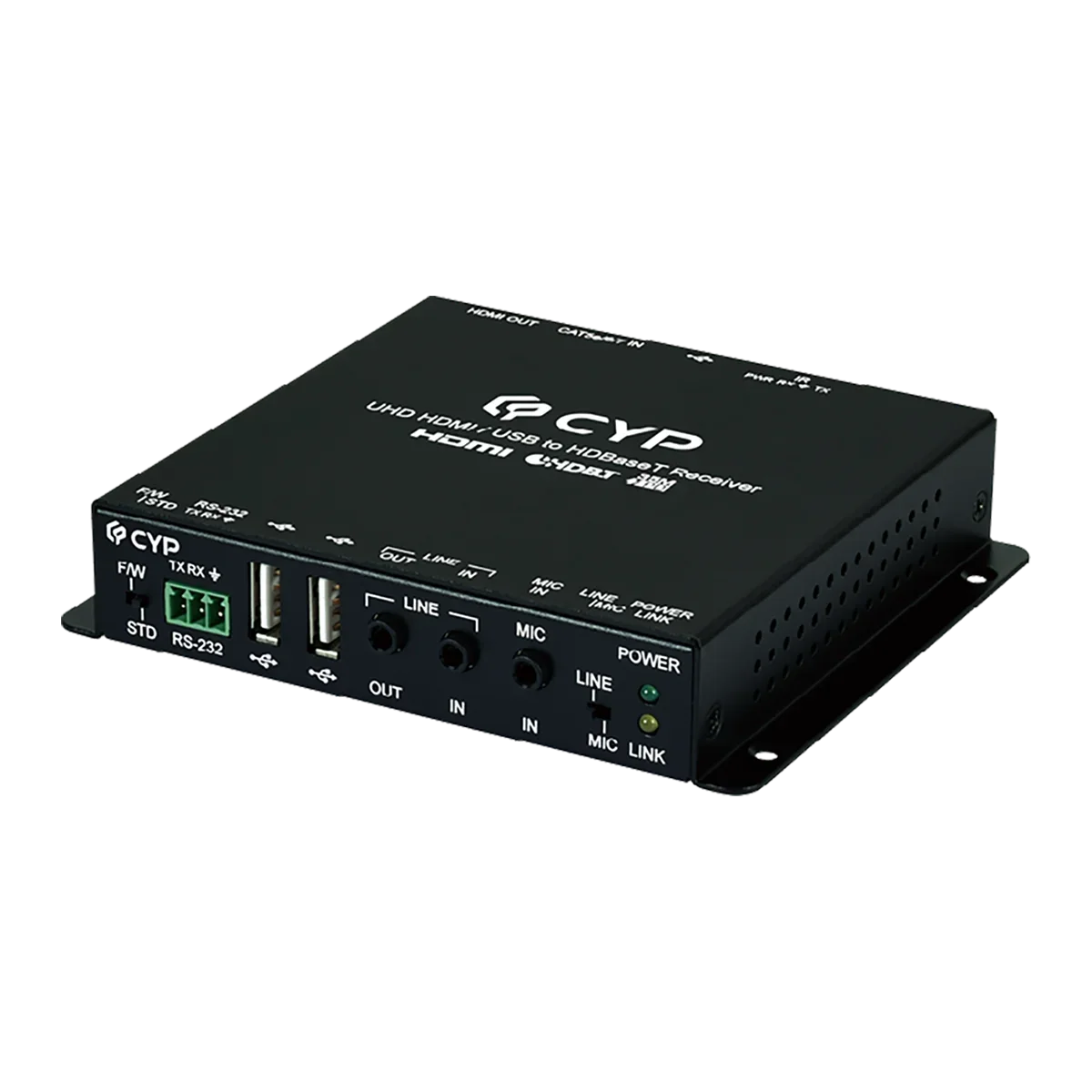

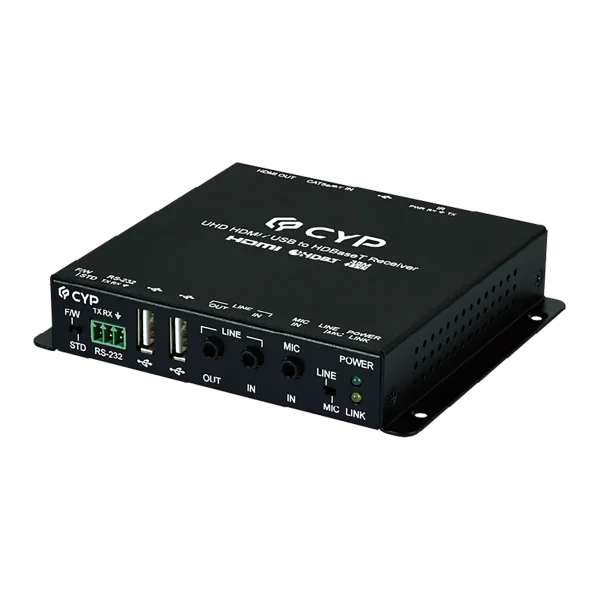

UHD HDMI/USB to HDBaseT Receiver (4K@60 420 up to 35M)

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI , HDBaseT 2.0 compatible , HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant , Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m, Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit) , Supports 16-bit Deep Color up to 1080p@60Hz, Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Hersteller-Nr.	CH-1610RXPL
Hersteller	Cypress Technology

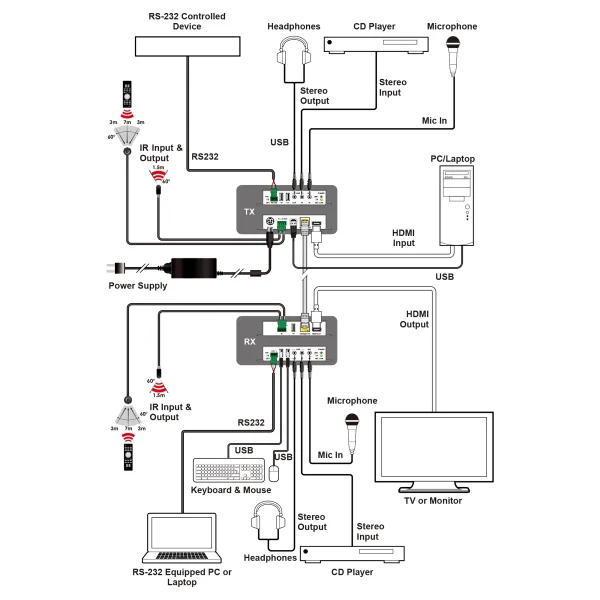

The HDMI over single CAT5e/6/7 Receiver set can send uncompressed audio/video over a single run of CAT5e/6/7 cable at a distance up to 35 meter. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.

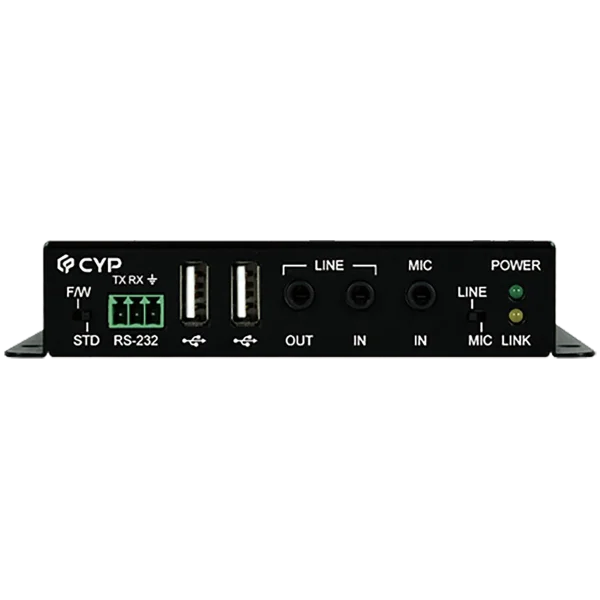

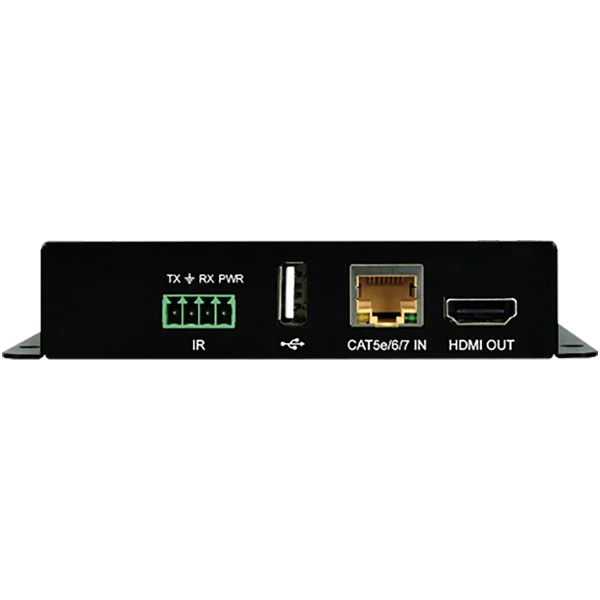

Interfaces
Input Port	1x Stereo Audio input 1x Microphone input 1x HDBaseT (RJ-45)
Output Port	1× HDMI (Type-A) 1x Stereo Audio output
Pass-through Port	1× IR In/Out (4-pin terminal block) 1x RS-232 (3-pin terminal block) 3x USB 2.0(Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60, YUV 4:2:0
Output Signal Type	4K@60, YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	HDBaseT6/7	4096x2160p@60 YUV 4:2:0

Audio
HDMI Input 1,2	LPCM (2 Channels, 48KHz), Bitstream
HDMI Output	LPCM (2 Channels, 48KHz), Bitstream

Power
Power Consumption	TBD

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×111mm [All Inclusive]
Weight	392g

Field Firmware Update
UART

ORDERING INFORMATION
Model No.	Product Description
CH-1610TXPL	UHD HDMI/USB to HDBaseT Transmitter
CH-1610RXPL	UHD HDMI/USB to HDBaseT Receiver
MED-VPR-8430	Multi-viewer with Streaming Solution and Stand-alone PC-based System for Video Capturing
