UHD+  HDMI to Dual HDMI Scaler
Klicken zum Vergrößern
Cypress Technology

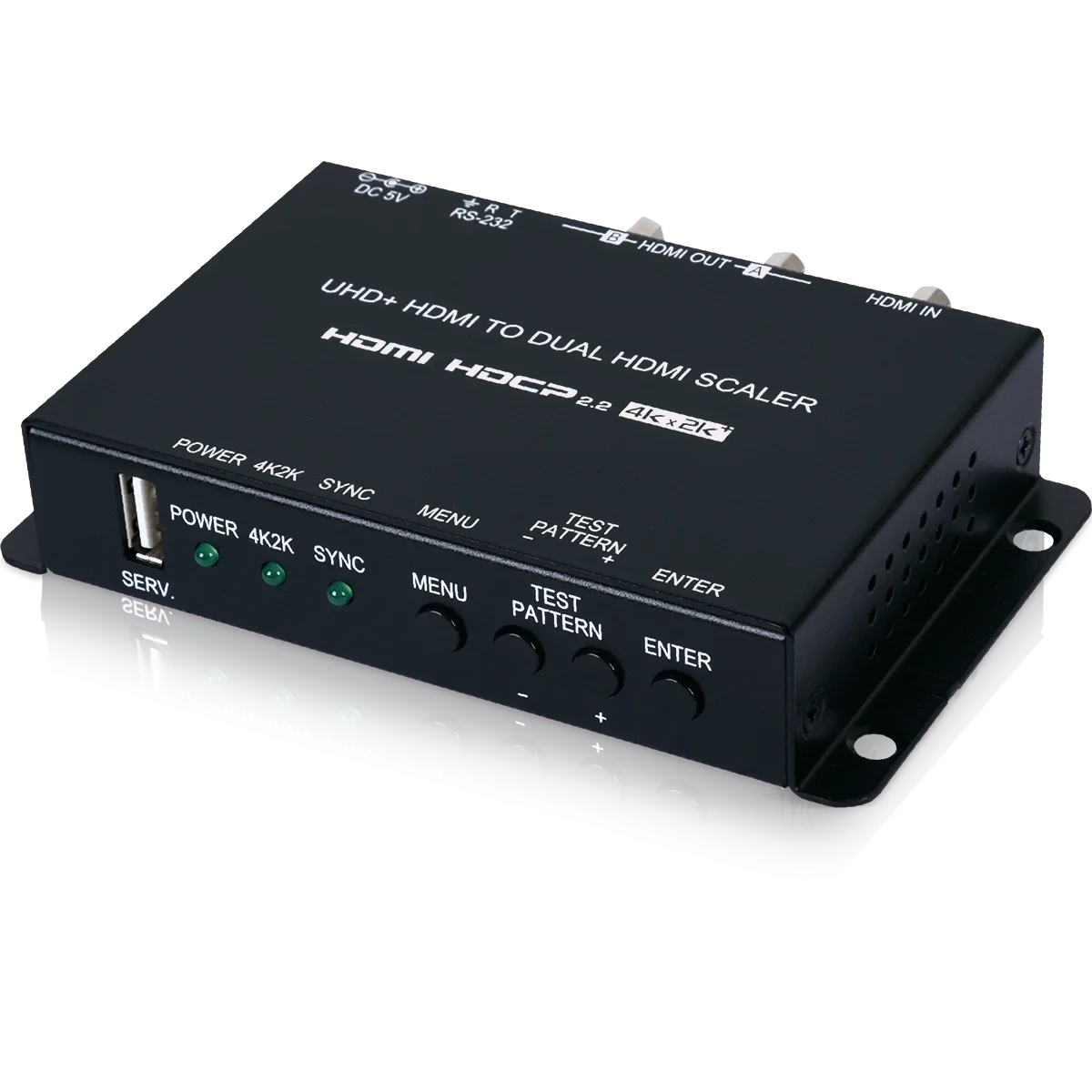

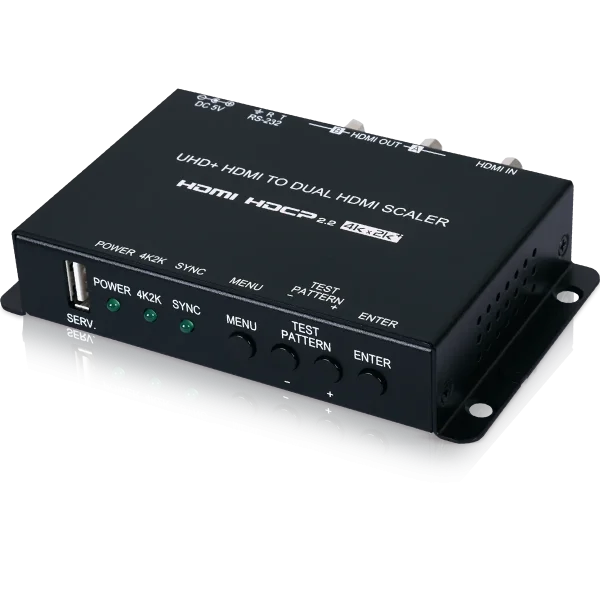

UHD+ HDMI to Dual HDMI Scaler

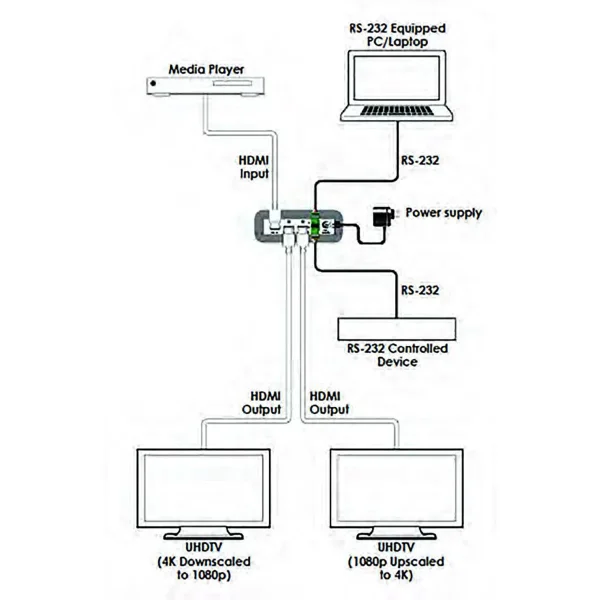

HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A , Supports 4K HDR at 24/30Hz (YUV 4:4:4) and 50/60Hz (YUV 4:2:0) with up to 12- bit color , Supports 16-bit Deep Color up to 1080p@60Hz , Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , Integrated EDID and HDCP management , Basic signal event automation (via RS-232 or CEC) , Test pattern generation at selected resolutions for on-site display testing , Controllable via front panel with OSD menu, and RS-232

Hersteller-Nr.CPLUS-V2PEL
HerstellerCypress Technology

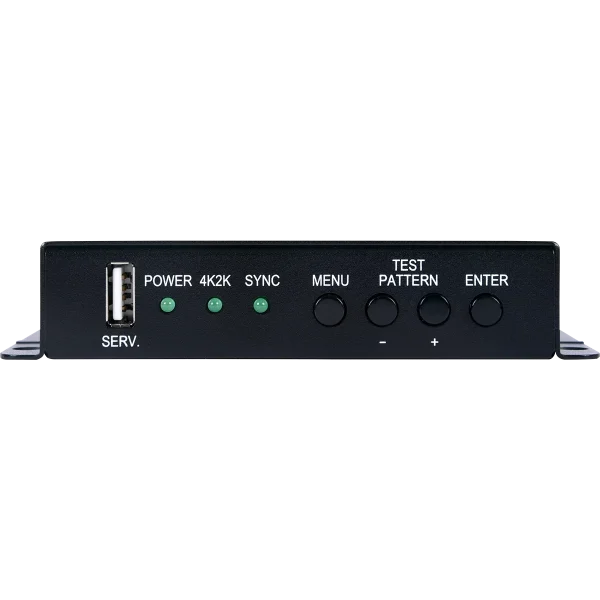

This HDMI 4K UHD Scaler with Test Patterns and Signal Event Automation is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI outputs. The input signal can be output to both HDMI outputs simultaneously with a different resolution on each or the unit can generate a test pattern at a preferred video resolution for easy on-site display testing and validation. Additional functionality such as EDID and HDCP management, and basic signal event automation (via RS-232 or CEC) is also provided. This UHD Scaler is the best tool to use with your HD and UHD signals. This unit can be controlled easily by use of the front panel controls (with OSD) or by RS-232.

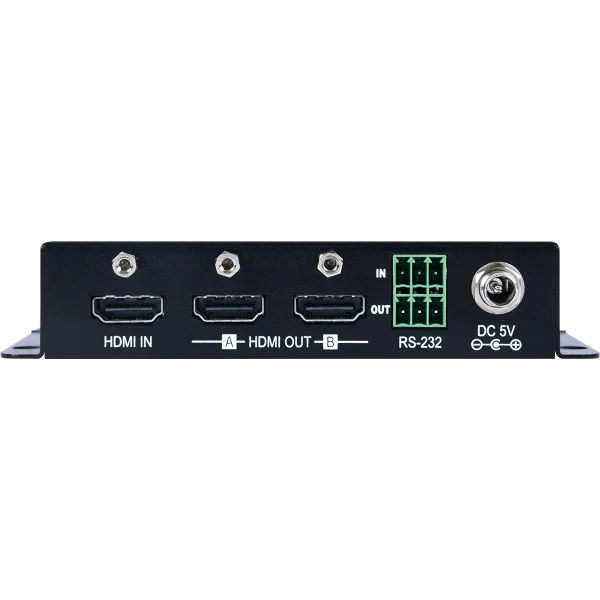

Interfaces
Input Port
  • 1×HDMI
Output Port
  • 2×HDMI
Control I/O
  • 2×RS-232 (3-pin Terminal Blocks)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.2
Input Signal Types
  • 4K@60 8bit YUV 4:2:0
Output Signal Type
  • 4K@60 8bit YUV 4:2:0
Resolutions
Maximum Input HDMI
  • 4096×2160p@60
Maximum Output HDMI
  • 4096×2160p@60
Power
Power Supply
  • 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption
  • 4.3W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Black
Dimensions (W×H×D)
  • 128mm×25mm×75mm [Case Only]
  • 125mm×25mm×83mm [All Inclusive]
Weight
  • 272g
Field Firmware Update
Interface USB
Ordering Information
Model No. Product Description
CPLUS-V2PEL
  • UHD+ HDMI to Dual HDMI Scaler

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
