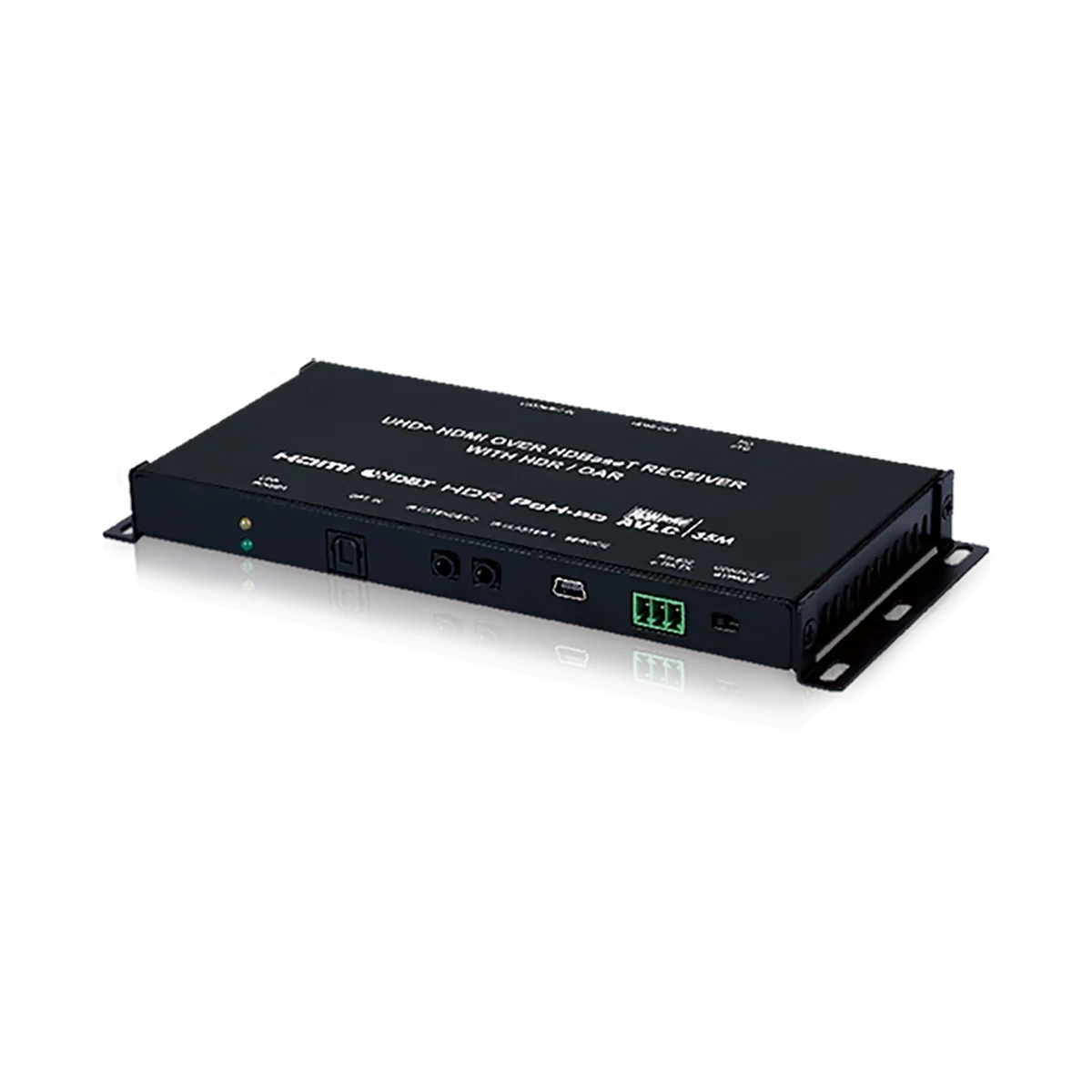

UHD+ HDMI over HDBaseT Receiver with HDR/OAR (4K@60 444 up to 35M)

HDMI with HDR, 3D & 4K@60Hz support, Supports Deep Color input and output up to 12-bit, Supports CEC bypass, Simultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p60 and 35m/115ft at 4K, HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through), Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual quality, Supports the Optical Audio Return (OAR) function to transmit optical audio from the Receiver to a compatible Transmitter, Performs TMDS re-clocking and signal re-generation for improved signal integrity, Ultra-thin wall plate design (16mm thickness) for convenient installation, Powered by standard 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Transmitters only)

Hersteller-Nr.	CH-1529RXPLV
Hersteller	Cypress Technology

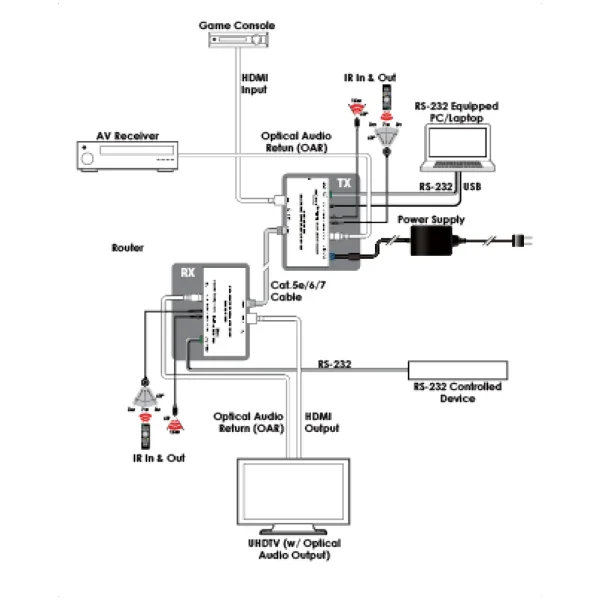

This HDMI over single Cat.5e/6/7 Receiver is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter. Beyond video, data, and control this unit also contains useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio back to a compatible Transmitter for local playback. Rounding out the feature set is automatic TMDS re-clocking support. This Receiver (PD) is powered by 48V PoH (Power over HDBaseT) from a compatible Transmitter (PSE), allowing for flexibility within different installation scenarios.

Interfaces

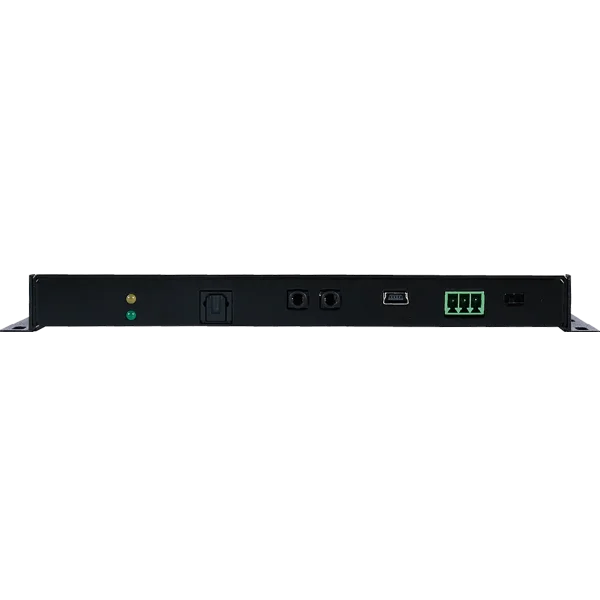

Input Port	1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK)

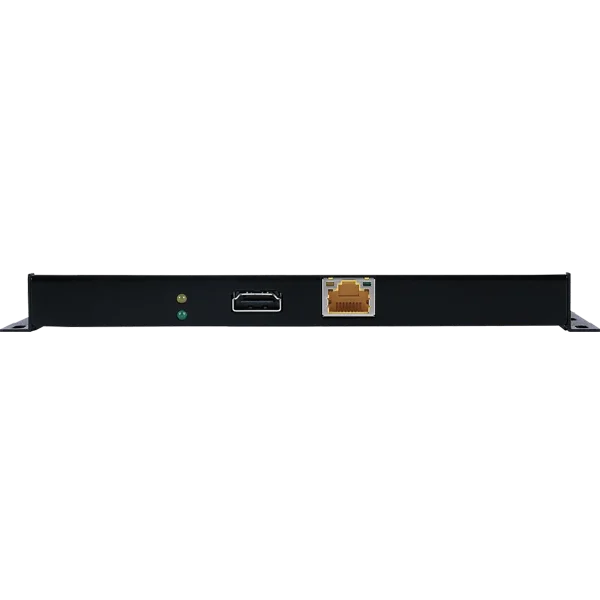

Output Port	HDMI (Type-A)
Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm)
Pass-through/ Control Port	1×RS-232 (3-pin Terminal Block)
