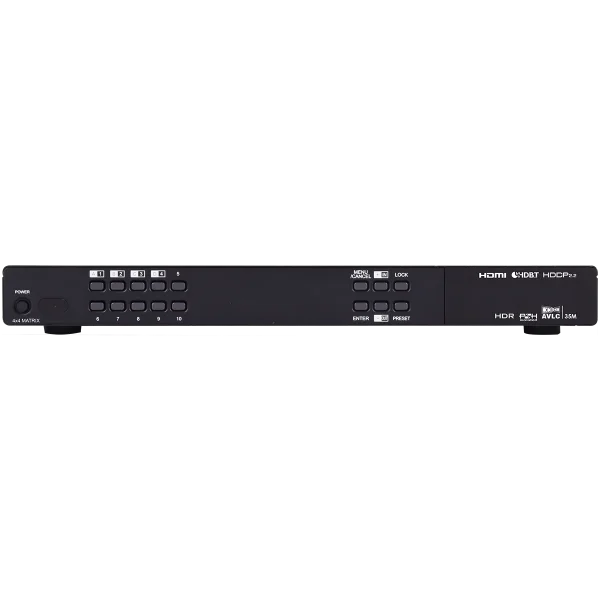

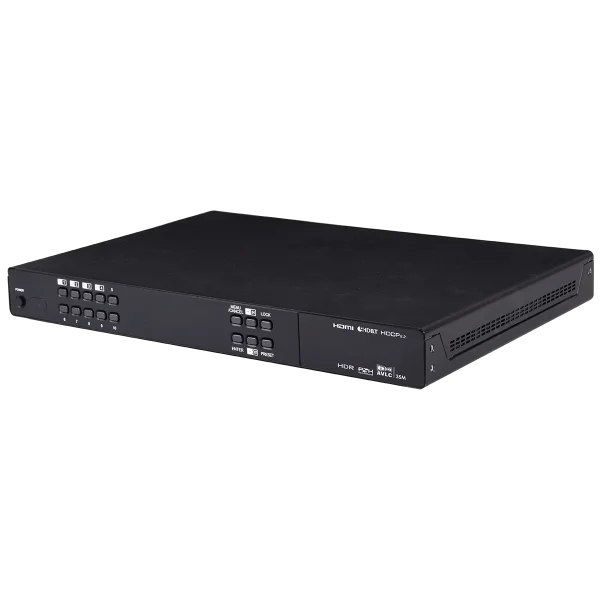

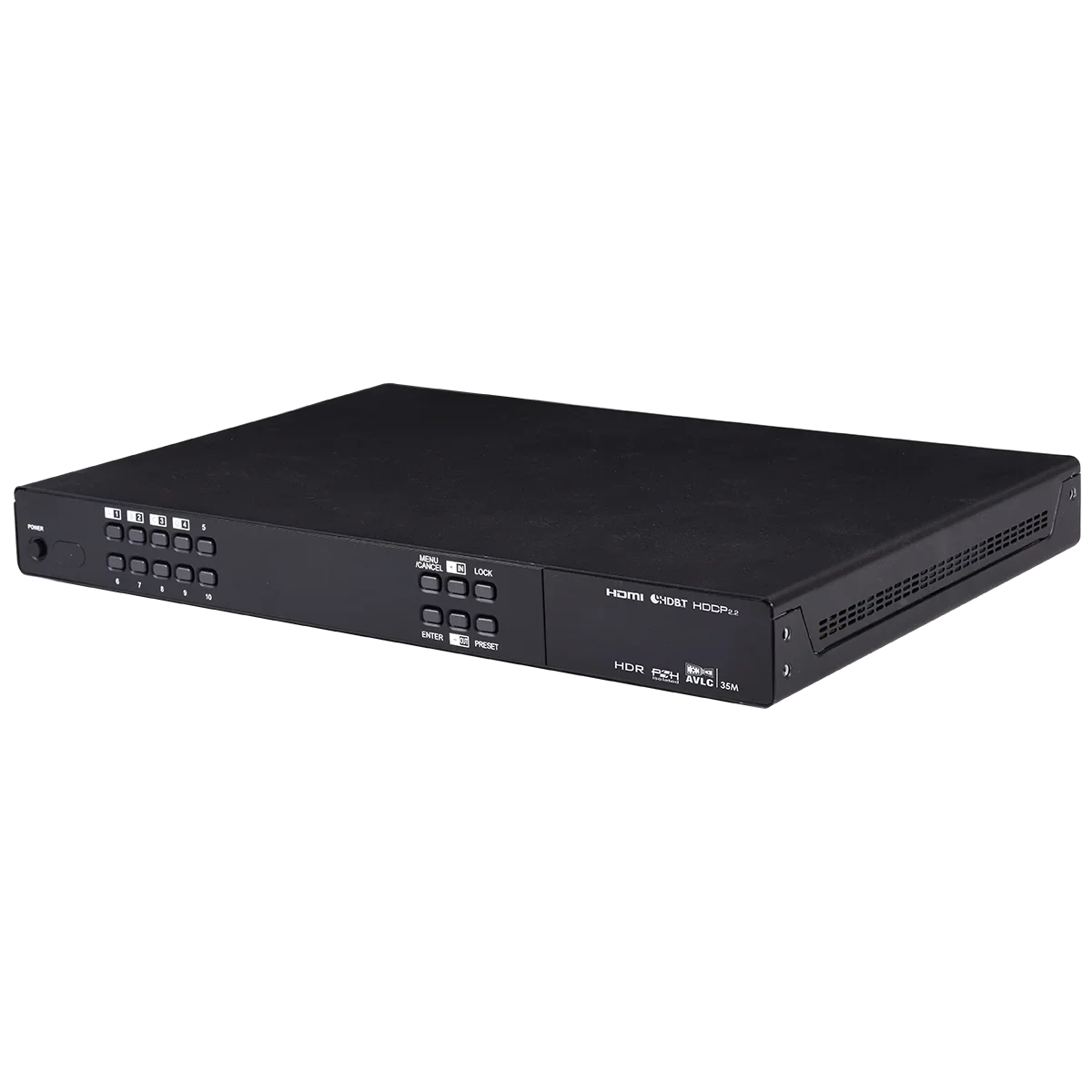

UHD+ 4x4 HDMI over HDBaseT Matrix with AVLC

HDMI with HDR & 4K@60Hz support, DVI 1.0 compatible, Routes four HDMI sources to four displays using four HDBaseT outputs, Supports deep color input and output up to 12-bit, Supports 10-bit and 12-bit HDR (High Dynamic Range) bypass (Output requires AVLC receiver), Supports automatic conversion of 4K@50/60Hz (4:4:4) sources to 4K@50/60Hz (4:2:0) or 1080p50/60 for non-AVLC HDBaseT receivers or if a connected display can’t support the original resolution. Note: 1080p conversion is only available on outputs A & C., Supported HDBaseT feature set: HD Video & Audio, PoH (PSE), and Control (Bidirectional IR pass through), 4K signals can be transmitted up to 35m via Cat.5e/6 and up to 40m via Cat.6a/7, Supports pass-through of these standard digital audio formats via HDBaseT: LPCM (up to 8 channels), Bitstream, and HD Bitstream, High quality Digital to Analog Conversion (DAC) of LPCM 2.0 audio sources for local audio breakout., Supports generation of OSD banner information, Advanced internal and external EDID management with 4 sets of configurable EDID settings, 1U rack mounted design, Control via front panel controls, Ethernet (Telnet & WebGUI), RS 232, & IR remote

Hersteller-Nr.	CPLUS-44PLV
Hersteller	Cypress Technology

This 4×4 HDMI over HDBaseT Matrix with AVLC supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as four HD sources may be routed to any of four destinations via single runs of cable up to a distance of 70m. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12 bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. 3D video is also supported when compatible sources and displays are connected.

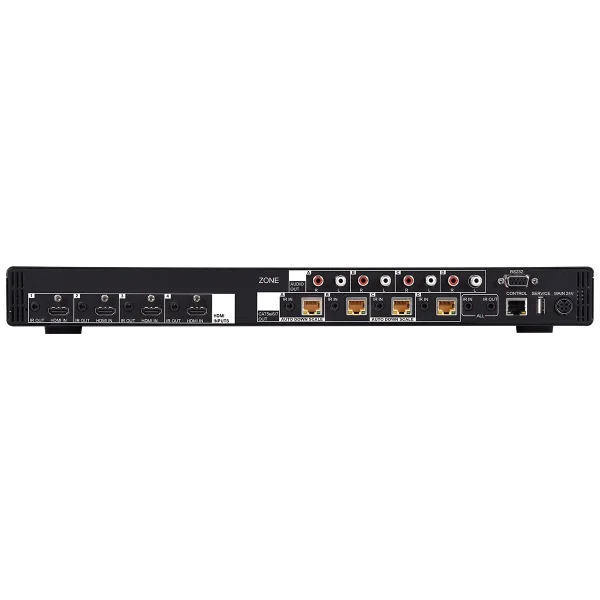

Interfaces
Input Ports	4 x HDMI (Type-A)
Output Port	4 x Cat5e/6/7 4 x Stereo Audio (RCA pairs)
Control Ports	1 x RS-232 (DE-9) 1 x IP Control (RJ-45) 1 x USB2.0 (Type-A) 5 x IR Extender (3.5mm) 5 x IR Blaster (3.5mm)

Video
HDMI Compliance	2.0 (DVI 1.0)
HDCP Compliance	2.2	4k@60 YUV 4:4:4
Input Signal Types	HDMI	4k@60 YUV 4:4:4
Output Signal Types	Cat5./6/7
		Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	Cat5e/6/7	4096×2160p@60

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
HDBT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	438mm×88mm×316mm [Case Only] 483mm×96mm×356mm [All Inclusive]
Weight	6,500g
Rackmount Size	2U

Power
Power Supply	24V/6.25A
Power Consumption	92W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (WxHxD)	438mm x 44mm x 270mm (Case Only) 482mm x 49mm x 279mm (All Inclusive)
Weight	3.642kg

Ordering Information
Model No.	Product Description
CPLUS-44PLV	UHD+ 4X4 HDMI over HDBaseT Matrix with AVLC
CH-1527RXPLV	4K HDR HDMI HDBaseT Receiver with IR, RS-232 & PoH (PD)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
