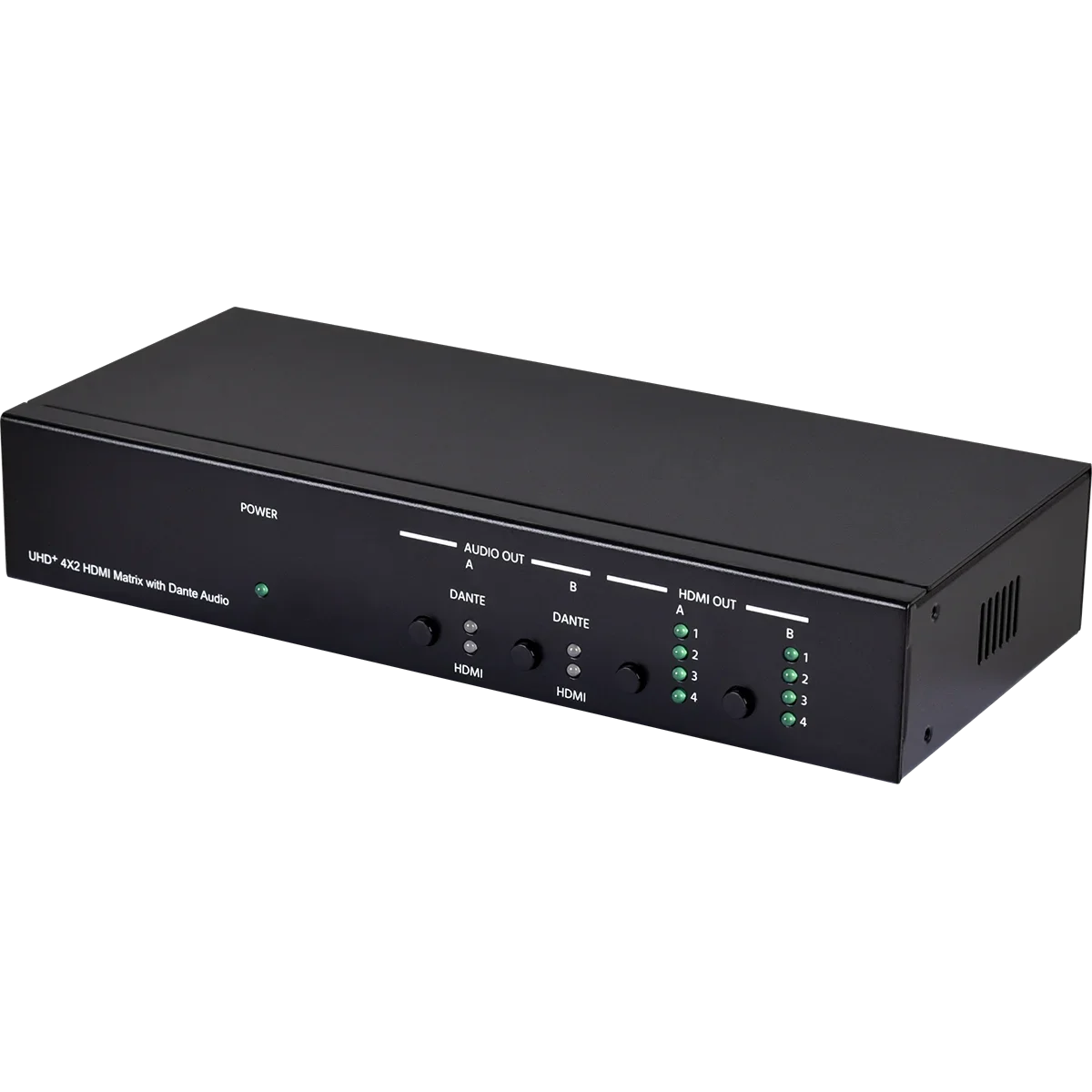

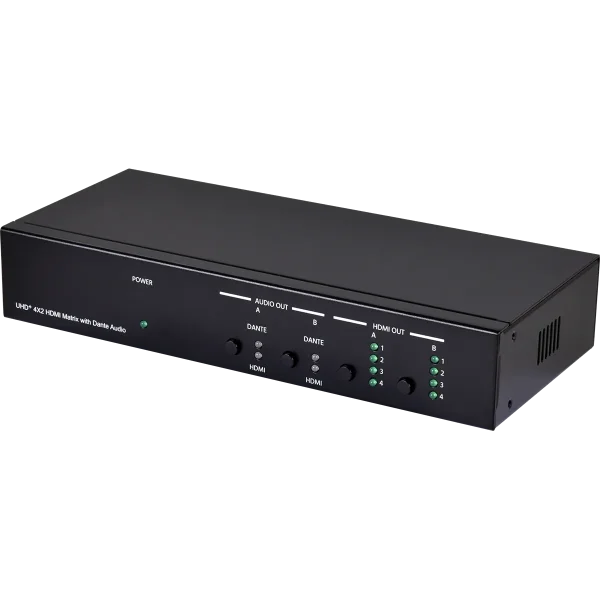

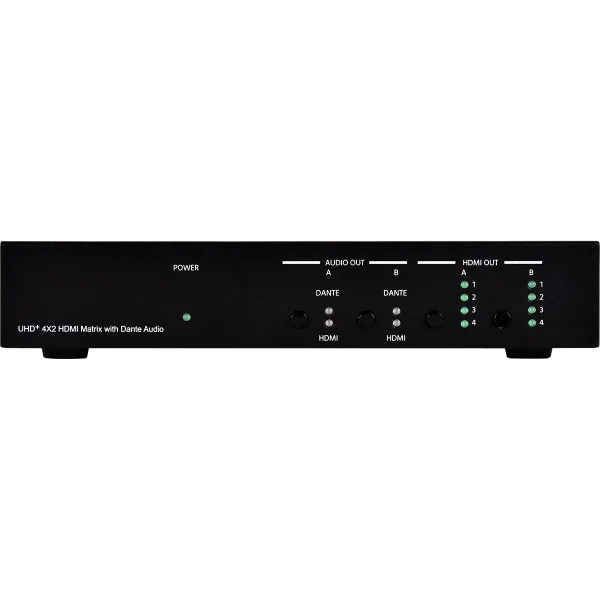

UHD+ 4x2 HDMI Matrix with Dante Audio

Enabled HDMI de-embedded/embedded designed to bridge 2-channel PCM HDMI audio to/from a Dante audio network. , Balance Audio out can be switch between HDMI De-embedded audio or Dante® -In source , Dante audio networking utilizes standard IP networks to transmit high-quality, uncompressed audio with near-zero latency , Non-compress audio performance , Audio output supports 48KHz Sampling Rate , Supports Dante / AES67 inputs and outputs , Sample-accurate time alignment between networked devices , Real-time latency statistics, Clock status statistics and signal presence exposed to network

Hersteller-Nr.	CPLUS-V4H2HP-DT
Hersteller	Cypress Technology

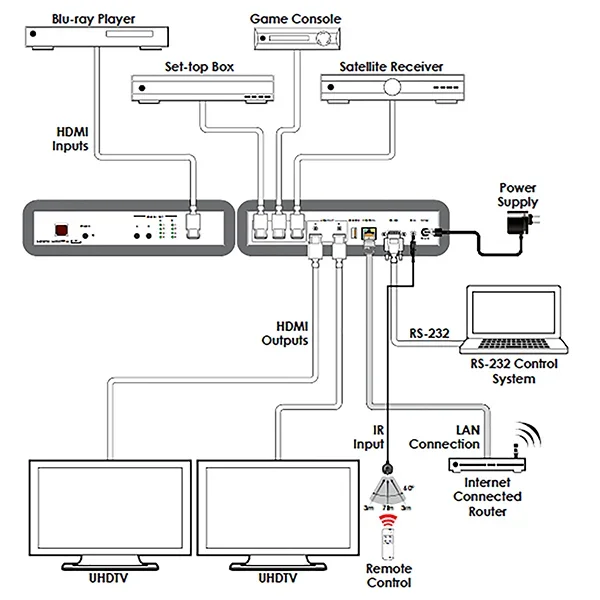

Dante® (digital audio network through Ethernet) is a powerful technology that allows many audio channels to be sent and received through Ethernet. CPLUSV4H2HP-DT integrates Dante® technology and 4X2 matrix. It allows the user to route four 18Gbps HDMI input signals to any of two 18Gbps HDMI and Dante digital audio outputs. Dante® digital audio output enables audio transport of up to two stereo audio signals over a network using standard Internet protocols. It also supports AES67 and Audinate Dante® Controller. Ethernet is used for remote control while a front panel with buttons optimized for use in challenging environments, allows full local control of all features. The integration of Dante® audio out facilitates system expansion when paired with many of Cypress’s Dante-enabled audio processing products.

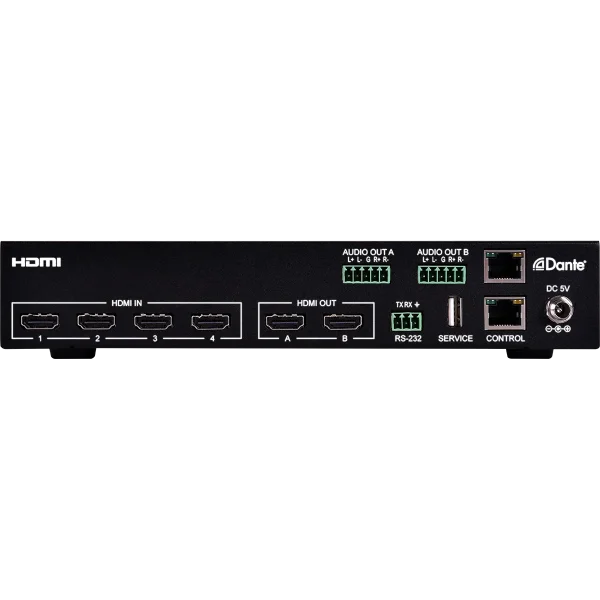

Interfaces
Input Port	4 HDMI (Type-A)
Output Port	2 HDMI (Type-A) 2 Stereo Analog Out (5-pin Terminal Block)
Control I/O	1 RS-232 (3-pin Terminal Block) 1 LAN (RJ-45)
Service Port	1 USB 2.0 (Type-A)
Ethernet Port	1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160@60 8bit YUV 4:4:4
Output Signal Type	4096x2160@60 8bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
Analog Out	DAC	Max Audio Level: 4.2Vrms Impedance: 5kOhm Type: Balanced S/N Ratio: > 70dB (1kHz with 0dBFS)

Power
Power Supply	5V/2.6A
Power Consumption	9.72W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	240mm× 43mm× 104mm [Case Only] 240mm× 48mm× 112mm [All Inclusive]
Weight	807g

Ordering Information
Model No.	Product Description
CPLUS-V4H2HP-DT	UHD+ 4x2 HDMI Matrix with Dante Audio
AIP-D4101	4 Balance In, Analog Audio to Dante
AIP-D1401	4 Balance Out, Dante to Analog Audio
