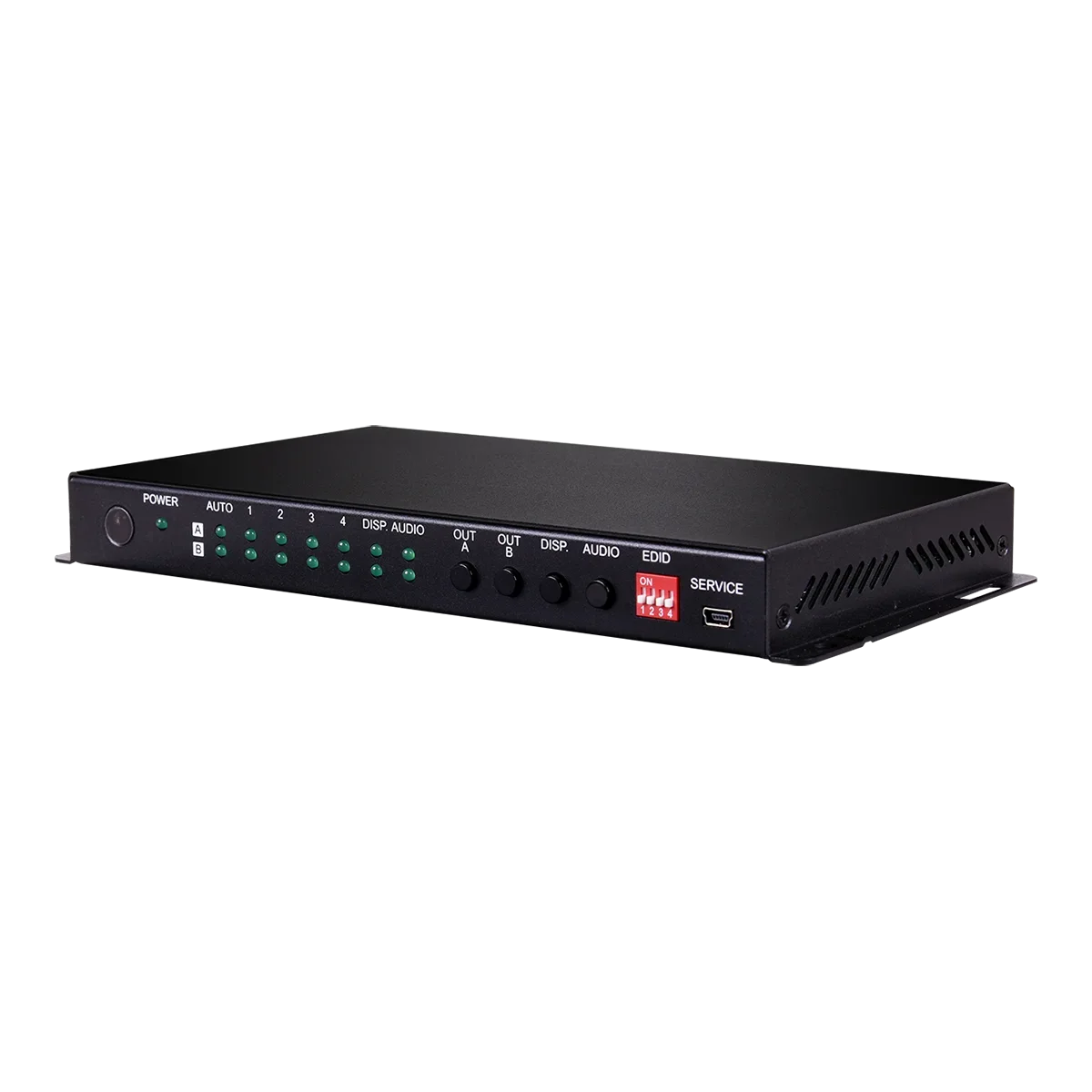

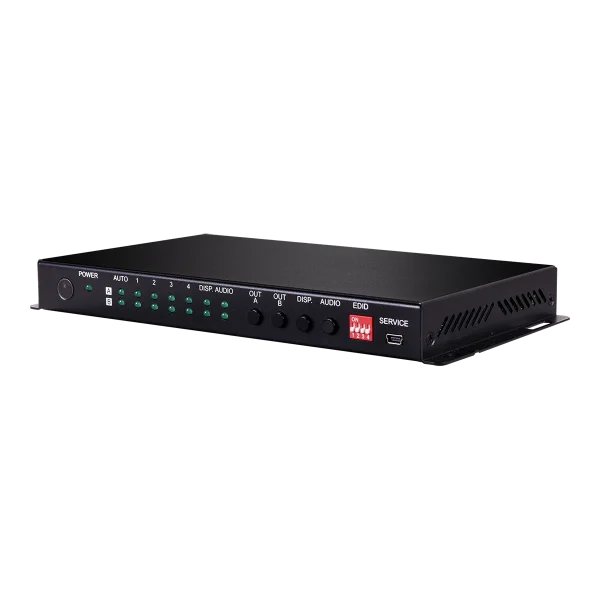

UHD+ 4x2 HDMI Matrix with Audio Output

Supports UHD+ resolutions up to 4096x2160@60Hz (YUV 4:4:4, 8 bit) , Supports 16-bit Deep Color up to 1080@60Hz , Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , Support internal EDIDs and external EDIDs options, Support Auto Source Switch , Basic signal event automation via RS-232 or CEC

Hersteller-Nr.	CPLUS-V4H2HA
Hersteller	Cypress Technology

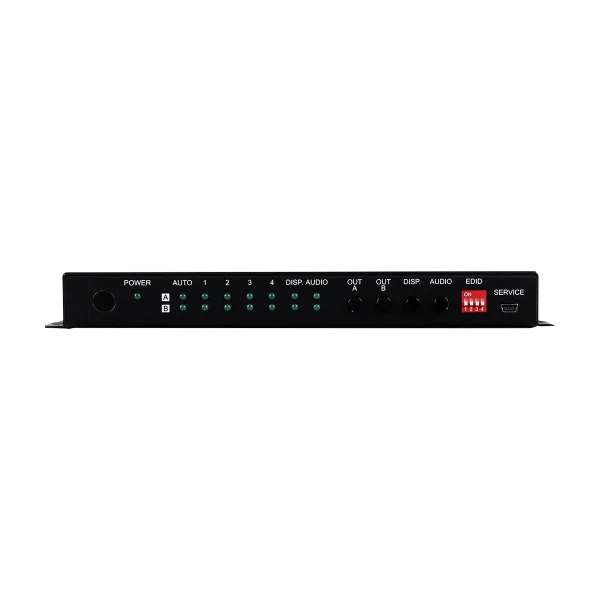

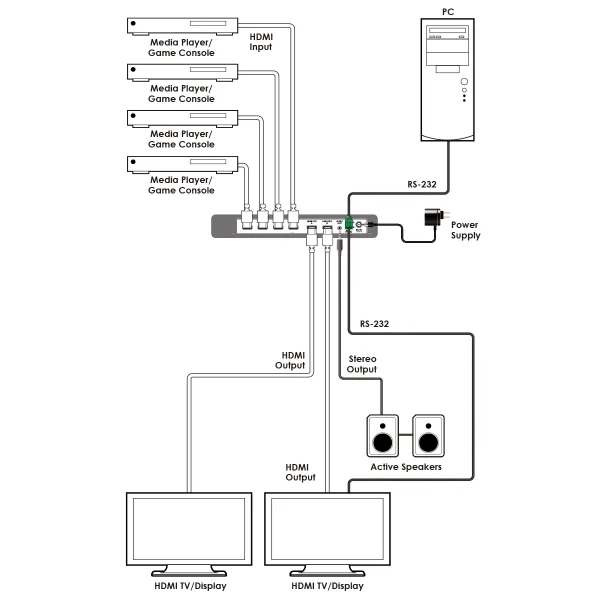

This 4K60 4 by 2 Matrix provides the ability to connect up to four 4K60 HDMI sources to up to two 4K60 HDMI displays and freely switch between them. This unit comes with full support for 4K@60Hz (4:4:4, 8- bit) as well as support for 16-bit Deep Color, HDR (High Dynamic Range), 3D content, HD audio and other features defined by HDMI 2.0 specification. Pre-defined internal EDIDs and external EDIDs option are available for EDID managing. The matrix also supports auto source switch and display control for power on/off the connected devices by sending CEC or RS-232 commands. Control is provided via frontpanel buttons, RS-232, and IR remote.

Interfaces

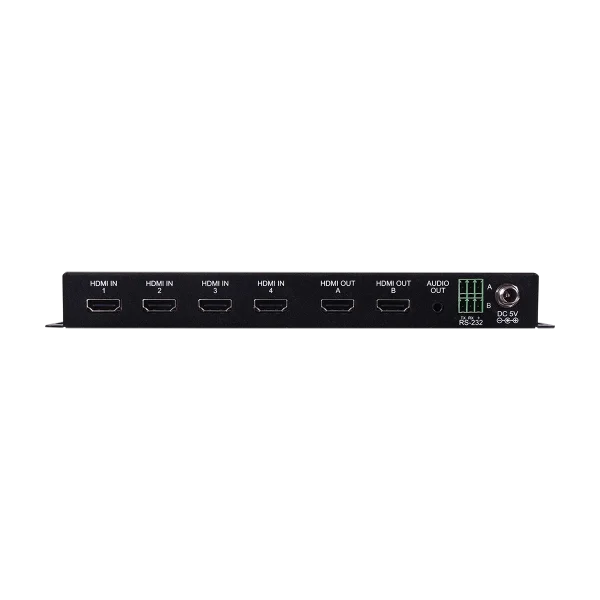

Input Port	4 x HDMI
Output Port	2 x HDMI 1 x Stereo (3.5mm)
Service Port	1 x USB 2.0 (mini B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4096 x 2160p@60 8-bit YUV 4:4:4,HDR 10
Output Signal Types	4096 x 2160p@60 8-bit YUV 4:4:4,HDR 10
		Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
Input Signal Types	HDMI
Output Signal Types	HDMI, Unbalanced Stereo
Digital Formats	HDMI 7.1 CH LPCM, Bitstream, HD Bitstream

Power
Power Supply	5V/2.6A
Power Consumption	8.62W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive]
Weight	620g

Field Firmware Update
Micro-USB to PC

ORDERING INFORMATION
Model No.	Product Description
CPLUS-V4H2HA	UHD+ 4x2 HDMI Matrix with Audio Output

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
