UHD 4 to 1 Switcher
Klicken zum Vergrößern
Cypress Technology

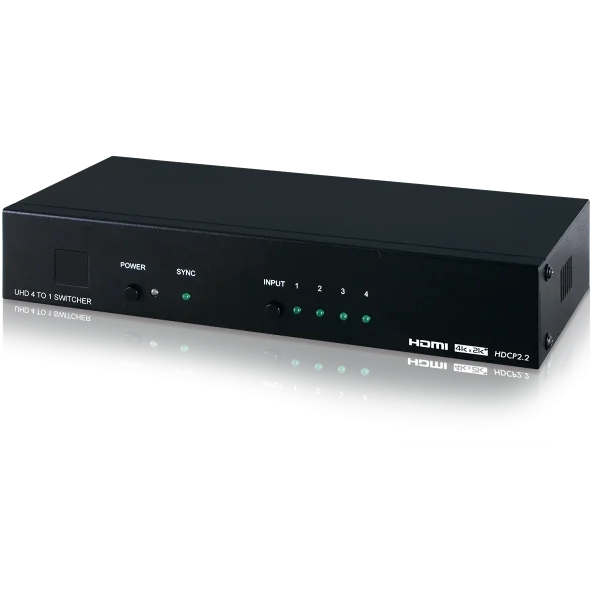

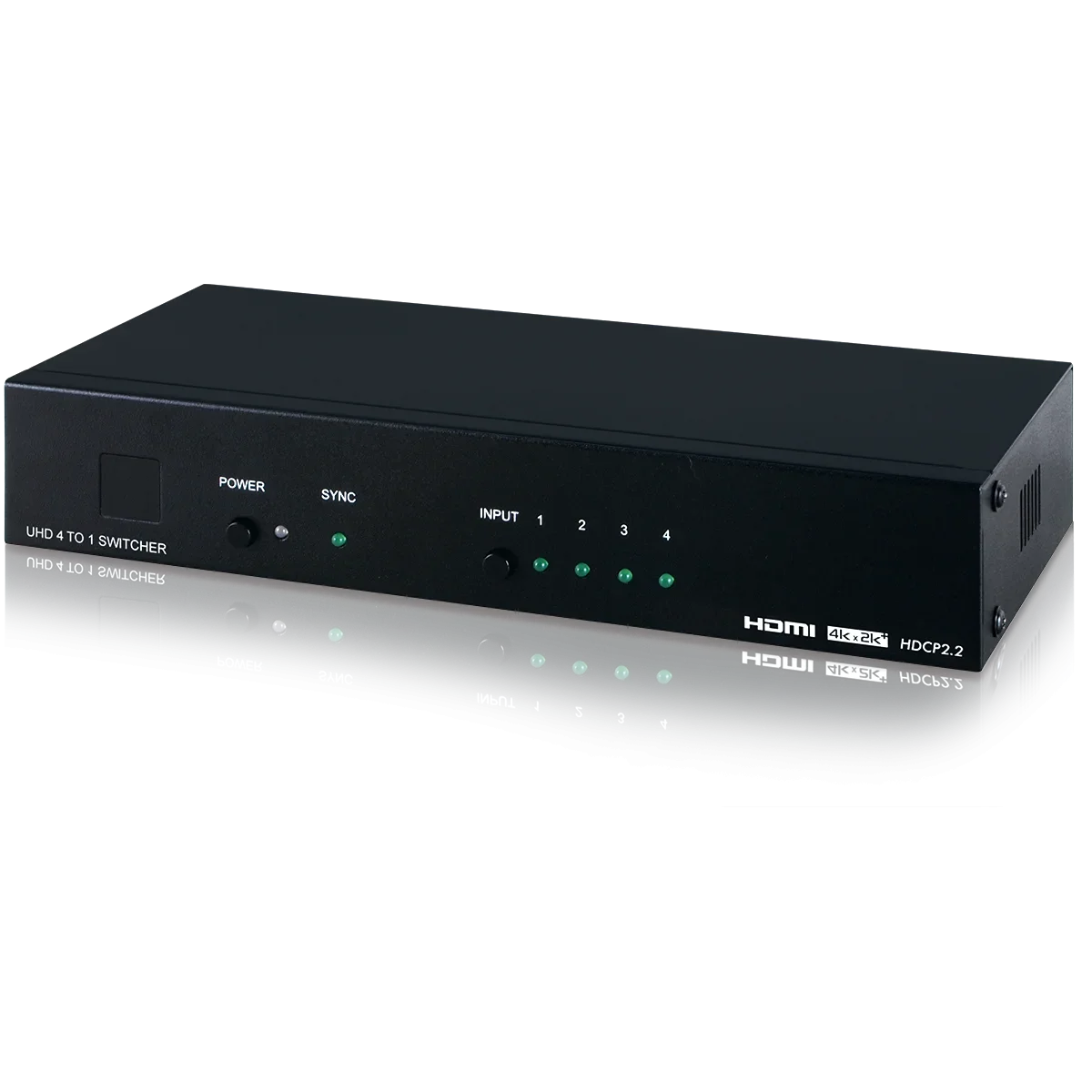

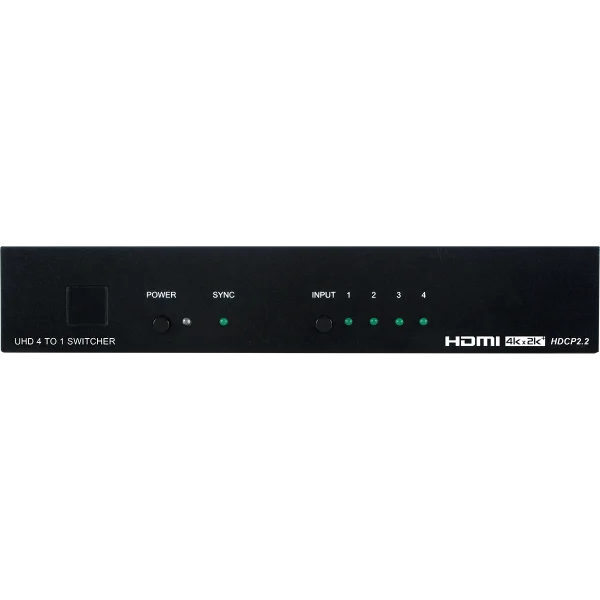

UHD 4 to 1 Switcher

Supports data rates up to 18Gbps and Deep Color (16-bit) up to 1080p , Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats , Remotely controllable via Ethernet (WebGUI & Telnet), RS-232 and IR remote

Hersteller-Nr.CPLUS-V4H1HP
HerstellerCypress Technology

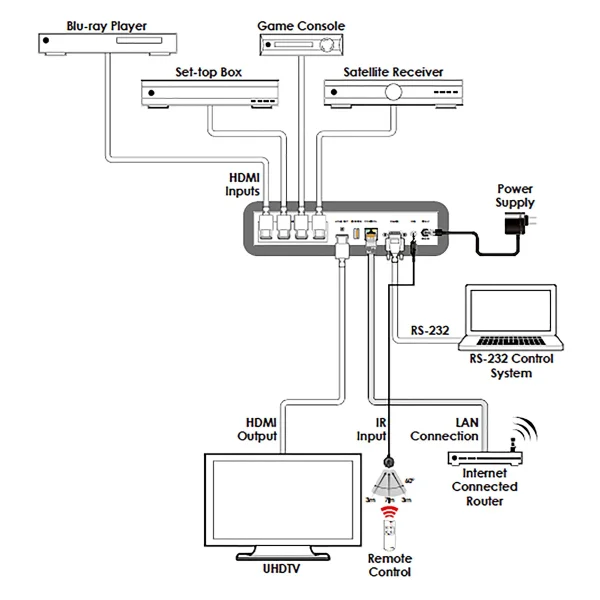

This 4×1 HDMI switcher is the most advanced HDMI solution for true Ultra High-Definition signal routing. This unit allows for the switching of any of four 18Gbps HDMI input signals to a single 18Gbps HDMI display device. Resolutions up to 4096×2160@60Hz (4:4:4), 16-bit Deep Color, HDR (High Dynamic Range), HD audio as well as other features defined by the HDMI 2.0 specification are supported. Multiple control interfaces are available including RS-232, Ethernet (WebGUI & Telnet), IR remote and front-panel buttons making operation easy and intuitive.

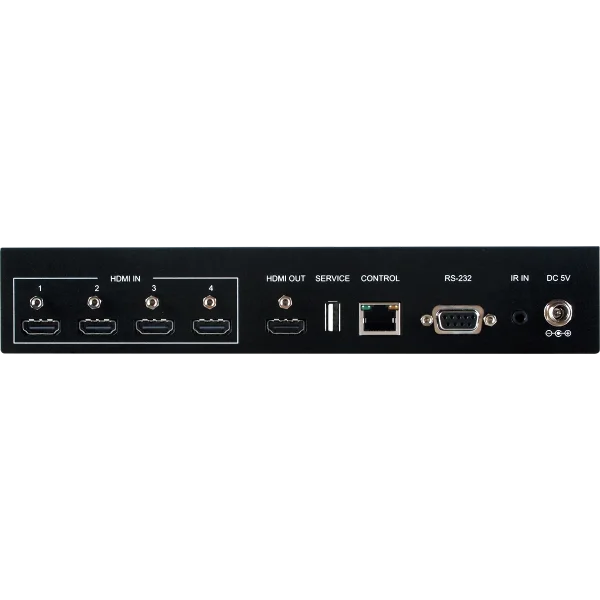

Interfaces
Input Port
  • 4×HDMI (Type-A)
Output Port
  • 1×HDMI (Type-A)
Control I/O
  • 1×IR Extender (3.5mm)
  • 1×RS-232 (DB-9)
  • 1×IP Control (RJ45)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.X
Input Signal Types
  • 4096x2160@60Hz YUV 4:4:4 8-bit
Output Signal Type
  • 4096x2160@60Hz YUV 4:4:4 8-bit
Resolutions
Maximum Input HDMI
  • 4096×2160p@60
 Maximum Output HDMI
  • 4096×2160p@60
Audio
  HDMI
  • LPCM (8 Channels), Bitstream, HD Bitstream
Power
Power Supply
  • 5V/2.6A DC
Power Consumption
  • 5.83W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Black
Dimensions (W×H×D)
  • 240mm×43mm×104mm [Case Only]
  • 240mm×48mm×112mm [All Inclusive]
Weight
  • 850g
Field Firmware Update
Interface
  • USB
Ordering Information
Model No. Product Description
CPLUS-V4H1HP
  • UHD 4 to 1 Switcher

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
