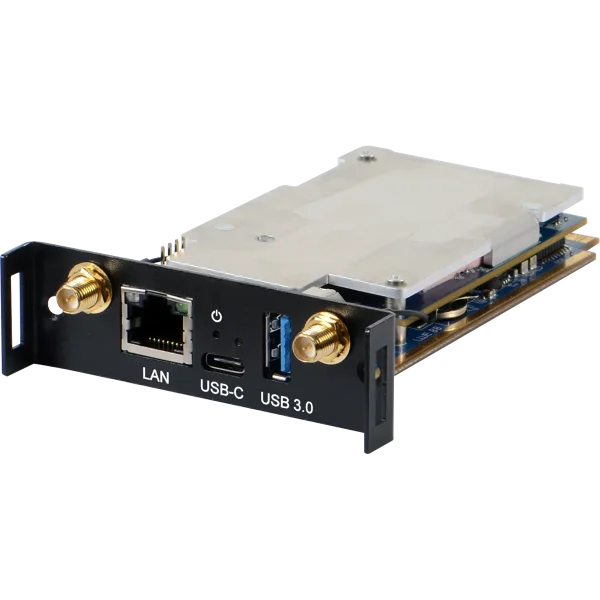

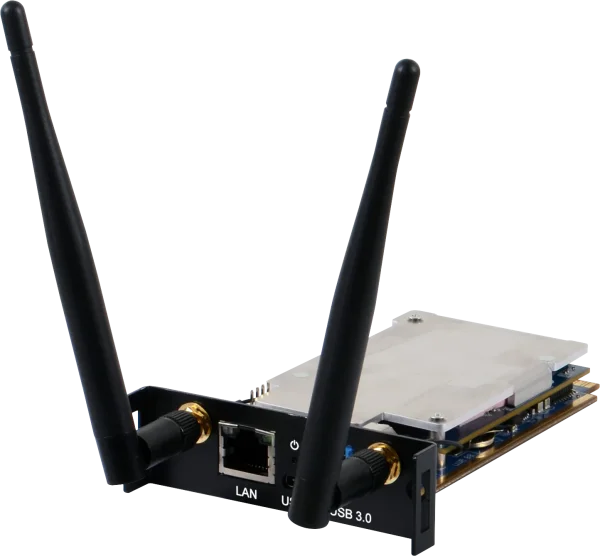

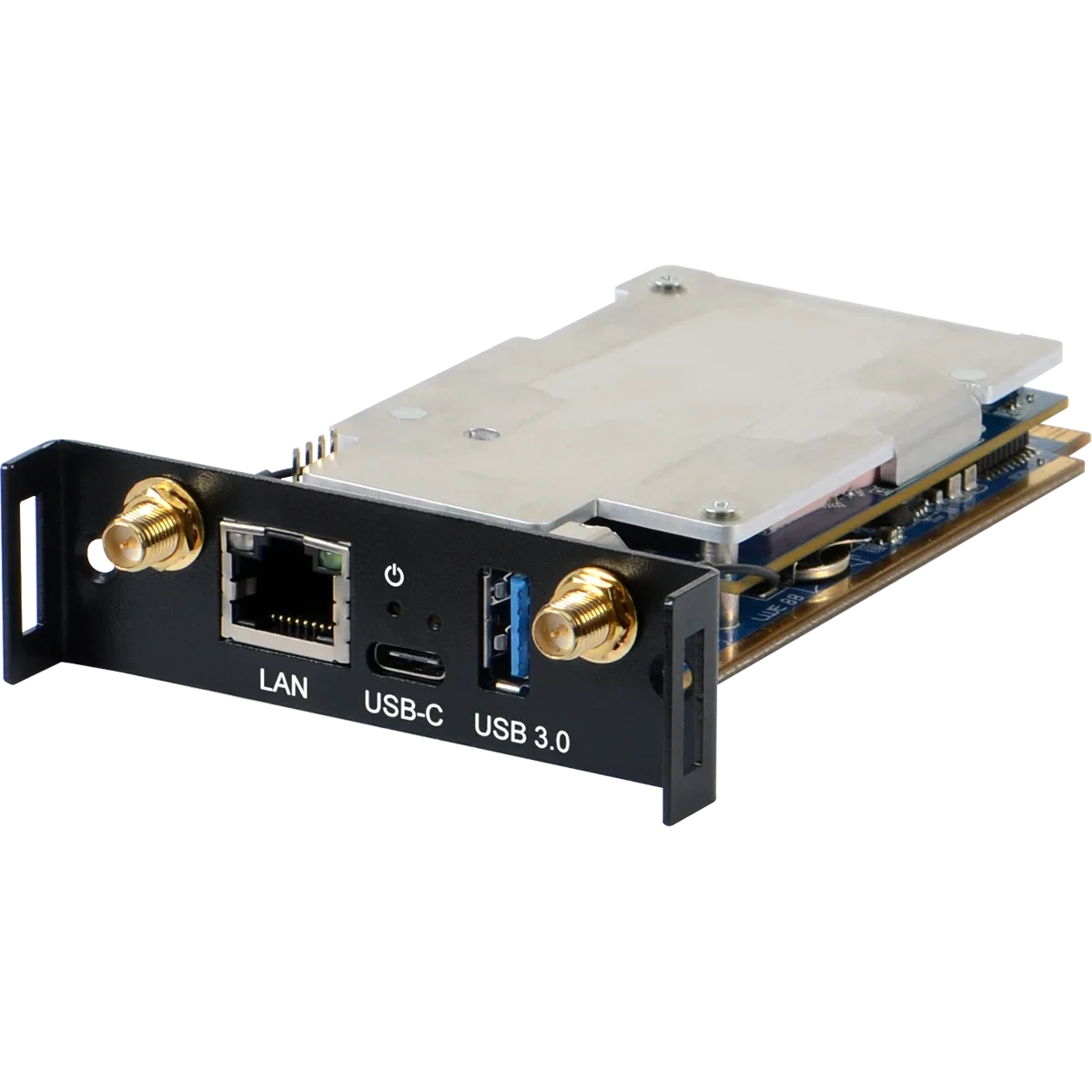

SDM-W201R

Highly compatible with Windows, macOS, Android, and iOS. , Screen sharing via browser (Chrome or Edge), Hyshare Pro App or the optional Hyshare Pro Pod. , Collaboration tools: screen capture, annotation, and whiteboard. , View the main screen remotely through the Hyshare Pro App. , Multi-view: up to 4 sources simultaneously.

Hersteller-Nr.	SDM-W201R
Hersteller	Cypress Technology

The Hyshare Pro is a high-performance Wireless Receiver Module, which provides a smooth wireless screen-casting experience. Users are free from messy cables and complicated interfaces. It supports cross-platform collaboration and communication, including Windows, macOS, Android, and iOS systems.

This wireless receiver Mobile can be easily slotted into CYP SDM input platform, such as CPLUS-V32SDM. Users can instantly share their screens on a host computer, smart phone or tablet in meetings or classes through the Hyshare Pro App or the optional Hyshare Pro Pod.

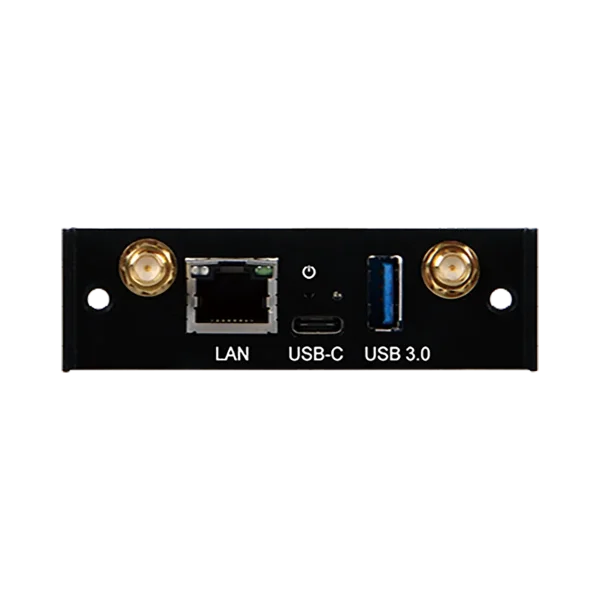

Interfaces
Output Port	1 CYP Module(Edge Connector)
Bi-directional Port	1 GbE LAN (RJ-45)
Control I/O	1 USB (Type-A) 1 USB (Type-C)

Video
HDMI Compliance	HDMI 1.4
Input Signal Type	IEEE 802.11ac 2.4/5GHz
Output Signal Type	3840x2160p@30Hz
	Interface	Resolutions
Maximum Output	HDMI (Edge Connector)	3840x2160p@30Hz RGB

Audio
HDMI Out	LPCM (2 Channels)

USB
Generation	USB3.2 Gen1
Transfer Rate	5Gbps

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	82mm×25mm×123mm [Module Only] 82mm×130mm×150mm [All Inclusive]
Weight	150g

Field Firmware Update
Hyshare Pro WebGUI

ORDERING INFORMATION

Model No.	Product Description
SDM-W201R	Hyshare Pro Wireless Receiver Module
CPLUS-V32SDM	UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
WPS-HP201T	Hyshare Pro Pod Wireless Transmitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
