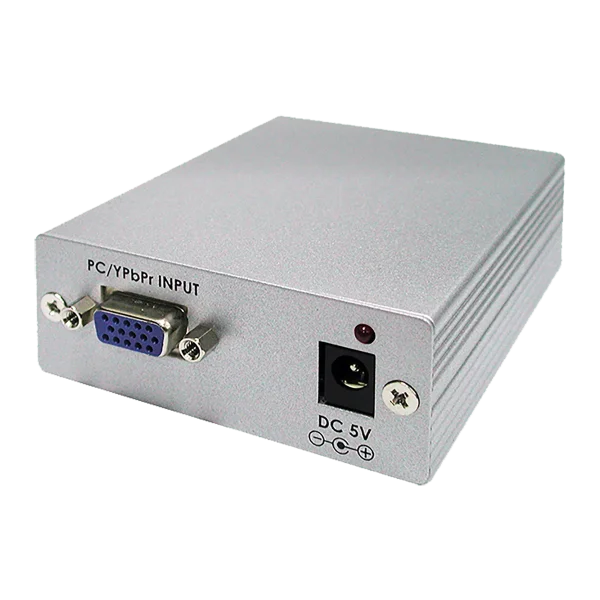

PC/HD to DVI Format Converter

Connect computers with analog PC output or DVD Players with HD component output to digital DVI monitors or projectors, Manual selection of analog RGB or Component (YPbPr) sources, Manual selection of output between Bypass or digital RGB, Supports input resolutions up to 1920×1200@60 (RB) for PC and 1920×1080p@60 Hz for HD component, Built-in EDID management

Hersteller-Nr.	CP-1261D
Hersteller	Cypress Technology

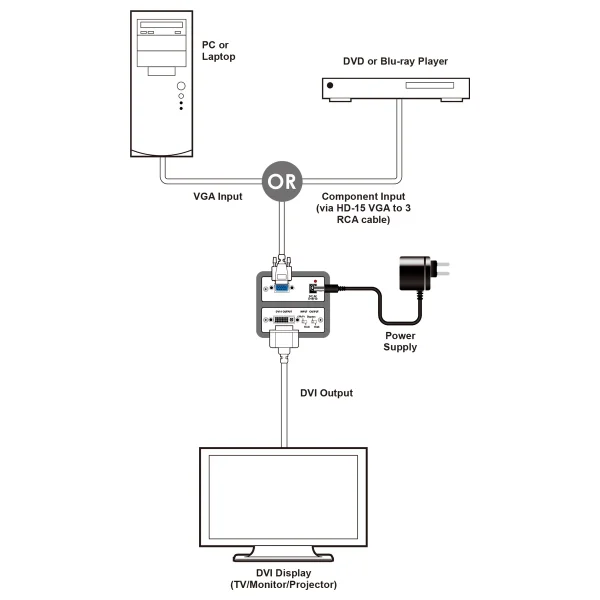

This PC/HD to DVI Format converter can convert and upgrade your input signal from analog to digital and VGA to a DVI signal, whether your source is a RGB signal from a PC or a Component signal (through the supplied HD-15 VGA to 3 RCA cable).

Interfaces

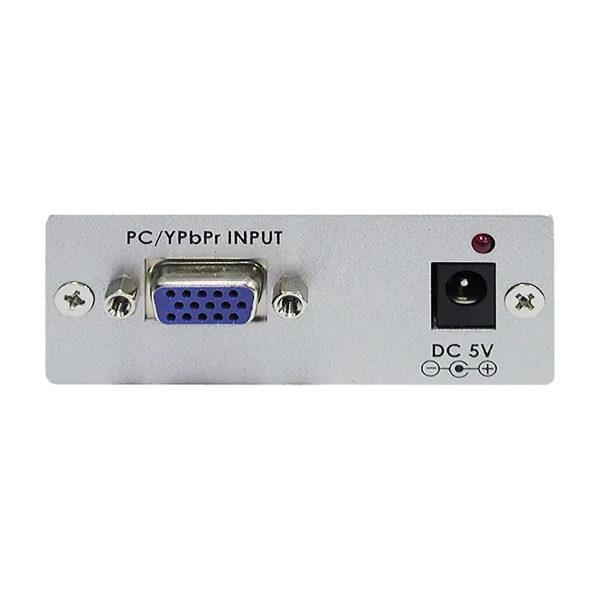

Input Port	1 Analog HD-15 (RGBHV or YPbPr)

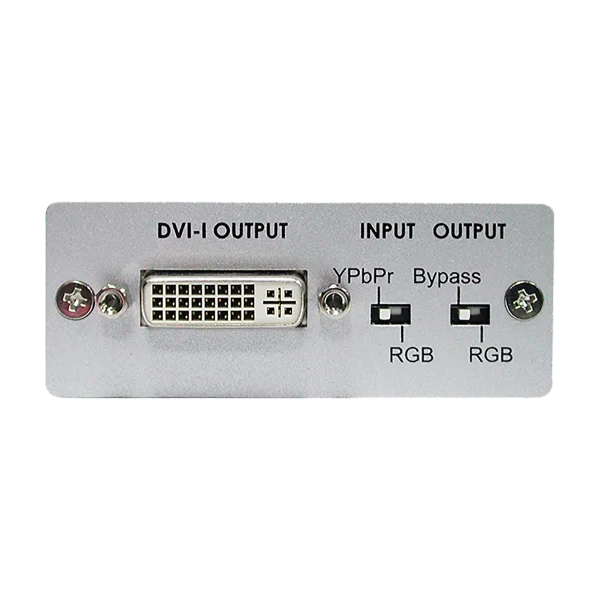

Output Port	1 DVI-I (DVI-D output only)

Video
HDMI Compliance	N/A
Input Signal Type	1920×1080P@60
Output Signal Types	1920x1080p@60

Resolutions
Maximum Input	HD-15	1920×1200@60 (RB) 1920×1080p@60
Maximum Output	DVI	1920×1080P@60

Enclosure
Chassis Material	Aluminum
Chassis Color	Silver
Dimensions (W×H×D)	76 mm × 30 mm × 105 mm
Weight	190g

Power
Power Supply	5 V/1 A DC
Power Consumption	3.6 W

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CP-1261D	PC/HD to DVI Format Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
