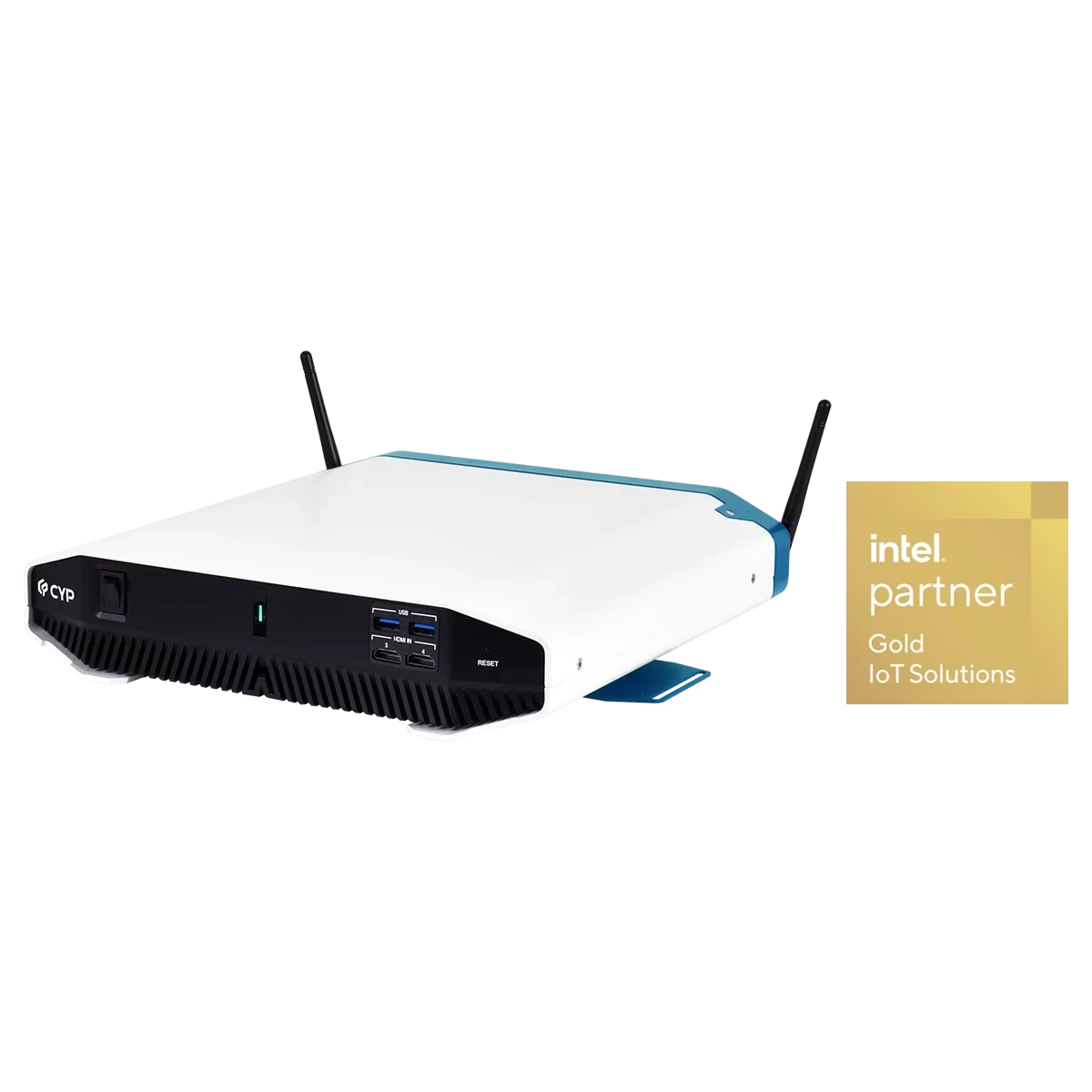

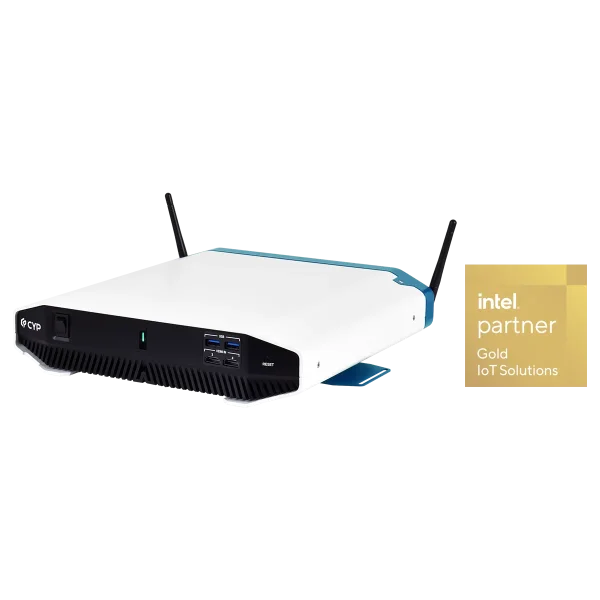

Multi-viewer with Streaming Solution and Stand-alone PC-based System for Video Capturing

UHD+ 4K@60Hz video from medical devices can be recorded to the built in SSD storage (downscaled to 1080p@60Hz), Intel Atom processor based PC combined with Pro-AV streaming functionality, Included CYP App provides support for easy video and audio configuration, Supports power-isolated HDMI, RS-232, and, LAN ports., Supports video source previewing, Includes TPM 2.0 (Trusted Platform Module) for industry standard hardware based security, Medical grade design fulfills medical application compliance requirements.

Hersteller-Nr.	MED-VPR-8430
Hersteller	Cypress Technology

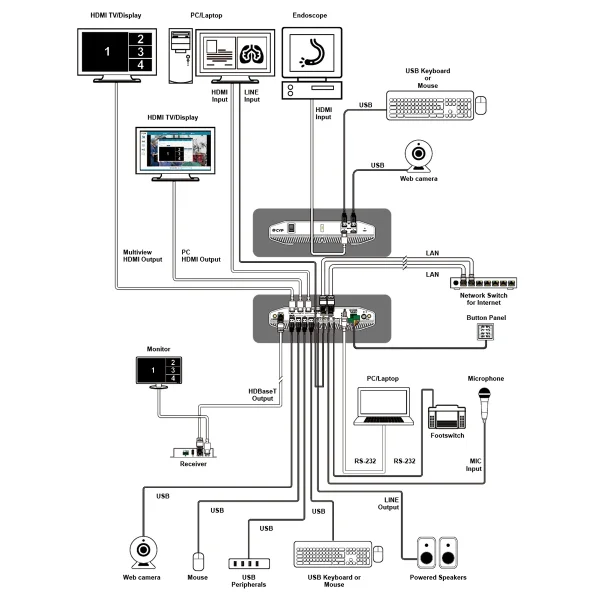

The MED-VPR-8430 video recorder is dedicated design to integrate with multiple medical devices for video recording during operation or diagnosis. It supports high quality video of 4K@60 video input and output to display over HDMI. The video from medical devices such as endoscope, X-Ray system, ultrasonic, da Vinci Surgical System…etc. exports to monitor and is recorded to build in hard disk in recorder simultaneously. This medical recorder supports real time display and recording and complies with medical criteria for fulfill medical application.

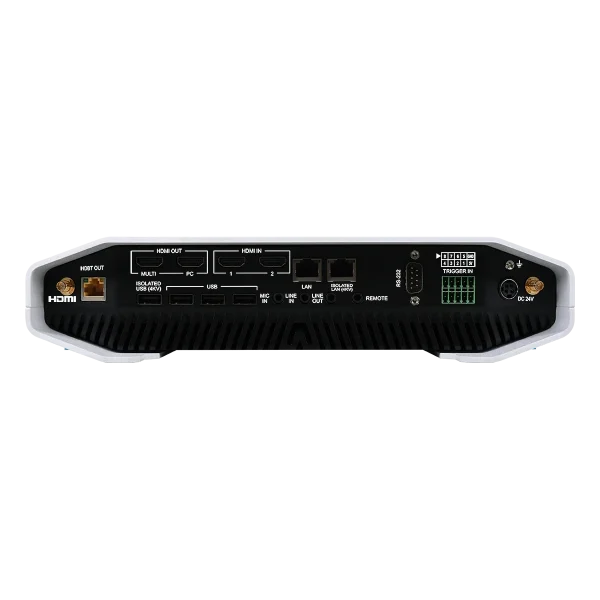

Interfaces
Input Port	4 HDMI (Type-A) 8 Trigger (10-pin terminal block) 2 Analog Stereo (3.5mm)
Output Port	2 HDMI (Type-A) 1 HDBaseT (RJ-45) 1 Analog Stereo (3.5mm)
Bi-directional Port	1 GbE LAN (RJ-45) 1 GbE LAN (RJ-45) with 4KV isolation
Control I/O	1 UART (RX/TX only) (3.5mm) 1 RS-232 (DB-9) with 4KV isolation 3 USB2.0 (Type-A) 1 USB2.0 (Type-A) with 4KV isolation (12MB/Bits) 2 USB3.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	Input:2.0b Output: 2.2
Input Signal Types	4096×2160p@60 8-bit YUV 4:4:4
Output Signal Types	4096×2160p@60 8-bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60
	HDBaseT	4096×2160p@60 (4:2:0)
	Recording	1920×1080p@60
	HDMI	1080p@60

Audio
HDMI	LPCM (8 Channels)
Line In	2 Vrms
	S/N Ratio: > 80dB (1kHz with 0dBFS)
Mic In	2 Vrms
	S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out	2 Vrms
	S/N Ratio: > 80dB (1kHz with 0dBFS)

System
CPU Memory	Intel Elkhart Lake x6425E 2.0Ghz (Boost 3.0Ghz) DDR4-16GB Soldered on board
Storage	2.5 Inch SATA SSD 1TB M.2 SATA SSD (Expandable)
WiFi	WIFI 802.11 abgn/ac + BT 5.0 LE (Optional)

Power
Power Supply	24V/4.17A DC

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	White
DimensWions (W×H×D)	296mm×296mm×67mm [Case Only] 318mm×316mm×67mm [All Inclusive]
Weight	4.3kg
