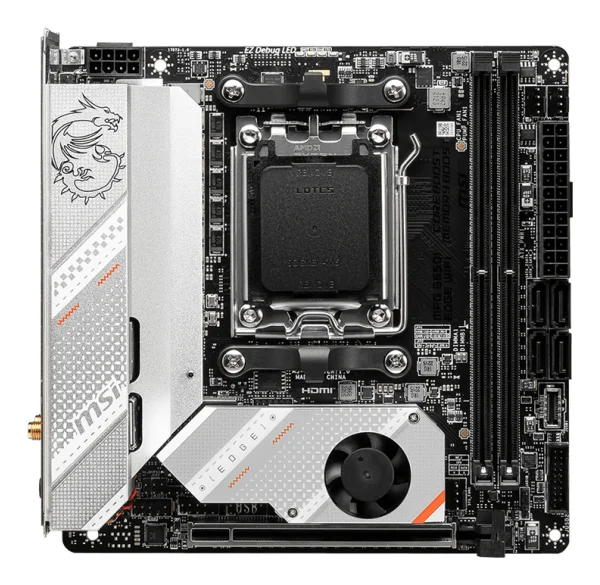

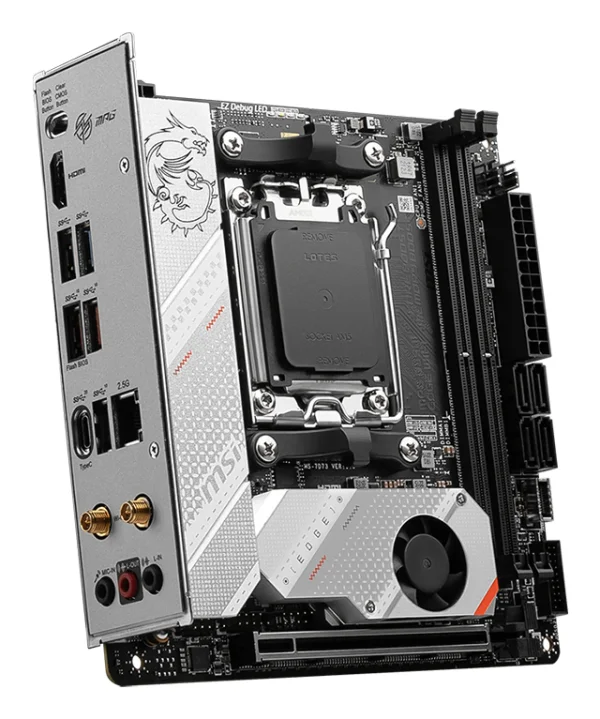

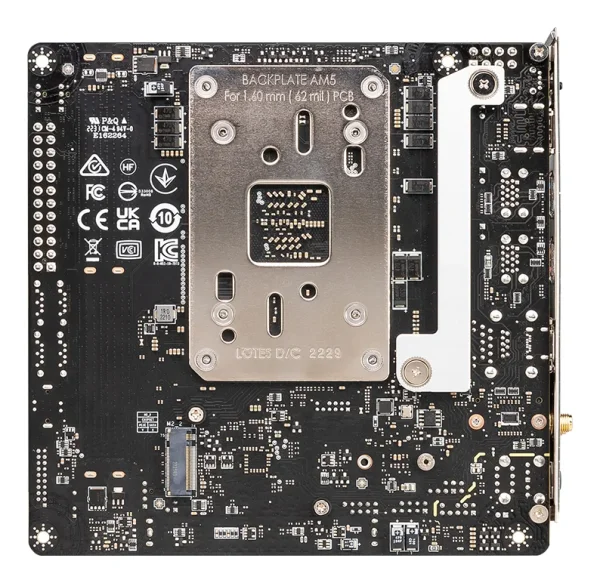

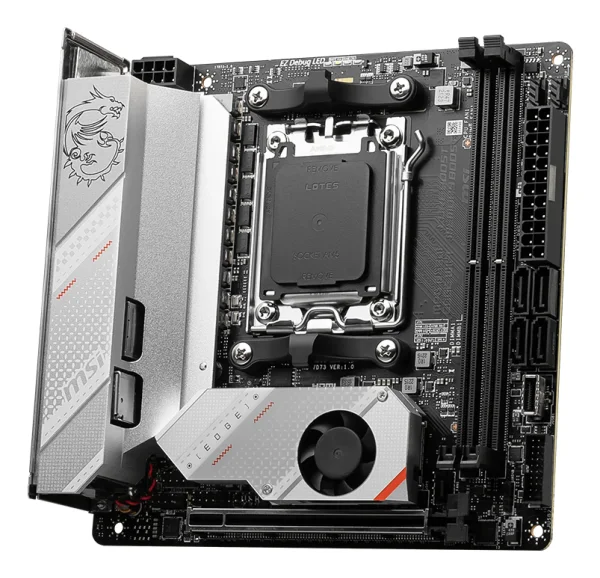

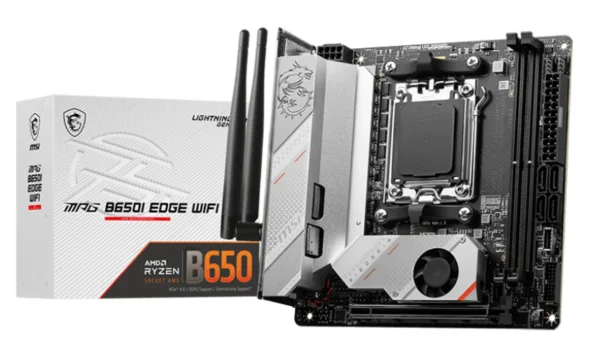

MSI MPG B650I Edge WiFi AM5 DDR5
MSI MPG B650I EDGE WIFI AM5 DDR5
| EAN/GTIN | 4711377010146 |
| Hersteller-Nr. | 7D73-001R |
| Hersteller | MSI |
| Herkunftsland | Taiwan |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Prozessor
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM5 |
| Kompatible Prozessoren | AMD Ryzen 7000 Series |
| Unterstützte Prozessorsteckplätze | Sockel AM5 |
Speicher
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| RAM-Speicher maximal | 64 GB |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 10 |
Grafik
| Eingebaute Grafikadapter | Nein |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Chassis Intrusion Stecker | Ja |

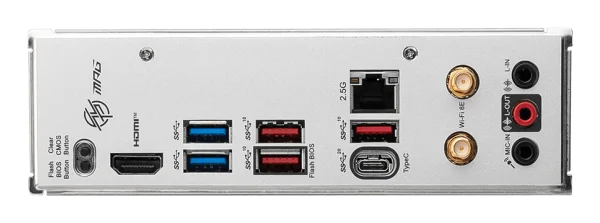

E/A-Anschlüsse auf der Rückseite
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 3 |
| USB 3.2 Gen 2x2 Typ-C Anzahl Anschlüsse | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Realtek RTL8125B |
| WLAN | Ja |
| Top WLAN-Standard | Wi-Fi 6E (802.11ax) |
| WLAN-Standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Ja |
| Bluetooth-Version | 5.2 |
Merkmale
| Motherboard Chipsatz | AMD B650 |
| Audio-Chip | Realtek ALC4080 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Aluminium, Schwarz |
| PC Gesundheitsüberwachung | Ventilator |
| Komponente für | PC |
| Motherboardformfaktor | mini ATX |
| Motherboard Chipsatz Familie | AMD |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64 |
Erweiterungssteckplätze
| PCI-Express x16 (Gen 3.x)-Anschlüsse | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
Gewicht und Abmessungen
| Breite | 170 mm |
| Tiefe | 170 mm |
Specs: Icecat.biz
| Länge | 23,30 cm |
| Breite | 19,50 cm |
| Höhe | 8,50 cm |
| Gewicht | 1,09 kg |
