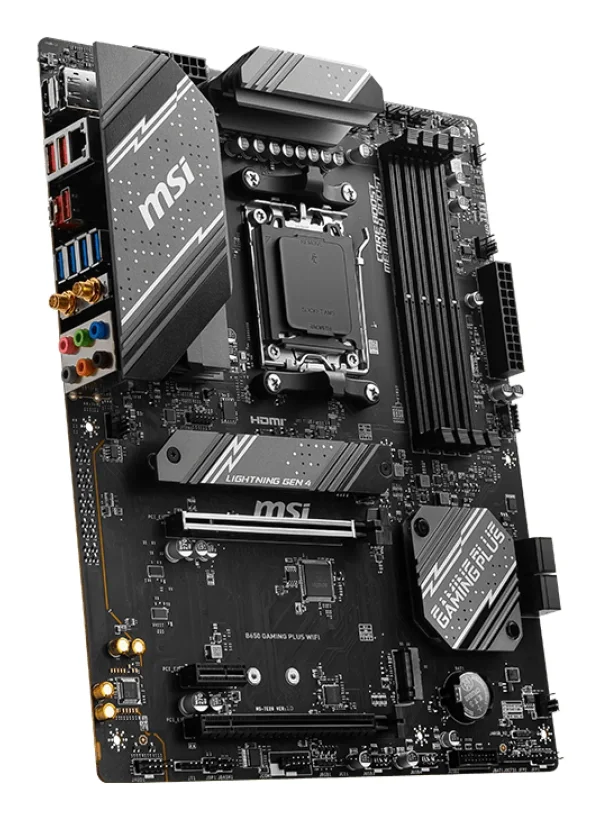

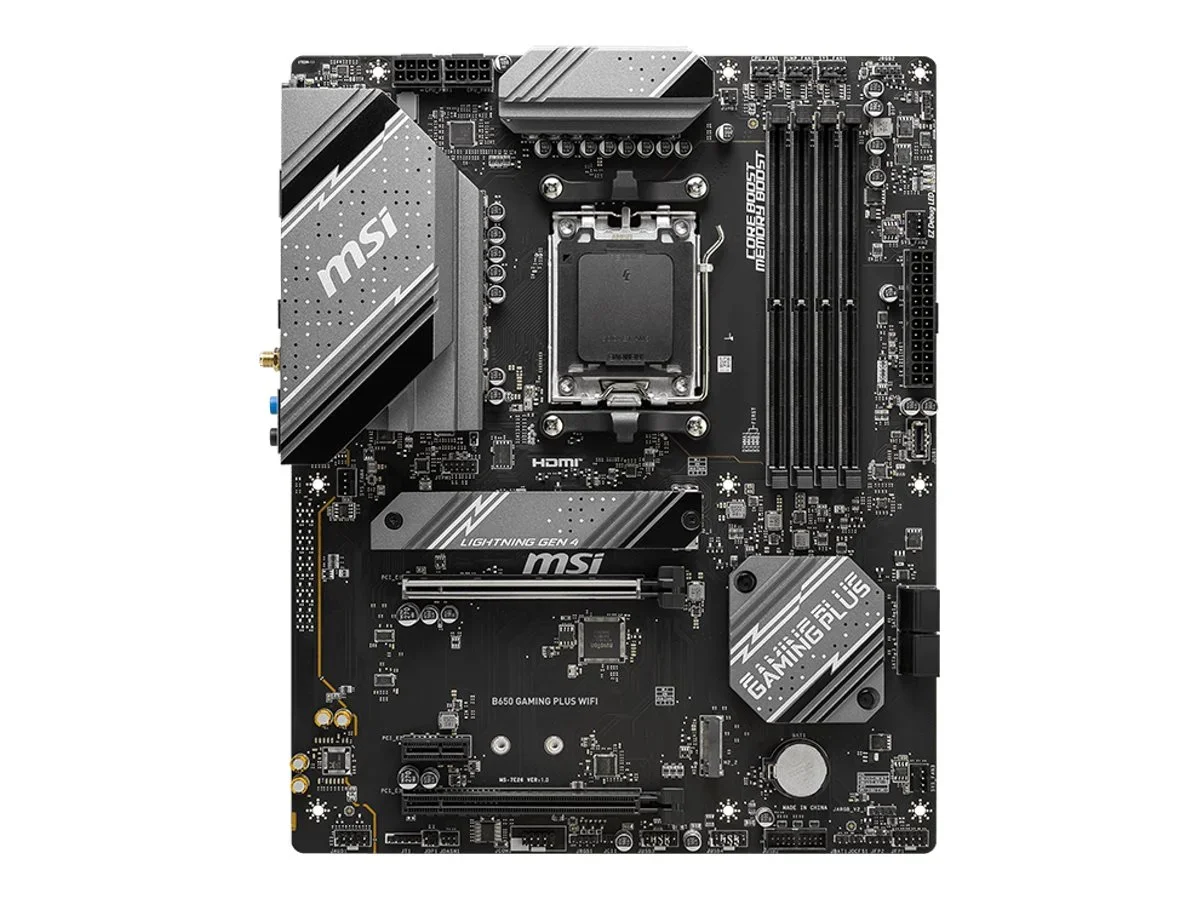

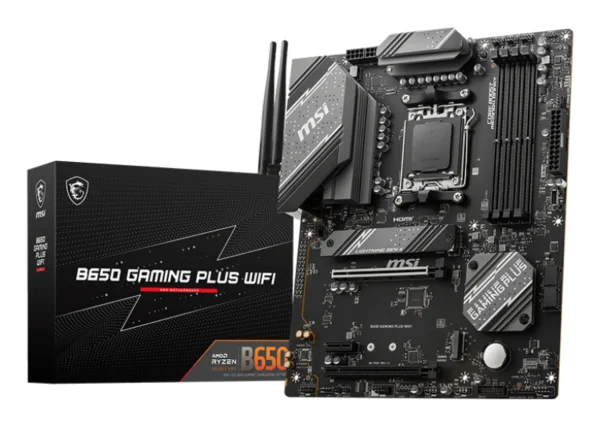

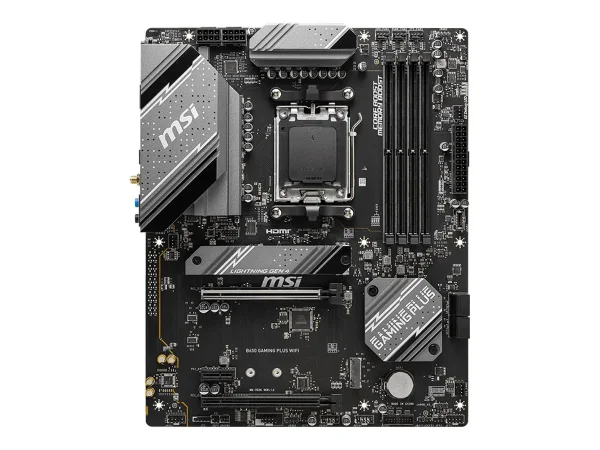

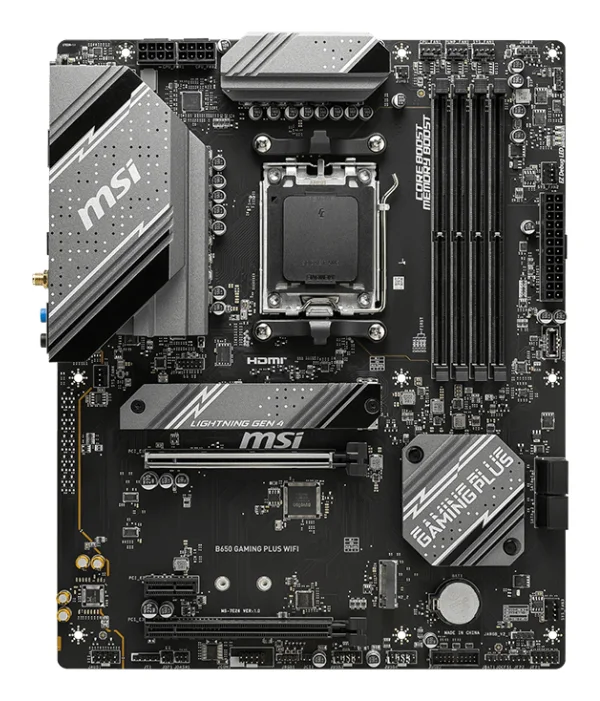

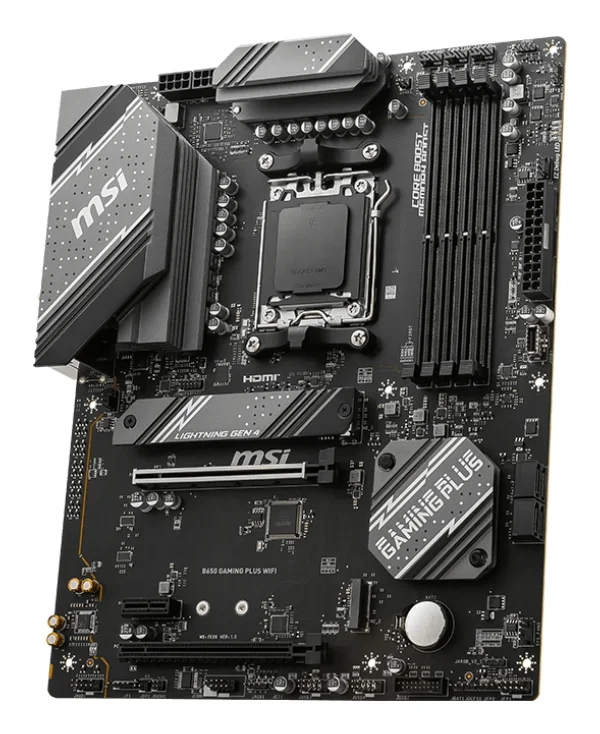

MSI B650 Gaming Plus WiFi AM5 Atx MB
MSI B650 GAMING PLUS WIFI AM5 ATX MB 4xDDR5 4xSATA 2xM.2
| EAN/GTIN | 4711377098052 |
| Hersteller-Nr. | 7E26-001R |
| Hersteller | MSI |
| Herkunftsland | Taiwan |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Prozessor
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM5 |
| Kompatible Prozessoren | AMD Ryzen 7000 Series |
| Unterstützte Prozessorsteckplätze | Sockel AM5 |
Speicher
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Unterstützte Speichertaktrate (max.) | 6000 MHz |
| RAM-Speicher maximal | 192 GB |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 10 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Eingebaute Grafikadapter | Nein |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Chassis Intrusion Stecker | Ja |

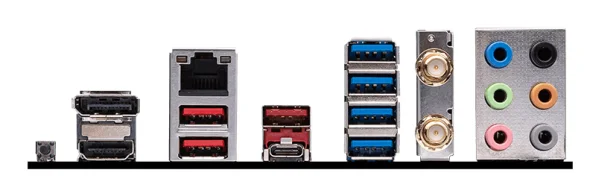

E/A-Anschlüsse auf der Rückseite
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 3 |
| USB 3.2 Gen 2x2 Typ-C Anzahl Anschlüsse | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Realtek RTL8125B |
| WLAN | Ja |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Ja |
| Bluetooth-Version | 5.3 |
Merkmale
| Motherboard Chipsatz | AMD B650 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| PC Gesundheitsüberwachung | Ventilator |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | AMD |
| Unterstützt Windows-Betriebssysteme | Windows 11 x64 |
Erweiterungssteckplätze
| PCI-Express x16-Slots | 2 |
| PCI-Express x16 (Gen 3.x)-Anschlüsse | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
Gewicht und Abmessungen
| Breite | 243,8 mm |
| Tiefe | 304,8 mm |
Specs: Icecat.biz
| Länge | 35,00 cm |
| Breite | 27,00 cm |
| Höhe | 6,50 cm |
| Gewicht | 1,55 kg |
