MED-PJ-8320

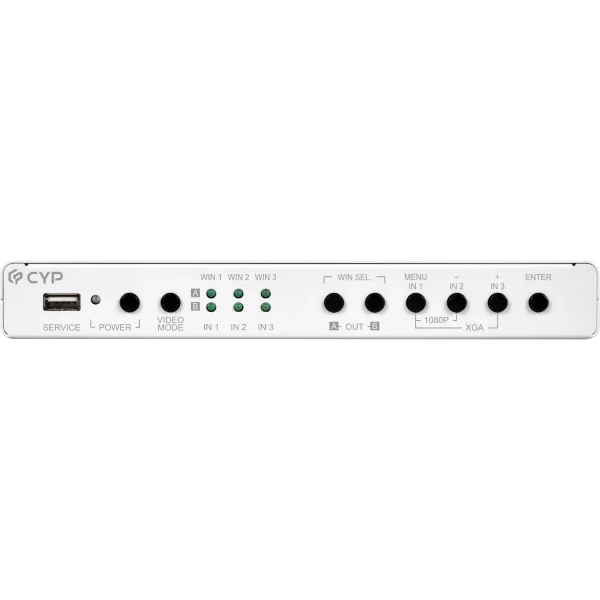

Supports SDI input distance up to 60 meters, HDMI input/output with 18Gbps (600MHz) 4K UHD, Seamless switching (no loss of sync to display) when switching sources in 3x2 matrix mode, Supports PiP (Picture-in-Picture), PoP, Side-by-Side and Auto display options with independent audio source selection, Supports the ability to store a multi-window arrangement as a preset that can be recalled later, Each window can have a border with a selectable color, EDID management, Uploadable and freely positioned graphic logo support, Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI, Controllable via front panel buttons, WebGUI, Telnet, RS-232

Hersteller-Nr.	MED-PJ-8320
Hersteller	Cypress Technology

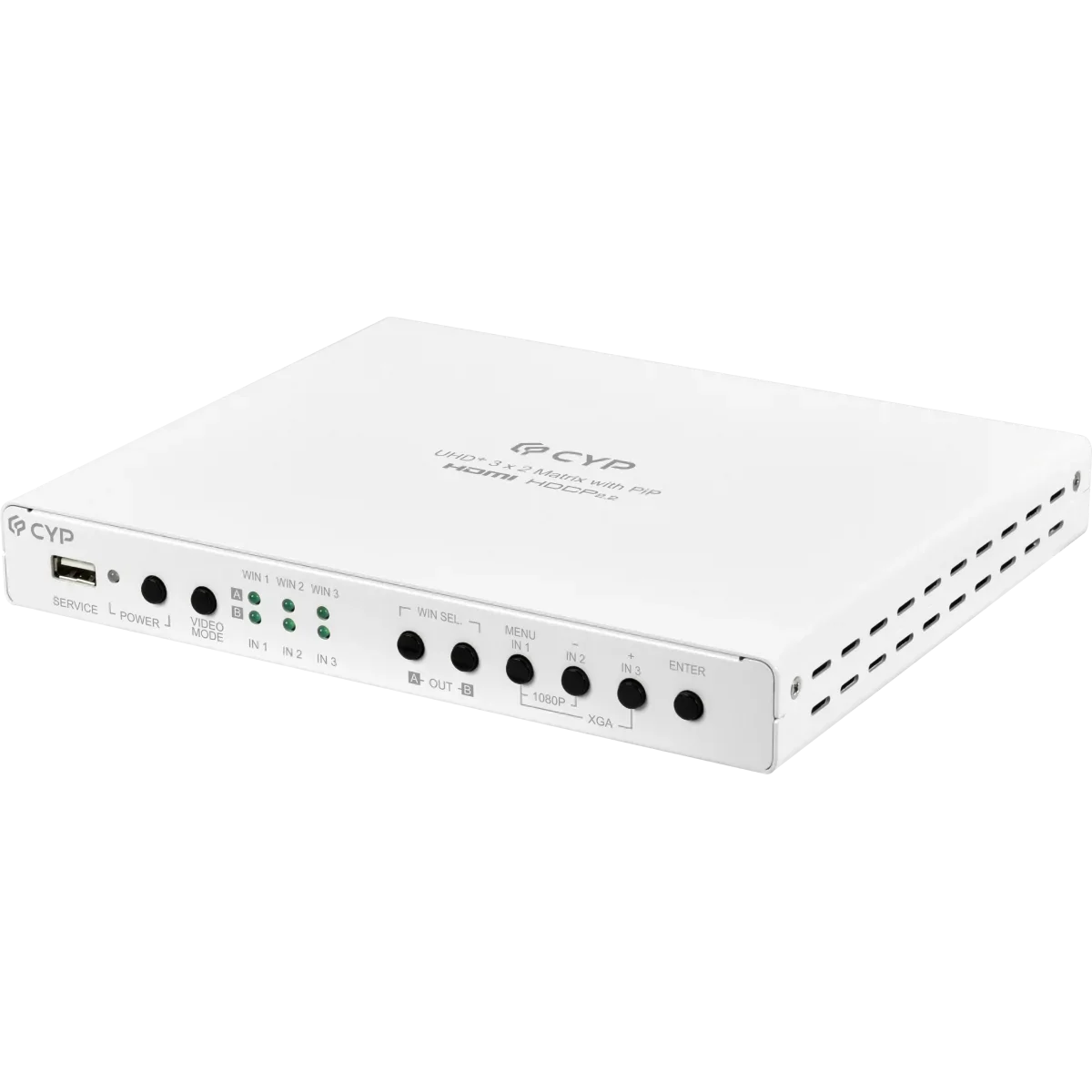

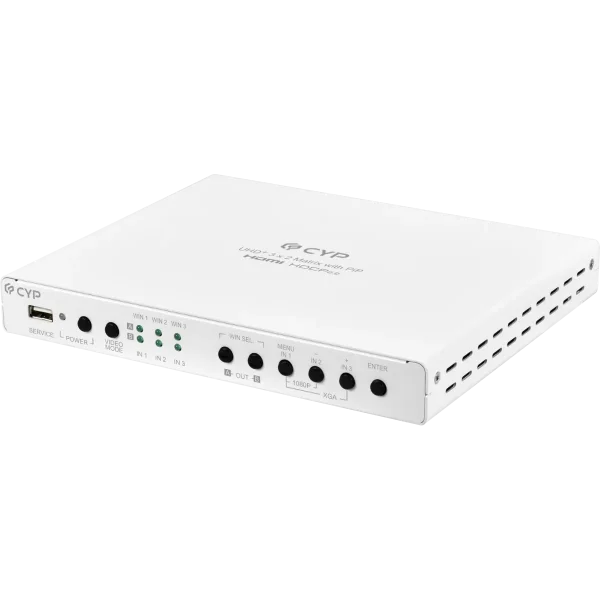

This 3 by 2 Matrix is a high performance switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple medical sources such as endoscope, X-Ray system, ultrasonic, Da Vinci Surgical System…etc. simultaneously during operation or diagnosis. Video resolutions (SDI & HDMI) up to 4K@60Hz and LPCM audio up to 7.1 channels and 192kHz are supported on both input and output and this unit is fully compatible with the HDCP 2.x standards.

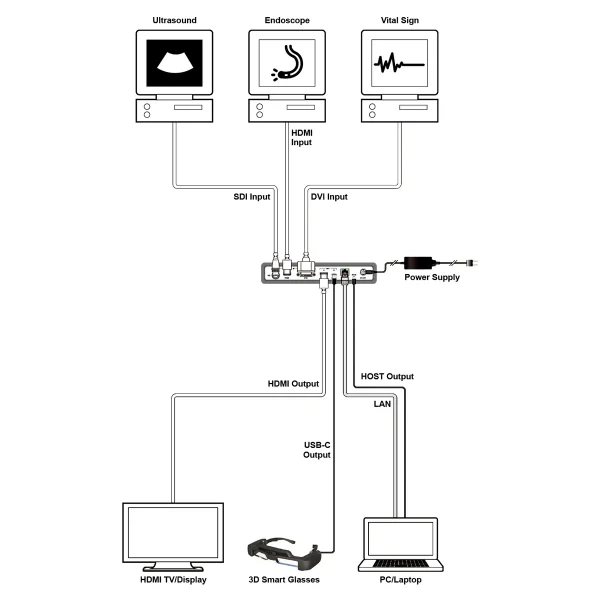

Any of 3 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including PiP, PoP, Side-by-Side, Auto display with the output being sent to general HDMI display and 3D Smart Glasses. Management of input/window routing, position and sizing can be controlled easily by use of the front panel controls as well as by WebGUI, RS-232, Telnet, options.

Interfaces

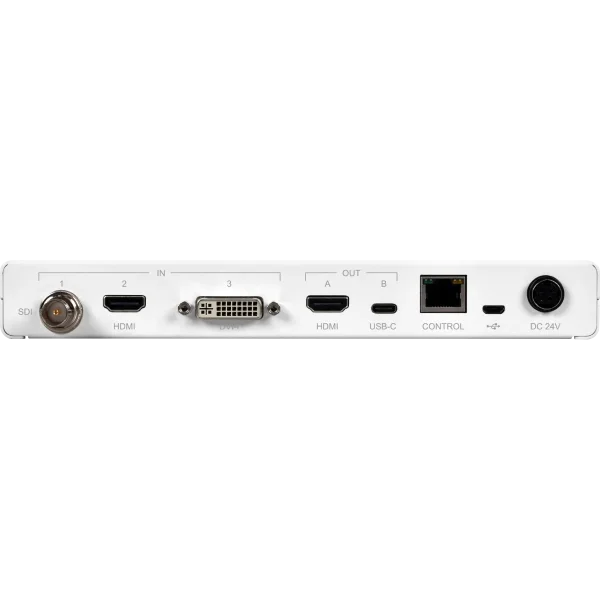

Input Port	1×SDI (BNC) 1×HDMI (Type-A) 1×DVI-I (Single Link)
Output Port	1×HDMI (Type-A) 1×USB (Type-C)
Control I/O	1×IP Control (RJ-45) 1×USB (Micro-B)
Service Port	1×USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Type	SDI	4096×2160p@60 YUV 4:4:4
	HDMI	4096×2160p@60 RGB 4:4:4
	DVI-I	1920x1080p@60 RGB 4:4:4
Output Signal Type	HDMI	4096×2160p@60 RGB 4:4:4
	USB-C	4096×2160p@60 RGB 4:4:4
