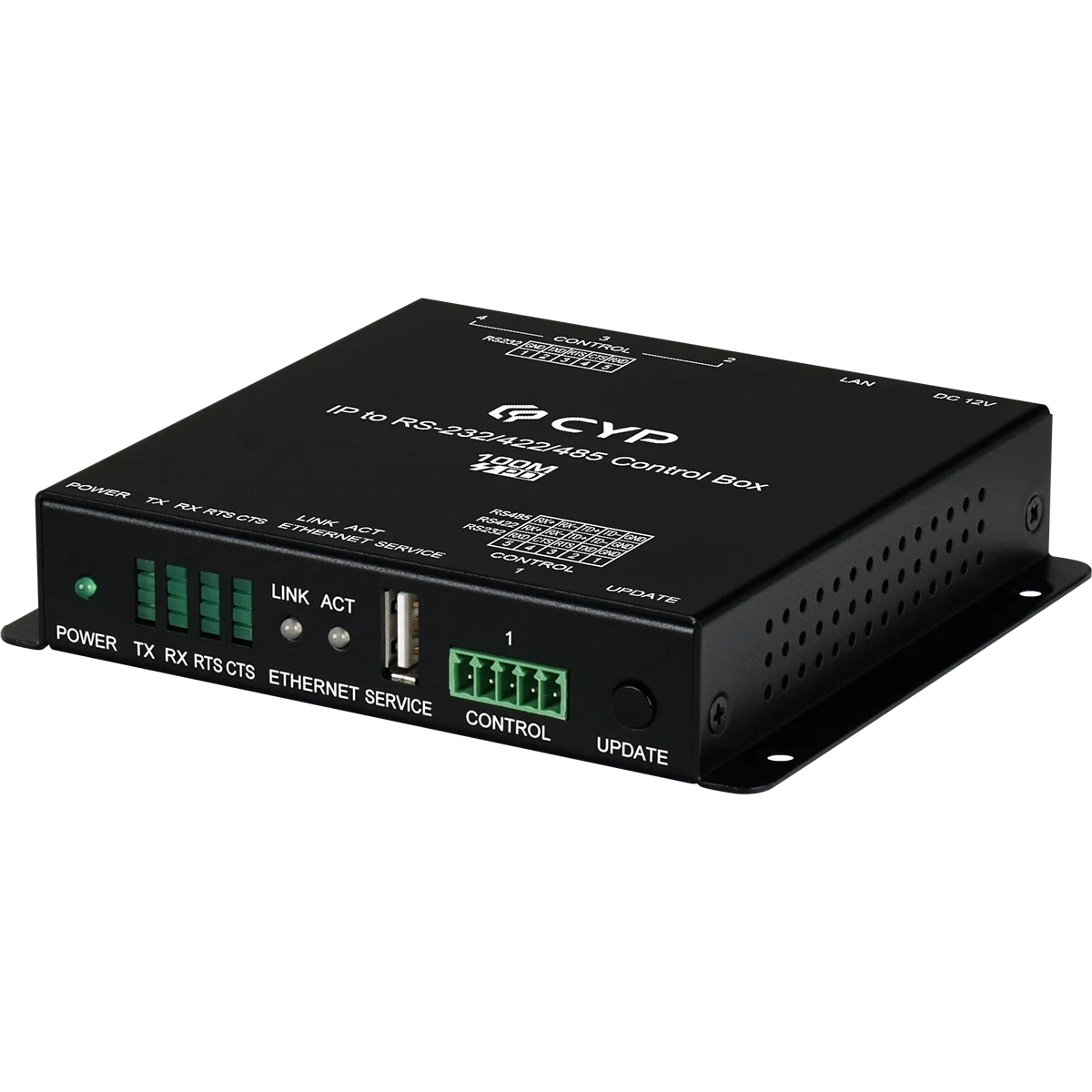

IP to RS-232/422/485 Control Box

Supports one RS-232/422/485 port and three RS-232 ports, Enables control of up to four devices simultaneously, Supports multiple user control interfaces including WebGUI and Telnet, Easy access of serial settings and console for serial ports via WebGUI, Supports IEEE 802.1x RTS/CTS protocol, Supports Power over Ethernet (PoE), providing incredible installation flexibility, LED indicates the unit’s status for confirmation, Firmware can be easily updated in the field either via USB using the hotkey or through WebGUI

Hersteller-Nr.	CDPS-IPSerial-4
Hersteller	Cypress Technology

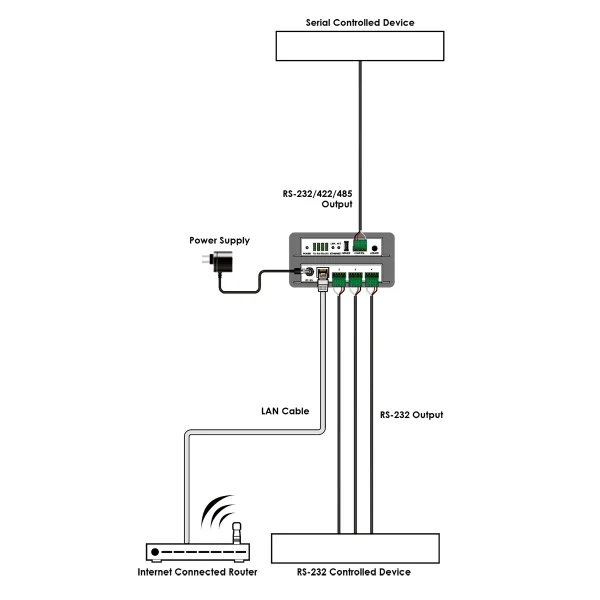

The Control System Center is a useful tool for users to control various devices which supports one RS-232/422/485 port and three RS-232 ports. Users can connect up to four devices simultaneously and control them via a 3 (or 5)-pin phoenix connector to send RS-232/422/485 commands from this unit. Comprehensive user control interfaces are available, including WebGUI and Telnet.

This unit supports Power over Ethernet (PoE), enabling it to be powered directly from a standard PoE network switch without requiring an external power adapter. This provides installation flexibility.

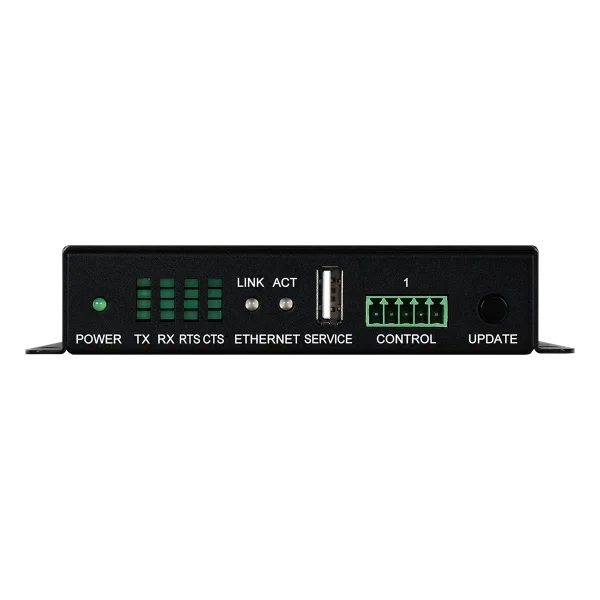

The LEDs on the board provide status indicators for users to check: power and Ethernet status. It supports IEEE 802.1x RTS/CTS protocol to avoid hidden stations. The unit also provides a hotkey for convenient firmware update.

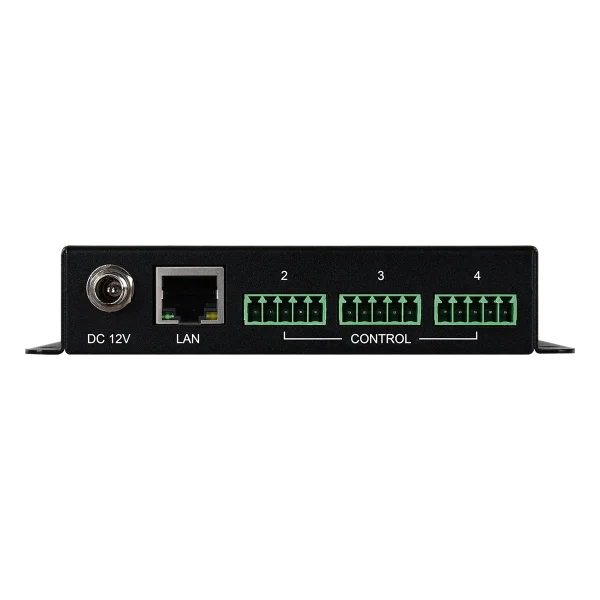

Interfaces

Pass-through Port

1×LAN (RJ-45)

1xRS-232/422/485(5-pin Terminal Block)

3xRS-232(5-pin Terminal Block)

Service Port

1xUSB 2.0 (Type-A)

Power
Power Supply	12V/1.25A
Power Consumption	5.736W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×116.3mm [All Inclusive]
Weight	367g
