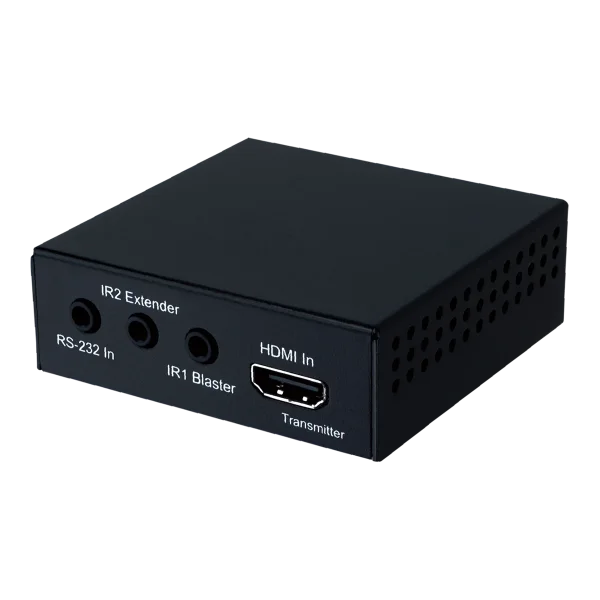

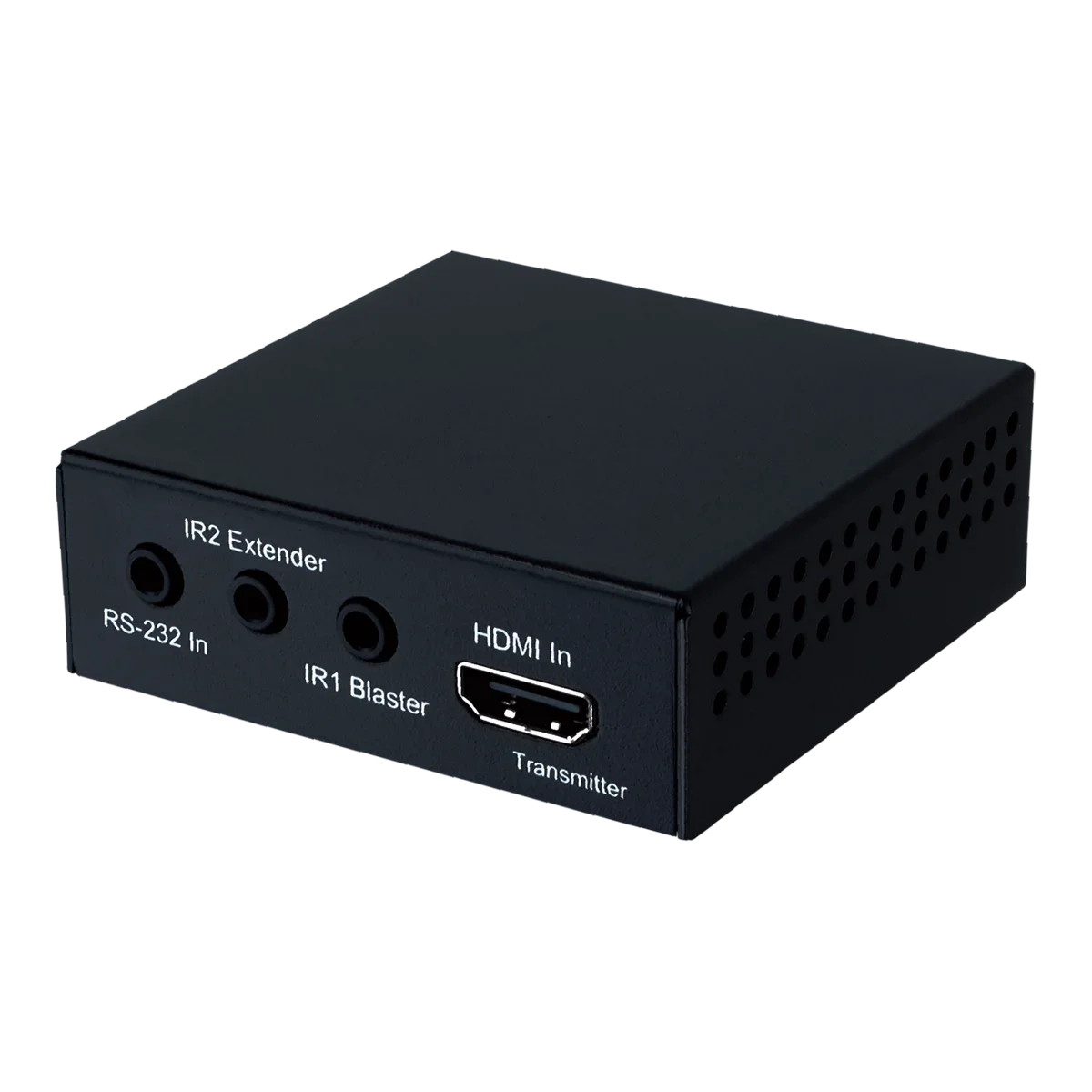

HDMI to CAT5e/6/7 Transmitter (4K@60 420 up to 35M)

RS-232 with baud rate up to 115200/sec, Supports wide range of IR frequency from 30~50kHz, Supports HDMI 3D and 4K x 2K features, Supports HDCP repeater and CEC bypass, Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, Supports bidirectional IR and PoC, Supports HDBaseT Lite Technology

Hersteller-Nr.	CH-506TXPLBD
Hersteller	Cypress Technology

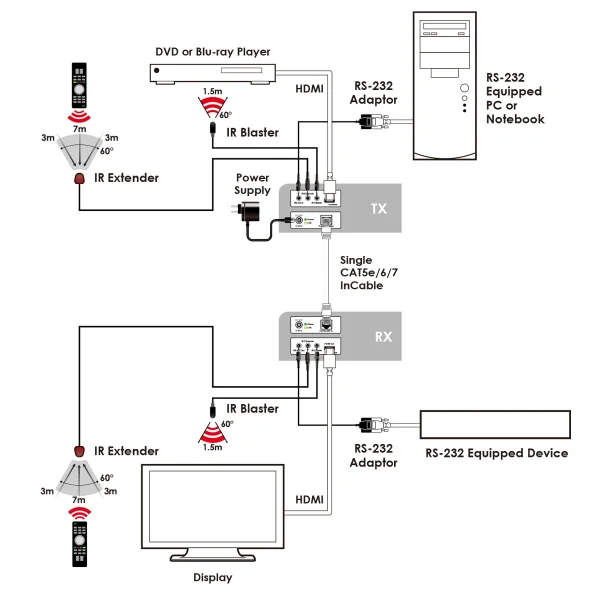

The HDBaseT-LiteTM HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC Transmitter and Receiver set can make your home or offi ce set-up more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters at 1080p or 40 meters at 4K. with the PoC function and added benefi t of controls through the builtin RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.

Interfaces

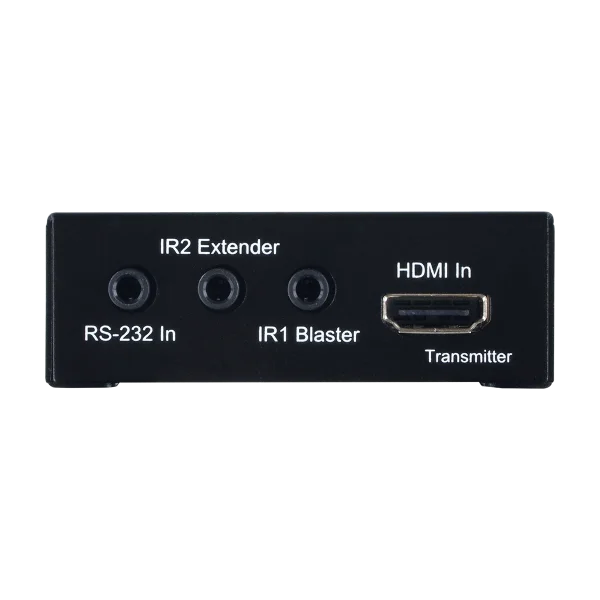

Input Port	HDMI(Type-A) IR Extender (3.5mm) RS-232 (3.5mm)

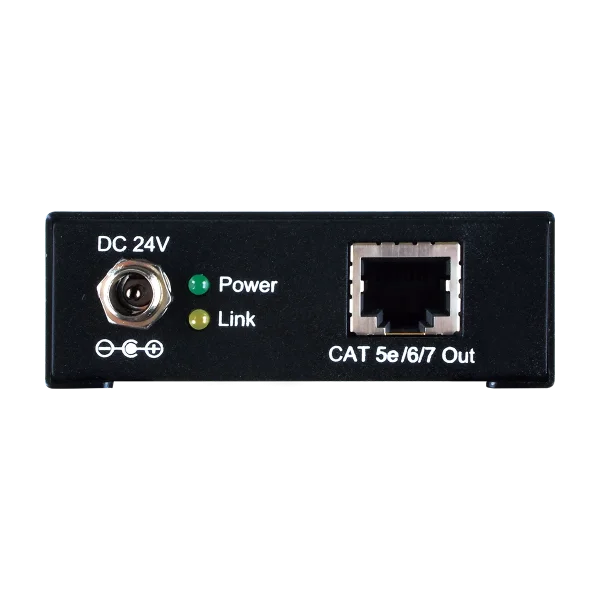

Output Port	HDBaseT (RJ-45) IR Blaster (3.5mm)

Video
HDMI Compliance	HDMI2.0 (DVI1.0)
HDCP Compliance	HDCP 2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	HDBaseT6/7	4096x2160p@60 YUV 4:2:0

Power
Power Supply	24V/1.25A DC (US/EU standards, CE/FCC/UL certifi ed)
Power Consumption	3W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	71 mm x 23 mm x 73.5 mm [Case Only] 71 mm x 23 mm x 79 mm [All Inclusive]
Weight	120g
