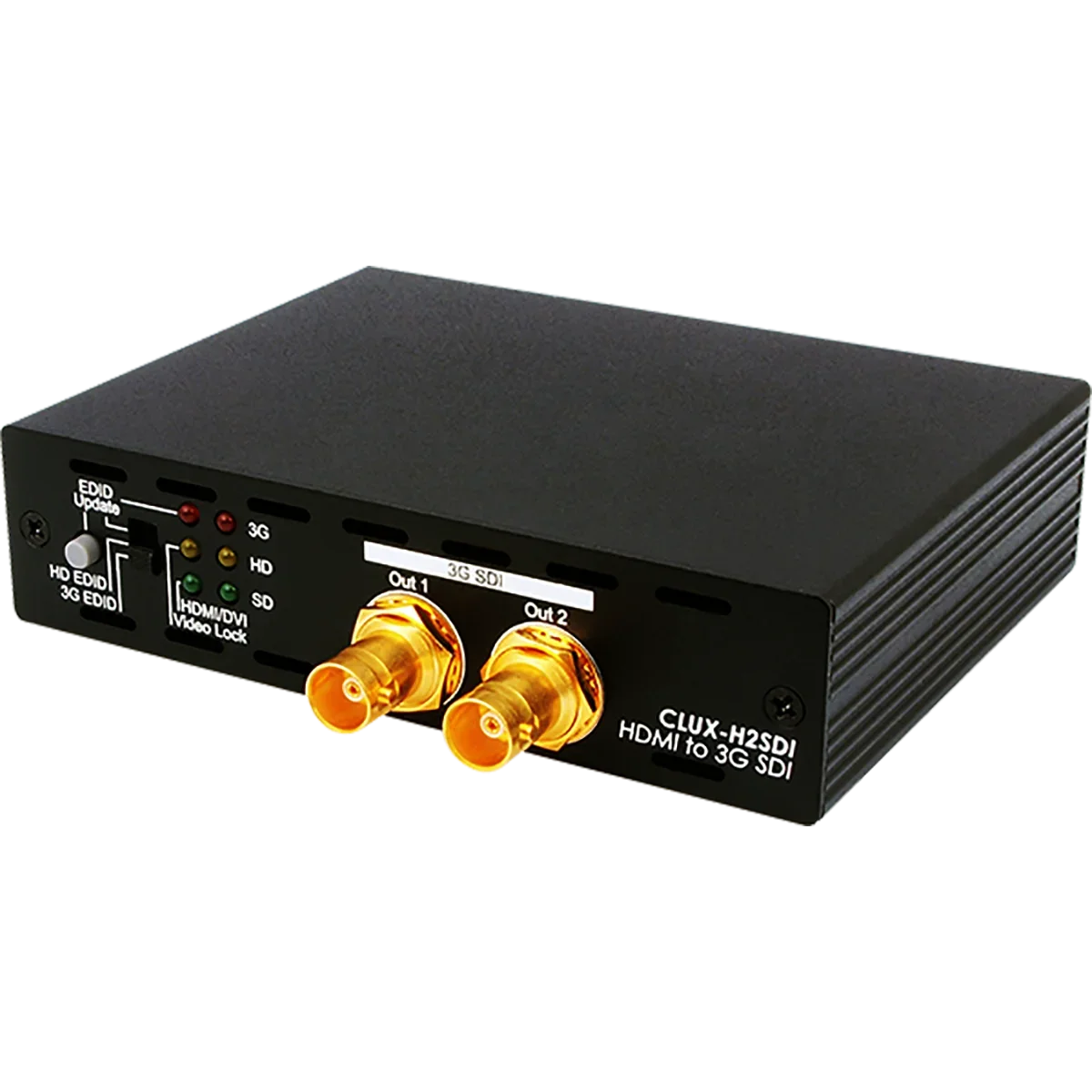

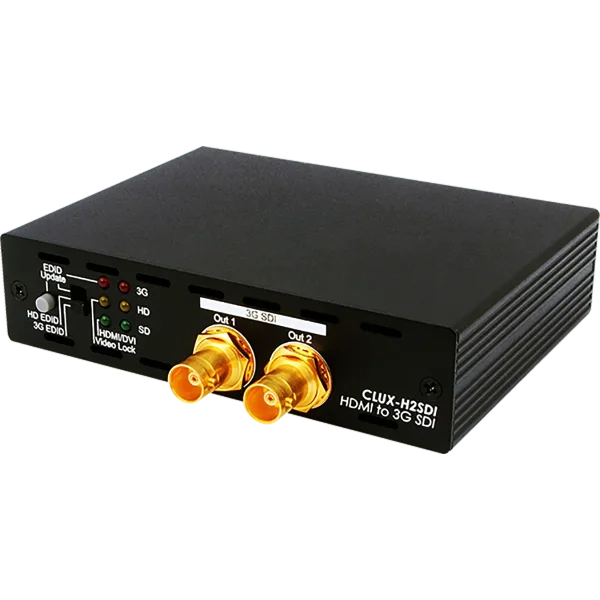

HDMI to 3G SDI Dual-Output Converter

Shows HDMI source on two SDI displays simultaneously , SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s , Converts HDMI signal to SDI:, 1. 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)2. 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s) 3. 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60 , Choose between a selectable EDID and recordable EDID , Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio , Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) , Note: 1. Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications. 2. This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.

Hersteller-Nr.	CLUX-H2SDI
Hersteller	Cypress Technology

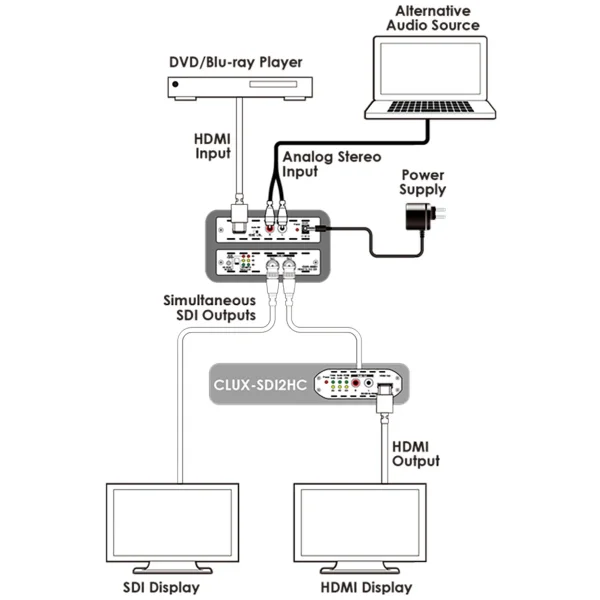

The HDMI to SDI Converter allows HDMI signals to be shown on two SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI displays. Also, a 2 CH L/R audio input allows DVI signal with 2CH audio to be converted to SDI in order to be shown on SDI displays. Furthermore, the device has a built-in default EDID and a recordable EDID that guarantee image display compatibility with source equipment.

SDI Transmission Rates	2.970 Gbps, 2.970/1.001Gbps, 1.485 Gbps, 1.485/1.001Gbps & 270 Mbps
Video Bandwidth	225 MHz/6.75Gbps

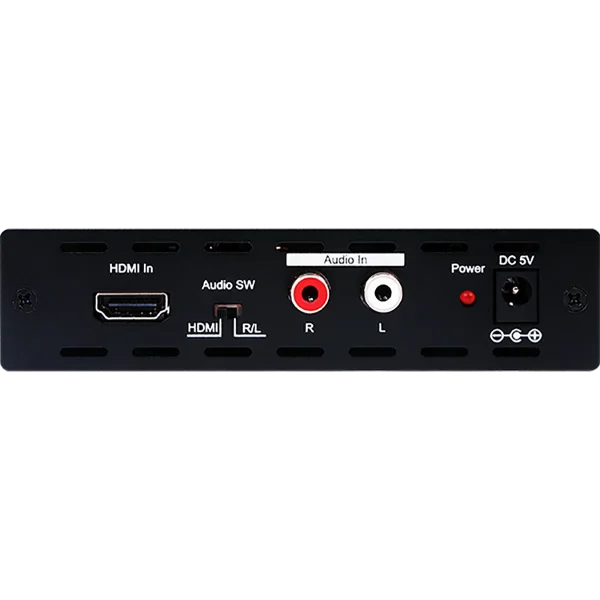

Input	1×HDMI, 1×Stereo Audio (R/L)

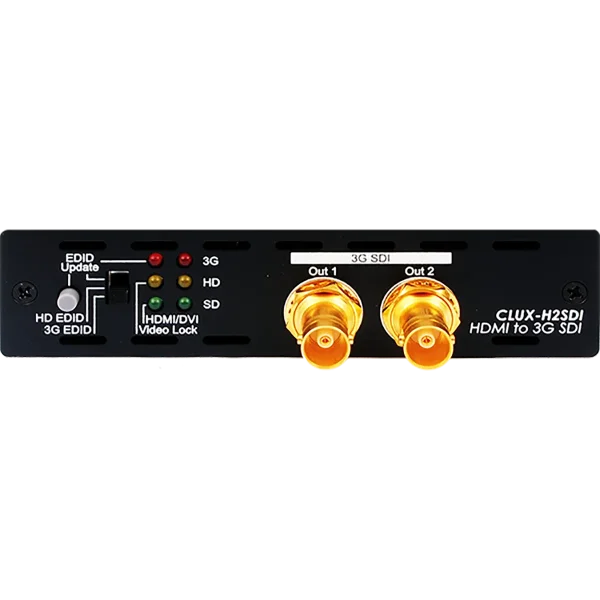

Output	2×BNC (SD/HD/3G-SDI)
	480i@59.94, 576i, 720p@50/59.94/60
HDMI Timing Support	1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60
	SD-SDI: SMPTE 259M-C, 270 Mbit/s
SDI Timing Support	HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s
	3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s
SDI Cable Distance	3G/HD/3G-SDI up to 100 /200/300 meters with BELDEN 1694A Cable
Power Supply	5 V DC/2.6 A (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human body model:	±8 kV (Air-gap discharge) ±4 kV (Contact discharge)
Dimensions (mm)	125 mm (W)×115 mm (D)×30 mm (H)
Weight(g)	275 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−20ºC~60ºC/−4 ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	5.5 W
